数据分析

数据获取地址：
链接：https://pan.xunlei.com/s/VMX5JAhFN7ZmPaaCVsHQEVkrA1 提取码：hmtz

一、数据详情

1.导入相关库

#coding:utf-8
#导入warnings包，利用过滤器来实现忽略警告语句。
import warnings
warnings.filterwarnings('ignore')

import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
import seaborn as sns
from tqdm import tqdm
import multiprocessing as mp
import os
import pickle
import random
# 把读取所有数据的函数放在单独的python文件中，是为了解决多线程问题在jupyter notebook无法运行的问题
import read_all_data

将下面函数保存为名：read_all_data.py即可完成数据读取的模块。

# -*- codeing = utf-8 -*-

import pandas as pd
def read_train_file(filename=None):
    # 替换数据存放的路径
    Path = "E:/Users/lenovo/Desktop/比赛学习实践练习合集/智慧海洋/数据/hy_round1_train_20200102/"
    return pd.read_csv(Path + filename,encoding="utf-8")

def read_test_file(filename=None):
    # 替换数据存放的路径
    Path = "E:/Users/lenovo/Desktop/比赛学习实践练习合集/智慧海洋/数据/hy_round1_testA_20200102/"
    return pd.read_csv(Path + filename,encoding="utf-8")

2.读取数据

定义加载和存储数据的函数：

class Load_Save_Data():
    def __init__(self,file_name=None):
        self.filename = file_name

    def load_data(self,Path=None):
        if Path is None:
            assert self.filename is not None,"Invalid Path...."
        else:
            self.filename = Path
        with open(self.filename,"wb") as f:
            data = pickle.load(f)
        return data

    def save_data(self,data,path):
        if path is None:
            assert self.filename is not None,"Invalid path...."
        else:
            self.filename = path
        with open(self.filename,"wb") as f:
            pickle.dump(data,f)

定义读取数据的函数：

# 定义读取数据的函数
def read_data(Path,Kind=""):
    """
    :param Path:待读取数据的存放路径
    :param Kind:'train' of 'test'
    """

    # 替换成数据存放的路径
    filenames = os.listdir(Path)
    print("\n@Read Data From"+Path+".........................")
    with mp.Pool(processes=mp.cpu_count()) as pool:
        data_total = list(tqdm(pool.map(read_all_data.read_train_file if Kind == "train" else
                                        read_all_data.read_test_file,filenames),total=len(filenames)))
    print("\n@End Read total Data............................")
    load_save = Load_Save_Data()
    if Kind == "train":
        load_save.save_data(data_total,"./data_tmp/total_data.pkl")
    return data_total

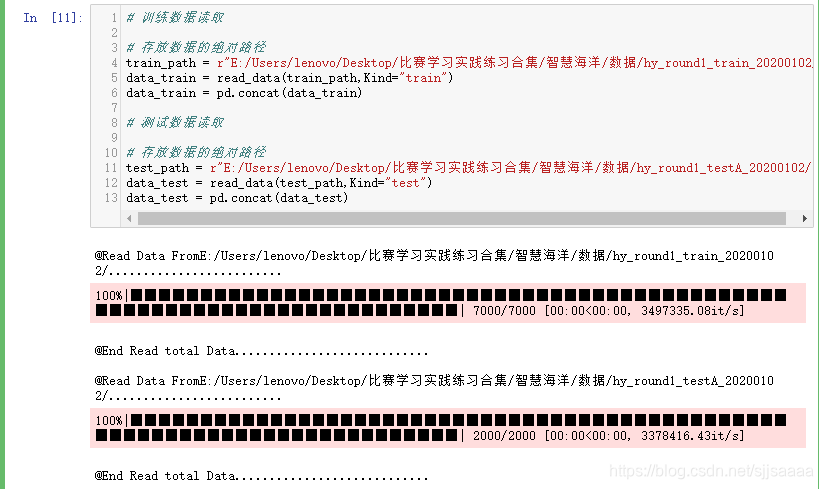

训练集和测试集的数据获取：

# 训练数据读取

# 存放数据的绝对路径
train_path = "D:/code_sea/data/train/hy_round1_train_20200102/"
data_train = read_data(train_path,Kind="train")z
data_train = pd.concat(data_train)

# 测试数据读取

# 存放数据的绝对路径
test_path = "D:/code_sea/data/test/hy_round1_testA_20200102/"z
data_test = read_data(test_path,Kind="test")
data_test = pd.concat(data_test)

3.查看数据情况

维度：

data_test.shape
data_train.shape
data_train.columns  #题目

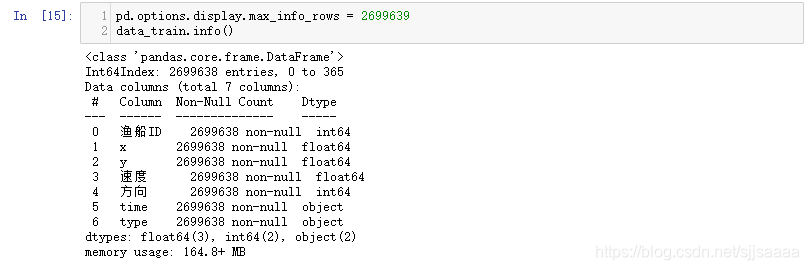

数据类型：

pd.options.display.max_info_rows = 2699639
data_train.info()

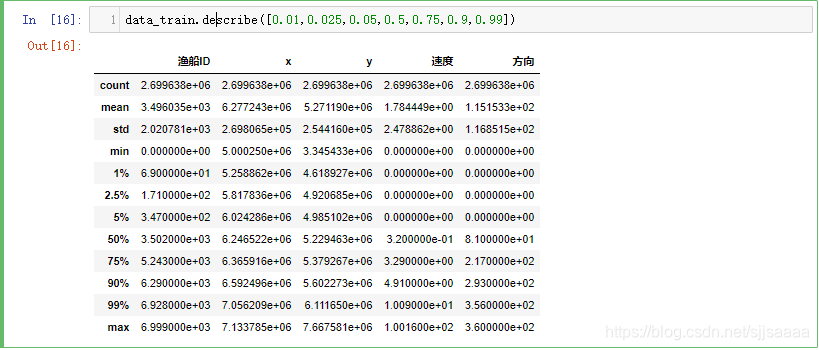

数据的基本情况：

data_train.describe([0.01,0.025,0.05,0.5,0.75,0.9,0.99])

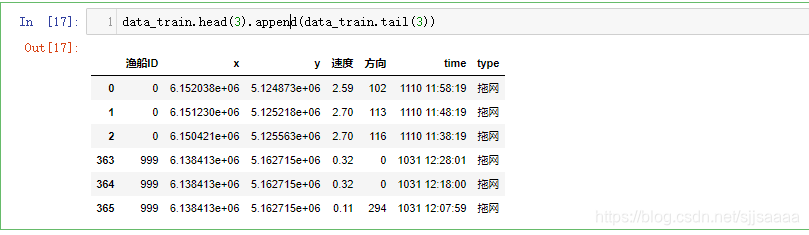

查看数据前后各三行数据：

data_train.head(3).append(data_train.tail(3))

二、缺失值和唯一值

缺失值：

print(f'There are {data_train.isnull().any().sum()} columns in train dataset with missing values.')

没有缺失值。

查看训练集和测试集的唯一值：

one_value_fea = [col for col in data_train.columns if data_train[col].nunique() <= 1]
one_value_fea_test = [col for col in data_test.columns if data_test[col].nunique() <= 1]
one_value_fea
one_value_fea_test

没有哪个列具有唯一值。

三、数据特性和特征分布

1.三类渔船轨迹可视化

把训练集的所有数据,根据类别存放到不同的数据文件中：

def get_diff_data():
    Path = "./data_tmp/total_data.pkl"
    with open(Path,"rb") as f:
        total_data = pickle.load(f)

    load_save = Load_Save_Data()

    kind_data = ["刺网","围网","拖网"]
    file_names = ["ciwang_data.pkl","weiwang_data.pkl","tuowang_data.pkl"]
    for i,datax in enumerate(kind_data):
        data_type =  [data for data in total_data if data["type"].unique()[0] == datax]
        load_save.save_data(data_type,"./data_tmp/" + file_names[i])

get_diff_data()#执行函数

从存放某个轨迹类别的数据文件中，随机读取某个渔船的数据：

def get_random_one_traj(type=None):
    """
    :param type:"ciwang","weiwang" or "tuowang"
    """

    np.random.seed(10)
    path = "./data_tmp/"
    with open(path + type + ".pkl","rb") as f1:
        data = pickle.load(f1)
    length = len(data)
    index = np.random.choice(length)
    return data[index]

分别从三个类别的数据文件中，随机读取某三个渔船的数据：

def get_random_three_traj(type=None):
    """
    :param type:"ciwang","weiwang" or "tuowang"
    """

    random.seed(10)
    path = "./data_tmp/"
    with open(path + type + ".pkl", "rb") as f:
        data = pickle.load(f)
    data_arrange = np.arange(len(data)).tolist()
    index = random.sample(data_arrange,3)
    return data[index[0]],data[index[1]],data[index[2]]

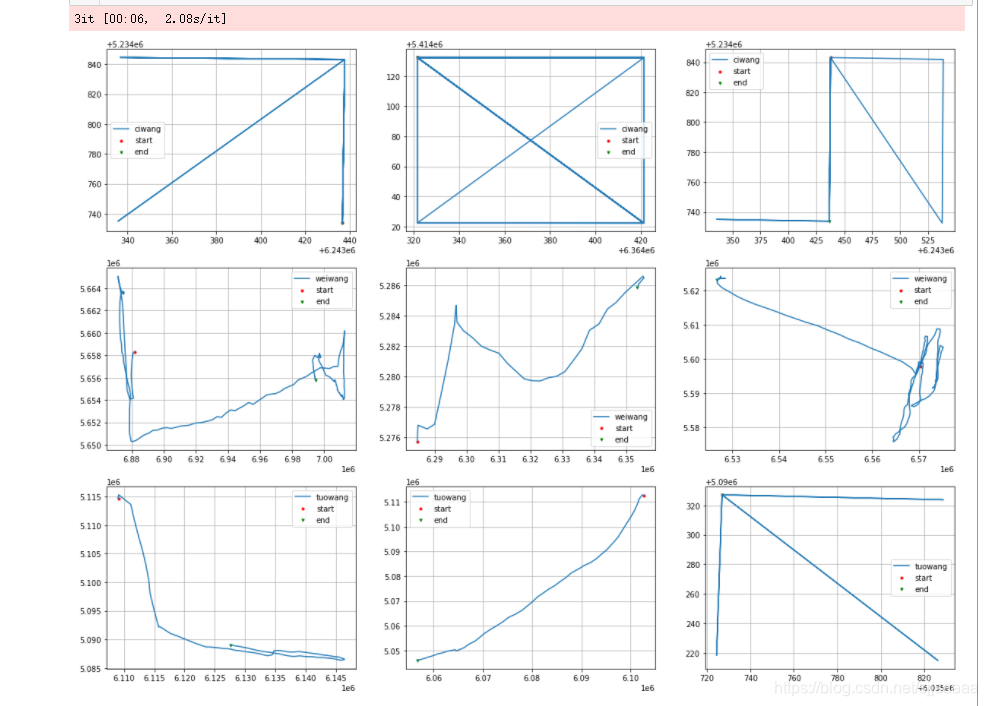

每个类别中随机三个渔船的轨迹进行可视化：

def visualize_three_traj():
    fig,axes = plt.subplots(nrows=3,ncols=3,figsize=(20,15))
    plt.subplots_adjust(wspace=0.2,hspace=0.2)
    # 对于每一个类别，随机选出刺网的三条轨迹进行可视化
    lables = ["ciwang","weiwang","tuowang"]
    for i,file_type in tqdm(enumerate(["ciwang_data","weiwang_data","tuowang_data"])):
        data1, data2, data3 = get_random_three_traj(type=file_type)
        for j, datax in enumerate([data1, data2, data3]):
            x_data = datax["x"].loc[-1:].values
            y_data = datax["y"].loc[-1:].values
            axes[i][j - 1].scatter(x_data[0], y_data[0], label="start", c="red", s=10, marker="8")
            axes[i][j - 1].plot(x_data, y_data, label=lables[i])
            axes[i][j - 1].scatter(x_data[len(x_data) - 1], y_data[len(y_data) - 1], label="end", c="green", s=10,
                                   marker="v")
            axes[i][j - 1].grid(alpha=2)
            axes[i][j - 1].legend(loc="best")

    plt.show()
visualize_three_traj()

可以看到不同轨迹有不同的变化，但是仍然不具有很强的区分性。

通过取不同的随机数，发现存在异常轨迹，轨迹中只存在几个点。

2 坐标序列可视化

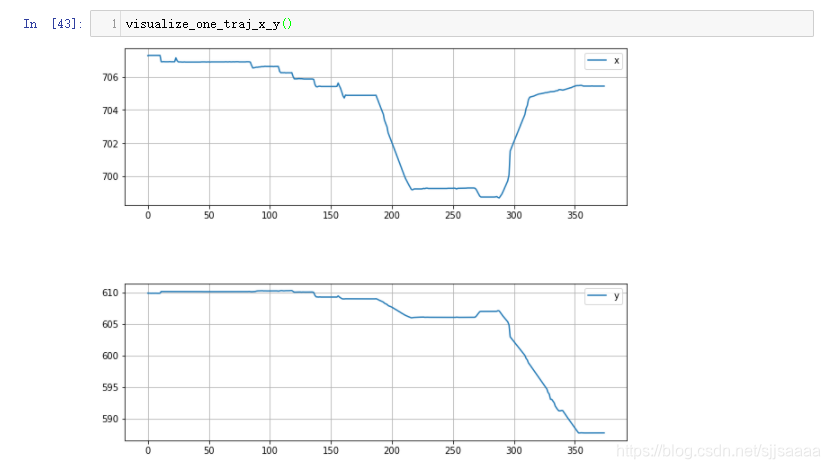

随机选取某条数据，观察x坐标序列和y坐标序列的变化情况：

def visualize_one_traj_x_y():
    fig,axes = plt.subplots(nrows=2,ncols=1,figsize=(10,8))
    plt.subplots_adjust(wspace=0.5,hspace=0.5)

    data1 = get_random_one_traj(type="weiwang_data")
    x = data1["x"].loc[-1:]
    x = x / 10000

    y = data1["y"].loc[-1:]
    y = y / 10000

    arr1 = np.arange(len(x))
    arr2 = np.arange(len(y))

    axes[0].plot(arr1,x,label="x")
    axes[1].plot(arr2,y,label="y")
    axes[0].grid(alpha=3)
    axes[0].legend(loc="best")
    axes[1].grid(alpha=3)
    axes[1].legend(loc="best")
    plt.show()

visualize_one_traj_x_y()

通过对坐标x和坐标y序列的可视化，发现两个序列存在同时不变的情况，因此可以判断存在POI点。

3.三类渔船速度和方向可视化

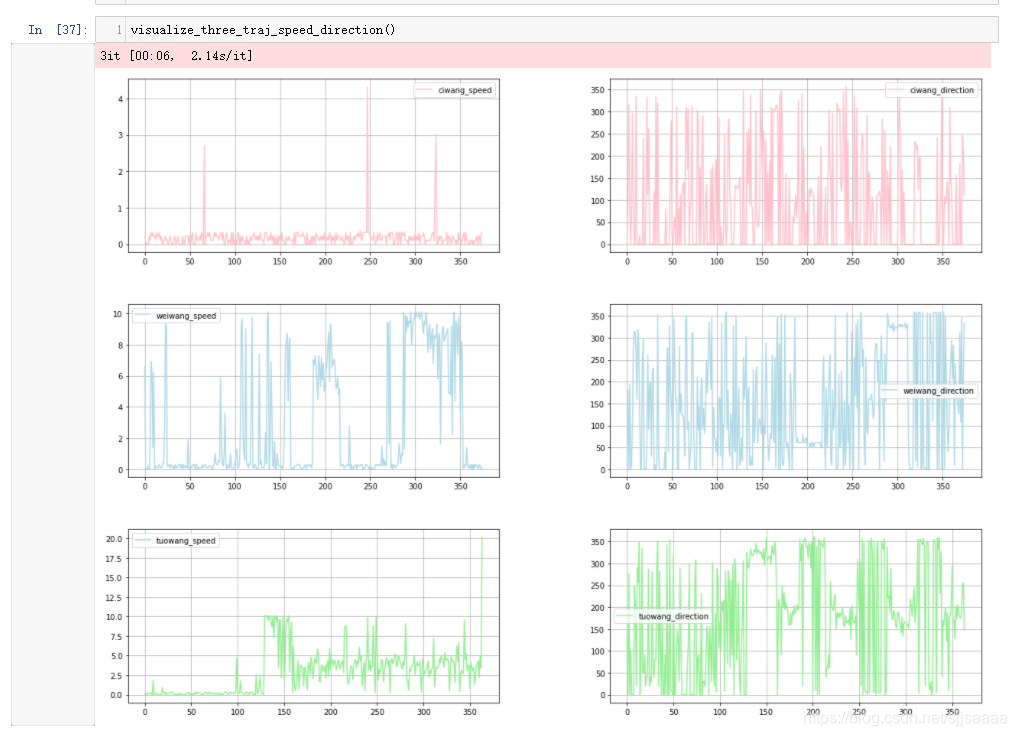

每类轨迹，随机选取某个渔船，可视化速度序列和方向序列:

def visualize_three_traj_speed_direction():
    fig,axes = plt.subplots(nrows=3,ncols=2,figsize=(20,15))
    plt.subplots_adjust(wspace=0.3,hspace=0.3)
    # 随机选出刺网的三条轨迹进行可视化
    file_types = ["ciwang_data","weiwang_data","tuowang_data"]
    speed_types = ["ciwang_speed","weiwang_speed","tuowang_speed"]
    doirections = ["ciwang_direction","weiwang_direction","tuowang_direction"]
    colors = ['pink', 'lightblue', 'lightgreen']
    for i,file_name in tqdm(enumerate(file_types)):
        datax = get_random_one_traj(type=file_name)
        x_data = datax["速度"].loc[-1:].values
        y_data = datax["方向"].loc[-1:].values
        axes[i][0].plot(range(len(x_data)), x_data, label=speed_types[i], color=colors[i])
        axes[i][0].grid(alpha=2)
        axes[i][0].legend(loc="best")
        axes[i][1].plot(range(len(y_data)), y_data, label=doirections[i], color=colors[i])
        axes[i][1].grid(alpha=2)
        axes[i][1].legend(loc="best")

    plt.show()

visualize_three_traj_speed_direction()

不同轨迹速度的数据分布，均存在连续的低值，因此强化了对POI点存在的判断。
每个类别的渔船方向变化很快，可以判定为渔船在海上漂泊造成，因此此特征对于类别的判断不具有很强的区分性。

4.三类渔船速度和方向的数据分布

对某一特征进行数据统计

def get_data_cummulation(type=None,path=None,kind=None,columns=None):
    """
    :param type:"ciwang","weiwang" or "tuowang"
    :param path:存放数据路径
    :param kind: '速度' or  '方向'
    :param columns:与kind对应，'speed' or 'direction'
    """

    data_dict = dict()
    with open(path + type+".pkl","rb") as file:
        data_list = pickle.load(file)
    for datax in tqdm(data_list):
        data = datax[kind].values
        for speed in data:
            data_dict.setdefault(speed,0)
            data_dict[speed] += 1
    data_dict = dict(sorted(data_dict.items(),key=lambda x:x[0],reverse=False))
    data_df = pd.DataFrame.from_dict(data_dict,columns=[columns],orient="index")
    return data_df

分别得到速度和方向的分布数据:

def get_speed_and_direction_distribution_data(type=None):
    """
    :param type:"ciwang","weiwang" or "tuowang"
    """

    path = "./data_tmp/"
    data_speed_df = get_data_cummulation(type=type, path=path,kind="速度",columns="speed")
    data_direction_df = get_data_cummulation(type=type,path=path,kind="方向",columns="direction")
    return data_speed_df,data_direction_df

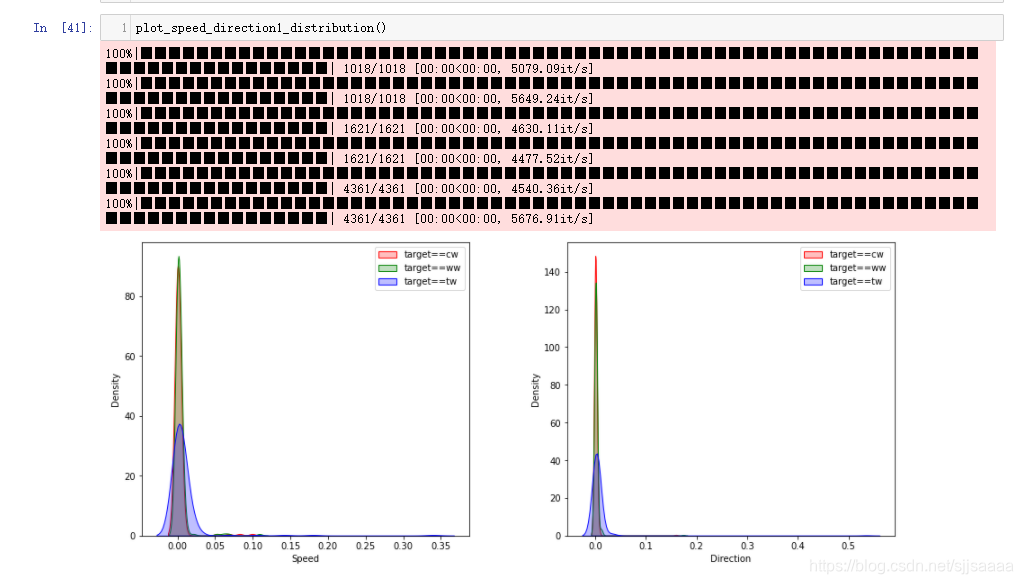

可视化速度和方向的数据分布:

df_speeds = []
df_directions = []


def plot_speed_direction1_distribution():
    plt.subplots(nrows=1, ncols=2, figsize=(15, 6))
    plt.subplots_adjust(wspace=0.3, hspace=0.5)

    file_types = ["ciwang_data", "weiwang_data", "tuowang_data"]
    lables = ["target==cw", "target==ww", "target==tw"]
    colors = ["red", "green", "blue"]

    for i, filenames in enumerate(file_types):
        df11, df21 = get_speed_and_direction_distribution_data(file_types[i])
        plt.subplot(1,2,1)
        ax1 = sns.kdeplot(df11["speed"].values / 1000000, color=colors[i],shade=True)
        plt.subplot(1,2,2)
        ax3 = sns.kdeplot(df21["direction"].values / 1000000, color=colors[i],shade=True)
        df_speeds.append(df11)
        df_directions.append(df21)
    ax1.legend(lables)
    ax1.set_xlabel("Speed")
    ax3.set_xlabel("Direction")
    ax3.legend(lables)
    plt.show()


plot_speed_direction1_distribution()

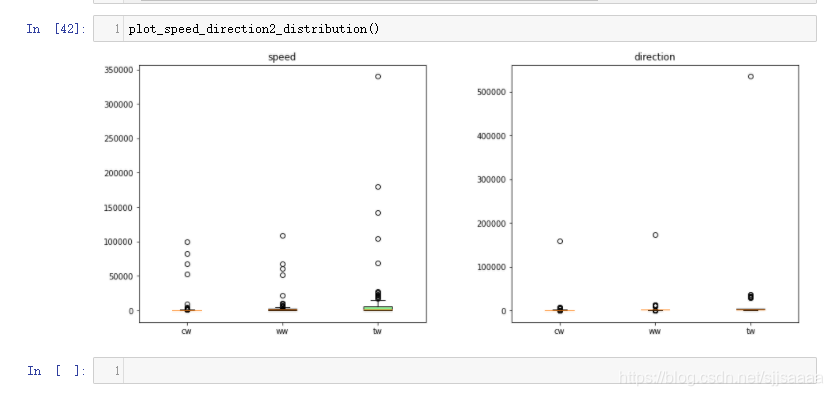

使用分位图对速度和方向的数据分布进行可视化:

def plot_speed_direction2_distribution():
    fig,axes = plt.subplots(nrows=1, ncols=2, figsize=(15, 6))
    plt.subplots_adjust(wspace=0.3, hspace=0.5)
    colors_box = ['pink', 'lightblue', 'lightgreen']

    bplot1 = axes[0].boxplot([df_speeds[0]["speed"].values,df_speeds[1]["speed"].values,df_speeds[2]["speed"].values]
                       , vert=True
                       , patch_artist=True
                       , labels=["cw", "ww", "tw"])
    bplot2 = axes[1].boxplot([df_directions[0]["direction"].values, df_directions[1]["direction"].values, df_directions[2]["direction"].values]
                       , vert=True
                       , patch_artist=True
                       , labels=["cw", "ww", "tw"])

    for blpot in (bplot1,bplot2):
        for patch,color in zip(blpot["boxes"],colors_box):
            patch.set_facecolor(color)

    axes[0].set_title("speed")
    axes[1].set_title("direction")
    plt.show()

plot_speed_direction2_distribution()

无论是分布图，还是分位图，都可以发现不同类型轨迹的速度数据分布存在很大的差异。
无论是分布图，还是分位图，都可以发现不同类型轨迹的方向数据分布差异不是特别明显。
