小尺寸，大作用，Banana PI 新品 BPI-M7 搭载RK3588 主芯片 已经上市！
Banana PI 在基于RK3588 做了一款小尺寸 92mmx62mm 的 单板计算机。
RK3588 目前是市场上广受欢迎的高性能芯片，功能十分强大。
内置：
-
CPU: 4x Cortex-A76 @ 2.4GHz + 4x Cortex-A55 @ 1.8GHz, 8nm
-
GPU: ARM Mali-G610 MP4
-
NPU: Up to 6 TOPS (INT8), supports INT4/INT8/INT16 mixed computing
-
VPU/Codec:
-
Hardware Decode: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
-
Hardware Encode: 8K@30fps H.265 / H.264
-

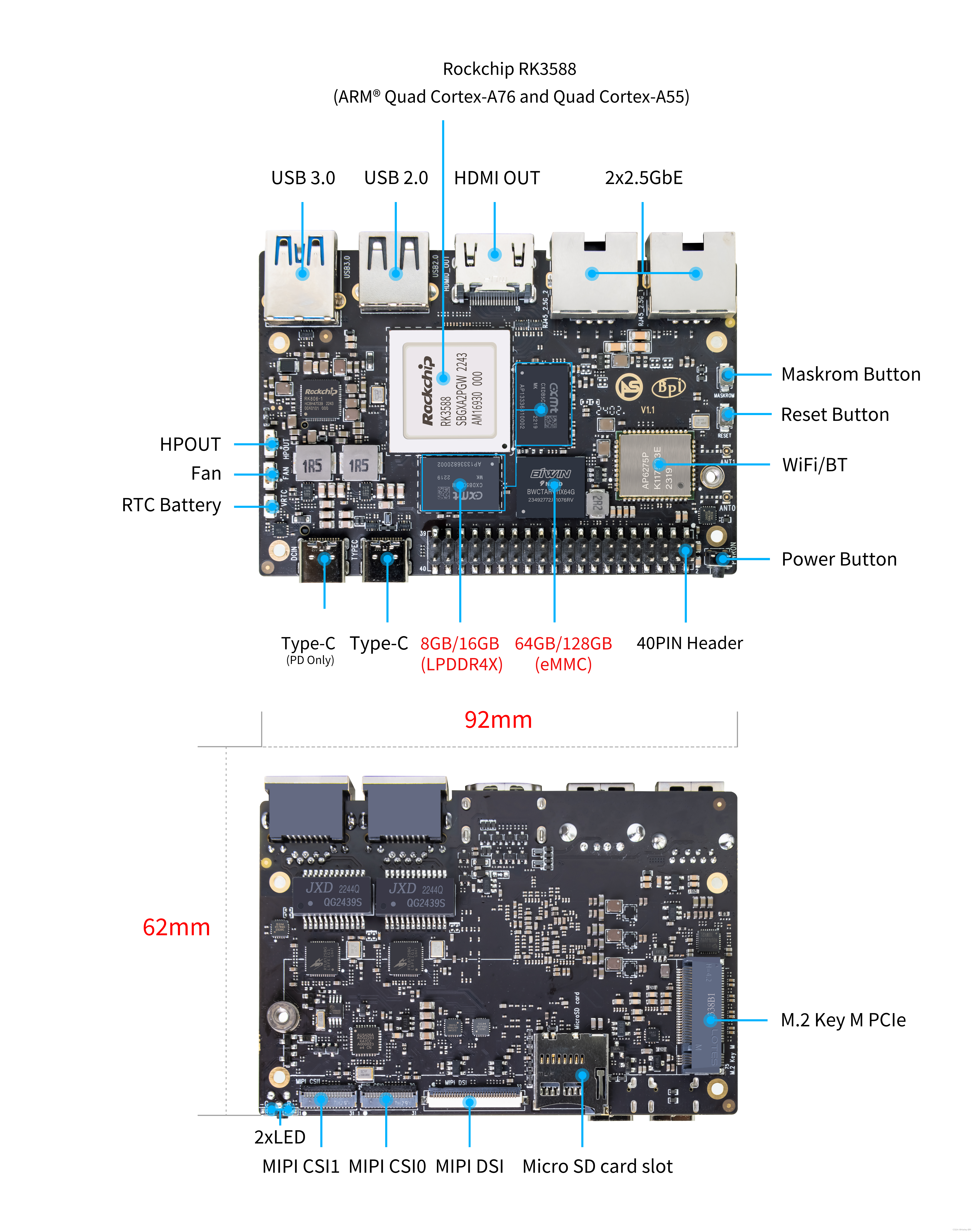

Banana PI 在基于 RK3588 做了一款小尺寸 92mmx62mm 的 单板计算机
Hardware Specifications
| HardWare Specification of Banana Pi BPI-M7 | |
|---|---|
|
SOC |
RockChip RK3588 |
|
CPU |
RK3588 Quad-Core Cortex-A76@ 2.4GHz+Quad-CoreCortex-A55@ 1.8GHz，8nm process |
|
GPU |
GPU Mali-G610 MP4 (4x256KB L2 Cache) Supports OpenGL ES3.2/OpenCL2.2/Vulkan1.1 |
|
NPU |
6 TOPS@INT8(3 NPU core) |
|
Supports INT4/INT8/INT16 mixed computing |
|
|
Supports frameworks like TensorFlow, MXNet, PyTorch, Caffe, Tflite, Onnx NN, Android NN, etc |
|
|
VPU/Codec |
Hardware Decode: 8K@60fps H.265/VP9/AVS2、 8K@30fps H.264 AVC/MVC、 4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8 |
|
Hardware Encode:8K@30fps H.265 / H.264 |
|
|
ISP |
Integrated 48MP ISP with HDR&3DNR |
|
RAM |
8GB/16GB/32GB（max 32GB ）64bit LPDDR4/LPDDR4x，default 8GB LPDDR4x |
|
Flash |
32GB/64GB/128GB eMMC，default 64GB eMMC,Supports MicroSD card expansion |
|
PCIe |
1x M.2 Key M (PCIe 3.0 4-lanes). Expandable SSD support for 2280/2260/2242/2230 M.2 SSD cards, default 2280 |
|
Networking |
2x 2.5G Ethernet |
|
Onboard IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5 (AP6275P) |
|
|
Video Out |
1x HDMI 2.1, supports 8K@60fps |
|
1x MIPI DSI up to 4K@60fps |
|
|
1x DP 1.4 up to 8K@30fps |
|
|
Video In |
2x 2-lane MIPI CSI, up to 2.5Gbps per lane |
|
Audio |
1x HDMI audio out |
|
1x HP audio out |
|
|
1x Type-C 3.1 (DP1.4) audio out |
|
|
USB |
1x USB 3.0 (USB 3.1 Gen 1), equivalent to USB 3.2 Gen 1/USB 3.0, up to 5Gbps |
|
1x USB Type-C 3.1（DP1.4/OTG） |
|
|
1x USB 2.0 High（480Mbps）/Full（12Mbps）/Low-Speed（1.5Mbps） modes |
|
|
40-pin |
Fully compatible with Raspberry Pi 40-pin header for connecting abundant add-on modules |
|
Supports UART/SPI/I2C/I2S/PWM/ADC/5V Power/3.3V Power |
|
|
Other |
1x 5V fan interface |
|
1x battery connector for low power RTC chip HYM8563TS |
|
|
2x LEDs - blue LED blinks on system start, red LED user controllable |
|
|
Power Input |
USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A |
|
Buttons |
1x PWRON button for sleep/wake,1x Reset button for reboot,1x Maskrom button for maskrom burn-in mode |
|
OS Support |
Official: ：Android 12.0，Debian11，Buildroot |
|
3rd Party：Armbian，Ubuntu 20.04，Ubuntu22.04，Kylin OS |
|
|
Dimensions |
92 mm x 62mm |
|
Operating temperature |
0℃ ~ 80℃ |
BPI-M7 做了三个版本：8+64，16+128，32+128

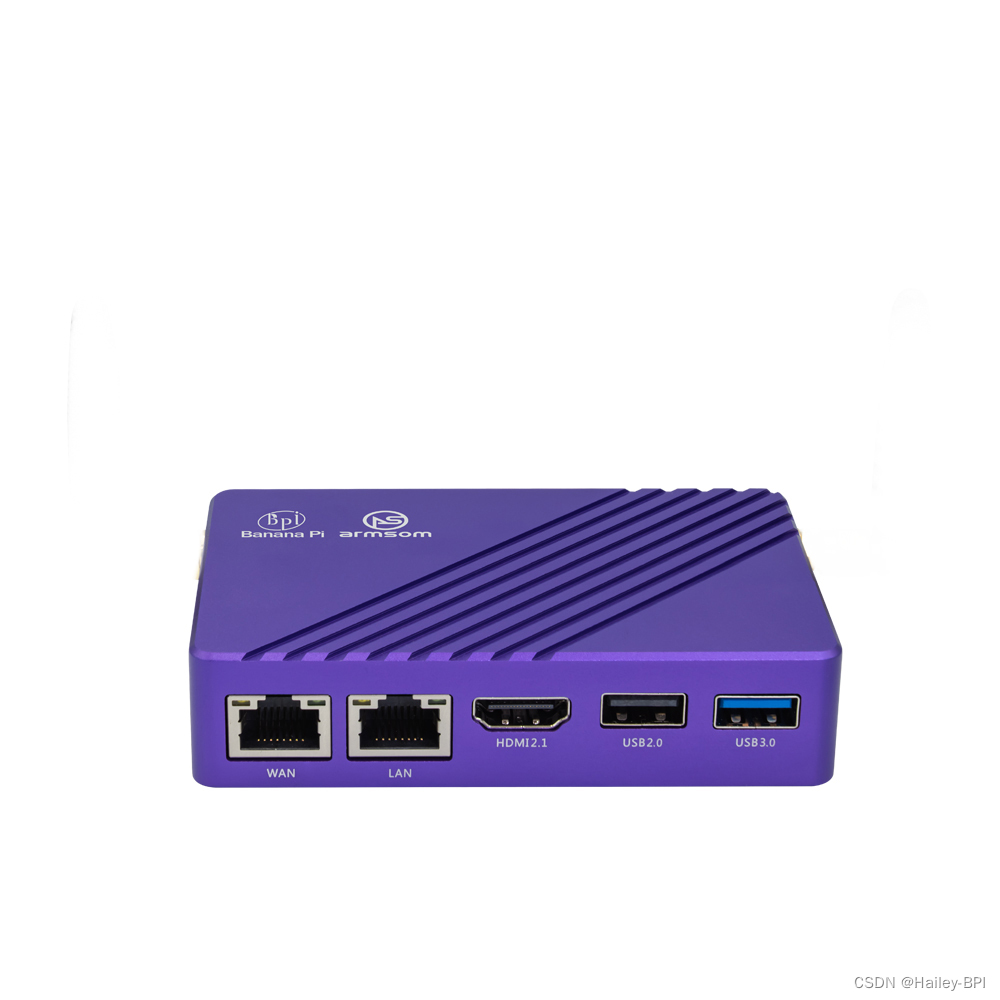

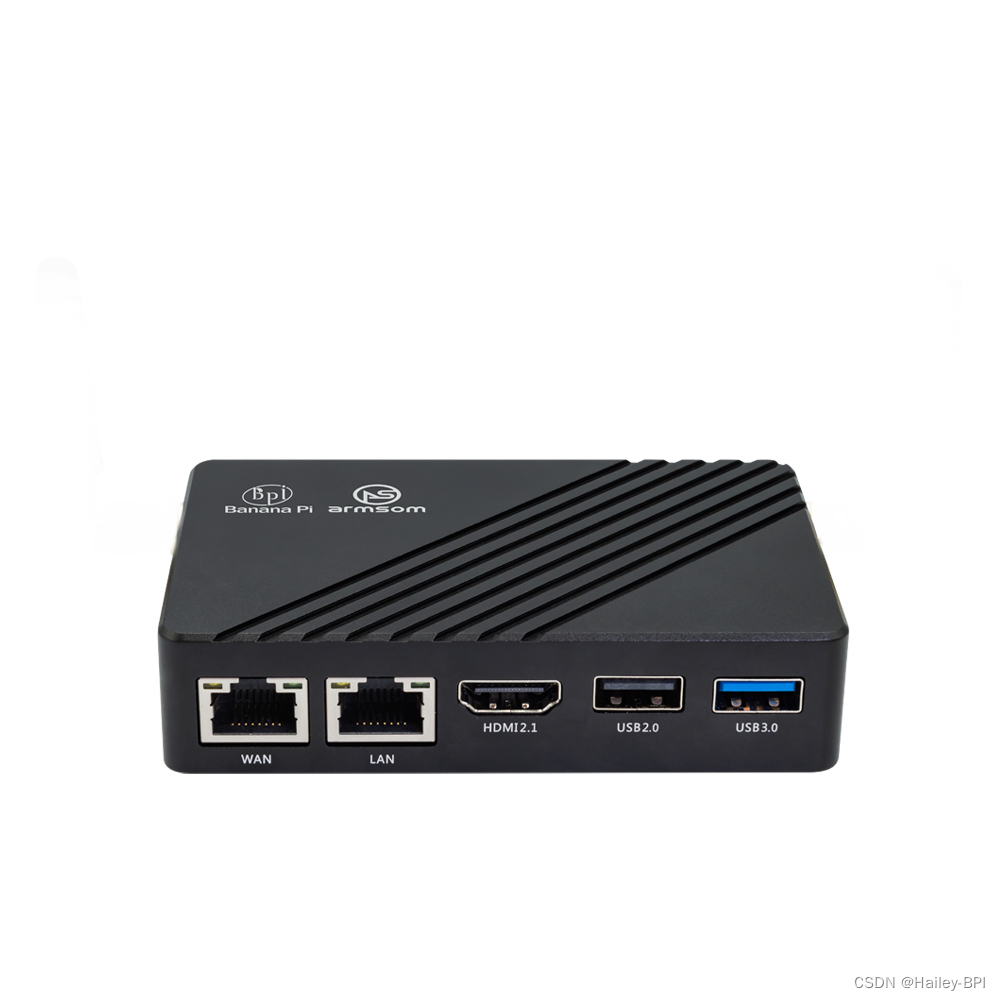

还配备了两款不同颜色的外壳供选择
