Uniapp 调用 原生安卓方法 使用cv 实现图片人脸识别 返回人脸位置和人脸数量
·

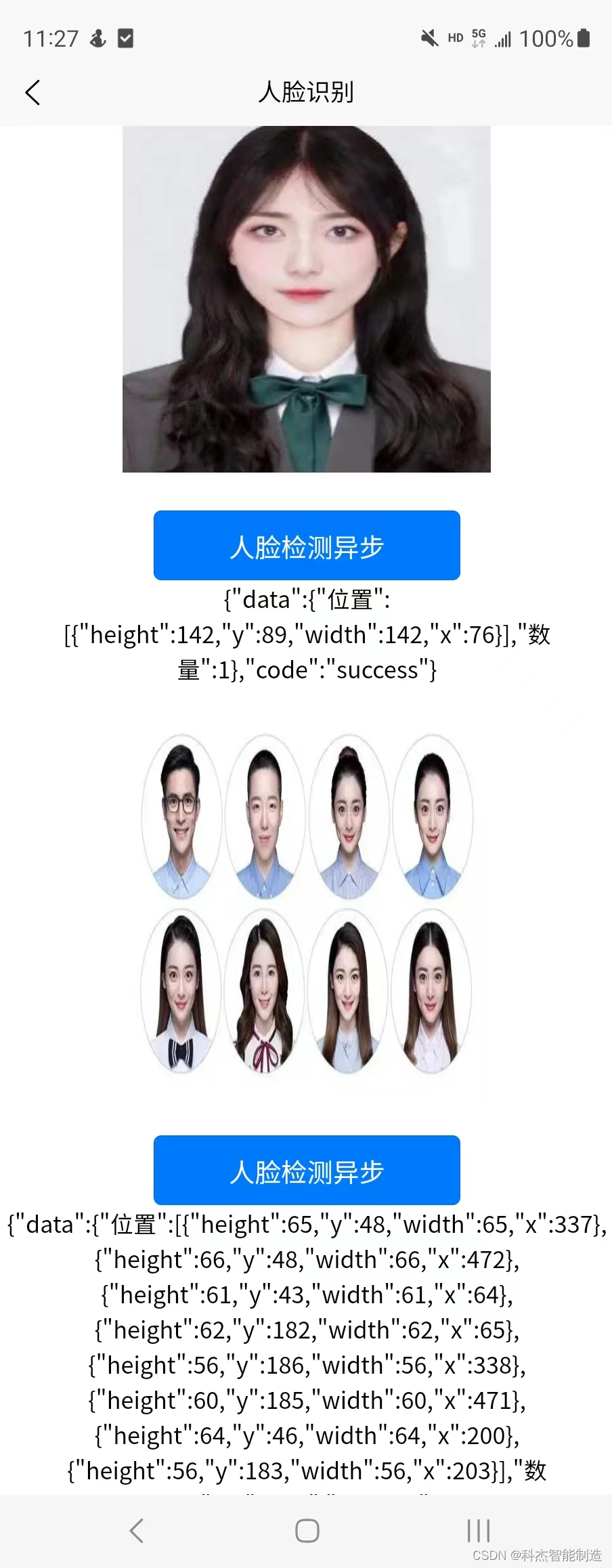

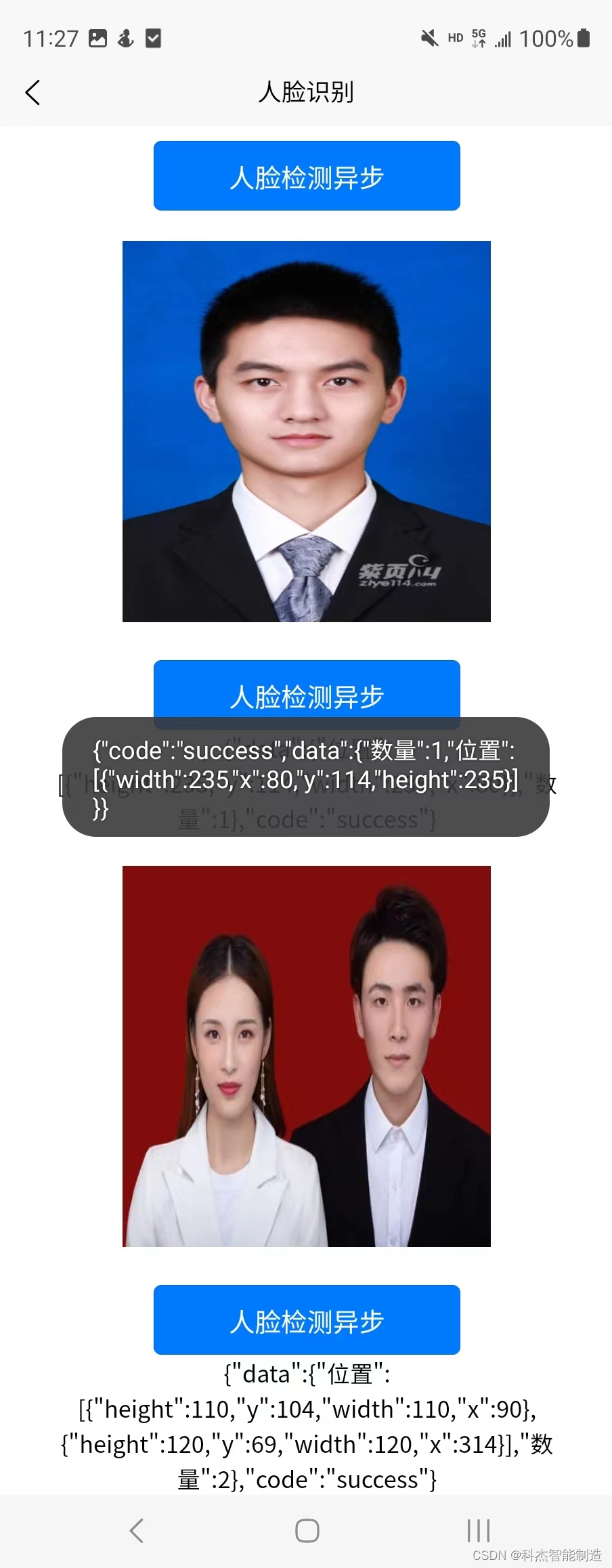

效果：
安卓方法代码
package com.piya;
import static com.taobao.weex.WXEnvironment.getApplication;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.AsyncTask;
import android.util.Log;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import org.opencv.android.OpenCVLoader;
import org.opencv.core.Mat;
import org.opencv.core.MatOfRect;
import org.opencv.core.Rect;
import org.opencv.objdetect.CascadeClassifier;
import java.io.File;
import java.io.FileOutputStream;
import java.io.InputStream;
import java.net.HttpURLConnection;
import java.net.URL;
import io.dcloud.feature.uniapp.annotation.UniJSMethod;
import io.dcloud.feature.uniapp.bridge.UniJSCallback;
import io.dcloud.feature.uniapp.common.UniModule;
public class FaceDetectionHelper extends UniModule {
private static final String TAG = "FaceDetectionHelper";
// 异步检测
@UniJSMethod(uiThread = true)
public void testAsyncFunc(JSONObject options, final UniJSCallback callback) {
// 加载OpenCV库
if (!OpenCVLoader.initDebug()) {
Log.e(TAG, "OpenCV initialization failed");
if (callback != null) {
JSONObject errorData = new JSONObject();
errorData.put("error", "OpenCV initialization failed");
callback.invoke(errorData);
}
return;
}
// 加载人脸检测器模型
CascadeClassifier cascadeClassifier = loadCascadeClassifier();
if (cascadeClassifier == null) {
Log.e(TAG, "Cascade classifier loading failed");
if (callback != null) {
JSONObject errorData = new JSONObject();
errorData.put("error", "Cascade classifier loading failed");
callback.invoke(errorData);
}
return;
}
// 获取图片URL
String imageUrl = options.getString("imgUrl");
// 下载并处理图片
new AsyncTask<String, Void, Bitmap>() {
@Override
protected Bitmap doInBackground(String... params) {
try {
URL url = new URL(params[0]);
HttpURLConnection connection = (HttpURLConnection) url.openConnection();
connection.setDoInput(true);
connection.connect();
InputStream input = connection.getInputStream();
return BitmapFactory.decodeStream(input);
} catch (Exception e) {
Log.e(TAG, "Error downloading image: " + e.getMessage());
return null;
}
}
@Override
protected void onPostExecute(Bitmap bitmap) {
if (bitmap != null) {
// 在图像上执行人脸检测
JSONObject resultData = detectFaces(bitmap, cascadeClassifier);
// 调用回调函数返回检测结果
if (callback != null) {
callback.invoke(resultData);
}
} else {
Log.e(TAG, "Failed to download image");
if (callback != null) {
JSONObject errorData = new JSONObject();
errorData.put("error", "Failed to download image");
callback.invoke(errorData);
}
}
}
}.execute(imageUrl);
}
// 加载人脸检测器模型
private CascadeClassifier loadCascadeClassifier() {
try {
InputStream is = getApplication().getApplicationContext().getAssets().open("haarcascade_frontalface_alt.xml");
File cascadeFile = new File(getApplication().getApplicationContext().getCacheDir(), "haarcascade_frontalface_alt.xml");
FileOutputStream os = new FileOutputStream(cascadeFile);
byte[] buffer = new byte[4096];
int bytesRead;
while ((bytesRead = is.read(buffer)) != -1) {
os.write(buffer, 0, bytesRead);
}
is.close();
os.close();
CascadeClassifier cascadeClassifier = new CascadeClassifier(cascadeFile.getAbsolutePath());
if (cascadeClassifier.empty()) {
return null;
}
return cascadeClassifier;
} catch (Exception e) {
Log.e(TAG, "Error loading cascade classifier: " + e.getMessage());
return null;
}
}
// 在图像上执行人脸检测
private JSONObject detectFaces(Bitmap bitmap, CascadeClassifier cascadeClassifier) {
Mat mat = new Mat();
MatOfRect faces = new MatOfRect();
// 将Bitmap转换为OpenCV的Mat对象
org.opencv.android.Utils.bitmapToMat(bitmap, mat);
// 执行人脸检测
cascadeClassifier.detectMultiScale(mat, faces);
// 构建JSON对象来保存检测结果
JSONObject resultData = new JSONObject();
JSONArray facesArray = new JSONArray();
resultData.put("数量", faces.toArray().length);
Rect[] rectsArray = faces.toArray();
for (Rect rect : rectsArray) {
JSONObject faceData = new JSONObject();
faceData.put("height", rect.height);
faceData.put("x", rect.x);
faceData.put("width", rect.width);
faceData.put("y", rect.y);
facesArray.add(faceData);
}
resultData.put("位置",facesArray);
JSONObject res = new JSONObject();
res.put("code","success");
res.put("data",resultData);
return res;
}
}
uniapp代码
<template>
<div style="text-align: center;">
<view v-for="(i,index) in imgUrls" style="margin-bottom: 20px;">
<image :src="i.url" style="height: 250px;width: 60%;"></image>
<button type="primary" @click="testAsyncFunc(i.url, index)" style="width: 50%;margin-top: 20px;">人脸检测异步</button>
<view style="text-align: center;" v-if="i.data != null">
{{i.data}}
</view>
</view>
<!-- <button type="primary" @click="testSyncFunc" style="width: 50%;margin-top: 20px;">人脸检测同步</button> -->
</div>
</template>
<script>
// 获取 module
var testModule = uni.requireNativePlugin("FaceDetectionHelper")
const modal = uni.requireNativePlugin('modal');
export default {
data(){
return{
imgUrls: [
{
url: "https://img0.baidu.com/it/u=3389607,2584865022&fm=253&fmt=auto&app=138&f=PNG?w=449&h=645",
data: null,
},
{
url: "https://img1.baidu.com/it/u=1751886178,1535140781&fm=253&fmt=auto&app=138&f=JPEG?w=297&h=384",
data: null,
},
{
url: "https://img0.baidu.com/it/u=1112951416,2217244278&fm=253&fmt=auto&app=138&f=JPEG?w=600&h=304",
data: null,
},
{
url: "https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fsafe-img.xhscdn.com%2Fbw1%2Ffe639b21-0cde-4fdf-9818-b2442c3e023b%3FimageView2%2F2%2Fw%2F1080%2Fformat%2Fjpg&refer=http%3A%2F%2Fsafe-img.xhscdn.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=auto?sec=1710902258&t=4028f29e7697388d94c3f72470cd5ef7",
data: null,
},
{
url: "https://img0.baidu.com/it/u=2353660487,2578268887&fm=253&fmt=auto&app=138&f=JPEG?w=500&h=666",
data: null,
},
{
url: "https://img1.baidu.com/it/u=1241956916,3681734452&fm=253&fmt=auto&app=120&f=JPEG?w=400&h=560",
data: null,
},
{
url: "https://n.sinaimg.cn/sinacn/w640h727/20180131/4c66-fyrcsrv9928989.jpg",
data: null,
},
{
url: "https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fsafe-img.xhscdn.com%2Fbw1%2Fc28a348f-6030-489e-bf16-3ba2995c80c0%3FimageView2%2F2%2Fw%2F1080%2Fformat%2Fjpg&refer=http%3A%2F%2Fsafe-img.xhscdn.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=auto?sec=1710902571&t=95286d160dd05f21702a5f85c800edee",
data: null,
},
{
url: "https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fsafe-img.xhscdn.com%2Fbw1%2F74d7df5d-8dfb-4a89-a12e-d433c4cc2473%3FimageView2%2F2%2Fw%2F1080%2Fformat%2Fjpg&refer=http%3A%2F%2Fsafe-img.xhscdn.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=auto?sec=1710902571&t=7bf3f3944d14cc613582d80fa637698c",
data: null,
},
{
url: "https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fci.xiaohongshu.com%2Fc27943ba-fa83-42c9-b9e3-c901c532a750%3FimageView2%2F2%2Fw%2F1080%2Fformat%2Fjpg&refer=http%3A%2F%2Fci.xiaohongshu.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=auto?sec=1710902570&t=36ffeb79e4f5ce047356519495025ea8",
data: null,
},
{
url: "https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fsafe-img.xhscdn.com%2Fbw1%2F177c50eb-ff1e-41ba-a4b5-cdbd06dd5bfd%3FimageView2%2F2%2Fw%2F1080%2Fformat%2Fjpg&refer=http%3A%2F%2Fsafe-img.xhscdn.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=auto?sec=1710902595&t=d0ed2efcaef4ff1a56c68c35d196588f",
data: null,
},
{
url: "https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fsafe-img.xhscdn.com%2Fbw1%2F4d8d1eb8-f89a-42b8-b6ae-6375678e5b63%3FimageView2%2F2%2Fw%2F1080%2Fformat%2Fjpg&refer=http%3A%2F%2Fsafe-img.xhscdn.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=auto?sec=1710902595&t=7bdd025d948698ef65117355e137d038",
data: null,
},
{
url: "https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fsafe-img.xhscdn.com%2Fbw1%2F6baf9aef-1a72-46f1-b976-cebb6861b43c%3FimageView2%2F2%2Fw%2F1080%2Fformat%2Fjpg&refer=http%3A%2F%2Fsafe-img.xhscdn.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=auto?sec=1710902595&t=b8867d83df6208f34784d330b333d814",
data: null,
},
{
url: "https://img-user-qn.hudongba.com/upload/_oss/uePasteUpload/201809/1116/1536656165657.jpg",
data: null,
},
{
url: "https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fsafe-img.xhscdn.com%2Fbw1%2Fc27fa638-a145-418e-95a8-61c397c104fe%3FimageView2%2F2%2Fw%2F1080%2Fformat%2Fjpg&refer=http%3A%2F%2Fsafe-img.xhscdn.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=auto?sec=1710902632&t=f481b4f348fab8e15465efe30911b058",
data: null,
},
{
url: "https://img1.baidu.com/it/u=2631529228,2871676583&fm=253&fmt=auto&app=138&f=PNG?w=400&h=558",
data: null,
},
{
url: "https://img1.baidu.com/it/u=1740647370,3843349101&fm=253&fmt=auto&app=138&f=JPEG?w=499&h=333",
data: null,
},
]
}
},
methods: {
testAsyncFunc(imgUrl, index) {
// 调用异步方法
testModule.testAsyncFunc({
'imgUrl': imgUrl
},
(ret) => {
this.imgUrls[index].data = JSON.stringify(ret)
modal.toast({
message: ret,
duration: 1.5
});
})
},
// testSyncFunc() {
// // 调用同步方法
// var ret = testModule.testSyncFunc({
// 'imgUrl': this.imgUrl
// })
// modal.toast({
// message: ret,
// duration: 1.5
// });
// }
}
}
</script>
