Unitree MuJoCo 键盘替代手柄控制说明

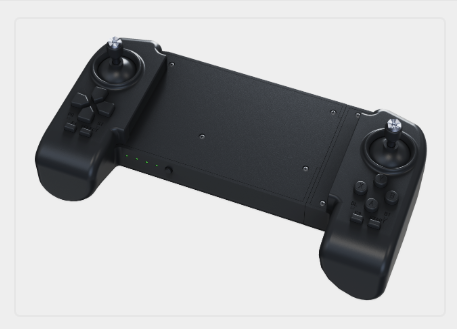

本文档说明如何在没有 Xbox/Switch 游戏手柄的情况下，使用键盘替代手柄控制 Unitree MuJoCo 仿真器中的机器人。（Isaac Sim训练+测试 → sim2sim → mujoco测试）

---

一、修改的文件汇总

共修改了 4 个源码文件 + 1 个配置文件，没有新增文件。

1.1 simulate/src/physics_joystick.h

修改内容：

• 添加 #include <GLFW/glfw3.h>
• 添加全局变量声明 extern GLFWwindow* g_sim_window;
• 新增 KeyboardJoystick 类，继承自 unitree::common::UnitreeJoystick
  • 构造函数接收 GLFWwindow* 窗口指针
  • update() 方法使用 glfwGetKey() 轮询按键状态
  • 将键盘按键映射为手柄的按钮和摇杆轴

1.2 simulate/src/unitree_sdk2_bridge.h

修改内容：

• 在 UnitreeSDK2BridgeBase 构造函数中，当 joystick_type == "keyboard" 时：
  • 创建 KeyboardJoystick(g_sim_window) 实例

1.3 simulate/src/main.cc

修改内容：

• 添加全局变量 GLFWwindow* g_sim_window = nullptr;
• 添加 static GLFWkeyfun s_mujoco_key_callback = nullptr;
• 修改 user_key_cb：先调用 MuJoCo 原生回调，再执行自定义逻辑（弹性带控制、复位）
• 在 main() 中：
  • 设置 g_sim_window = sim->platform_ui->window_
  • 使用链式回调：s_mujoco_key_callback = glfwSetKeyCallback(g_sim_window, user_key_cb)

1.4 simulate/mujoco/simulate/simulate.cc

修改内容：

• 在 UiEvent() 函数的最开始添加按键屏蔽，在调用 mjui_event() 之前拦截所有键盘手柄使用的按键：
  • WASD、QEFGCVZX（大小写）
  • 数字键 1、2
  • Space、方向键、Tab、Enter
  • 这些按键直接 return，不进入 MuJoCo 的任何处理流程

1.5 simulate/config.yaml

修改内容：

use_joystick: 1
joystick_type: "keyboard"

---

二、键盘映射表

键盘按键	对应手柄功能	类型
W / S	左摇杆 Y 轴 (前进/后退)	轴
A / D	左摇杆 X 轴 (左/右平移)	轴
↑ / ↓	右摇杆 Y 轴 (俯仰)	轴
← / →	右摇杆 X 轴 (偏航)	轴
Q	LT 左扳机	轴
E	RT 右扳机	轴
Space	A 按钮	按钮
Left Shift	B 按钮	按钮
F	X 按钮	按钮
G	Y 按钮	按钮
C	LB 左肩键	按钮
V	RB 右肩键	按钮
Enter	Start 按钮	按钮
Tab	Back/Select 按钮	按钮
Z	LS (左摇杆按下)	按钮
X	RS (右摇杆按下)	按钮
1	F1 按钮	按钮
2	F2 按钮	按钮

---

三、操作步骤

3.1 前提条件

确保已安装 Unitree SDK2、MuJoCo 以及所有依赖库（yaml-cpp、GLFW、Boost 等）。

3.2 修改配置文件

编辑 simulate/config.yaml：

use_joystick: 1
joystick_type: "keyboard"

3.3 编译

cd simulate/build
cmake ..
make -j$(nproc)

3.4 启动仿真器

./unitree_mujoco

3.5 启动控制器（在另一个终端）

cd deploy/robots/go2/build
./go2_ctrl --network wlp132s0

3.6 键盘控制

1. 点击 MuJoCo 窗口使其获得焦点（重要！）
2. 按 Q + Space（对应 L2 + A）进入 FixStand 模式
3. 按 Enter（对应 Start）开始控制机器人
4. 使用 WASD 控制移动，方向键 控制转向

---

四、技术说明

4.1 为什么不用 glfwSetKeyCallback？

最初尝试使用 glfwSetKeyCallback 来捕获键盘事件，但发现这会覆盖 MuJoCo 内置的键盘回调，导致 MuJoCo 自身的快捷键（如 Space 暂停、方向键步进等）全部失效。

4.2 解决方案：glfwGetKey() 轮询

改用 glfwGetKey() 在 KeyboardJoystick::update() 中直接轮询按键状态。这是 GLFW 官方明确标注的线程安全函数，可以在物理线程中安全调用。同时通过链式回调保留 MuJoCo 原生键盘处理。

4.3 冲突快捷键的处理

MuJoCo 使用键盘快捷键进行多种操作：

• Space：暂停/播放仿真
• 方向键：步进/后退仿真帧
• Tab：切换 UI 面板
• WASD：UI 导航（在控件间移动焦点）

这些与键盘手柄映射冲突。解决方案是在 simulate.cc 的 UiEvent() 函数最开始，调用 mjui_event() 之前就拦截所有冲突按键，直接 return 跳过 MuJoCo 的所有处理流程。

---

五、恢复手柄控制

如需恢复使用物理手柄，只需修改 config.yaml：

use_joystick: 1
joystick_type: "xbox"  # 或 "switch"
joystick_device: "/dev/input/js0"

如需完全禁用手柄：

use_joystick: 0

---

附录：修改文件源码

A.1 simulate/src/physics_joystick.h

#pragma once

#include <iostream>
#include <unitree/dds_wrapper/common/unitree_joystick.hpp>
#include "joystick/joystick.h"
#include <memory>
#include <GLFW/glfw3.h>

extern GLFWwindow* g_sim_window;


class XBoxJoystick : public unitree::common::UnitreeJoystick
{
public:
    XBoxJoystick(std::string device, int bits = 15)
	: unitree::common::UnitreeJoystick()
	{
		js_ = std::make_unique<Joystick>(device);
		if(!js_->isFound()) {
			std::cout << "Error: Joystick open failed." << std::endl;
			exit(1);
		}
        max_value_ = 1 << (bits - 1);
	}

    void update() override
    {
        js_->getState();
        back(js_->button_[6]);
        start(js_->button_[7]);
        LB(js_->button_[4]);
        RB(js_->button_[5]);
        A(js_->button_[0]);
        B(js_->button_[1]);
        X(js_->button_[2]);
        Y(js_->button_[3]);
        up(js_->axis_[7] < 0);
        down(js_->axis_[7] > 0);
        left(js_->axis_[6] < 0);
        right(js_->axis_[6] > 0);
        LT(js_->axis_[2] > 0);
        RT(js_->axis_[5] > 0);
        lx(double(js_->axis_[0]) / max_value_);
        ly(-double(js_->axis_[1]) / max_value_);
        rx(double(js_->axis_[3]) / max_value_);
        ry(-double(js_->axis_[4]) / max_value_);
    }
private:
	std::unique_ptr<Joystick> js_;
	int max_value_;
};

class KeyboardJoystick : public unitree::common::UnitreeJoystick
{
public:
	KeyboardJoystick(GLFWwindow* window) : unitree::common::UnitreeJoystick(), window_(window) {}

	void update() override
	{
		if (!window_) return;

		float lx_val = 0.0f, ly_val = 0.0f, rx_val = 0.0f, ry_val = 0.0f;

		if (glfwGetKey(window_, GLFW_KEY_W) == GLFW_PRESS) ly_val += 1.0f;
		if (glfwGetKey(window_, GLFW_KEY_S) == GLFW_PRESS) ly_val -= 1.0f;
		if (glfwGetKey(window_, GLFW_KEY_A) == GLFW_PRESS) lx_val -= 1.0f;
		if (glfwGetKey(window_, GLFW_KEY_D) == GLFW_PRESS) lx_val += 1.0f;

		if (glfwGetKey(window_, GLFW_KEY_UP)    == GLFW_PRESS) ry_val += 1.0f;
		if (glfwGetKey(window_, GLFW_KEY_DOWN)  == GLFW_PRESS) ry_val -= 1.0f;
		if (glfwGetKey(window_, GLFW_KEY_LEFT)  == GLFW_PRESS) rx_val -= 1.0f;
		if (glfwGetKey(window_, GLFW_KEY_RIGHT) == GLFW_PRESS) rx_val += 1.0f;

		float lt_val = (glfwGetKey(window_, GLFW_KEY_Q) == GLFW_PRESS) ? 1.0f : 0.0f;
		float rt_val = (glfwGetKey(window_, GLFW_KEY_E) == GLFW_PRESS) ? 1.0f : 0.0f;

		lx(lx_val);
		ly(ly_val);
		rx(rx_val);
		ry(ry_val);
		LT(lt_val);
		RT(rt_val);

		A((glfwGetKey(window_, GLFW_KEY_SPACE)       == GLFW_PRESS) ? 1 : 0);
		B((glfwGetKey(window_, GLFW_KEY_LEFT_SHIFT)  == GLFW_PRESS) ? 1 : 0);
		X((glfwGetKey(window_, GLFW_KEY_F)           == GLFW_PRESS) ? 1 : 0);
		Y((glfwGetKey(window_, GLFW_KEY_G)           == GLFW_PRESS) ? 1 : 0);
		LB((glfwGetKey(window_, GLFW_KEY_C)          == GLFW_PRESS) ? 1 : 0);
		RB((glfwGetKey(window_, GLFW_KEY_V)          == GLFW_PRESS) ? 1 : 0);
		start((glfwGetKey(window_, GLFW_KEY_ENTER)   == GLFW_PRESS) ? 1 : 0);
		back((glfwGetKey(window_, GLFW_KEY_TAB)      == GLFW_PRESS) ? 1 : 0);
		LS((glfwGetKey(window_, GLFW_KEY_Z)          == GLFW_PRESS) ? 1 : 0);
		RS((glfwGetKey(window_, GLFW_KEY_X)          == GLFW_PRESS) ? 1 : 0);
		F1((glfwGetKey(window_, GLFW_KEY_1)          == GLFW_PRESS) ? 1 : 0);
		F2((glfwGetKey(window_, GLFW_KEY_2)          == GLFW_PRESS) ? 1 : 0);

		up((glfwGetKey(window_, GLFW_KEY_UP)         == GLFW_PRESS) ? 1 : 0);
		down((glfwGetKey(window_, GLFW_KEY_DOWN)     == GLFW_PRESS) ? 1 : 0);
		left((glfwGetKey(window_, GLFW_KEY_LEFT)     == GLFW_PRESS) ? 1 : 0);
		right((glfwGetKey(window_, GLFW_KEY_RIGHT)   == GLFW_PRESS) ? 1 : 0);
	}

private:
	GLFWwindow* window_;
};


class SwitchJoystick : public unitree::common::UnitreeJoystick
{
public:
    SwitchJoystick(std::string device, int bits = 15)
	: unitree::common::UnitreeJoystick()
	{
		js_ = std::make_unique<Joystick>(device);
		if(!js_->isFound()) {
			std::cout << "Error: Joystick open failed." << std::endl;
			exit(1);
		}
        max_value_ = 1 << (bits - 1);
	}

    void update() override
    {
        js_->getState();
        back(js_->button_[10]);
        start(js_->button_[11]);
        LB(js_->button_[6]);
        RB(js_->button_[7]);
        A(js_->button_[0]);
        B(js_->button_[1]);
        X(js_->button_[3]);
        Y(js_->button_[4]);
        up(js_->axis_[7] < 0);
        down(js_->axis_[7] > 0);
        left(js_->axis_[6] < 0);
        right(js_->axis_[6] > 0);
        LT(js_->axis_[5] > 0);
        RT(js_->axis_[4] > 0);
        lx(double(js_->axis_[0]) / max_value_);
        ly(-double(js_->axis_[1]) / max_value_);
        rx(double(js_->axis_[2]) / max_value_);
        ry(-double(js_->axis_[3]) / max_value_);
    }
private:
	std::unique_ptr<Joystick> js_;
	int max_value_;
};

A.2 simulate/src/unitree_sdk2_bridge.h

#pragma once

#include <mujoco/mujoco.h>

#include <unitree/robot/channel/channel_publisher.hpp>
#include <unitree/robot/channel/channel_subscriber.hpp>
#include <unitree/dds_wrapper/robots/go2/go2.h>
#include <unitree/dds_wrapper/robots/g1/g1.h>
#include <unitree/idl/hg/BmsState_.hpp>
#include <unitree/idl/hg/IMUState_.hpp>

#include <iostream>

#include "param.h"
#include "physics_joystick.h"

#define MOTOR_SENSOR_NUM 3

class UnitreeSDK2BridgeBase
{
public:
    UnitreeSDK2BridgeBase(mjModel *model, mjData *data)
    : mj_model_(model), mj_data_(data)
    {
        _check_sensor();
        if(param::config.print_scene_information == 1) {
            printSceneInformation();
        }
        if(param::config.use_joystick == 1) {
            if(param::config.joystick_type == "xbox") {
                joystick = std::make_shared<XBoxJoystick>(param::config.joystick_device, param::config.joystick_bits);
            } else if(param::config.joystick_type == "switch") {
                joystick  = std::make_shared<SwitchJoystick>(param::config.joystick_device, param::config.joystick_bits);
            } else if(param::config.joystick_type == "keyboard") {
                joystick  = std::make_shared<KeyboardJoystick>(g_sim_window);
            } else {
                std::cerr << "Unsupported joystick type: " << param::config.joystick_type << std::endl;
                exit(EXIT_FAILURE);
            }
        }

    }
    // ... (其余代码不变)

A.3 simulate/src/main.cc（关键修改部分）

// 文件开头添加
#include <mujoco/mujoco.h>
#include "simulate.h"
#include "array_safety.h"
#include "unitree_sdk2_bridge.h"
#include "param.h"

GLFWwindow* g_sim_window = nullptr;

// user keyboard callback（链式回调，保留 MuJoCo 原生处理）
static GLFWkeyfun s_mujoco_key_callback = nullptr;

void user_key_cb(GLFWwindow* window, int key, int scancode, int act, int mods) {
  if (s_mujoco_key_callback) {
    s_mujoco_key_callback(window, key, scancode, act, mods);
  }

  if (act==GLFW_PRESS)
  {
    if(param::config.enable_elastic_band == 1) {
      if (key==GLFW_KEY_9) {
        elastic_band.enable_ = !elastic_band.enable_;
      } else if (key==GLFW_KEY_7 || key==GLFW_KEY_UP) {
        elastic_band.length_ -= 0.1;
      } else if (key==GLFW_KEY_8 || key==GLFW_KEY_DOWN) {
        elastic_band.length_ += 0.1;
      }
    }
    if(key==GLFW_KEY_BACKSPACE) {
      mj_resetData(m, d);
      mj_forward(m, d);
    }
  }
}

// main() 函数中
int main(int argc, char **argv)
{
  // ... (前面代码不变) ...

  auto sim = std::make_unique<mj::Simulate>(
    std::make_unique<mj::GlfwAdapter>(),
    &cam, &opt, &pert, /* is_passive = */ false);

  g_sim_window = static_cast<mj::GlfwAdapter*>(sim->platform_ui.get())->window_;

  std::thread unitree_thread(UnitreeSdk2BridgeThread, nullptr);

  std::thread physicsthreadhandle(&PhysicsThread, sim.get(), param::config.robot_scene.c_str());

  // 链式回调，保留 MuJoCo 原生键盘处理
  s_mujoco_key_callback = glfwSetKeyCallback(g_sim_window, user_key_cb);
  sim->RenderLoop();
  physicsthreadhandle.join();

  return 0;
}

A.4 simulate/mujoco/simulate/simulate.cc（UiEvent 函数开头修改）

void UiEvent(mjuiState* state) {
  mj::Simulate* sim = static_cast<mj::Simulate*>(state->userdata);

  // Suppress keys used by keyboard joystick before UI processing
  if (state->type==mjEVENT_KEY && state->key!=0) {
    switch (state->key) {
    case ' ':
    case 'w':
    case 'W':
    case 'a':
    case 'A':
    case 's':
    case 'S':
    case 'd':
    case 'D':
    case 'q':
    case 'Q':
    case 'e':
    case 'E':
    case 'f':
    case 'F':
    case 'g':
    case 'G':
    case 'c':
    case 'C':
    case 'v':
    case 'V':
    case 'z':
    case 'Z':
    case 'x':
    case 'X':
    case '1':
    case '2':
    case mjKEY_RIGHT:
    case mjKEY_LEFT:
    case mjKEY_UP:
    case mjKEY_DOWN:
    case mjKEY_TAB:
    case mjKEY_ENTER:
      return;
    }
  }

  // call UI 0 if event is directed to it
  if ((state->dragrect==sim->ui0.rectid) ||
      (state->dragrect==0 && state->mouserect==sim->ui0.rectid) ||
      state->type==mjEVENT_KEY) {
    // process UI event
    mjuiItem* it = mjui_event(&sim->ui0, state, &sim->platform_ui->mjr_context());
    // ... (后续代码不变) ...

A.5 simulate/config.yaml

robot: "go2"
robot_scene: "scene.xml"

domain_id: 0
interface: "wlp132s0"

use_joystick: 1
joystick_type: "keyboard"
joystick_device: "/dev/input/js0"
joystick_bits: 16

print_scene_information: 1
enable_elastic_band: 0
