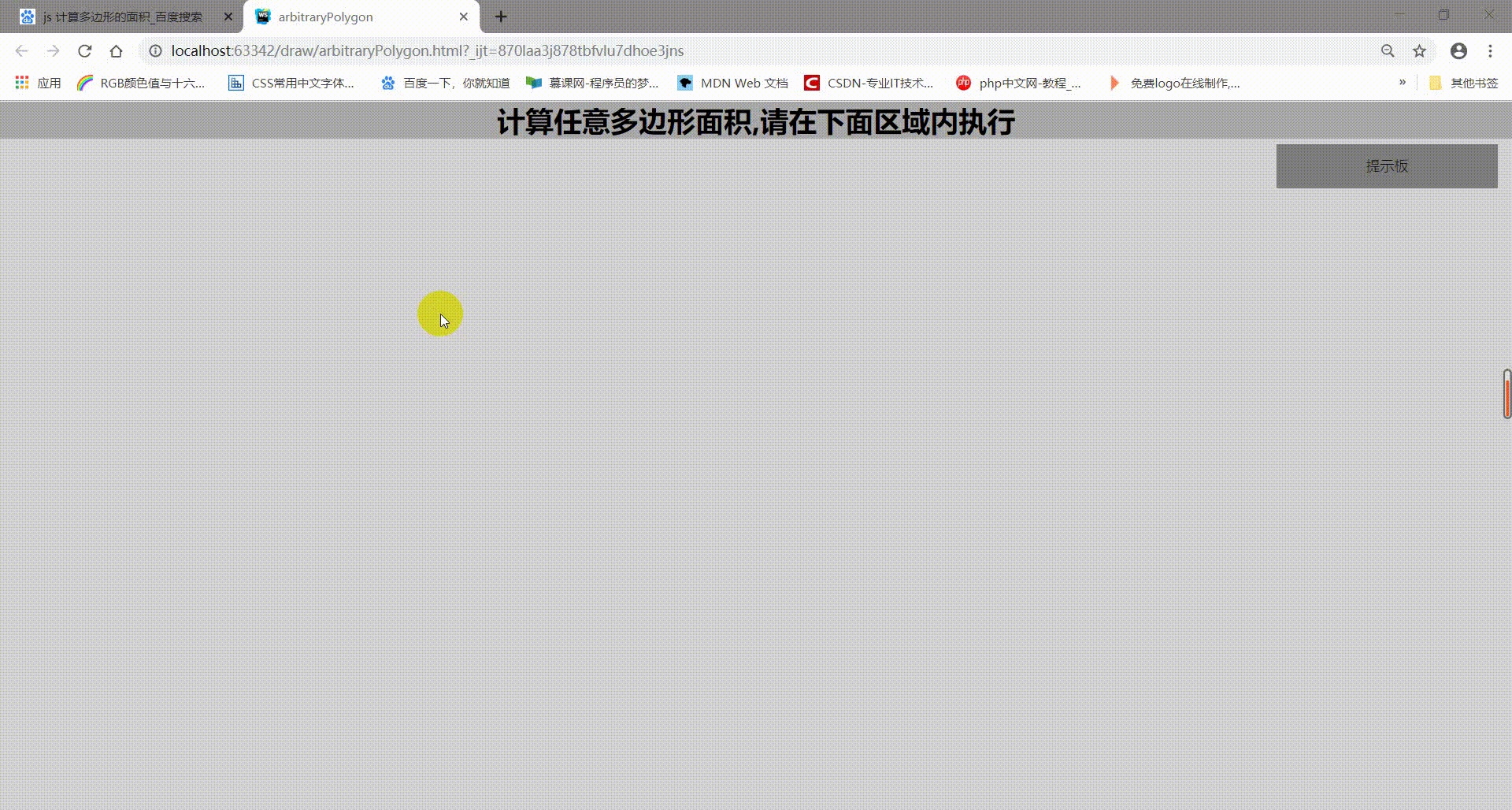

效果图

在这里插入图片描述

代码

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>arbitraryPolygon</title>
    <script src="js/jquery-3.3.1.js" type="text/javascript"></script>
    <script src="js/vue.js" type="text/javascript"></script>
    <script src="js/d3.js"></script>
    <style>
        *{/*占据整个页面*/
            margin: 0 0;
            padding: 0 0;

        }
    </style>
</head>
<body>
<div id="app" >
    <div v-bind:style="titleAppStyle" class="appClick"  id="area">
        <h1>{{titleApp}}</h1>
        <svg xmlns="http://www.w3.org/2000/svg" id="svg" v-bind:style="svgStyle" v-on:click="addPoints"> </svg>
        <div v-bind:style="tipDiv">
            <p style="height: 50px;line-height: 50px; text-align: center">提示板</p>
            <p v-for="(item,key) in pointChange" v-bind:style="tipDivP">point{{key+1}} &nbsp;<span>x:{{item.x}}</span>&nbsp;<span>y:{{item.y}}</span> </p>
            <p v-bind:style="areaTip" v-if="polygonArea?true:false">&nbsp;多边形的面积为：<br>{{polygonArea}}</p>
            <button v-bind:style="drawButton" v-if="dDutton" v-on:click="drawArbitraryPolygonArea">画多边形</button>
            <button v-bind:style="resetButton" v-if="dDutton" v-on:click="removeSvg">重画</button>
        </div>
    </div>
</div>
<script type="text/javascript">
    const app=new Vue({
        el:"#app",
        data: {
            titleApp: "计算任意多边形面积,请在下面区域内执行",
            titleAppStyle: {//设置样式
                'text-align': 'center',
                'font-weight': 'lighter',
                'backgroundColor': '#A9A9A9',
                'overflow': 'hidden',
                'margin': '0'
            },
            svgStyle: {
                'width': '100%',
                'height': '100%',
                'backgroundColor': '#D3D3D3'
            },
            tipDiv: {
                'width': '250px',
                'position': 'absolute',
                'right': '1rem',
                'top': '3rem',
                'background-color': 'rgba(105,105,105,0.8)',
                'text-align': 'left',
                'color': 'black'
            },
            tipDivP: {
                'padding': '0.5rem 2.5rem'
            },
            resetButton: {
                'position': 'absolute',
                'right': '0',
                'bottom': '0',
                'background-color': 'black',
                'border-radius': '3px',
                'border-width': '0',
                'margin': '0',
                'outline': 'none',
                'font-size': '15px',
                'font-weight': 'lighter',
                'text-align': 'center',
                'cursor': 'pointer',
                'width': '100px',
                'height': '25px',
                'color': 'aliceblue'
            },
            drawButton: {
                'position': 'absolute',
                'left': '0',
                'bottom': '0',
                'background-color': 'black',
                'border-radius': '3px',
                'border-width': '0',
                'margin': '0',
                'outline': 'none',
                'font-size': '15px',
                'font-weight': 'lighter',
                'text-align': 'center',
                'cursor': 'pointer',
                'width': '100px',
                'height': '25px',
                'color': 'aliceblue'
            },
            areaTip:{
                'position': 'absolute',
                'top': '.1rem'
            },
            arbitraryPolygonPoint: [],//存储多边形的点
            arbitraryPolygonPointLength: null,
            dDutton: false,
            polygonArea:"",//三角形面积
            joinPoint:''//连接点
        },
        methods:{
            settingHW:function () {//该函数用于挂载时，页面大小初始化
                $("#area").height(window.innerHeight);
                $("#area").width(window.innerWidth);
            },
            addPoints:function (event){//用于添加点
                this.arbitraryPolygonPoint.push({x:event.clientX,y:event.clientY});//把获取的点推入数组中
                this.arbitraryPolygonPointLength=this.arbitraryPolygonPoint.length;//得到数组的长度
                this.drawArbitraryPolygonPoint(this.arbitraryPolygonPoint);//每点击一次就向数组中添加点
                if(this.arbitraryPolygonPointLength>=3)
                {
                    this.dDutton=true;
                }
            },
            drawArbitraryPolygonPoint:function(arbitraryPolygonPoint){//用于画动态点
                const dSvg=d3.select("#svg");
                dSvg.selectAll("circle").data(arbitraryPolygonPoint).enter().append("circle").attr('cx',function (d,i) {
                    return d.x;
                }).attr('cy',function (d,i) {
                    return d.y;
                }).attr('r',function (d) {
                    return '2';
                }).attr("fill", "red").transition().duration(2000).ease(d3.easeBackIn).attr('r','20').transition().duration(500).ease(d3.easeBack).attr('r','5');//向svg中添加圆节点
            },
            drawArbitraryPolygonArea:function(){//用于把动态点连接起来
                const dSvg=d3.select("#svg");//得到画布
                for(var i=0;i<this.arbitraryPolygonPoint.length;i++)
                {
                    this.joinPoint+=this.arbitraryPolygonPoint[i].x+" "+this.arbitraryPolygonPoint[i].y+" ";//拼接点
                }
               const polygon=dSvg.append('polygon').attr("class","triangle-svg").attr("points",this.joinPoint).attr("fill", "transparent").attr("stroke", "red").attr("stroke-width", 2);
               const polygonLength = document.querySelector(".triangle-svg").getTotalLength();//获取 triangle-svg路径总长度
               polygon.attr("stroke-dasharray",polygonLength ).attr("stroke-dashoffset",polygonLength ).transition().ease(d3.easeLinear).duration(6000).attr("stroke-dashoffset",0);
               this.computeArbitraryArea();
               },
            computeArbitraryArea:function(){//计算多边形面积
                 var  j;
                for(var i=0;i<this.arbitraryPolygonPoint.length;i++)
                {
                    j = (i + 1) % this.arbitraryPolygonPoint.length;//通过取模来构造循环数字
                    this.polygonArea += this.arbitraryPolygonPoint[i].x * this.arbitraryPolygonPoint[j].y;
                    this.polygonArea -= this.arbitraryPolygonPoint[i].y * this.arbitraryPolygonPoint[j].x;
                }
                this.polygonArea/=2;
                this.polygonArea=Math.abs(this.polygonArea);
            },
            removeSvg:function () {//移除节点，设置初始值
                $("#svg").empty();
                this.arbitraryPolygonPoint=[];
                this.arbitraryPolygonPointLength=null;
                this.dDutton=false;
                this.polygonArea="";
            }
        },
        mounted:function () {//挂载初始化
            this.settingHW();
        },
        computed:{//计算属性,实时动态监听
            pointChange:function () {
                    return this.arbitraryPolygonPoint;
            }
        }
    })
</script>
</body>
</html>
