microduck_rl（MuJoCo+PPO+WandB+UV训练机器人）
·
- MuJoCo：
- MuJoCo Warp：
- mjlab：
- rsl_rl：
- PPO：
- WandB：
- UV：
一、win11安装wsl ubuntu环境
1. windows开启wsl，查看wsl版本：
启动或关闭windows功能，勾选[虚拟机平台]+[适用于Linux的windows子系统]
2. 管理员权限打开powershell，查看wsl版本
wsl --version
3. 更新wsl：
wsl --update
4. 查看可安装的系统：
wsl --list --online
5. wsl安装ubuntu2204：
wsl --install -d Ubuntu-22.04 --location D:\WSL\ubuntu2204x64
6. 查看已安装的系统
wsl -l -v
wsl --list --verbose
7. 启动指定系统
wsl -d Ubuntu-24.04
8. 设置默认启动系统
wsl --set-default Ubuntu-24.04
9. 卸载已安装系统
wsl --unregister Ubuntu-22.04
10. 关闭wsl
wsl --shutdown
11. 备份wsl系统
wsl --shutdown
wsl --export Ubuntu-22.04 D:\WSL_Backup\Ubuntu2204.tar
12. 恢复wsl系统
wsl --import Ubuntu-22.04 D:\WSL\Ubuntu-22.04 D:\WSL_Backup\Ubuntu2204.tar --version 2
1. 更新：
sudo apt update && sudo apt upgrade
2. 检查wsl.conf存在
cat /etc/wsl.conf
3. 安装Ubuntu Desktop：
sudo apt install ubuntu-desktop -y
4. 安装XRDP：
sudo apt install xrdp -y
5. 启动XRDP：
sudo service xrdp start
6. 查看IP
ip addr
7. 主机远程登录ubuntu界面
mstsc二、在wsl ubuntu环境使用GPU CUDA
三、训练步骤
Step 1：准备 Ubuntu + NVIDIA GPU
nvidia-smi
Step 2：安装 uv
curl -LsSf https://astral.sh/uv/install.sh | sh
Step 3：下载代码
git clone https://github.com/pollen-robotics/microduck_rl
cd microduck_rl
Step 4：安装依赖
//uv sync
//uv sync -i https://pypi.tuna.tsinghua.edu.cn/simple
uv sync -i https://mirrors.aliyun.com/pypi/simple/
//uv sync -i https://pypi.mirrors.ustc.edu.cn/simple/
Step 5：登录 WandB
./.venv/bin/wandb login
此处需要输入wandb key,需要登陆wandb官网登陆后创建key
Step 6：查看任务
uv run list-envs
Step 7：跑 smoke test
uv run train Mjlab-Velocity-Flat-MicroDuck \
--env.scene.num-envs 64 \
--agent.max_iterations 5
Step 8：正式训练
uv run train Mjlab-Velocity-Flat-MicroDuck \
--env.scene.num-envs 4096
查看训练过程：uv run play Mjlab-Velocity-Flat-MicroDuck --checkpoint-file /home/chunyangzhang/microduck_rl-develop/wandb/run-20260910_020602-unkowd3z/files/model_250.pt --viewer viser
在浏览器查看：http://localhost:8080/
官方给出的经验是，4096 environments 下，得到一个可用 gait 大约需要 1–2 小时，具体当然取决于 GPU。
Step 9：查看训练结果
uv run play \
Mjlab-Velocity-Flat-MicroDuck \
--wandb-run-path <entity/project/run_id>
Step 10：导出
uv run scripts/export.py \
Mjlab-Velocity-Flat-MicroDuck \
--wandb-run-path <entity/project/run_id>
得到：
output.onnx
Step 11：CPU仿真验证
uv run scripts/infer_policy.py \
--walking output.onnx
Step 12：再考虑部署到真实 Microduck
output.onnx
▼
Microduck policy/runtime
▼
robotd
▼
真实机器人四、创建自定义动作
五、创建自定义训练任务
六、创建自定义机器人
七、PPO训练详解（结合cuda+GPU/GPGPU）
以下是一个倒立摆使用Pytorch编写的PPO训练及推理代码，与microduck_rl不同，microduck_rl使用MuJoCo Warp+PPO框架，这个示例直接编写代码，但原理一样，作为参考：
train.py：
import gymnasium as gym
import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
from torch.distributions import Categorical
# ============================================================
# 1. Actor-Critic 网络
# ============================================================
class PolicyNetwork(nn.Module):
def __init__(self, state_dim, action_dim):
super().__init__()
# Actor 和 Critic 共享的特征提取网络
self.shared = nn.Sequential(
nn.Linear(state_dim, 64),
nn.Tanh(),
nn.Linear(64, 64),
nn.Tanh()
)
# Actor
self.policy_head = nn.Linear(64, action_dim)
# Critic
self.value_head = nn.Linear(64, 1)
def forward(self, x):
feature = self.shared(x)
logits = self.policy_head(feature)
value = self.value_head(feature).squeeze(-1)
return logits, value
# 获取 action、log_prob、value
def get_action_and_value(self, x, action=None):
logits, value = self.forward(x)
dist = Categorical(logits=logits)
if action is None:
action = dist.sample()
log_prob = dist.log_prob(action)
entropy = dist.entropy()
return action, log_prob, entropy, value
# ============================================================
# 2. RolloutBuffer
# ============================================================
class RolloutBuffer:
def __init__(self):
self.states = []
self.actions = []
self.rewards = []
self.dones = []
self.values = []
self.log_probs = []
def clear(self):
self.states.clear()
self.actions.clear()
self.rewards.clear()
self.dones.clear()
self.values.clear()
self.log_probs.clear()
# ============================================================
# 3. GAE
# ============================================================
def compute_gae(
rewards,
values,
dones,
next_value,
gamma=0.99,
lam=0.95
):
advantages = np.zeros(len(rewards), dtype=np.float32)
last_gae = 0.0
for t in reversed(range(len(rewards))):
if t == len(rewards) - 1:
next_non_terminal = 1.0 - dones[t]
next_val = next_value
else:
next_non_terminal = 1.0 - dones[t + 1]
next_val = values[t + 1]
delta = (
rewards[t]
+ gamma * next_val * next_non_terminal
- values[t]
)
last_gae = (
delta
+ gamma * lam * next_non_terminal * last_gae
)
advantages[t] = last_gae
returns = advantages + np.array(
values,
dtype=np.float32
)
return advantages, returns
# ============================================================
# 4. PPO Update
# ============================================================
def ppo_update(
model,
optimizer,
states,
actions,
old_log_probs,
advantages,
returns,
clip_eps=0.2,
value_coef=0.5,
entropy_coef=0.01,
epochs=4,
batch_size=64
):
# Advantage标准化
advantages = (
advantages - advantages.mean()
) / (advantages.std() + 1e-8)
dataset_size = states.shape[0]
for _ in range(epochs):
indices = torch.randperm(dataset_size)
for start in range(0, dataset_size, batch_size):
end = start + batch_size
batch_idx = indices[start:end]
batch_states = states[batch_idx]
batch_actions = actions[batch_idx]
batch_old_log_probs = old_log_probs[batch_idx]
batch_advantages = advantages[batch_idx]
batch_returns = returns[batch_idx]
# 当前策略重新计算
_, new_log_probs, entropy, values = (
model.get_action_and_value(
batch_states,
batch_actions
)
)
# PPO ratio
ratio = torch.exp(
new_log_probs - batch_old_log_probs
)
# PPO clipping
surr1 = ratio * batch_advantages
surr2 = torch.clamp(
ratio,
1.0 - clip_eps,
1.0 + clip_eps
) * batch_advantages
policy_loss = -torch.min(
surr1,
surr2
).mean()
# Value loss
value_loss = (
(values - batch_returns) ** 2
).mean()
# Entropy
entropy_loss = entropy.mean()
# 总Loss
loss = (
policy_loss
+ value_coef * value_loss
- entropy_coef * entropy_loss
)
optimizer.zero_grad()
loss.backward()
torch.nn.utils.clip_grad_norm_(
model.parameters(),
0.5
)
optimizer.step()
# ============================================================
# 5. 导出 ONNX
# ============================================================
def export_onnx(model, state_dim, filename):
# 创建一个只包含 Actor 的网络
class ActorOnly(nn.Module):
def __init__(self, policy):
super().__init__()
self.shared = policy.shared
self.policy_head = policy.policy_head
def forward(self, x):
x = self.shared(x)
logits = self.policy_head(x)
return logits
actor = ActorOnly(model)
actor.eval()
# 创建假的输入
dummy_input = torch.randn(
1,
state_dim,
dtype=torch.float32
)
# 导出 ONNX
torch.onnx.export(
actor,
dummy_input,
filename,
input_names=["observation"],
output_names=["logits"],
dynamic_axes={
"observation": {
0: "batch_size"
},
"logits": {
0: "batch_size"
}
},
opset_version=17
)
print(f"ONNX模型已保存：{filename}")
# ============================================================
# 6. PPO训练
# ============================================================
def train():
device = torch.device(
"cuda"
if torch.cuda.is_available()
else "cpu"
)
print("Device:", device)
env = gym.make("CartPole-v1")
state_dim = env.observation_space.shape[0]
action_dim = env.action_space.n
print("State dimension:", state_dim)
print("Action dimension:", action_dim)
model = PolicyNetwork(
state_dim,
action_dim
).to(device)
optimizer = optim.Adam(
model.parameters(),
lr=3e-4
)
buffer = RolloutBuffer()
num_updates = 500
rollout_steps = 1024
for update in range(num_updates):
buffer.clear()
state, info = env.reset()
episode_reward = 0
# ====================================================
# Rollout
# ====================================================
for step in range(rollout_steps):
state_tensor = torch.tensor(
state,
dtype=torch.float32,
device=device
).unsqueeze(0)
with torch.no_grad():
action, log_prob, _, value = (
model.get_action_and_value(
state_tensor
)
)
action_value = action.item()
next_state, reward, terminated, truncated, info = (
env.step(action_value)
)
done = terminated or truncated
# 保存数据
buffer.states.append(state)
buffer.actions.append(action_value)
buffer.rewards.append(reward)
buffer.dones.append(done)
buffer.values.append(
value.item()
)
buffer.log_probs.append(
log_prob.item()
)
episode_reward += reward
state = next_state
if done:
state, info = env.reset()
episode_reward = 0
# ====================================================
# Bootstrap
# ====================================================
state_tensor = torch.tensor(
state,
dtype=torch.float32,
device=device
).unsqueeze(0)
with torch.no_grad():
_, next_value = model.forward(
state_tensor
)
next_value = next_value.item()
# ====================================================
# GAE
# ====================================================
advantages, returns = compute_gae(
buffer.rewards,
buffer.values,
buffer.dones,
next_value,
gamma=0.99,
lam=0.95
)
# ====================================================
# NumPy → PyTorch
# ====================================================
states = torch.tensor(
np.array(buffer.states),
dtype=torch.float32,
device=device
)
actions = torch.tensor(
buffer.actions,
dtype=torch.long,
device=device
)
old_log_probs = torch.tensor(
buffer.log_probs,
dtype=torch.float32,
device=device
)
advantages = torch.tensor(
advantages,
dtype=torch.float32,
device=device
)
returns = torch.tensor(
returns,
dtype=torch.float32,
device=device
)
# ====================================================
# PPO Update
# ====================================================
ppo_update(
model,
optimizer,
states,
actions,
old_log_probs,
advantages,
returns
)
if update % 10 == 0:
print(
f"Update {update}/{num_updates}"
)
# ========================================================
# 保存 PyTorch 模型
# ========================================================
torch.save(
model.state_dict(),
"cartpole_ppo.pt"
)
print("PyTorch模型已保存：cartpole_ppo.pt")
# ========================================================
# 导出 ONNX
# ========================================================
export_onnx(
model,
state_dim,
"cartpole_policy.onnx"
)
env.close()
# ============================================================
# 7. Main
# ============================================================
if __name__ == "__main__":
train()run.py：
import gymnasium as gym
import numpy as np
import onnxruntime as ort
def main():
# 1. 创建 CartPole 环境
env = gym.make("CartPole-v1", render_mode="human")
# 2. 加载 ONNX 模型
session = ort.InferenceSession(
"cartpole_policy.onnx",
providers=["CPUExecutionProvider"]
)
# 获取 ONNX 输入/输出名称
input_name = session.get_inputs()[0].name
output_name = session.get_outputs()[0].name
print("ONNX input :", input_name)
print("ONNX output:", output_name)
# 3. 开始一个 episode
state, info = env.reset()
total_reward = 0
while True:
# --------------------------------
# state 是 CartPole 的 4 维状态
# --------------------------------
# [cart_position,
# cart_velocity,
# pole_angle,
# pole_angular_velocity]
state_input = np.asarray(
state,
dtype=np.float32
).reshape(1, 4)
# --------------------------------
# ONNX Actor 推理
# --------------------------------
outputs = session.run(
[output_name],
{input_name: state_input}
)
logits = outputs[0]
# logits:
# [[logit_action_0, logit_action_1]]
#
# 选择 logits 最大的动作
action = int(np.argmax(logits, axis=1)[0])
# --------------------------------
# 执行动作
# --------------------------------
next_state, reward, terminated, truncated, info = env.step(action)
total_reward += reward
state = next_state
# --------------------------------
# episode 是否结束
# --------------------------------
if terminated or truncated:
print("Episode reward:", total_reward)
state, info = env.reset()
total_reward = 0
if __name__ == "__main__":
main()八、.onnx文件格式详解

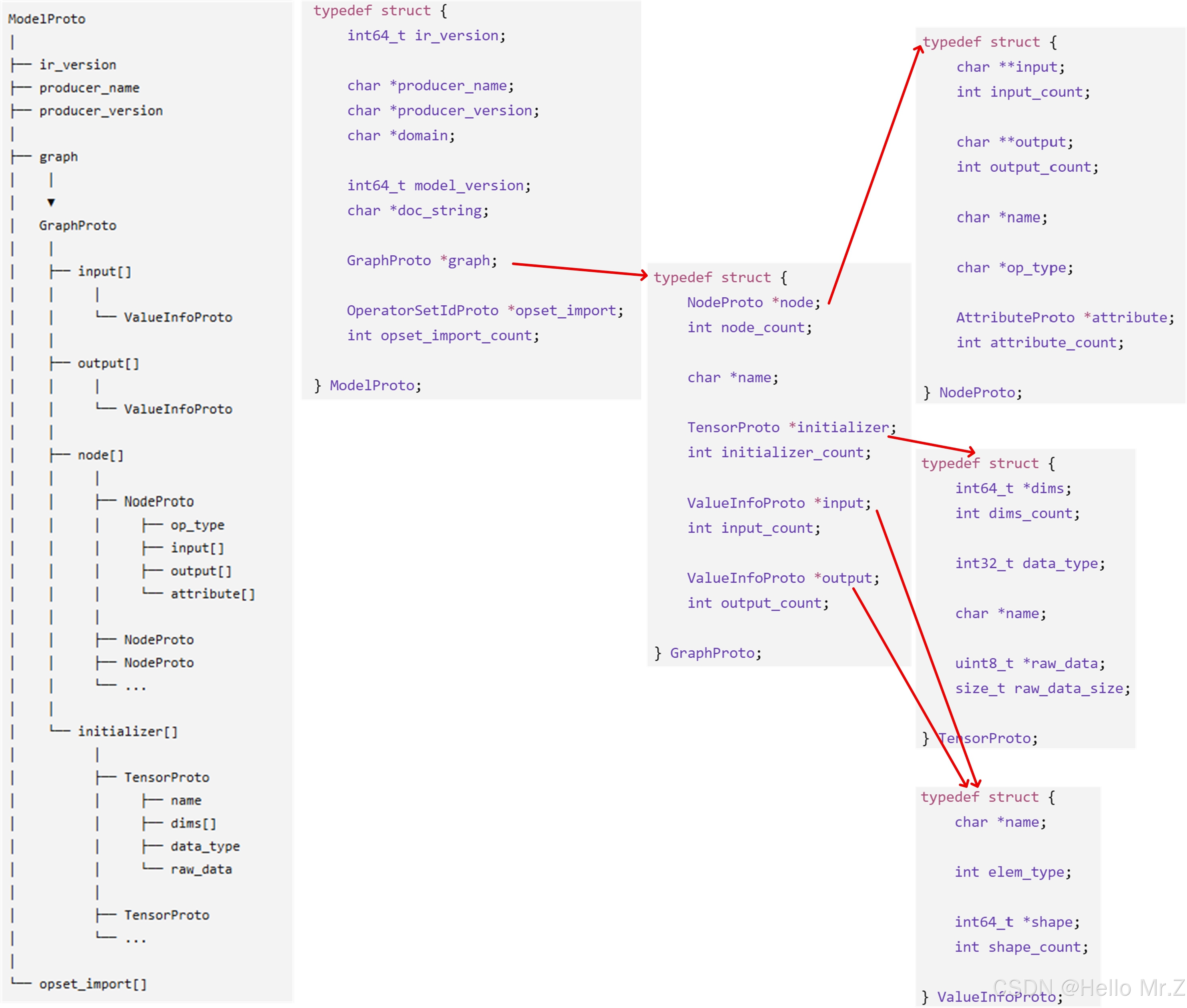

.onnx文件使用Protobuf Decoder格式存储，即直接将结构体保存为二进制文件，数据结构为onnx定义的固定格式，如下如所示：
