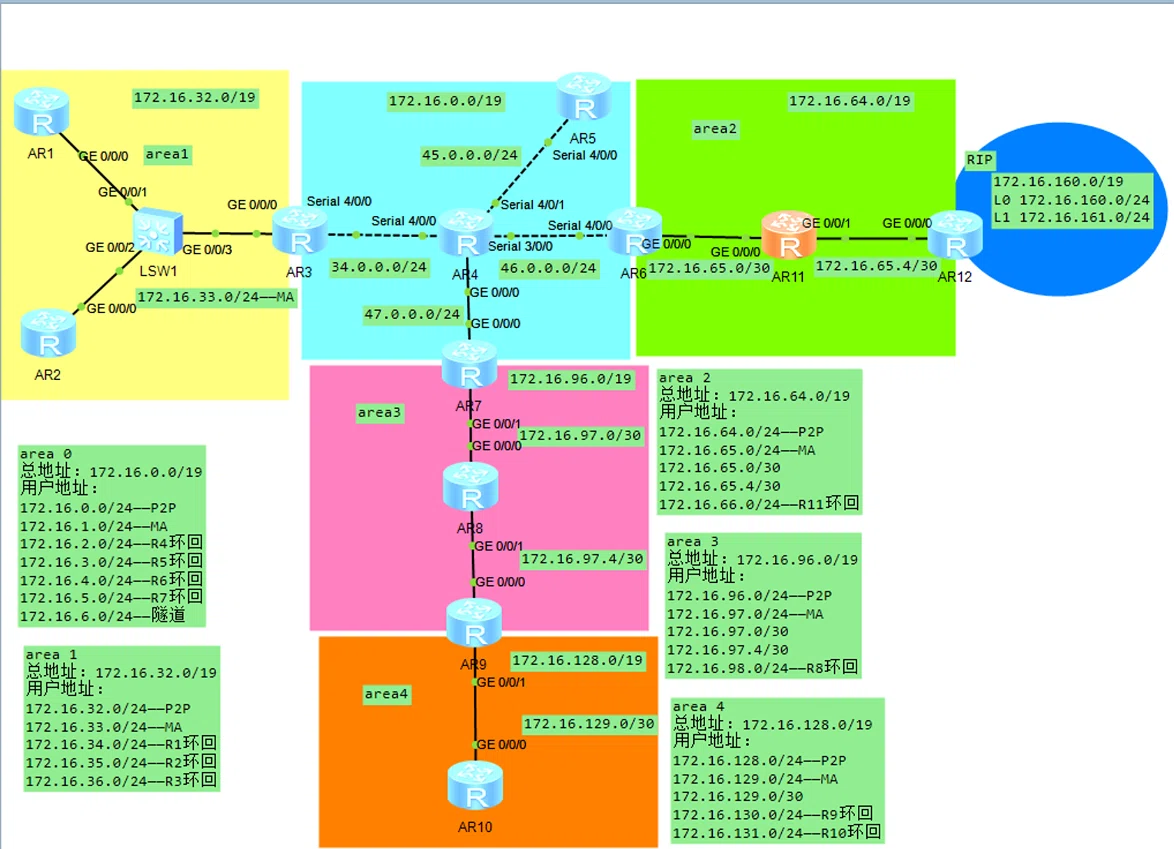

ospf综合实验

那明眸似水

6人浏览 · 2026-07-04 00:32:49

那明眸似水 · 2026-07-04 00:32:49 发布

交换机

<Huawei>
<Huawei>
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys sw1

[sw1]vlan 10
[sw1-vlan10]q
[sw1]interface GigabitEthernet 0/0/1
[sw1-GigabitEthernet0/0/1]port link-type access

[sw1-GigabitEthernet0/0/1]port default vlan 10
[sw1-GigabitEthernet0/0/1]q
[sw1]
Jul 4 2026 00:08:46-08:00 sw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 7, the c
hange loop count is 0, and the maximum number of records is 4095.
[sw1]interface GigabitEthernet 0/0/2
[sw1-GigabitEthernet0/0/2]port link-type access
[sw1-GigabitEthernet0/0/2]port default vlan 10
Jul 4 2026 00:09:06-08:00 sw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 8, the c
hange loop count is 0, and the maximum number of records is 4095.
[sw1-GigabitEthernet0/0/2]q
[sw1]
Jul 4 2026 00:09:16-08:00 sw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 9, the c
hange loop count is 0, and the maximum number of records is 4095.
[sw1]interface GigabitEthernet 0/0/3
[sw1-GigabitEthernet0/0/3]port link-type access
[sw1-GigabitEthernet0/0/3]
Jul 4 2026 00:09:36-08:00 sw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 10, the
change loop count is 0, and the maximum number of records is 4095.port default v
lan 10
[sw1-GigabitEthernet0/0/3]
Jul 4 2026 00:09:38-08:00 sw1 %%01IFNET/4/IF_STATE(l)[0]:Interface Vlanif1 has
turned into DOWN state.q
[sw1]stp disable
Warning: The global STP state will be changed. Continue? [Y/N]
Jul 4 2026 00:09:46-08:00 sw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 11, the
change loop count is 0, and the maximum number of records is 4095.
Info: This operation has been cancelled.

路由1

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r1
[r1]interface LoopBack 0
[r1-LoopBack0]ip address 172.16.34.1 255.255.255.0
[r1-LoopBack0]q
[r1]interface GigabitEthernet 0/0/0
[r1-GigabitEthernet0/0/0]ip address 172.16.33.1 255.255.255.0
Jul 3 2026 23:24:50-08:00 r1 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r1-GigabitEthernet0/0/0]q
[r1]ospf 1 router-id 1.1.1.1
[r1-ospf-1]area 1
[r1-ospf-1-area-0.0.0.1]network 172.16.33.0 0.0.0.255
[r1-ospf-1-area-0.0.0.1]network 172.16.34.0 0.0.0.255
[r1-ospf-1-area-0.0.0.1]q
[r1-ospf-1]q

路由2

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r2
[r2]interface LoopBack 0
[r2-LoopBack0]ip address 172.16.35.1 255.255.255.0
[r2-LoopBack0]q
[r2]interface GigabitEthernet 0/0/0
[r2-GigabitEthernet0/0/0]ip address 172.16.33.2 255.255.255.0
Jul 3 2026 23:26:07-08:00 r2 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r2-GigabitEthernet0/0/0]q
[r2]ospf 1 router-id 2.2.2.2
[r2-ospf-1]area 1
[r2-ospf-1-area-0.0.0.1]network 172.16.33.0 0.0.0.255

[r2-ospf-1-area-0.0.0.1]network 172.16.35.0 0.0.0.255

路由3

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r3
[r3]interface LoopBack 0
[r3-LoopBack0]ip address 172.16.36.1 255.255.255.0
[r3-LoopBack0]q
[r3]interface GigabitEthernet 0/0/0
[r3-GigabitEthernet0/0/0]ip address 172.16.33.3 255.255.255.0
Jul 3 2026 23:27:54-08:00 r3 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r3-GigabitEthernet0/0/0]q
[r3]interface Serial 4/0/0
[r3-Serial4/0/0]ip address 34.0.0.1 255.255.255.0
[r3-Serial4/0/0]q
[r3]ospf 1 router-id 3.3.3.3
[r3-ospf-1]area 0
[r3-ospf-1-area-0.0.0.0]network 34.0.0.0 0.0.0.255
[r3-ospf-1-area-0.0.0.0]q
[r3-ospf-1]area 1
[r3-ospf-1-area-0.0.0.1]network 172.16.33.0 0.0.0.255
[r3-ospf-1-area-0.0.0.1]network 172.16.36.0 0.0.0.255

路由4

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r4
[r4]interface LoopBack 0
[r4-LoopBack0]ip address 172.16.3.1 255.255.255.0
[r4-LoopBack0]q
[r4]interface Serial 4/0/0
[r4-Serial4/0/0]ip address 34.0.0.2 255.255.255.0
[r4-Serial4/0/0]
Jul 3 2026 23:30:16-08:00 r4 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol PPP
IPCP on the interface Serial4/0/0 has entered the UP state.
[r4-Serial4/0/0]q
[r4]interface Serial 4/0/1
[r4-Serial4/0/1]ip address 45.0.0.1 255.255.255.0
[r4-Serial4/0/1]q
[r4]interface Serial 3/0/0
[r4-Serial3/0/0]ip address 46.0.0.1 255.255.255.0
[r4-Serial3/0/0]q
[r4]int
[r4]interface g
[r4]interface GigabitEthernet 0/0/0
[r4-GigabitEthernet0/0/0]ip address 47.0.0.1 255.255.255.0
Jul 3 2026 23:31:59-08:00 r4 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r4-GigabitEthernet0/0/0]q
[r4]ospf 1 router-id 4.4.4.4
[r4-ospf-1]area 0
[r4-ospf-1-area-0.0.0.0]network 34.0.0.0 0.0.0.255
[r4-ospf-1-area-0.0.0.0]network 45.0.0.0 0.0.0.255
[r4-ospf-1-area-0.0.0.0]network 46.0.0.0 0.0.0.255
[r4-ospf-1-area-0.0.0.0]network 47.0.0.0 0.0.0.255
[r4-ospf-1-area-0.0.0.0]network 172.16.3.0 0.0.0.255

路由5

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r5
[r5]interface LoopBack 0
[r5-LoopBack0]ip address 172.16.2.1 255.255.255.0
[r5-LoopBack0]q
[r5]interface Serial 4/0/0
[r5-Serial4/0/0]ip address 45.0.0.2 255.255.255.0
[r5-Serial4/0/0]
Jul 3 2026 23:35:55-08:00 r5 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol PPP
IPCP on the interface Serial4/0/0 has entered the UP state.
[r5-Serial4/0/0]q
[r5]ospf 1 router-id 5.5.5.5
[r5-ospf-1]area 0
[r5-ospf-1-area-0.0.0.0]network 45.0.0.0 0.0.0.255
[r5-ospf-1-area-0.0.0.0]network 172.16.2.0 0.0.0.255

路由6

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r6
[r6]interface LoopBack 0
[r6-LoopBack0]ip address 172.16.4.1 255.255.255.0
[r6-LoopBack0]q
[r6]interface Serial 4/0/0
[r6-Serial4/0/0]ip address 46.0.0.2 255.255.255.0
[r6-Serial4/0/0]
Jul 3 2026 23:37:19-08:00 r6 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol PPP
IPCP on the interface Serial4/0/0 has entered the UP state.
[r6-Serial4/0/0]q
[r6]interface GigabitEthernet 0/0/0
[r6-GigabitEthernet0/0/0]ip address 172.16.65.1 255.255.255.252
Jul 3 2026 23:37:35-08:00 r6 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r6-GigabitEthernet0/0/0]q
[r6]ospf 1 router-id 6.6.6.6
[r6-ospf-1]area 0
[r6-ospf-1-area-0.0.0.0]network 46.0.0.0 0.0.0.255
[r6-ospf-1-area-0.0.0.0]network 172.16.4.0 0.0.0.255
[r6-ospf-1-area-0.0.0.0]q
[r6-ospf-1]area 2
[r6-ospf-1-area-0.0.0.2]network 172.16.65.0 0.0.0.3

路由7

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r7
[r7]interface LoopBack 0
[r7-LoopBack0]ip address 172.16.5.1 255.255.255.0
[r7-LoopBack0]q
[r7]int
[r7]interface g
[r7]interface GigabitEthernet 0/0/0
[r7-GigabitEthernet0/0/0]ip address 47.0.0.2 255.255.255.0
[r7-GigabitEthernet0/0/0]
Jul 3 2026 23:39:24-08:00 r7 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r7-GigabitEthernet0/0/0]q
[r7]interface GigabitEthernet 0/0/1
[r7-GigabitEthernet0/0/1]ip address 172.16.97.1 255.255.255.252
Jul 3 2026 23:39:58-08:00 r7 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[r7-GigabitEthernet0/0/1]q
[r7]ospf 1 router-id 7.7.7.7
[r7-ospf-1]area 0
[r7-ospf-1-area-0.0.0.0]network 47.0.0.0 0.0.0.255
[r7-ospf-1-area-0.0.0.0]network 172.16.5.0 0.0.0.255
[r7-ospf-1-area-0.0.0.0]q
[r7-ospf-1]area 3
[r7-ospf-1-area-0.0.0.3]network 172.16.97.0 0.0.0.3

路由8

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r8
[r8]interface LoopBack 0
[r8-LoopBack0]ip address 172.16.98.1 255.255.255.0
[r8-LoopBack0]q
[r8]interface GigabitEthernet 0/0/0
[r8-GigabitEthernet0/0/0]ip address 172.16.97.2 255.255.255.252
Jul 3 2026 23:41:45-08:00 r8 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r8-GigabitEthernet0/0/0]q
[r8]interface GigabitEthernet 0/0/1
[r8-GigabitEthernet0/0/1]ip address 172.16.97.6 255.255.255.252
Jul 3 2026 23:42:03-08:00 r8 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[r8-GigabitEthernet0/0/1]q
[r8]ospf 1 router-id 8.8.8.8
[r8-ospf-1]area 3
[r8-ospf-1-area-0.0.0.3]network 172.16.97.0 0.0.0.3
[r8-ospf-1-area-0.0.0.3]network 172.16.97.4 0.0.0.3

路由9

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r9
[r9]interface LoopBack 0
[r9-LoopBack0]ip address 172.16.130.1 255.255.255.0
[r9-LoopBack0]q
[r9]interface GigabitEthernet 0/0/1
[r9-GigabitEthernet0/0/1]ip address 172.16.129.1 255.255.255.252
Jul 3 2026 23:44:43-08:00 r9 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[r9-GigabitEthernet0/0/1]q
[r9]interface GigabitEthernet 0/0/0
[r9-GigabitEthernet0/0/0]ip address 172.16.97.5 255.255.255.252
Jul 3 2026 23:45:06-08:00 r9 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r9-GigabitEthernet0/0/0]q
[r9]ospf 1 router-id 9.9.9.9
[r9-ospf-1]area 3
[r9-ospf-1-area-0.0.0.3]network 172.16.97.4 0.0.0.3
[r9-ospf-1-area-0.0.0.3]q
[r9-ospf-1]area 4
[r9-ospf-1-area-0.0.0.4]network 172.16.129.0 0.0.0.3
[r9-ospf-1-area-0.0.0.4]network 172.16.130.0 0.0.0.255

路由10

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r10
[r10]interface LoopBack 0
[r10-LoopBack0]ip address 172.16.131.1 255.255.255.0
[r10-LoopBack0]q
[r10]interface GigabitEthernet 0/0/0
[r10-GigabitEthernet0/0/0]ip address 172.16.129.2 255.255.255.252
Jul 3 2026 23:47:32-08:00 r10 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r10-GigabitEthernet0/0/0]q
[r10]ospf 1 router-id 10.10.10.10
[r10-ospf-1]area 4
[r10-ospf-1-area-0.0.0.4]network 172.16.129.0 0.0.0.3
[r10-ospf-1-area-0.0.0.4]network 172.16.131.0 0.0.0.255

路由11

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r11
[r11]interface GigabitEthernet 0/0/0
[r11-GigabitEthernet0/0/0]ip address 172.16.65.2 255.255.255.252
[r11-GigabitEthernet0/0/0]
Jul 3 2026 23:50:28-08:00 r11 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r11-GigabitEthernet0/0/0]q
[r11]interface GigabitEthernet 0/0/1
[r11-GigabitEthernet0/0/1]ip address 172.16.65.5 255.255.255.252
Jul 3 2026 23:51:13-08:00 r11 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[r11-GigabitEthernet0/0/1]
[r11-GigabitEthernet0/0/1]q
[r11]interface LoopBack 0
[r11-LoopBack0]ip address 172.16.66.1 255.255.255.0
[r11-LoopBack0]q
[r11]ospf 1 router-id 11.11.11.11
[r11-ospf-1]area 2
[r11-ospf-1-area-0.0.0.2]network 172.16.65.0 0.0.0.3
[r11-ospf-1-area-0.0.0.2]network 172.16.65.4 0.0.0.3
[r11-ospf-1-area-0.0.0.2]network 172.16.65.4 0.0.0.3
[r11-ospf-1-area-0.0.0.2]network 172.16.66.0 0.0.0.255

路由12

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys r12
[r12]interface GigabitEthernet 0/0/0
[r12-GigabitEthernet0/0/0]ip address 172.16.65.6 255.255.255.252
Jul 3 2026 23:54:54-08:00 r12 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r12-GigabitEthernet0/0/0]q
[r12]interface GigabitEthernet 0/0/1
[r12-GigabitEthernet0/0/1]ip address 172.16.161.1 255.255.255.0
[r12-GigabitEthernet0/0/1]q
[r12]rip 1
[r12-rip-1]version 2
[r12-rip-1]undo summary
[r12-rip-1]network 172.16.0.0
[r12-rip-1]import-route ospf 1 cost 3
[r12-rip-1]q
[r12]ospf 1 router-id 12.12.12.12
[r12-ospf-1]area 2
[r12-ospf-1-area-0.0.0.2]network 172.16.65.4 0.0.0.3
