PyTorch实战：基于深度学习的图像识别分类（附完整代码）
·
目录
1 CIFAR10数据集下载
直接使用代码下载
train_data = torchvision.datasets.CIFAR10(root='../dataset_transforms', train=True, transform=transform, download=True)
test_data = torchvision.datasets.CIFAR10(root='../dataset_transforms', train=False, transform=transform, download=True)下载之后的文件目录：
2 实操
ps: 以下代码全部写在一个 .py 文件中
（1）数据预处理操作：
# 1.预处理
transform = torchvision.transforms.Compose([
torchvision.transforms.ToTensor()
])（2）加载数据集
# 2. 加载数据集
train_data = torchvision.datasets.CIFAR10(root='../dataset_transforms', train=True, transform=transform, download=True)
test_data = torchvision.datasets.CIFAR10(root='../dataset_transforms', train=False, transform=transform, download=True)
print(len(train_data))
print(len(test_data))
train_loader = torch.utils.data.DataLoader(train_data, batch_size=64, shuffle=True)
test_loader = torch.utils.data.DataLoader(test_data, batch_size=64, shuffle=True)(3) 构建神经网络模型
# 3.定义模型
class Model(nn.Module):
def __init__(self):
super(Model, self).__init__()
self.conv1 = nn.Conv2d(3, 64, 5, 1, 2)
self.batchNorm1 = nn.BatchNorm2d(64)
self.relu1 = nn.ReLU()
self.maxpool1 = nn.MaxPool2d(2)
self.conv2 = nn.Conv2d(64, 64, 5, 1, 2)
self.batchNorm2 = nn.BatchNorm2d(64)
self.relu2 = nn.ReLU()
self.maxpool2 = nn.MaxPool2d(2)
self.conv3 = nn.Conv2d(64, 128, 5, 1, 2)
self.batchNorm3 = nn.BatchNorm2d(128)
self.relu3 = nn.ReLU()
self.maxpool3 = nn.MaxPool2d(2)
self.conv4 = nn.Conv2d(128, 128, 5, 1, 2)
self.batchNorm4 = nn.BatchNorm2d(128)
self.relu4 = nn.ReLU()
self.maxpool4 = nn.MaxPool2d(2)
self.flatten = nn.Flatten()
self.linear1 = nn.Linear(128 * 2 * 2, 128)
self.relu5 = nn.ReLU()
self.dropout = nn.Dropout(0.5) # 添加Dropout层，丢弃率为0.5
self.linear2 = nn.Linear(128, 10)
def forward(self, x):
x = self.conv1(x)
x = self.batchNorm1(x)
x = self.relu1(x)
x = self.maxpool1(x)
x = self.conv2(x)
x = self.batchNorm2(x)
x = self.relu2(x)
x = self.maxpool2(x)
x = self.conv3(x)
x = self.batchNorm3(x)
x = self.relu3(x)
x = self.maxpool3(x)
x = self.conv4(x)
x = self.batchNorm4(x)
x = self.relu4(x)
x = self.maxpool4(x)
x = self.flatten(x)
x = self.linear1(x)
x = self.relu5(x)
x = self.dropout(x)
x = self.linear2(x)
return x
model = Model()
loss = nn.CrossEntropyLoss() # 损失函数使用交叉熵损失函数
# 优化器: 使用随机梯度下降
optimizer = torch.optim.SGD(model.parameters(), lr=0.14) # lr:学习率
scheduler = StepLR(optimizer, step_size=10, gamma=0.5) # 学习率调度器，每10个epoch将学习率减半
# 将模型放在 GPU 上跑
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = model.to(device)
writer = SummaryWriter("../nn_classify_image_logs") # 创建 SummaryWriter 对象，用于记录训练过程中的数据(4) 训练模型
# 4.训练模型
def train():
epochs = 10
total_train_num = 0
model.train()
for epoch in range(epochs):
for data in train_loader:
imgs, targets = data
imgs = imgs.to(device)
targets = targets.to(device)
model_predict = model(imgs)
_, predicted = torch.max(model_predict, 1)
loss_result = loss(model_predict, targets)
# 优化模型
optimizer.zero_grad()
loss_result.backward()
optimizer.step()
total_train_num += 1
if total_train_num % 100 == 0:
print("Epoch: {}, Loss: {}".format(epoch + 1, loss_result.item()))
writer.add_scalar("train_loss", loss_result.item(), total_train_num) # 记录训练损失
torch.save(model.state_dict(), './model/model.pth') # 保存模型参数
torch.save(optimizer.state_dict(), './model/optimizer.pth') # 保存优化器参数
print("模型参数已保存")
print("优化器参数已保存")
print("训练完成")
# 计算预测正确的数量
# total_train_correct += (predicted == targets).sum().item()
# total_train_loss += loss_result.item()
# print("Total train loss: {}".format(total_train_loss))

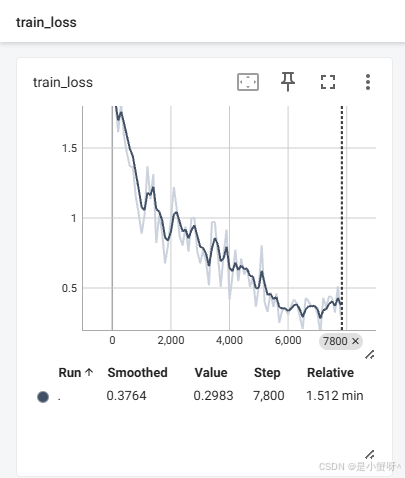

# train()训练时的可视化图像：
(5) 测试模型
# 5.测试模型
def test():
model.load_state_dict(torch.load('./model/model.pth'))
model.eval()
total_test_num = 0
total_test_correct = 0
total_test_loss = 0
with torch.no_grad():
for imgs, targets in test_loader:
imgs = imgs.to(device)
targets = targets.to(device)
model_predict = model(imgs)
_, predicted = torch.max(model_predict, 1)
loss_result = loss(model_predict, targets)
total_test_num += imgs.size(0)
total_test_correct += (predicted == targets).sum().item()
total_test_loss += loss_result.item()
if total_test_num % 100 == 0:
print("Test_Nums: {}, Loss: {}".format(total_test_num, loss_result.item()))
writer.add_scalar("Test Loss", loss_result.item(), total_test_num)
print("Test Accuracy: {}".format(total_test_correct / total_test_num)) # 该批次预测的准确度
writer.add_scalar("Test Accuracy", total_test_correct / total_test_num, total_test_num)
print("Test Total Accuracy: {}".format(total_test_correct / total_test_num)) # 总预测的准确度
print("Test Total Loss: {}".format(total_test_loss / len(test_loader)))

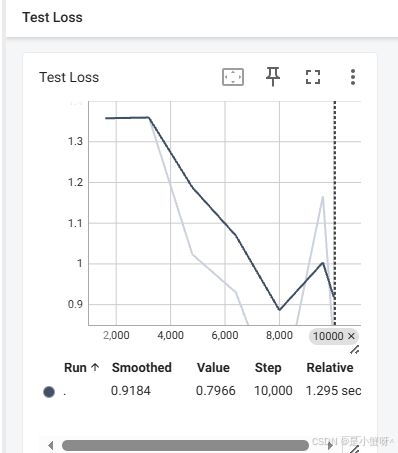

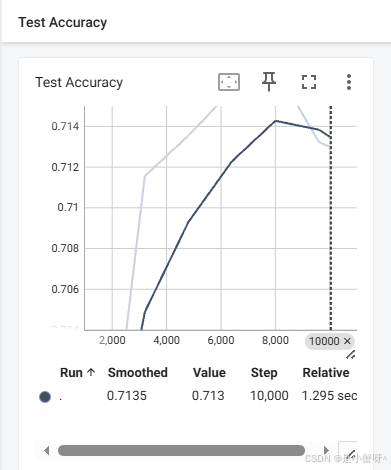

# test()测试时的可视化图像：

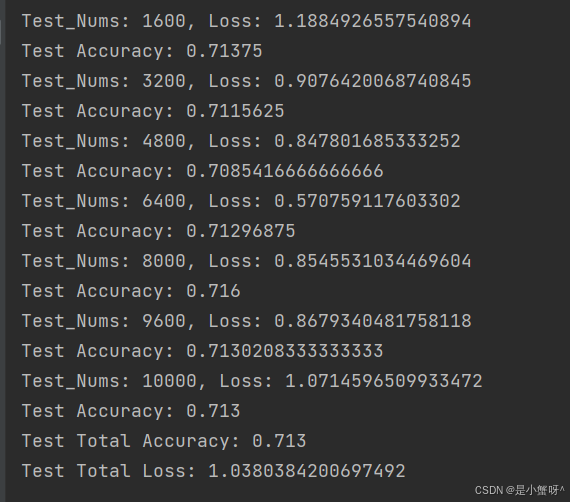

整体的测试精确度才71%左右，较低：
（6）测试自己的图片
# 6.测试自己的图片
def test_my_image():
model.load_state_dict(torch.load('./model/model.pth'))
model.eval() # 设置为评估模式
# 定义图像预处理
transform_image = torchvision.transforms.Compose([
torchvision.transforms.Resize((32, 32)), # 调整图像大小为 28x28
torchvision.transforms.ToTensor(), # 转换为张量并归一化到 [0, 1]
])
# 加载自己的图片
img = Image.open('./test_images/deer.png')
img = img.convert('RGB')
img = transform_image(img)
img = img.unsqueeze(0) # 形状变为 [1, 1, 28, 28]
img = img.to(device)
class_names = ["airplane", "automobile", "bird", "cat", "deer", "dog", "frog", "horse", "ship", "truck"]
with torch.no_grad():
model_predict = model(img)
_, predicted = torch.max(model_predict, 1)
print("预测结果为：", class_names[predicted.item()]) # 输出预测结果
print("真实结果为：deer") # 输出真实结果
# test_my_image()总结：该模型预测的准确度仍需改进，欢迎指正，交流学习！
3 附完整代码
import torch
import torchvision
from PIL import Image
from torch import nn
from torch.optim.lr_scheduler import StepLR
from torch.utils.tensorboard import SummaryWriter
# 1.预处理
transform = torchvision.transforms.Compose([
torchvision.transforms.ToTensor()
])
# 2. 加载数据集
train_data = torchvision.datasets.CIFAR10(root='../dataset_transforms', train=True, transform=transform, download=True)
test_data = torchvision.datasets.CIFAR10(root='../dataset_transforms', train=False, transform=transform, download=True)
print(len(train_data))
print(len(test_data))
train_loader = torch.utils.data.DataLoader(train_data, batch_size=64, shuffle=True)
test_loader = torch.utils.data.DataLoader(test_data, batch_size=64, shuffle=True)
# 3.定义模型
class Model(nn.Module):
def __init__(self):
super(Model, self).__init__()
self.conv1 = nn.Conv2d(3, 64, 5, 1, 2)
self.batchNorm1 = nn.BatchNorm2d(64)
self.relu1 = nn.ReLU()
self.maxpool1 = nn.MaxPool2d(2)
self.conv2 = nn.Conv2d(64, 64, 5, 1, 2)
self.batchNorm2 = nn.BatchNorm2d(64)
self.relu2 = nn.ReLU()
self.maxpool2 = nn.MaxPool2d(2)
self.conv3 = nn.Conv2d(64, 128, 5, 1, 2)
self.batchNorm3 = nn.BatchNorm2d(128)
self.relu3 = nn.ReLU()
self.maxpool3 = nn.MaxPool2d(2)
self.conv4 = nn.Conv2d(128, 128, 5, 1, 2)
self.batchNorm4 = nn.BatchNorm2d(128)
self.relu4 = nn.ReLU()
self.maxpool4 = nn.MaxPool2d(2)
self.flatten = nn.Flatten()
self.linear1 = nn.Linear(128 * 2 * 2, 128)
self.relu5 = nn.ReLU()
self.dropout = nn.Dropout(0.5) # 添加Dropout层，丢弃率为0.5
self.linear2 = nn.Linear(128, 10)
def forward(self, x):
x = self.conv1(x)
x = self.batchNorm1(x)
x = self.relu1(x)
x = self.maxpool1(x)
x = self.conv2(x)
x = self.batchNorm2(x)
x = self.relu2(x)
x = self.maxpool2(x)
x = self.conv3(x)
x = self.batchNorm3(x)
x = self.relu3(x)
x = self.maxpool3(x)
x = self.conv4(x)
x = self.batchNorm4(x)
x = self.relu4(x)
x = self.maxpool4(x)
x = self.flatten(x)
x = self.linear1(x)
x = self.relu5(x)
x = self.dropout(x)
x = self.linear2(x)
return x
model = Model()
loss = nn.CrossEntropyLoss() # 损失函数使用交叉熵损失函数
# 优化器: 使用随机梯度下降
optimizer = torch.optim.SGD(model.parameters(), lr=0.14) # lr:学习率
scheduler = StepLR(optimizer, step_size=10, gamma=0.5) # 学习率调度器，每10个epoch将学习率减半
# 将模型放在 GPU 上跑
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = model.to(device)
writer = SummaryWriter("../nn_classify_image_logs") # 创建 SummaryWriter 对象，用于记录训练过程中的数据
# 4.训练模型
def train():
epochs = 10
total_train_num = 0
model.train()
for epoch in range(epochs):
for data in train_loader:
imgs, targets = data
imgs = imgs.to(device)
targets = targets.to(device)
model_predict = model(imgs)
_, predicted = torch.max(model_predict, 1)
loss_result = loss(model_predict, targets)
# 优化模型
optimizer.zero_grad()
loss_result.backward()
optimizer.step()
total_train_num += 1
if total_train_num % 100 == 0:
print("Epoch: {}, Loss: {}".format(epoch + 1, loss_result.item()))
writer.add_scalar("train_loss", loss_result.item(), total_train_num) # 记录训练损失
torch.save(model.state_dict(), './model/model.pth') # 保存模型参数
torch.save(optimizer.state_dict(), './model/optimizer.pth') # 保存优化器参数
print("模型参数已保存")
print("优化器参数已保存")
print("训练完成")
# 计算预测正确的数量
# total_train_correct += (predicted == targets).sum().item()
# total_train_loss += loss_result.item()
# print("Total train loss: {}".format(total_train_loss))
# train()
# 5.测试模型
def test():
model.load_state_dict(torch.load('./model/model.pth'))
model.eval()
total_test_num = 0
total_test_correct = 0
total_test_loss = 0
with torch.no_grad():
for imgs, targets in test_loader:
imgs = imgs.to(device)
targets = targets.to(device)
model_predict = model(imgs)
_, predicted = torch.max(model_predict, 1)
loss_result = loss(model_predict, targets)
total_test_num += imgs.size(0)
total_test_correct += (predicted == targets).sum().item()
total_test_loss += loss_result.item()
if total_test_num % 100 == 0:
print("Test_Nums: {}, Loss: {}".format(total_test_num, loss_result.item()))
writer.add_scalar("Test Loss", loss_result.item(), total_test_num)
print("Test Accuracy: {}".format(total_test_correct / total_test_num)) # 该批次预测的准确度
writer.add_scalar("Test Accuracy", total_test_correct / total_test_num, total_test_num)
print("Test Total Accuracy: {}".format(total_test_correct / total_test_num)) # 总预测的准确度
print("Test Total Loss: {}".format(total_test_loss / len(test_loader)))
test()
# 6.测试自己的图片
def test_my_image():
model.load_state_dict(torch.load('./model/model.pth'))
model.eval() # 设置为评估模式
# 定义图像预处理
transform_image = torchvision.transforms.Compose([
torchvision.transforms.Resize((32, 32)), # 调整图像大小为 28x28
torchvision.transforms.ToTensor(), # 转换为张量并归一化到 [0, 1]
])
# 加载自己的图片
img = Image.open('./test_images/deer.png')
img = img.convert('RGB')
img = transform_image(img)
img = img.unsqueeze(0) # 形状变为 [1, 1, 28, 28]
img = img.to(device)
class_names = ["airplane", "automobile", "bird", "cat", "deer", "dog", "frog", "horse", "ship", "truck"]
with torch.no_grad():
model_predict = model(img)
_, predicted = torch.max(model_predict, 1)
print("预测结果为：", class_names[predicted.item()]) # 输出预测结果
print("真实结果为：deer") # 输出真实结果
# test_my_image()
