MyBatis-Generator 使用

简介

之前我IDEA安装的mybatis-generator一键生成POJO，mapper以及XML文件的插件，但是换了一台电脑发现不行了，必须通过繁琐的配置才能使用懒人工具。

Maven依赖以及配置

pom.xml文件中修改两处：

引入依赖

<!-- 添加mybatis.generator依赖 -->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.3.7</version>
        </dependency>

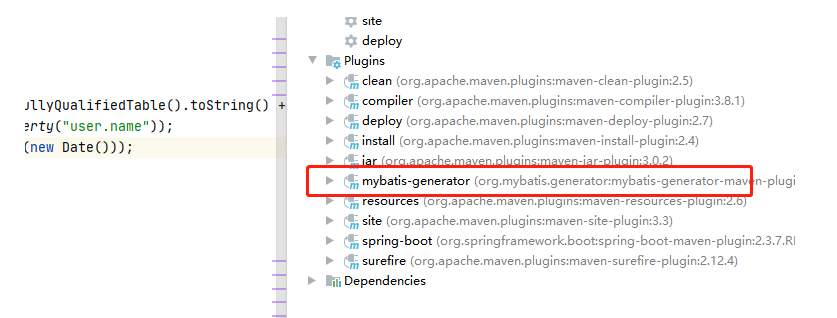

增加build插件工具

<build>
        <plugins>
            <!--2、添加mybatis.generator插件 -->
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.7</version>
                <configuration>
                    <!--配置XML文件地址，以下为根目录，如果是resources，则为：src/main/resources/generatorConfig.xml -->
                    <!--                        <configurationFile>generatorConfig.xml</configurationFile>-->
                    <configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
                    <!--允许移动生成的文件 -->
                    <verbose>true</verbose>
                    <!--是否覆盖 -->
                    <overwrite>true</overwrite>
                </configuration>
            </plugin>

        </plugins>
    </build>

增加generatorConfig配置文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <!--1、指定特定数据库的jdbc驱动jar包的位置千万千万要指定正确,不然就创建不了文件-->
    <classPathEntry location="E:\MavenSupports\mysql\mysql-connector-java\8.0.22\mysql-connector-java-8.0.22.jar"/>

    <context id="DB2Tables" targetRuntime="MyBatis3">
        <!-- 取消setter/getter方法生成 因为已经采用了lombok了 这里是自己重写的方法，看下面实现  -->
        <plugin type="com.personloger.config.IngoreSetterAndGetterPlugin" />
        <!-- 配置生成pojo的序列化的插件，mybatis支持很多插件，这些插件都在 org.mybatis.generator.plugins包下  -->
        <plugin type="org.mybatis.generator.plugins.SerializablePlugin" />
        <!-- type值为自定义的MyCommentGenerator-->
        <commentGenerator type="com.personloger.config.MyCommentGenerator">
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="false"/>
            <property name="suppressDate" value="false"/>
            <!-- 是否添加数据表中字段的注释 true：是 ： false:否 -->
            <property name="addRemarkComments" value="true"/>
        </commentGenerator>

        <!--2、配置数据库连接信息  -->
        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://127.0.0.1:3306/psop?serverTimezone=Asia/Shanghai"
                        userId="root"
                        password="123456">
        </jdbcConnection>

        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!--3、指定Model生成的位置  -->
        <javaModelGenerator
                targetPackage="com.personloger.system.pojo"
                targetProject=".\src\main\java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>


        <!--4、指定sql映射文件生成的位置  -->
        <sqlMapGenerator
                targetPackage="mapper"
                targetProject=".\src\main\resources">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>

        <!--4.1、如果放程序包中-->
        <!--        <sqlMapGenerator -->
        <!--                targetPackage="com.anson.mapper"-->
        <!--                targetProject=".\src\main\java">-->
        <!--            <property name="enableSubPackages" value="true"/>-->
        <!--        </sqlMapGenerator>-->


        <!--5、指定dao接口生成的位置 .mapper接口  -->
        <!--  type生成类型含义,项目中基本都是用：XMLMAPPER
        type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象
        type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象
        type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口
        targetPackage="" , 是你的mapper接口文件目录
        -->
        <javaClientGenerator type="XMLMAPPER"
                             targetPackage="com.personloger.system.mapper"
                             targetProject=".\src\main\java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>


        <!-- 6-1、单个表生成策略  -->
        <!-- options -->
<!--        <table tableName="options" domainObjectName="Options" enableCountByExample="false" enableUpdateByExample="false"-->
<!--               enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false">-->
<!--            <property name="useActualColumnNames" value="true" />-->
<!--        </table>-->

        <!-- audiLog -->
        <table tableName="audilog" domainObjectName="AudiLog" enableCountByExample="false" enableUpdateByExample="false"
               enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false">
            <property name="useActualColumnNames" value="true" />

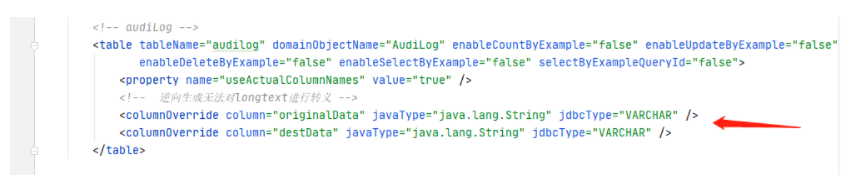

            <!--  逆向生成无法对longtext进行转义 -->
            <columnOverride column="originalData" javaType="java.lang.String" jdbcType="VARCHAR" />
            <columnOverride column="destData" javaType="java.lang.String" jdbcType="VARCHAR" />
        </table>

        <!-- 6-2、整个数据库批量生成策略 -->
        <!--        <table tableName="%"-->
        <!--               enableCountByExample="false"-->
        <!--               enableUpdateByExample="false"-->
        <!--               enableDeleteByExample="false"-->
        <!--               enableSelectByExample="false"-->
        <!--               selectByExampleQueryId="false">-->
        <!--            <property name="useActualColumnNames" value="false" />-->
        <!--            <!– 数据库表主键 –>-->
        <!--            <!–   <generatedKey column="id" sqlStatement="Mysql" identity="true" /> –>-->
        <!--        </table>-->

    </context>
</generatorConfiguration>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.

注意的步骤已经在注释中写明

重写实现类

MyCommentGenerator.java

import org.mybatis.generator.api.CommentGenerator;
import org.mybatis.generator.api.IntrospectedColumn;
import org.mybatis.generator.api.IntrospectedTable;
import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.api.dom.java.*;
import org.mybatis.generator.api.dom.xml.XmlElement;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.PropertyRegistry;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.internal.DefaultShellCallback;
import org.mybatis.generator.internal.util.StringUtility;

import java.io.File;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.List;
import java.util.Properties;
import java.util.Set;

import static org.mybatis.generator.internal.util.StringUtility.isTrue;

public class MyCommentGenerator implements CommentGenerator {


    public static void main(String[] args) {
        List<String> warnings = new ArrayList<>();
        boolean overwrite = true;
        // 给出generatorConfig.xml文件的位置，绝对地址或者类路径下
        //File configFile = new File("E:\\xxxxxxxxx\\generatorConfig.xml");
        File configFile = new File(MyCommentGenerator.class.getClassLoader().getResource("generatorConfig.xml").getFile());
        ConfigurationParser cp = new ConfigurationParser(warnings);
        try {
            Configuration config = cp.parseConfiguration(configFile);
            DefaultShellCallback callback = new DefaultShellCallback(overwrite);
            MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
            myBatisGenerator.generate(null);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    private Properties properties;

    private boolean suppressDate;

    private boolean suppressAllComments;

    /**
     * If suppressAllComments is true, this option is ignored.
     */
    private boolean addRemarkComments;

    private SimpleDateFormat dateFormat;

    public MyCommentGenerator() {
        super();
        properties = new Properties();
        suppressDate = false;
        suppressAllComments = false;
        addRemarkComments = false;
    }

    /**
     * 默认配置
     *
     * @param properties
     */
    @Override
    public void addConfigurationProperties(Properties properties) {
        this.properties.putAll(properties);

        suppressDate = isTrue(properties
                .getProperty(PropertyRegistry.COMMENT_GENERATOR_SUPPRESS_DATE));

        suppressAllComments = isTrue(properties
                .getProperty(PropertyRegistry.COMMENT_GENERATOR_SUPPRESS_ALL_COMMENTS));

        addRemarkComments = isTrue(properties
                .getProperty(PropertyRegistry.COMMENT_GENERATOR_ADD_REMARK_COMMENTS));

        String dateFormatString = properties.getProperty(PropertyRegistry.COMMENT_GENERATOR_DATE_FORMAT);
        if (StringUtility.stringHasValue(dateFormatString)) {
            dateFormat = new SimpleDateFormat(dateFormatString);
        }
    }

    /**
     * 实体类添加的注释
     *
     * @param topLevelClass
     * @param introspectedTable
     */
    @Override
    public void addModelClassComment(TopLevelClass topLevelClass,
                                     IntrospectedTable introspectedTable) {
    }

    /**
     * 实体类的属性注释，数据库中自定义注释
     *
     * @param field
     * @param introspectedTable
     * @param introspectedColumn
     */
    @Override
    public void addFieldComment(Field field,
                                IntrospectedTable introspectedTable,
                                IntrospectedColumn introspectedColumn) {
        if (suppressAllComments) {
            return;
        }
        field.addJavaDocLine("/**"); //$NON-NLS-1$
        String remarks = introspectedColumn.getRemarks();
        if (addRemarkComments && StringUtility.stringHasValue(remarks)) {
            String[] remarkLines = remarks.split(System.getProperty("line.separator"));  //$NON-NLS-1$
            for (String remarkLine : remarkLines) {
                field.addJavaDocLine(" * " + remarkLine);  //$NON-NLS-1$
            }
        }
        field.addJavaDocLine(" */"); //$NON-NLS-1$
    }

    @Override
    public void addFieldComment(Field field, IntrospectedTable introspectedTable) {
        if (suppressAllComments) {
            return;
        }
        StringBuilder sb = new StringBuilder();
        field.addJavaDocLine("/**"); //$NON-NLS-1$
        sb.append(introspectedTable.getFullyQualifiedTable());
        field.addJavaDocLine(" */"); //$NON-NLS-1$
    }


    @Override
    public void addGeneralMethodComment(Method method, IntrospectedTable introspectedTable) {
    }


    @Override
    public void addClassComment(InnerClass innerClass, IntrospectedTable introspectedTable) {

    }

    @Override
    public void addClassComment(InnerClass innerClass, IntrospectedTable introspectedTable, boolean markAsDoNotDelete) {
    }

    @Override
    public void addEnumComment(InnerEnum innerEnum, IntrospectedTable introspectedTable) {
    }

    // 不需要get方法的注释
    @Override
    public void addGetterComment(Method method, IntrospectedTable introspectedTable, IntrospectedColumn introspectedColumn) {

    }

    // 不需要set方法的注释
    @Override
    public void addSetterComment(Method method, IntrospectedTable introspectedTable, IntrospectedColumn introspectedColumn) {

    }

    @Override
    public void addGeneralMethodAnnotation(Method method, IntrospectedTable introspectedTable, Set<FullyQualifiedJavaType> imports) {
    }

    @Override
    public void addGeneralMethodAnnotation(Method method, IntrospectedTable introspectedTable, IntrospectedColumn introspectedColumn, Set<FullyQualifiedJavaType> imports) {
    }

    @Override
    public void addFieldAnnotation(Field field, IntrospectedTable introspectedTable, Set<FullyQualifiedJavaType> imports) {

    }

    @Override
    public void addFieldAnnotation(Field field, IntrospectedTable introspectedTable, IntrospectedColumn introspectedColumn, Set<FullyQualifiedJavaType> imports) {
    }

    @Override
    public void addClassAnnotation(InnerClass innerClass, IntrospectedTable introspectedTable, Set<FullyQualifiedJavaType> imports) {
    }

    @Override
    public void addComment(XmlElement xmlElement) {

    }

    @Override
    public void addRootComment(XmlElement rootElement) {
    }

    @Override
    public void addJavaFileComment(CompilationUnit compilationUnit) {
    }
}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.
188.
189.
190.
191.
192.
193.
194.
195.
196.
197.
198.

IngoreSetterAndGetterPlugin.java

import org.mybatis.generator.api.IntrospectedColumn;
import org.mybatis.generator.api.IntrospectedTable;
import org.mybatis.generator.api.PluginAdapter;
import org.mybatis.generator.api.dom.java.FullyQualifiedJavaType;
import org.mybatis.generator.api.dom.java.Interface;
import org.mybatis.generator.api.dom.java.Method;
import org.mybatis.generator.api.dom.java.TopLevelClass;

import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;

public class IngoreSetterAndGetterPlugin extends PluginAdapter {
    @Override
    public boolean validate(List<String> list) {
        return true;
    }

    @Override
    public boolean modelBaseRecordClassGenerated(TopLevelClass topLevelClass, IntrospectedTable introspectedTable) {
        //添加domain的import
        topLevelClass.addImportedType("lombok.Data");
        topLevelClass.addImportedType("lombok.NoArgsConstructor");
        topLevelClass.addImportedType("lombok.AllArgsConstructor");


        topLevelClass.addJavaDocLine("/**"); //$NON-NLS-1$
        topLevelClass.addJavaDocLine(" * " + introspectedTable.getFullyQualifiedTable().toString() + " 模板类"); //$NON-NLS-1$
        topLevelClass.addJavaDocLine(" * @author " + System.getProperty("user.name"));
        topLevelClass.addJavaDocLine(" * @since " + formatDateToStr(new Date()));
        topLevelClass.addJavaDocLine(" */"); //$NON-NLS-1$
        topLevelClass.addAnnotation("@Data"); //$NON-NLS-1$
        topLevelClass.addAnnotation("@NoArgsConstructor");
        topLevelClass.addAnnotation("@AllArgsConstructor");

        return true;
    }

    @Override
    public boolean clientGenerated(Interface interfaze, TopLevelClass topLevelClass, IntrospectedTable introspectedTable) {
        interfaze.addImportedType(new FullyQualifiedJavaType("org.apache.ibatis.annotations.Mapper"));
        //Mapper文件的注释
        interfaze.addJavaDocLine("/**"); //$NON-NLS-1$
        interfaze.addJavaDocLine(" * " + introspectedTable.getFullyQualifiedTable().toString() + " Mapper 接口"); //$NON-NLS-1$
        interfaze.addJavaDocLine(" * @author " + System.getProperty("user.name"));
        interfaze.addJavaDocLine(" * @since " + formatDateToStr(new Date()));
        interfaze.addJavaDocLine(" */"); //$NON-NLS-1$
        interfaze.addAnnotation("@Mapper");
        return true;
    }

    @Override
    public boolean modelSetterMethodGenerated(Method method, TopLevelClass topLevelClass, IntrospectedColumn introspectedColumn, IntrospectedTable introspectedTable, ModelClassType modelClassType) {
        //不生成getter
        return false;
    }

    @Override
    public boolean modelGetterMethodGenerated(Method method, TopLevelClass topLevelClass, IntrospectedColumn introspectedColumn, IntrospectedTable introspectedTable, ModelClassType modelClassType) {
        //不生成setter
        return false;
    }

    private String formatDateToStr(Date date) {
        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
        return sdf.format(date);
    }
}
