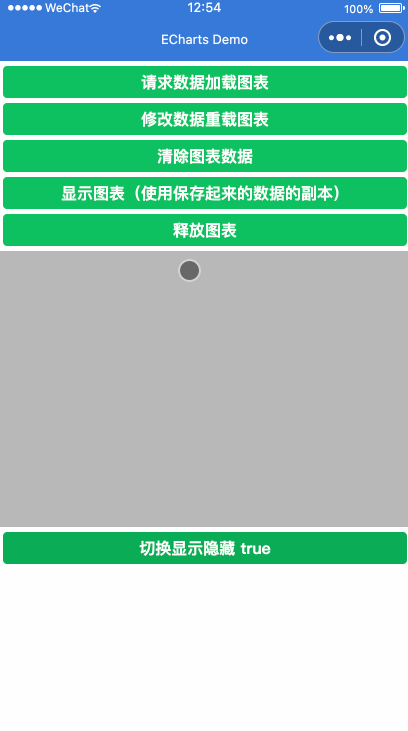

效果

引入ECharts

参见 https://github.com/ecomfe/echarts-for-weixin

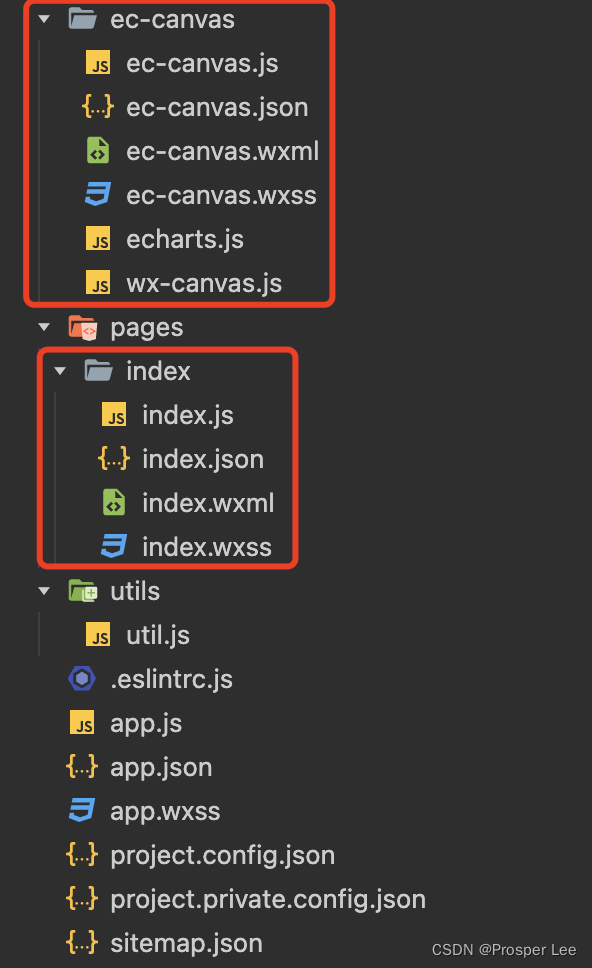

目录

源码

pages/index/index.json

{
  "usingComponents": {
    "ec-canvas": "../../ec-canvas/ec-canvas"
  }
}

pages/index/index.wxml

<!--index.wxml-->
<view class="container">
  <button bindtap="chartInit" size="mini" type="primary">请求数据加载图表</button>
  <button bindtap="chartReLoad" size="mini" type="primary">修改数据重载图表</button>
  <button bindtap="chartClear" size="mini" type="primary">清除图表数据</button>
  <button bindtap="chartShow" size="mini" type="primary">显示图表（使用保存起来的数据的副本）</button>
  <button bindtap="chartDispose" size="mini" type="primary">释放图表</button>
  <view class="chart" hidden="{{ !isShow }}">
    <ec-canvas id="my-chart" canvas-id="mychart-bar" ec="{{ ec }}"></ec-canvas>
  </view>
  <button bindtap="bindToggle" size="mini" type="primary">切换显示隐藏 {{isShow}}</button>
</view>

pages/index/index.wxss

/**index.wxss**/
button{
  display: block!important;
  margin: 10rpx;
}
.chart {
  display: block;
  width: 100%;
  height: 500rpx;
  background-color: #b9b8b8;
}

ec-canvas{
  display: block;
  width: 100%;
  height: 500rpx;
}

pages/index/index.js

import * as echarts from '../../ec-canvas/echarts';

Page({

	ecComponent: null,
	chart: null,

	onLoad() {
		const that = this;
		// 获取组件
		that.ecComponent = that.selectComponent('#my-chart');
	},

	data: {
		isShow: false,
		ec: {
			// 将 lazyLoad 设为 true 后，需要手动初始化图表
			lazyLoad: true
		},
		option: {
			grid: {
				left: 20,
				right: 40,
				bottom: 15,
				top: 40,
				containLabel: true
			},
			xAxis: {
				type: 'value',
			},
			yAxis: {
				type: 'category',
				data: [],
			},
			series: [{
				type: 'bar',
				data: [],
			}]
		},
	},

	// 点击按钮后初始化图表
	chartInit() {
		const that = this;
		if (!that.ecComponent) return wx.showToast({
			icon: "error",
			title: '请初始化组件',
		});

		that.ecComponent.init((canvas, width, height, dpr) => {
			// 获取组件的 canvas、width、height 后的回调函数
			// 在这里初始化图表
			const chart = echarts.init(canvas, null, {
				width: width,
				height: height,
				devicePixelRatio: dpr // new
			});

			// 模拟请求接口
			setTimeout(() => {
				that.data.option.yAxis.data = ['汽车之家', '今日头条', '百度贴吧', '一点资讯', '微信', '微博', '知乎'];
				that.data.option.series[0].data = [300, 270, 340, 344, 300, 320, 310];
				let option = JSON.parse(JSON.stringify(that.data.option));
				chart.setOption(option);
			}, 1000)

			// 将图表实例绑定到 this 上，可以在其他成员函数（如 dispose）中访问
			that.chart = chart;
			console.log(chart);

			// 注意这里一定要返回 chart 实例，否则会影响事件处理等
			return chart;
		});
	},

	// 重新加载
	chartReLoad() {
		const that = this;
		if (that.chart) {
			that.data.option.yAxis.data = ['汽车之家', '今日头条', '百度贴吧'];
			that.data.option.series[0].data = [300, 270, 340];
			let option = JSON.parse(JSON.stringify(that.data.option));
			that.chart.setOption(option);
		};
	},

	// 清除图表数据
	chartClear() {
		const that = this;
		if (that.chart) that.chart.clear();
	},

	// 显示
	chartShow(){
		const that = this;
		if (that.chart){
			let option = JSON.parse(JSON.stringify(that.data.option));
			that.chart.setOption(option);
		}
	},

	// 销毁
	chartDispose() {
		const that = this;
		if (that.chart) that.chart.dispose();
	},

	// 切换显示隐藏
	bindToggle(e){
		const that = this;
		that.setData({
			isShow: !that.data.isShow
		})
		if(that.data.isShow){
			that.chartInit();
		}
	}
});
