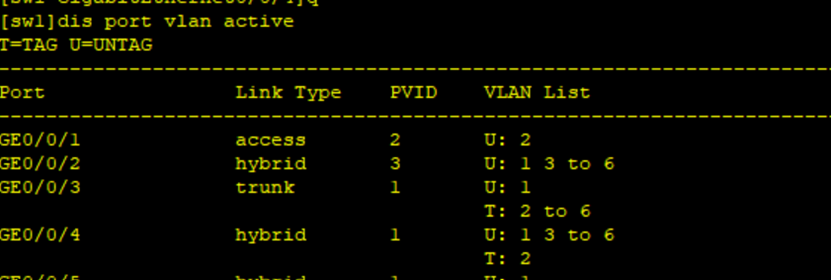

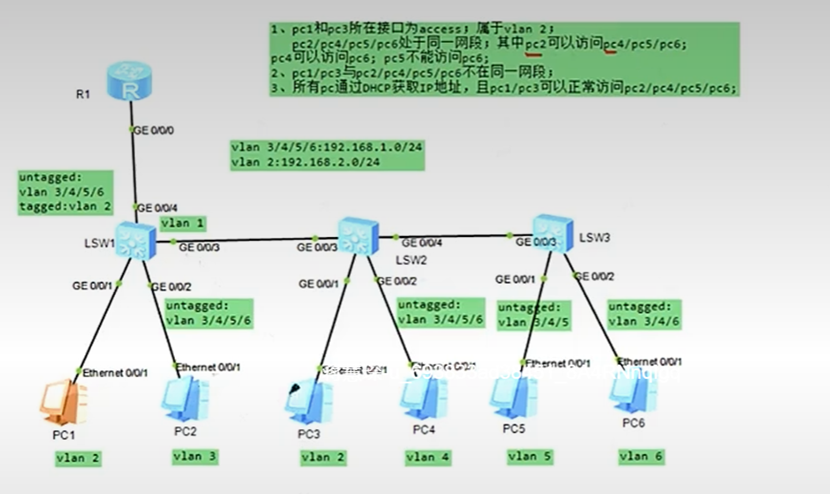

sw1]vlan batch 2 to 6

sw1]interface GigabitEthernet 0/0/1

[sw1-GigabitEthernet0/0/1]port link-type access

[sw1-GigabitEthernet0/0/1]port default vlan. 2

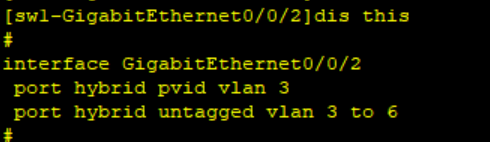

[sw1-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2

[sw1-GigabitEthernet0/0/2]port link-type hybrid

[sw1-GigabitEthernet0/0/2]port hybrid pvid vlan 3

[sw1-GigabitEthernet0/0/2]port hybrid untagged vlan. 3 4 5 6

sw1-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/3

[sw1-GigabitEthernet0/0/3]port link-type trunk

[sw1-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 to. 6

sw1-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4

[sw1-GigabitEthernet0/0/4]port link-type hybrid

[sw1-GigabitEthernet0/0/4]port hybrid untagged vlan 3 4 5 6

[sw1-GigabitEthernet0/0/4]port hybrid tagged vlan 2

sw2]vlan batch 2 to 6

Info: This operation may take a few seconds. Please wait for a moment...done.

[sw2]interface GigabitEthernet 0/0/1

[sw2-GigabitEthernet0/0/1]port link-type access

[sw2-GigabitEthernet0/0/1]port default vlan 2

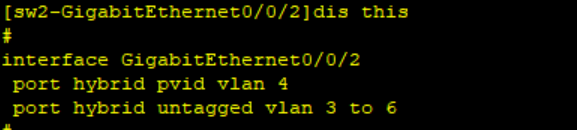

[sw2-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2

[sw2-GigabitEthernet0/0/2]port link-type hybrid

[sw2-GigabitEthernet0/0/2]port hybrid pvid vlan 4

[sw2-GigabitEthernet0/0/2]port hybrid  untagged  vlan 3 to 6

sw2]port-group  group-member  GigabitEthernet 0/0/3 g 0/0/4

[sw2-port-group]

[sw2-port-group]port link-type trunk

[sw2-GigabitEthernet0/0/3]port link-type trunk

[sw2-GigabitEthernet0/0/4]port link-type trunk

[sw2-port-group] port trunk allow-pass vlan 2 to 6

[sw2-GigabitEthernet0/0/3] port trunk allow-pass vlan 2 to 6

[sw2-GigabitEthernet0/0/4] port trunk allow-pass vlan 2 to 6

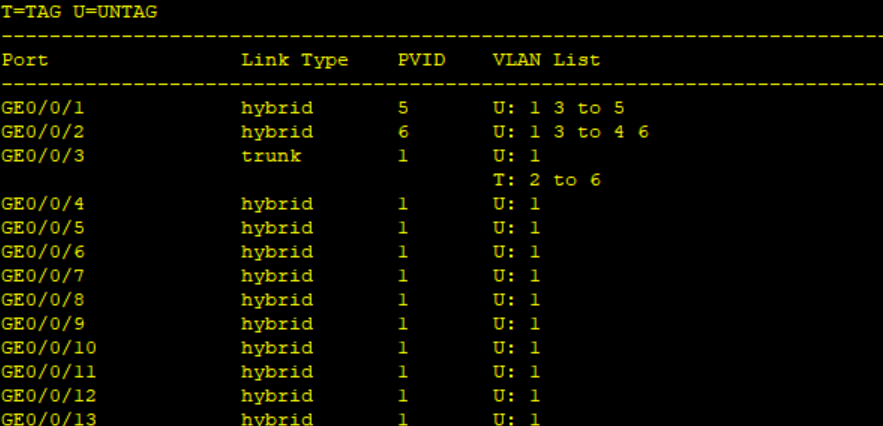

sw3]vlan batch 2 to 6

[sw3]interface GigabitEthernet 0/0/1

[sw3-GigabitEthernet0/0/1]port link-type hybrid

[sw3-GigabitEthernet0/0/1]port hybrid pvid vlan 5

[sw3-GigabitEthernet0/0/1]port hybrid untagged vlan 3 4 5

 [sw3-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2

[sw3-GigabitEthernet0/0/2]port link-type hybrid

[sw3-GigabitEthernet0/0/2]port hybrid pvid vlan 6

[sw3-GigabitEthernet0/0/2]port hybrid untagged vla.n 3 4 6

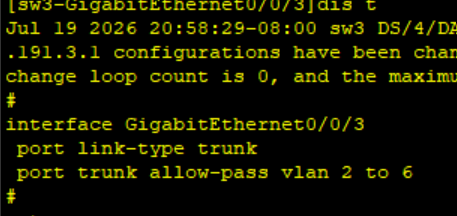

sw3-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/3

[sw3-GigabitEthernet0/0/3] port link-type trunk

[sw3-GigabitEthernet0/0/3] port trunk allow-pass vlan 2 to 6

r1]interface GigabitEthernet 0/0/0

[r1-GigabitEthernet0/0/0]

[r1-GigabitEthernet0/0/0] ip address 192.168.1.254 255.255.255.0

Jul 19 2026 21:01:26-08:00 r1 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

on the interface GigabitEthernet0/0/0 has entered the UP state.

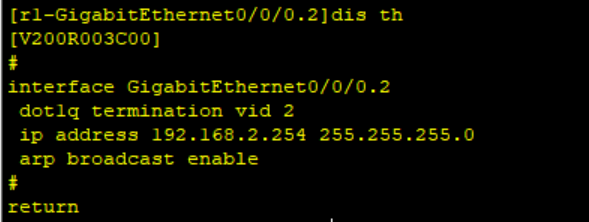

[r1-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/0.2

[r1-GigabitEthernet0/0/0.2]

[r1-GigabitEthernet0/0/0.2] dot1q termination vid 2

[r1-GigabitEthernet0/0/0.2]

[r1-GigabitEthernet0/0/0.2] ip address 192.168.2.254 255.255.255.0

Jul 19 2026 21:01:31-08:00 r1 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

on the interface GigabitEthernet0/0/0.2 has entered the UP state.

[r1-GigabitEthernet0/0/0.2]

[r1-GigabitEthernet0/0/0.2] arp broadcast enable

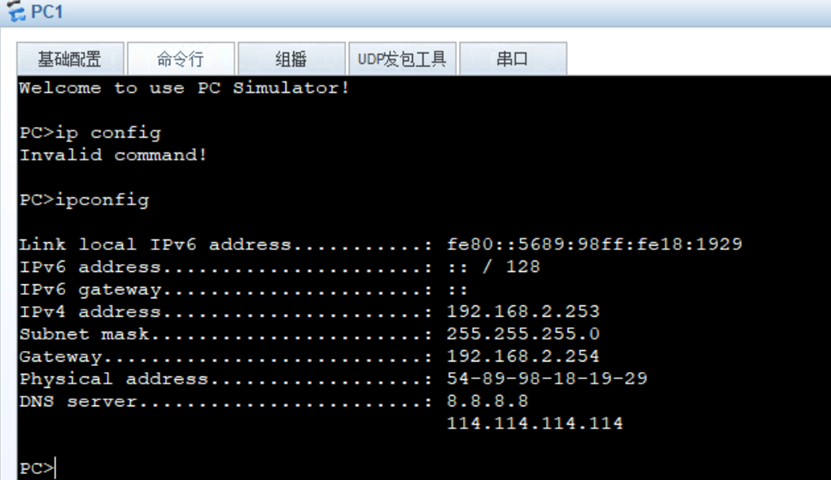

Dhcp:

r1]ip pool aa

Info: It's successful to create an IP address pool.

[r1-ip-pool-aa]

[r1-ip-pool-aa] network 192.168.2.0 mask 24

[r1-ip-pool-aa]

[r1-ip-pool-aa] gateway-list 192.168.2.254

[r1-ip-pool-aa]

[r1-ip-pool-aa] dns-list 8.8.8.8 114.114.114.114

r1]ip pool bb

Info: It's successful to create an IP address pool.

[r1-ip-pool-bb]

[r1-ip-pool-bb] network 192.168.1.0 mask 24

[r1-ip-pool-bb]

[r1-ip-pool-bb] gateway-list 192.168.1.254

[r1-ip-pool-bb]

[r1-ip-pool-bb] dns-list 8.8.8.8 114.114.114.114

r1]interface GigabitEthernet 0/0/0

[r1-GigabitEthernet0/0/0]

[r1-GigabitEthernet0/0/0] dhcp select global

[r1-GigabitEthernet0/0/0]int g 0/0/0.2

[r1-GigabitEthernet0/0/0.2]dhcp select global
