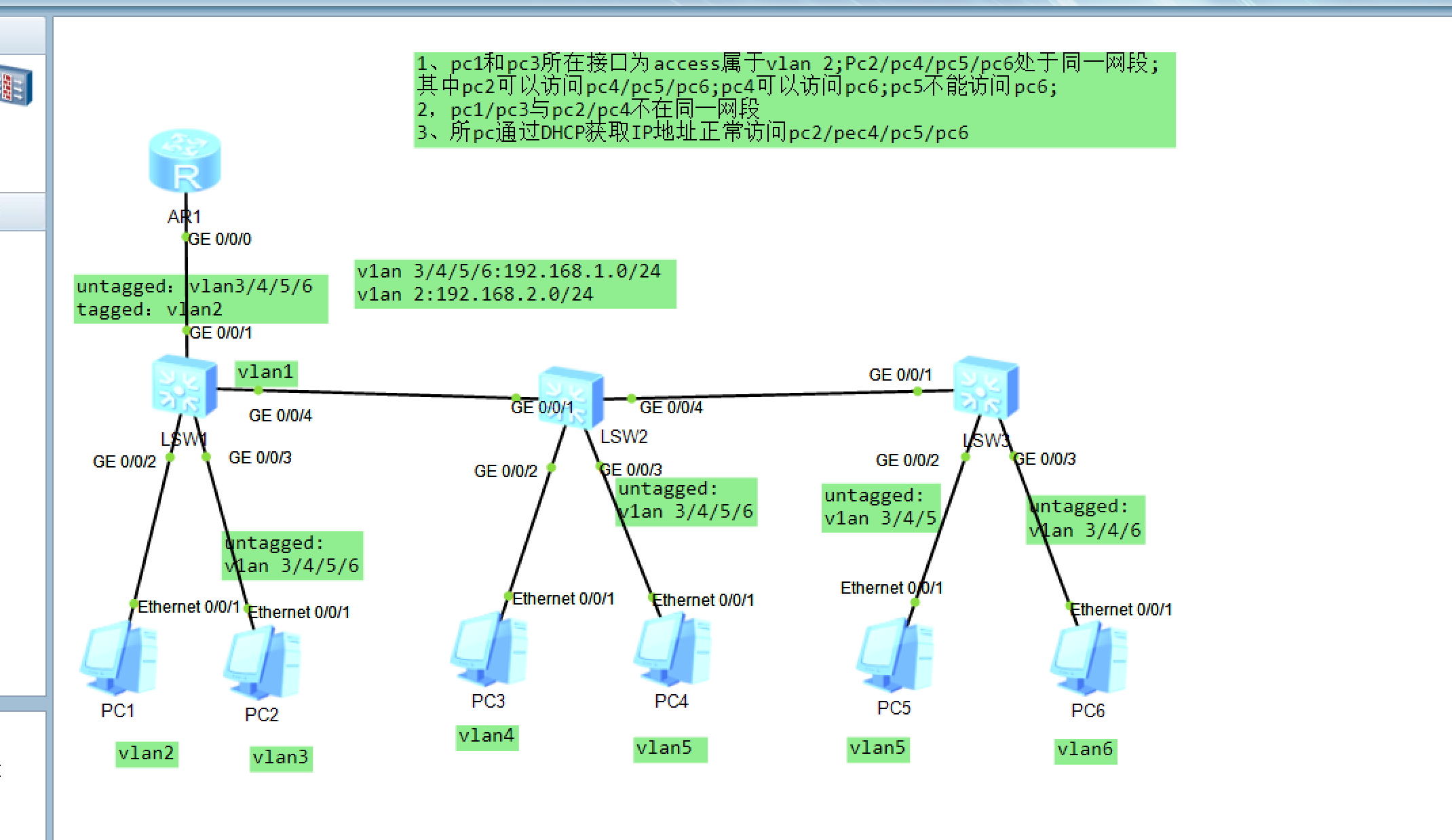

第六次作业vlan
ls1：
vlan batch 2 3 4 5 6
interface GigabitEthernet 0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 6
port trunk pvid vlan 3
interface GigabitEthernet 0/0/4
port link-type trunk
port trunk allow-pass vlan 2 to 6
interface GigabitEthernet 0/0/2
port link-type access
port default vlan 2
stp edged-port enable
interface GigabitEthernet 0/0/3
port link-type access
port default vlan 3
stp edged-port enable
ls2：
vlan batch 2 3 4 5 6
interface GigabitEthernet 0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 6
interface GigabitEthernet 0/0/4
port link-type trunk
port trunk allow-pass vlan 2 to 6
interface GigabitEthernet 0/0/2
port link-type access
port default vlan 2
stp edged-port enable
interface GigabitEthernet 0/0/3
port link-type access
port default vlan 5
stp edged-port enable
ls3：
vlan batch 2 3 4 5 6
interface GigabitEthernet 0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 6
interface GigabitEthernet 0/0/2
port link-type access
port default vlan 5
stp edged-port enable
interface GigabitEthernet 0/0/3
port link-type access
port default vlan 6
stp edged-port enable
dhcp：
dhcp enable
interface GigabitEthernet 0/0/0
undo shutdown
interface GigabitEthernet 0/0/0.2
dot1q termination vid 2
ip address 192.168.2.254 255.255.255.0
dhcp select global
interface GigabitEthernet 0/0/0.1
dot1q termination vid 3 to 6
ip address 192.168.1.254 255.255.255.0
dhcp select global

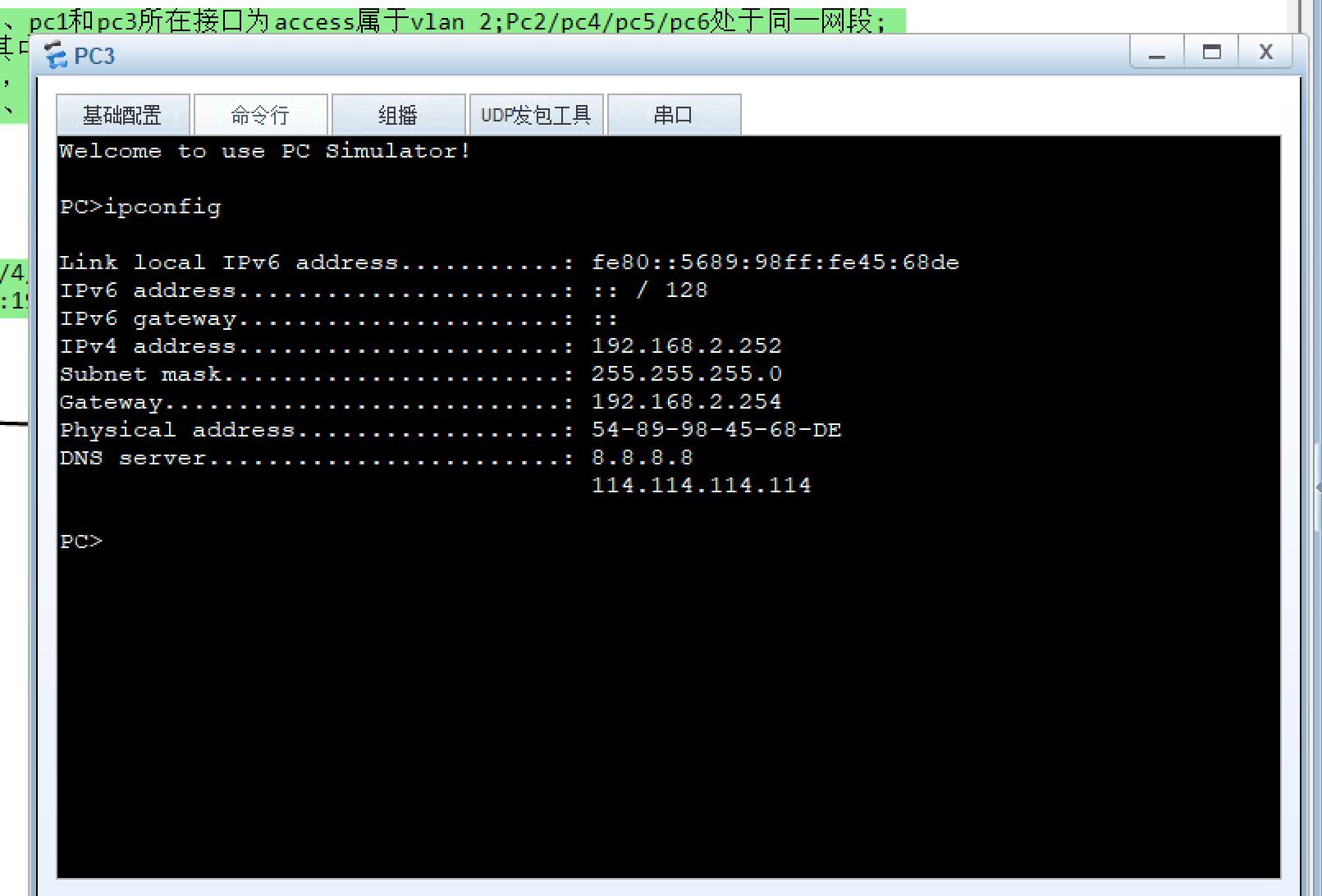

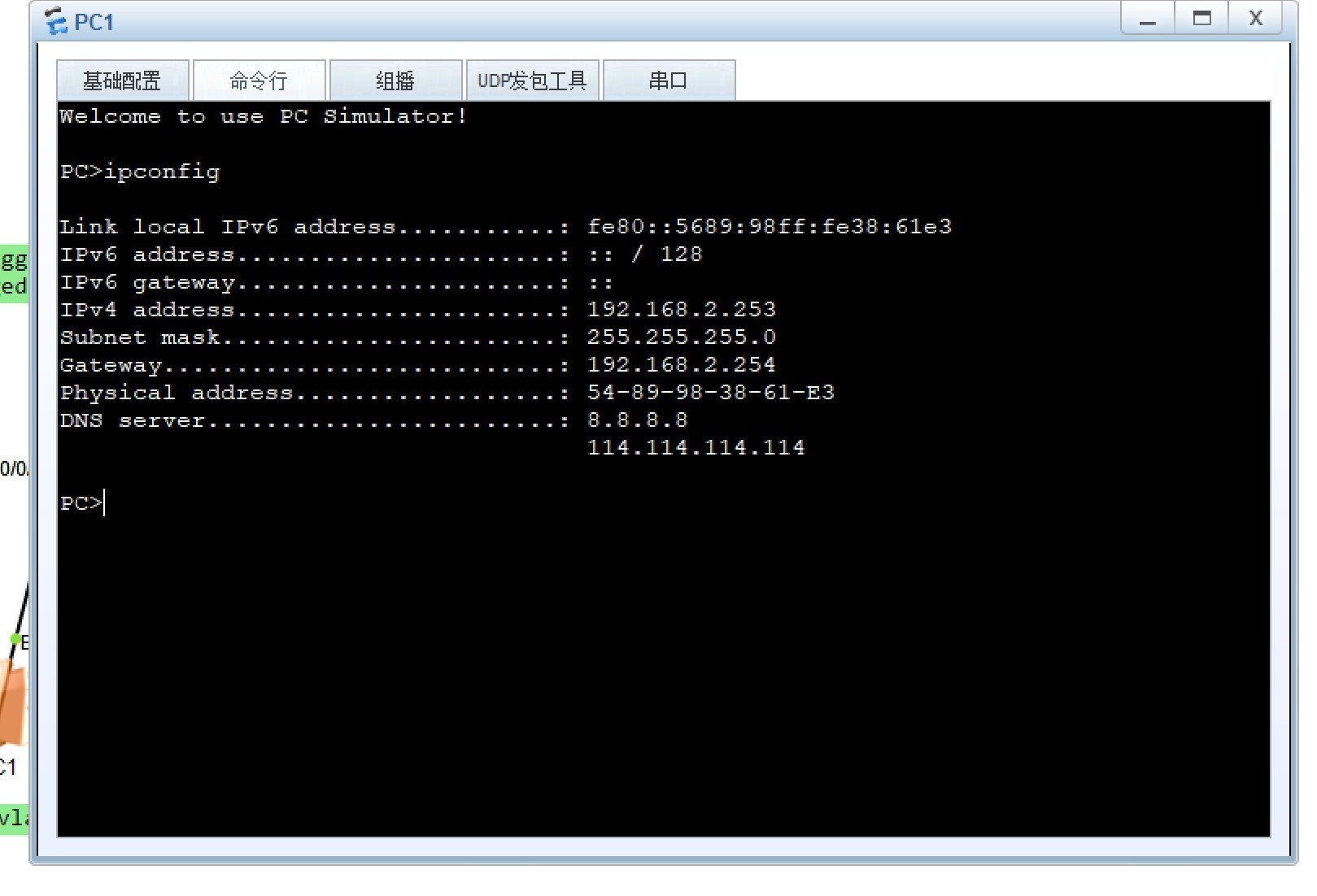

ip pool vlan2
network 192.168.2.0 mask 255.255.255.0
gateway-list 192.168.2.254
dns-list 8.8.8.8 114.114.114.114
ip pool vlan1
network 192.168.1.0 mask 255.255.255.0
gateway-list 192.168.1.254
dns-list 8.8.8.8
acl number 2000
rule deny ip source 192.168.1.50 0.0.0.15 destination 192.168.1.60 0.0.0.15
rule permit ip
interface GigabitEthernet 0/0/0.1
traffic-filter inbound acl 2000
