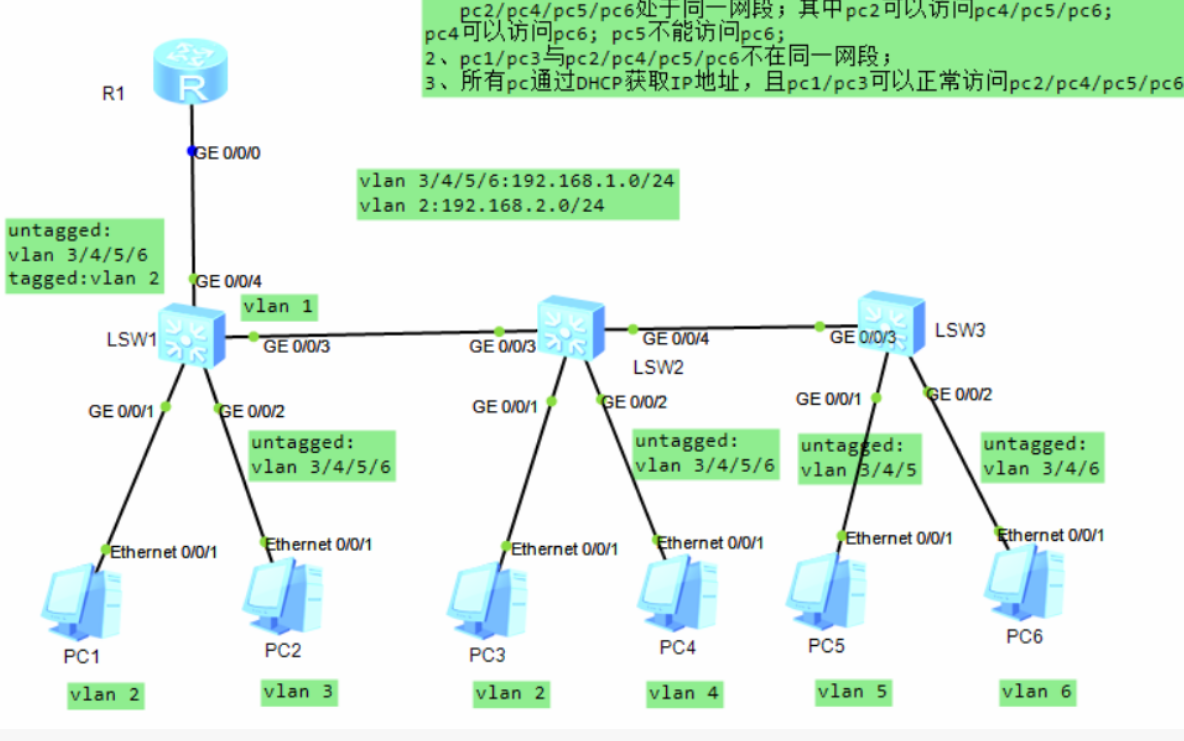

实验拓扑

实验需求

实验思路

1.配置vlan

2.配置接口类型

3.配置dhcp

实验步骤

1.配置vlan

[LSW1]vlan batch 2 to 6

[LSW2]vlan batch 2 to 6

[LSW3]vlan batch 2 to 6

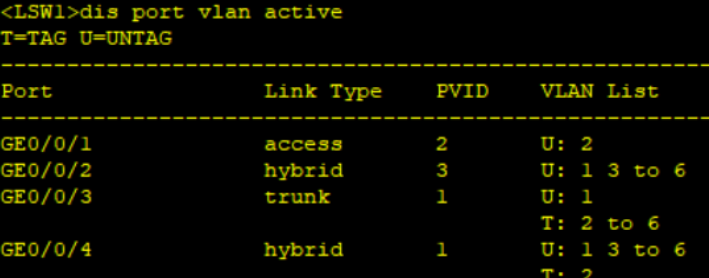

2.配置接口类型

[LSW1]int GigabitEthernet 0/0/1
[LSW1-GigabitEthernet0/0/1]port link-type access
[LSW1-GigabitEthernet0/0/1]port default vlan 2

[LSW1-GigabitEthernet0/0/1]int g0/0/2

[LSW1-GigabitEthernet0/0/2]port link-type hybrid
[LSW1-GigabitEthernet0/0/2]port hybrid pvid vlan 3
[LSW1-GigabitEthernet0/0/2]port hybrid untagged vlan 3 to 6
[LSW1-GigabitEthernet0/0/2]int g0/0/3
[LSW1-GigabitEthernet0/0/3]port link-type trunk
[LSW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 to 6
[LSW1-GigabitEthernet0/0/3]int g0/0/4

[LSW1-GigabitEthernet0/0/4]port link-type hybrid
[LSW1-GigabitEthernet0/0/4]port hybrid pvid vlan 1

[LSW1-GigabitEthernet0/0/4]port hybrid untagged vlan 3 to 6

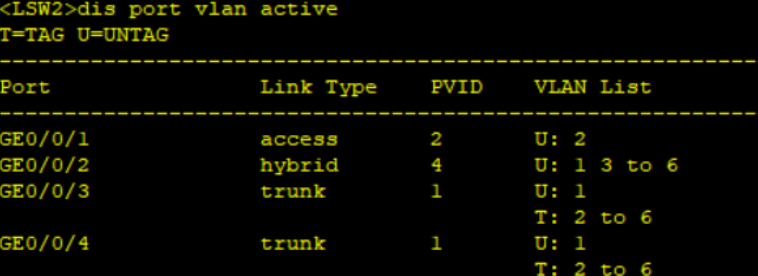

[LSW2]int g0/0/1
[LSW2-GigabitEthernet0/0/1]port link-type access
[LSW2-GigabitEthernet0/0/1]port default vlan 2
[LSW2-GigabitEthernet0/0/1]int g0/0/2

[LSW2-GigabitEthernet0/0/2]port link-type hybrid
[LSW2-GigabitEthernet0/0/2]port hybrid pvid vlan 4
[LSW2-GigabitEthernet0/0/2]port hybrid untagged vlan 3 to 6
[LSW2-GigabitEthernet0/0/2]int g0/0/3
[LSW2-GigabitEthernet0/0/3]port link-type trunk
[LSW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 to 6
[LSW2-GigabitEthernet0/0/3]int g0/0/4
[LSW2-GigabitEthernet0/0/4]port link-type trunk
[LSW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 6

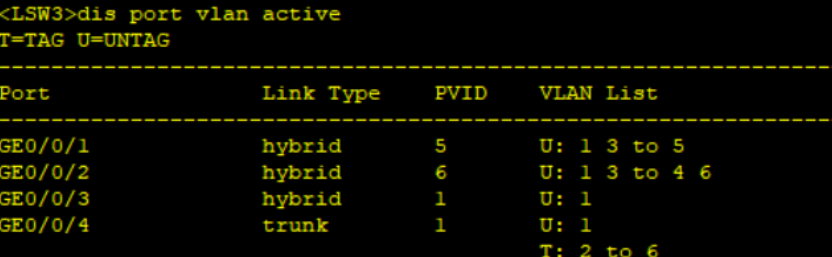

[LSW3]int GigabitEthernet 0/0/1

[LSW3-GigabitEthernet0/0/1]port link-type hybrid
[LSW3-GigabitEthernet0/0/1]port hybrid pvid vlan 5
[LSW3-GigabitEthernet0/0/1]port hybrid untagged vlan 3 to 5
[LSW3-GigabitEthernet0/0/1]int g0/0/2
[LSW3-GigabitEthernet0/0/2]port link-type hybrid

[LSW3-GigabitEthernet0/0/2]port hybrid pvid vlan 6
[LSW3-GigabitEthernet0/0/2]port hybrid untagged vlan 3 4 6
[LSW3-GigabitEthernet0/0/2]int g0/0/4
[LSW3-GigabitEthernet0/0/4]port link-type trunk
[LSW3-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 6

[LSW1]int g0/0/4

[LSW1-GigabitEthernet0/0/4]port hybrid tagged vlan 2

3.配置dhcp

[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 192.168.1.1 24
[R1-GigabitEthernet0/0/0]int g0/0/0.1
[R1-GigabitEthernet0/0/0.1]ip add 192.168.2.1 24
[R1-GigabitEthernet0/0/0.1]dot1q termination vid 2
[R1-GigabitEthernet0/0/0.1]arp broadcast enable

[R1]dhcp enable
[R1]ip pool a
[R1-ip-pool-a]network 192.168.1.0 mask 24
[R1-ip-pool-a]gateway-list 192.168.1.1
[R1-ip-pool-a]dns-list 8.8.8.8
[R1-ip-pool-a]q
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]dhcp select global
[R1-GigabitEthernet0/0/0]q
[R1]ip pool b
[R1-ip-pool-b]network 192.168.2.0 mask 24
[R1-ip-pool-b]gateway-list 192.168.2.1
[R1-ip-pool-b]dns-list 8.8.8.8
[R1-ip-pool-b]q
[R1]int g0/0/0.1
[R1-GigabitEthernet0/0/0.1]dhcp select global

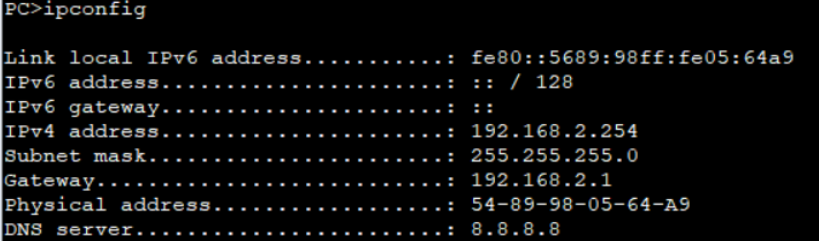

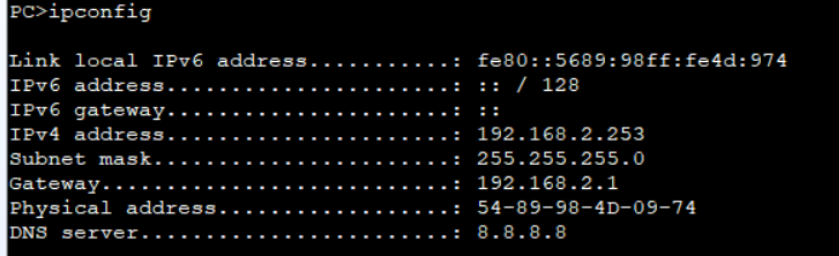

pc1

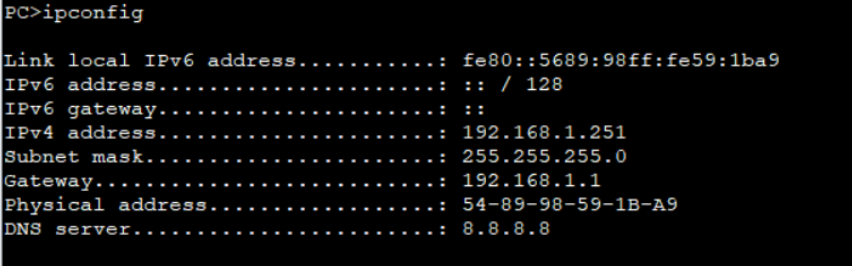

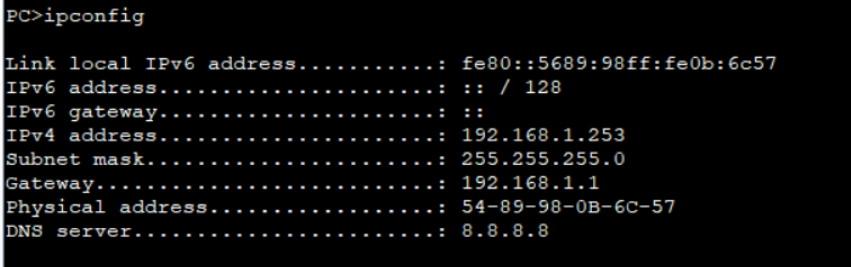

pc2

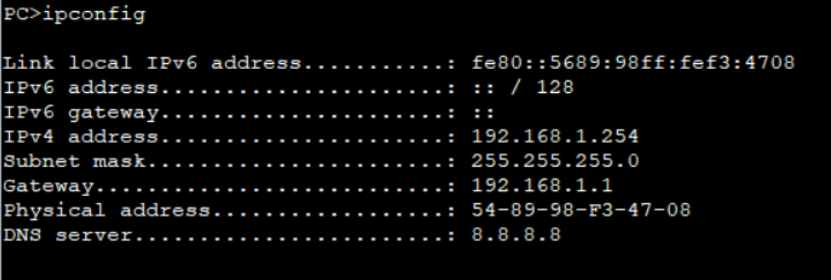

pc3

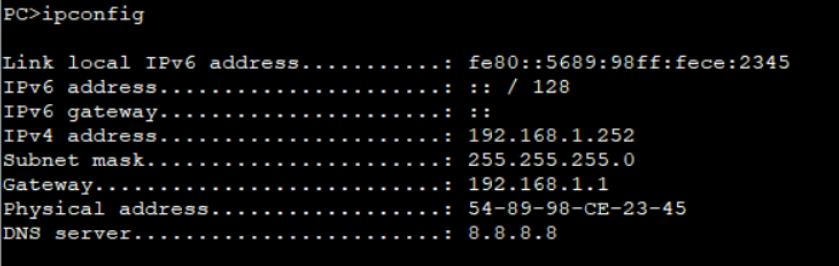

pc4

pc5

pc6

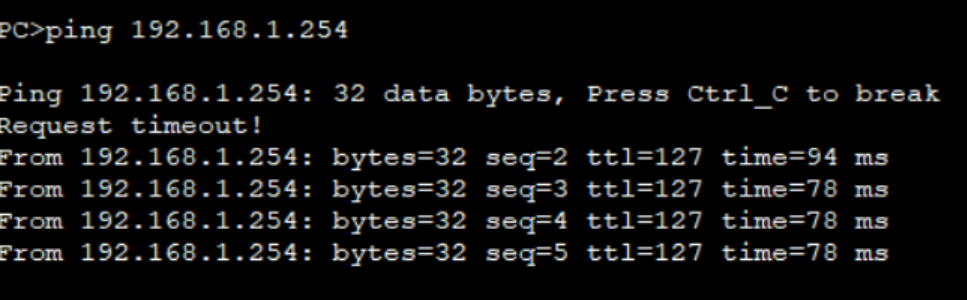

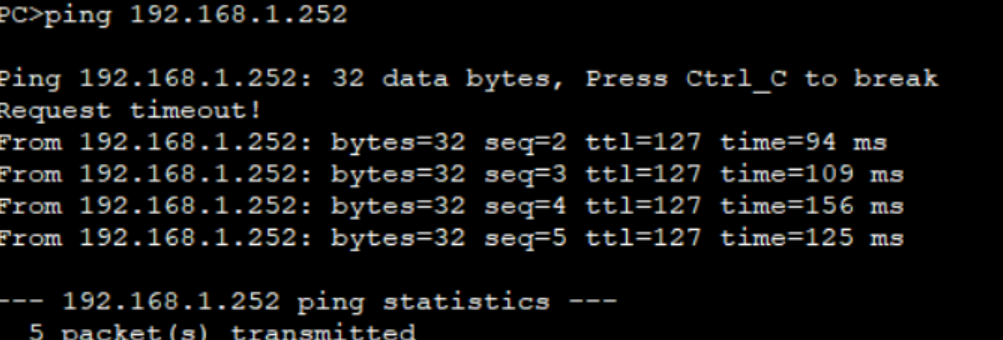

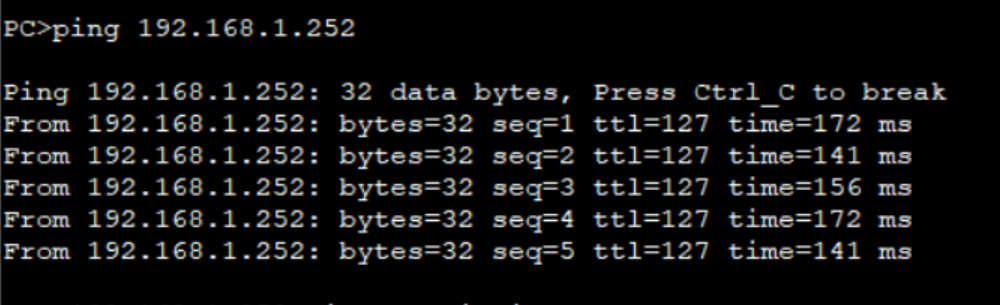

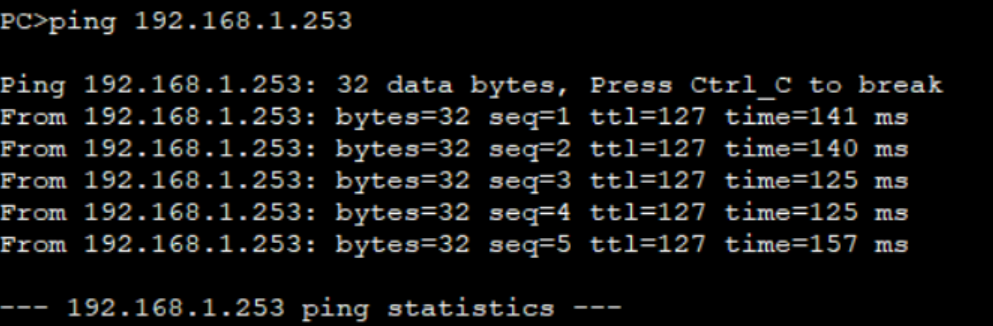

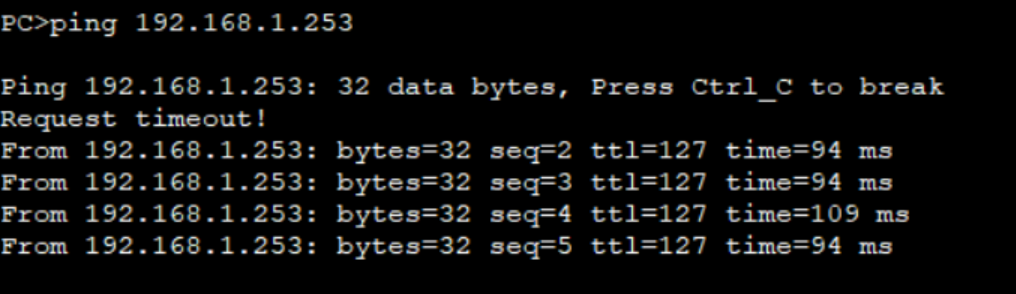

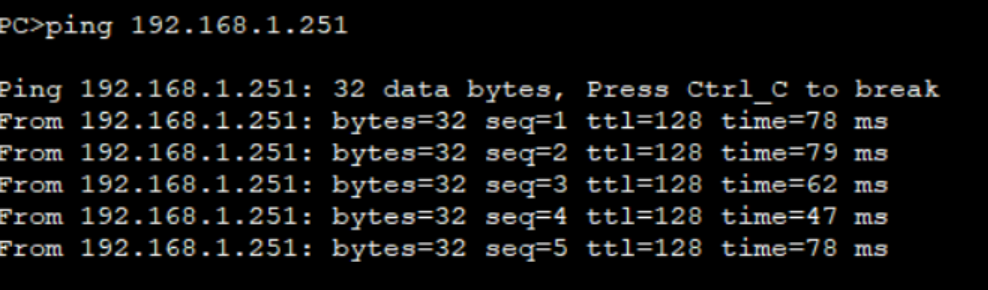

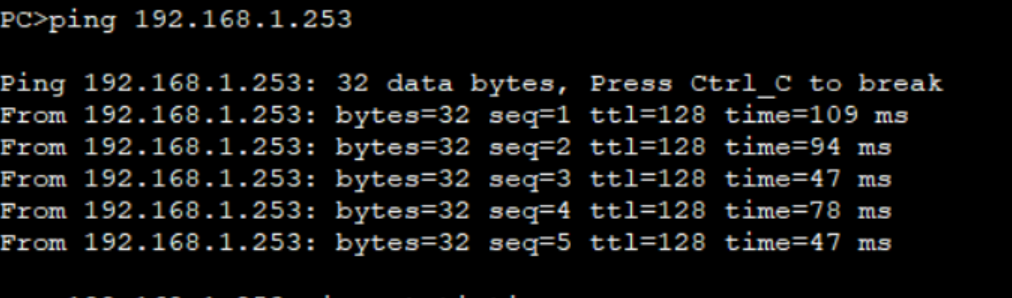

PC2访问PC4/5/6

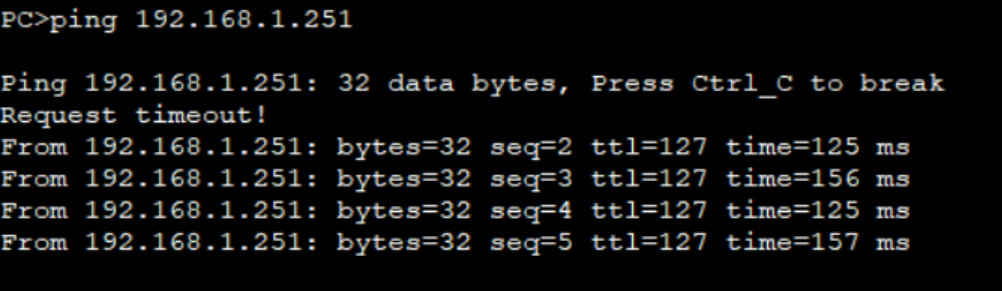

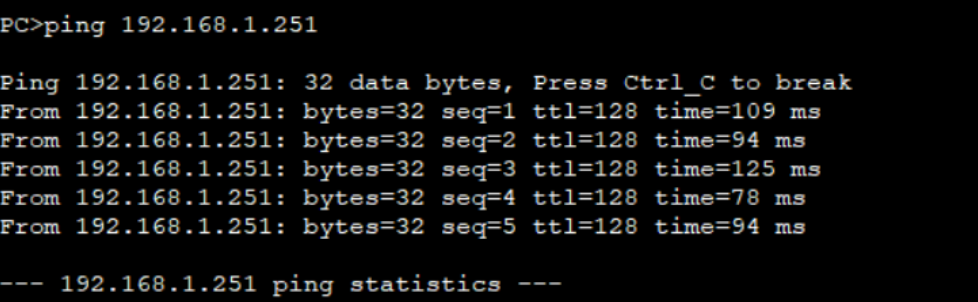

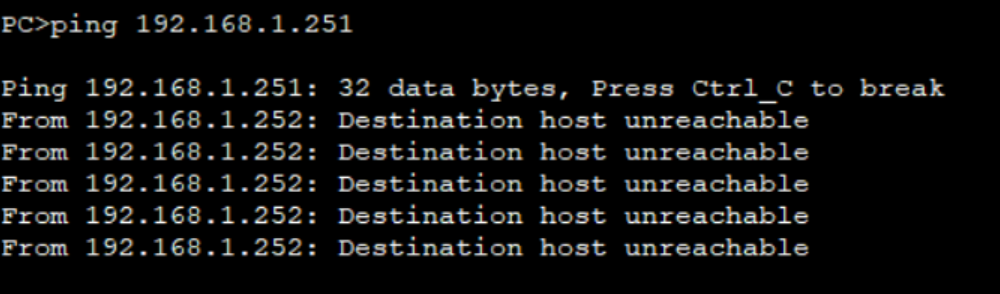

PC4访问PC6

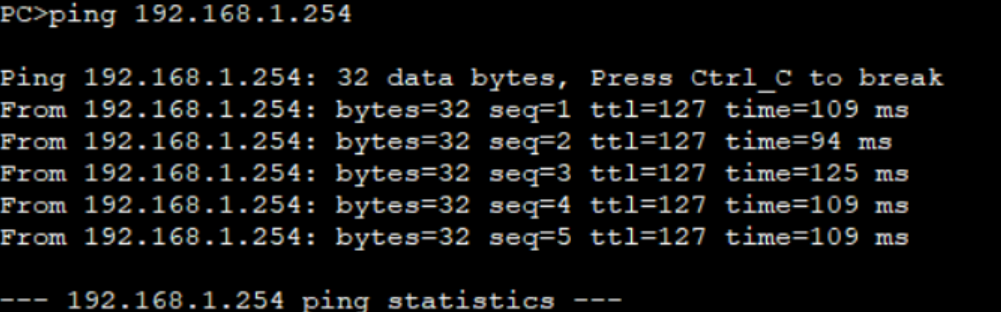

PC5访问PC6

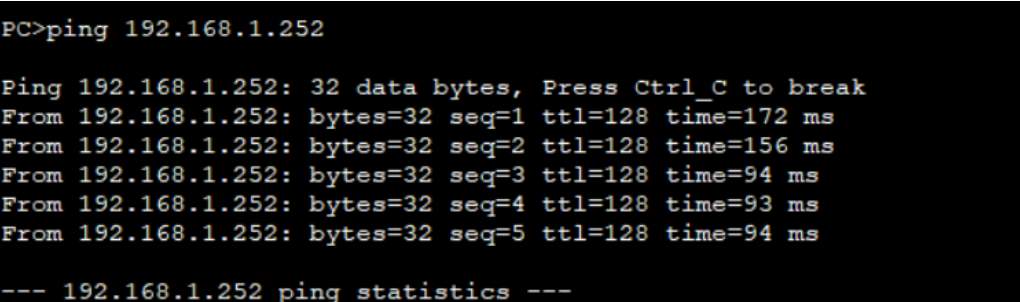

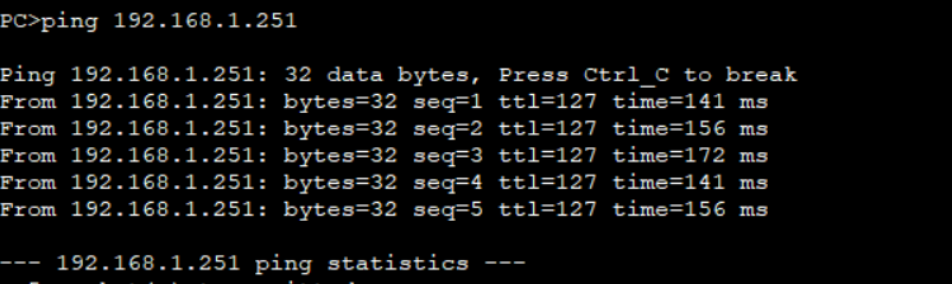

PC1访问PC2/4/5/6

PC3访问PC2/4/5/6
