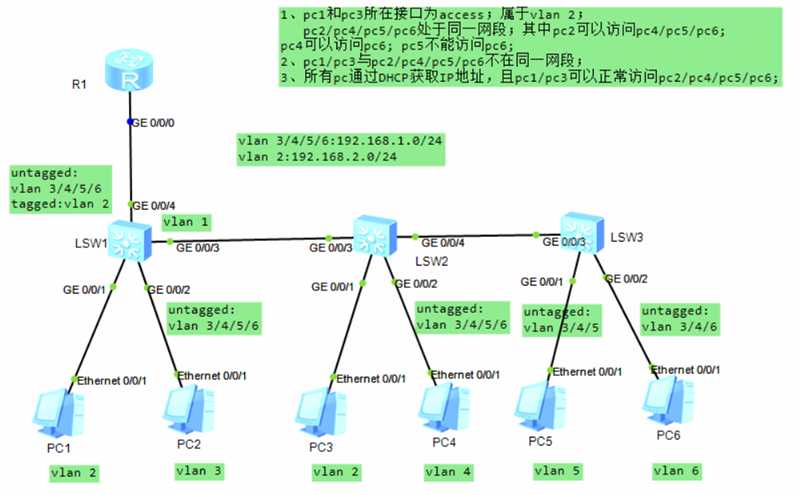

一.实验要求

二.实验思路
1.配置VLAN

2.配置IP地址

3.配置DHCP

三.实验配置
1.配置VLAN
[LSW1]vlan batch 2 3 4 5 6
[LSW1]interface GigabitEthernet0/0/1
[LSW1-GigabitEthernet0/0/1] port hybrid tagged vlan 2
[LSW1-GigabitEthernet0/0/1] port hybrid untagged vlan 3 4 5 6
[LSW1]interface GigabitEthernet0/0/2
[LSW1-GigabitEthernet0/0/2] port link-type access
[LSW1-GigabitEthernet0/0/2] port default vlan 2
[LSW1]interface GigabitEthernet0/0/3
[LSW1-GigabitEthernet0/0/3] port hybrid pvid vlan 3
[LSW1-GigabitEthernet0/0/3] port hybrid untagged vlan 3 4 5 6
[LSW1]interface GigabitEthernet0/0/4
[LSW1-GigabitEthernet0/0/4] port link-type trunk
[LSW1-GigabitEthernet0/0/4] port trunk allow-pass vlan 2 3 4 5 6

[LSW2]vlan batch 2 3 4 5 6
[LSW2]interface GigabitEthernet0/0/1
[LSW2-GigabitEthernet0/0/1] port link-type trunk
[LSW2-GigabitEthernet0/0/1] port trunk allow-pass vlan 2 3 4 5 6
[LSW2]interface GigabitEthernet0/0/2
[LSW2-GigabitEthernet0/0/2] port link-type access
[LSW2-GigabitEthernet0/0/2] port default vlan 2
[LSW2]interface GigabitEthernet0/0/3
[LSW2-GigabitEthernet0/0/3] port hybrid pvid vlan 4
[LSW2-GigabitEthernet0/0/3] port hybrid untagged vlan 3 4 5 6
[LSW2]interface GigabitEthernet0/0/4 |
[LSW2-GigabitEthernet0/0/4] port link-type trunk
[LSW2-GigabitEthernet0/0/4] port trunk allow-pass vlan 3 4 5 6

[LSW3]vlan batch 3 4 5 6
[LSW3]interface GigabitEthernet0/0/1
[LSW3-GigabitEthernet0/0/1] port link-type trunk
[LSW3-GigabitEthernet0/0/1] port trunk allow-pass vlan 3 4 5 6
[LSW3]interface GigabitEthernet0/0/2
[LSW3-GigabitEthernet0/0/2] port hybrid pvid vlan 5
[LSW3-GigabitEthernet0/0/2] port hybrid untagged vlan 3 4 5
[LSW3]interface GigabitEthernet0/0/3
[LSW3-GigabitEthernet0/0/3] port hybrid pvid vlan 6
[LSW3-GigabitEthernet0/0/3] port hybrid untagged vlan 3 4 6

2.配置IP地址
[AR1]int gi 0/0/0
[AR1-GigabitEthernet0/0/0]ip ad 192.168.1.1 24

[AR1]int gi 0/0/0.1
[AR1-GigabitEthernet0/0/0.1]ip ad 192.168.2.1 24

3.配置DHCP
[AR1]dhcp enable
[AR1]ip pool vlan3456
[AR1-ip-pool-vlan3456] gateway-list 192.168.1.1
[AR1-ip-pool-vlan3456] network 192.168.1.0 mask 255.255.255.0
[AR1-ip-pool-vlan3456] dns-list 8.8.8.8

[AR1]ip pool vlan2
[AR1-ip-pool-vlan2] gateway-list 192.168.2.1
[AR1-ip-pool-vlan2] network 192.168.2.0 mask 255.255.255.0
[AR1-ip-pool-vlan2] dns-list 8.8.8.8

[AR1]int gi 0/0/0
[AR1-GigabitEthernet0/0/0]dhcp select global

[AR1]interface GigabitEthernet0/0/0.1
[AR1-GigabitEthernet0/0/0.1] dot1q termination vid 2
[AR1-GigabitEthernet0/0/0.1] ip address 192.168.2.1 255.255.255.0
[AR1-GigabitEthernet0/0/0.1] arp broadcast enable
[AR1-GigabitEthernet0/0/0.1] dhcp select global

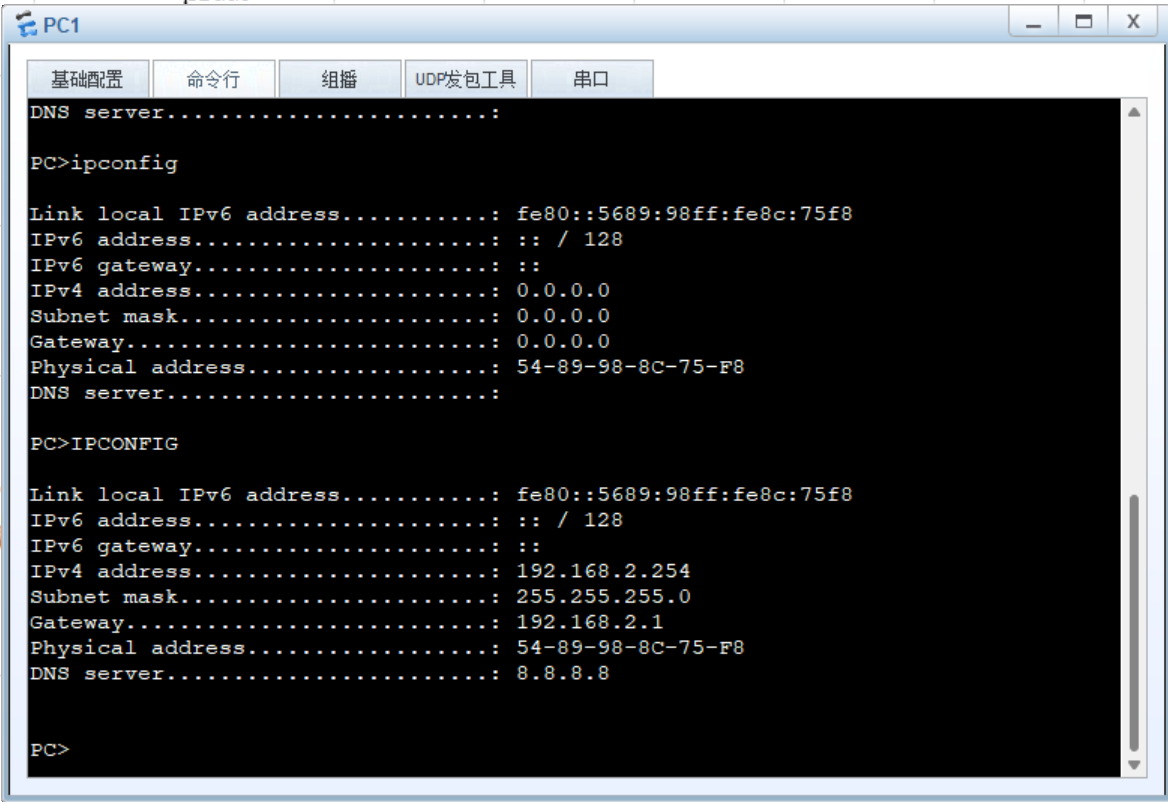

DHCP获取的IP情况
