ros2 -9章 机器人的控制多节点启动文件Launch
目录
1.1.1 XML 格式 (test_turtlesim_launch.xml) 4
1.1.2 YAML 格式 (test_turtlesim_launch.yaml) 4
2.2 修改test_turtlesim_launch.py代码... 6
一、Launch文件简介
在ROS2中，Launch文件是管理多节点、参数配置和系统启动的核心工具。与ROS1的XML格式不同，ROS2推荐使用Python编写Launch文件，这提供了极大的灵活性（如条件判断、循环、动态参数生成等）。
1.1. Launch文件基本结构
ROS2的Launch文件本质上是一个Python脚本，需要返回一个 LaunchDescription 对象。目前使用于描述系统启动时候的配置，控制管理整个ros2程序的启动。在Launch文件可以设置要运行的节点、什么时候运行、配置节点传递那些参数。还负责监控启动进程的状态，主要包括节点和参数两大部分：
节点定义了要启动的节点，节点名称、报名、执行文件路径等信息；
参数用于设置节点的参数，可以是命令行参数、ros2服务器参数、私有参数。
ros2提供了Python、XML、YAML 三种格式的Launch文件规范。
python格式的Laubch文件，示例代码如下（test_turtlesim_launch.py）
|
# turtlesim_mimic.launch.py from launch import LaunchDescription # 导入Launch描述符容器 from launch_ros.actions import Node # 导入ROS2节点启动动作 def generate_launch_description(): #固定入口函数，ros2 launch 会自动调用它 return LaunchDescription([ # 返回一个包含所有启动项的列表 # 节点1: turtlesim1 仿真器 Node( package='turtlesim', # 节点所属的功能包名 namespace='turtlesim1', # 核心：命名空间隔离 executable='turtlesim_node', # 可执行文件名（对应 CMakeLists.txt 中 add_executable 的名称，编译该文件后生成的运行文件名称） name='sim' # 节点在图中的逻辑名称 ), # 节点2: turtlesim2 仿真器 Node( package='turtlesim', namespace='turtlesim2', executable='turtlesim_node', name='sim' ), # 节点3: mimic 节点（让 turtlesim2 跟随 turtlesim1） Node( package='turtlesim', executable='mimic', name='mimic', remappings=[ ('/input/pose', '/turtlesim1/turtle1/pose'), # 第1步：偷看 ('/output/cmd_vel', '/turtlesim2/turtle1/cmd_vel'), # 第2步：指挥 ] ), ]) |
||
注意事项：
Remapping 工作原理图解：逻辑: 读取 pose → 计算误差 → 输出 cmd_vel ①：发布: /output/cmd_vel ──remap──▶ /turtlesim2/turtle1/cmd_vel ②：订阅: /input/pose ──remap──▶ /turtlesim1/turtle1/pose； |
1.1. Launch文件3中代码示例
上文已经输出了Python示例代码，同样的功能代码如下示例XML、YAML；
1.1.1 XML 格式 (test_turtlesim_launch.xml)
XML 格式的结构非常直观，使用标签（Tags）来表示节点和重映射关系。
|
<launch> <!-- 节点1: 第一只小海龟 --> <node pkg="turtlesim" exec="turtlesim_node" name="sim" namespace="turtlesim1" output="screen" /> <!-- 节点2: 第二只小海龟 --> <node pkg="turtlesim" exec="turtlesim_node" name="sim" namespace="turtlesim2" output="screen" /> <!-- 节点3: mimic 跟随节点 --> <node pkg="turtlesim" exec="mimic" name="mimic" output="screen"> <!-- 话题重映射 --> <remap from="/input/pose" to="/turtlesim1/turtle1/pose" /> <remap from="/output/cmd_vel" to="/turtlesim2/turtle1/cmd_vel" /> </node> </launch> |
1.1.2 YAML 格式 (test_turtlesim_launch.yaml)
YAML 格式通过缩进来表示层级关系，代码看起来更简洁，但可读性因人而异。
|
launch: # 节点1: 第一只小海龟 - node: pkg: turtlesim exec: turtlesim_node name: sim namespace: turtlesim1 output: screen # 节点2: 第二只小海龟 - node: pkg: turtlesim exec: turtlesim_node name: sim namespace: turtlesim2 output: screen # 节点3: mimic 跟随节点 - node: pkg: turtlesim exec: mimic name: mimic output: screen # 话题重映射 remap: - from: /input/pose to: /turtlesim1/turtle1/pose - from: /output/cmd_vel to: /turtlesim2/turtle1/cmd_vel |
二、Launch文件的运行
在test_turtlesim_launch的Launch文件中我们实现的功能是让小海龟2跟随小海龟1移动。如下代码我们使用Python代码并且添加一个控制功能，通过命令行参数动态的控制是否启动mimic节点，从而控制是否启动小海龟2跟随小海龟1 运动；
2.1 创建test_launch功能包
在 ~/ros2_ws/src路径下创一个test_launch功能包
|
root@LHAYR:~/ros2_ws# cd src/ #第一步：创建功能包 root@LHAYR:~/ros2_ws/src# ros2 pkg create --build-type ament_python test_launch #第二步：创建 launch 目录 root@LHAYR:~/ros2_ws/src/test_launch# mkdir -p ~/ros2_ws/src/test_launch/launch 第三步：创建三个 launch 文件（进入cd ~/ros2_ws/src/test_launch/launch） root@LHAYR:~/ros2_ws/src/test_launch# cd ~/ros2_ws/src/test_launch/launch root@LHAYR:~/ros2_ws/src/test_launch/launch# touch test_turtlesim_launch.py root@LHAYR:~/ros2_ws/src/test_launch/launch# 第四步：打开 vs code编译器 root@LHAYR:~/ros2_ws/src/test_launch# code . |
2.2 修改test_turtlesim_launch.py代码
test_turtlesim_launch.py 代码如下，
|
from launch import LaunchDescription from launch.actions import DeclareLaunchArgument from launch.conditions import IfCondition from launch.substitutions import LaunchConfiguration from launch_ros.actions import Node def generate_launch_description(): # 1. 声明一个名为 'start_mimic' 的启动参数 # default_value='true' 表示如果不传参，默认启动 mimic 节点 start_mimic_arg = DeclareLaunchArgument( 'start_mimic', default_value='true', description='Whether to start the mimic node' ) # 2. 定义 turtlesim 节点（这两个节点始终启动，不受参数影响） turtle1_node = Node( package='turtlesim', namespace='turtlesim1', executable='turtlesim_node', name='sim' ) turtle2_node = Node( package='turtlesim', namespace='turtlesim2', executable='turtlesim_node', name='sim' ) # 3. 定义 mimic 节点，并加上 condition=IfCondition(...) mimic_node = Node( package='turtlesim', executable='mimic', name='mimic', remappings=[ ('/input/pose', '/turtlesim1/turtle1/pose'), ('/output/cmd_vel', '/turtlesim2/turtle1/cmd_vel'), ], # 核心：只有当 start_mimic 参数为 True 时，这个节点才会被启动 condition=IfCondition(LaunchConfiguration('start_mimic')) ) return LaunchDescription([ start_mimic_arg, turtle1_node, turtle2_node, mimic_node, ]) |
|
场景 1：启动所有节点（默认行为） 你不传任何参数，start_mimic会使用默认值true，两只小海龟、mimic节点都会启动： 指令：ros2 launch <your_package_name> test_turtlesim_launch.py |
|
场景 2：只启动两只小海龟，不启动 mimic 在命令行末尾加上 start_mimic:=false，mimic 节点就会被跳过： 指令：ros2 launch <your_package_name> test_turtlesim_launch.py start_mimic:=false |
2.2 修改setup.py代码
在setup.py代码如下，
|
import os from glob import glob from setuptools import find_packages, setup package_name = 'test_launch' setup( name=package_name, version='0.0.0', packages=find_packages(exclude=['test']), data_files=[ ('share/ament_index/resource_index/packages', ['resource/' + package_name]), ('share/' + package_name, ['package.xml']), (os.path.join('share', package_name, 'launch'), glob(os.path.join('launch', '*'))), ], install_requires=['setuptools'], zip_safe=True, maintainer='root', maintainer_email='root@todo.todo', description='TODO: Package description', license='TODO: License declaration', extras_require={ 'test': [ 'pytest', ], }, entry_points={ 'console_scripts': [ ], }, ) |
|
第一步：在顶部加两行导入 import os from glob import glob from[L1] setuptools import find_packages, setup |
|
第二步：只修改 data_files 部分 data_files=[ ('share/ament_index/resource_index/packages', ['resource/' + package_name]), ('share/' + package_name, ['package.xml']), (os.path.join('share', package_name, 'launch'), glob(os.path.join('launch', '*'))), ], |
2.3 编译，加载，运行
先回到cd ~/ros2_ws中
|
root@LHAYR:~/ros2_ws/src/test_launch/launch# cd ~/ros2_ws root@LHAYR:~/ros2_ws# colcon build --packages-select test_launch Starting >>> test_launch Finished <<< test_launch [0.71s] Summary: 1 package finished [0.86s] root@LHAYR:~/ros2_ws# source install/setup.bash root@LHAYR:~/ros2_ws# ros2 launch test_launch test_turtlesim_launch.py [INFO] [launch]: All log files can be found below /root/.ros/log/2026-07-07-18-21-43-388311-LHAYR-1078 [INFO] [launch]: Default logging verbosity is set to INFO [INFO] [turtlesim_node-1]: process started with pid [1081] [INFO] [turtlesim_node-2]: process started with pid [1082] [INFO] [mimic-3]: process started with pid [1083] [turtlesim_node-2] [INFO] [1783419703.567428607] [turtlesim2.sim]: Starting turtlesim with node name /turtlesim2/sim [turtlesim_node-1] [INFO] [1783419703.567694091] [turtlesim1.sim]: Starting turtlesim with node name /turtlesim1/sim [turtlesim_node-1] [INFO] [1783419703.572234814] [turtlesim1.sim]: Spawning turtle [turtle1] at x=[5.544445], y=[5.544445], theta=[0.000000] [turtlesim_node-2] [INFO] [1783419703.572231798] [turtlesim2.sim]: Spawning turtle [turtle1] at x=[5.544445], y=[5.544445], theta=[0.000000] |
|

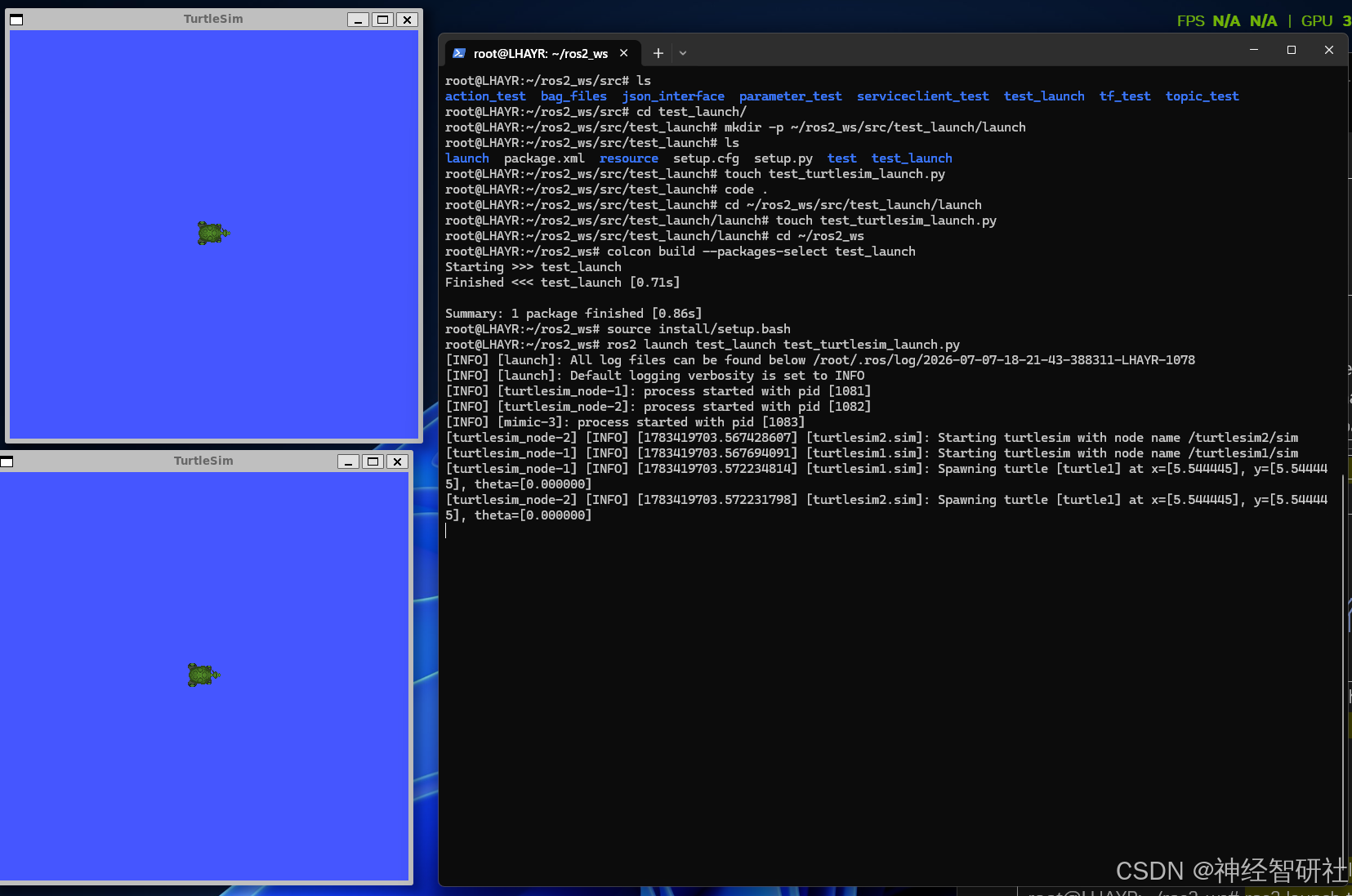

（ 运行指令（默认启动所有节点）） 运行结果：ros2 launch test_launch test_turtlesim_launch.py
|
2.4 验证小海龟2不跟随运动
|

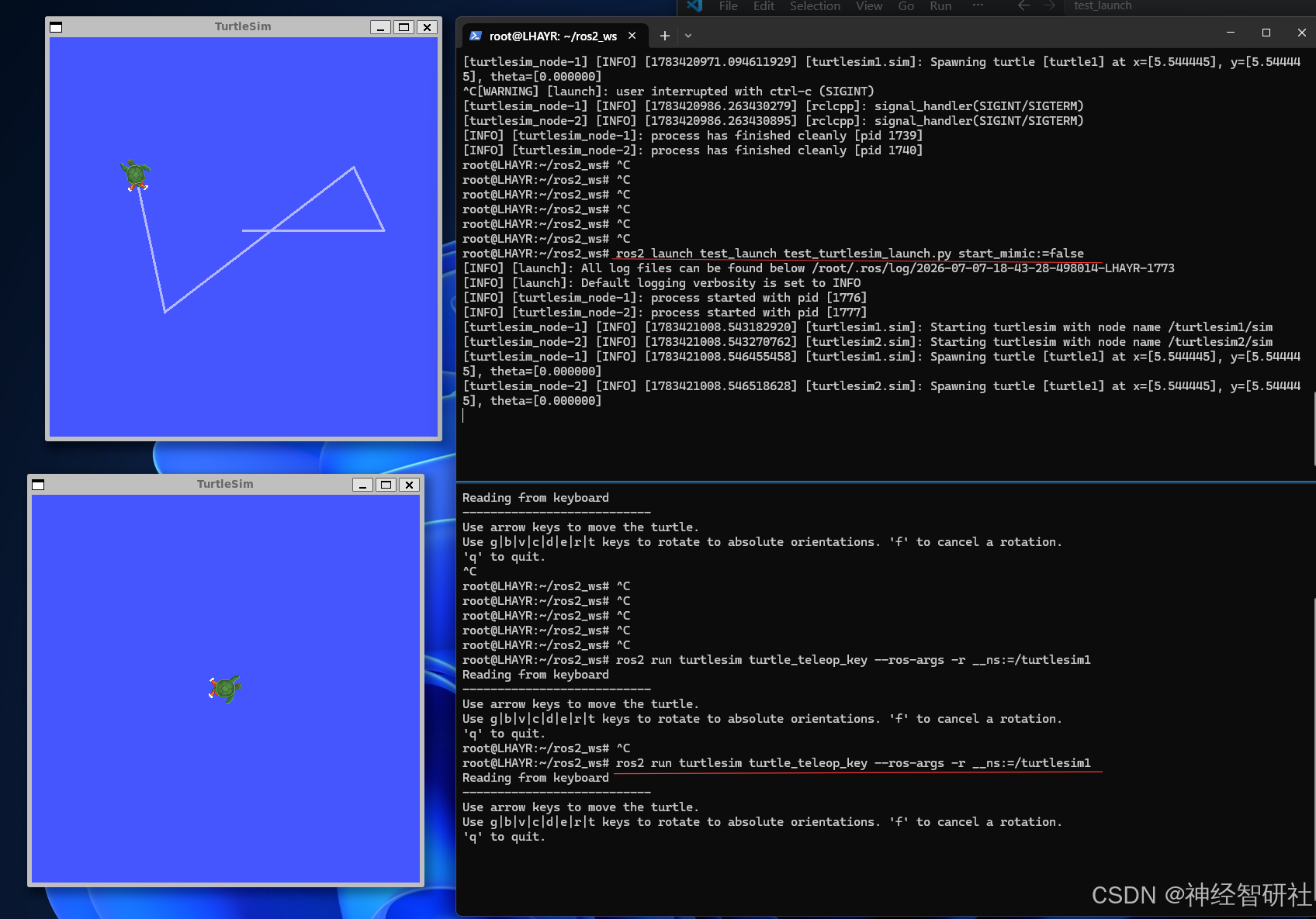

终端1：Ctrl+C关闭上述运行程序 运行指令（通过命令行参数动态控制）（海龟 1，海龟 2 就不动了）。 ros2 launch test_launch test_turtlesim_launch.py start_mimic:=false
终端2：运行键盘控制指令，仅控制小海龟1
|
||||
|
|
2.5 验证小海龟2跟随运动
|

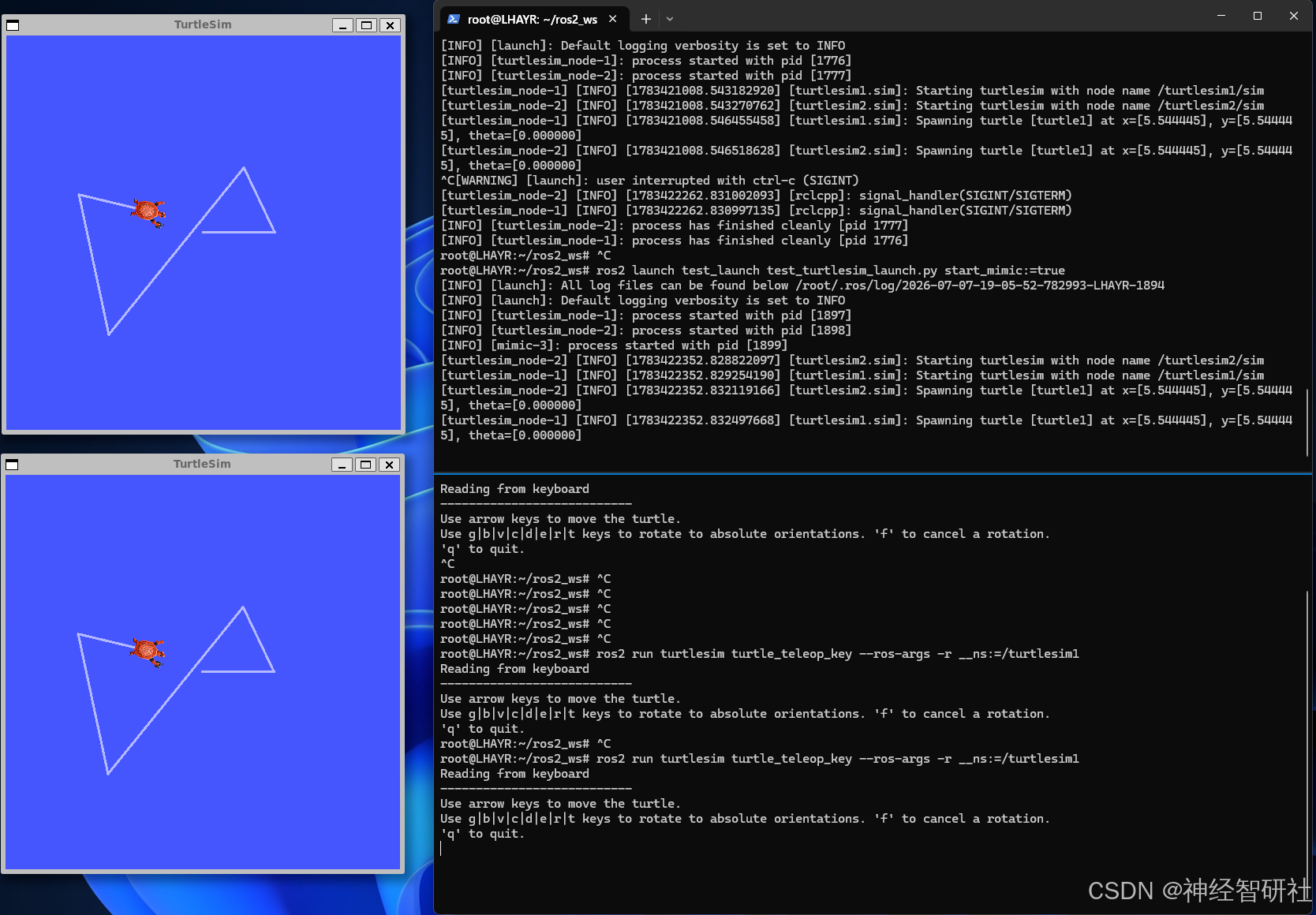

终端1：Ctrl+C关闭上述运行程序 运行指令（通过命令行参数动态控制）（海龟 1，海龟 2 就不动了）。 ros2 launch test_launch test_turtlesim_launch.py start_mimic:=true
终端2：直接控制无需重新运行
|
||||
|
|
