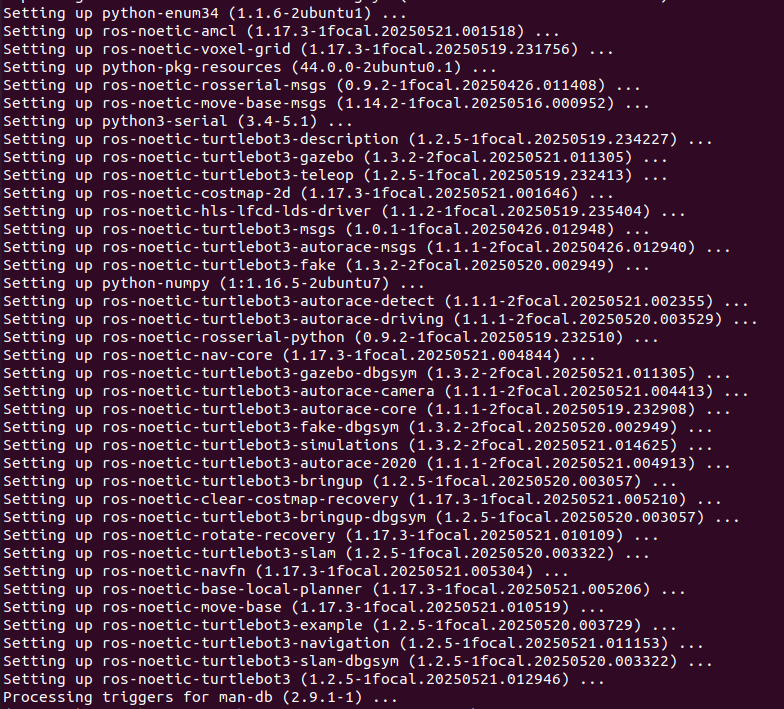

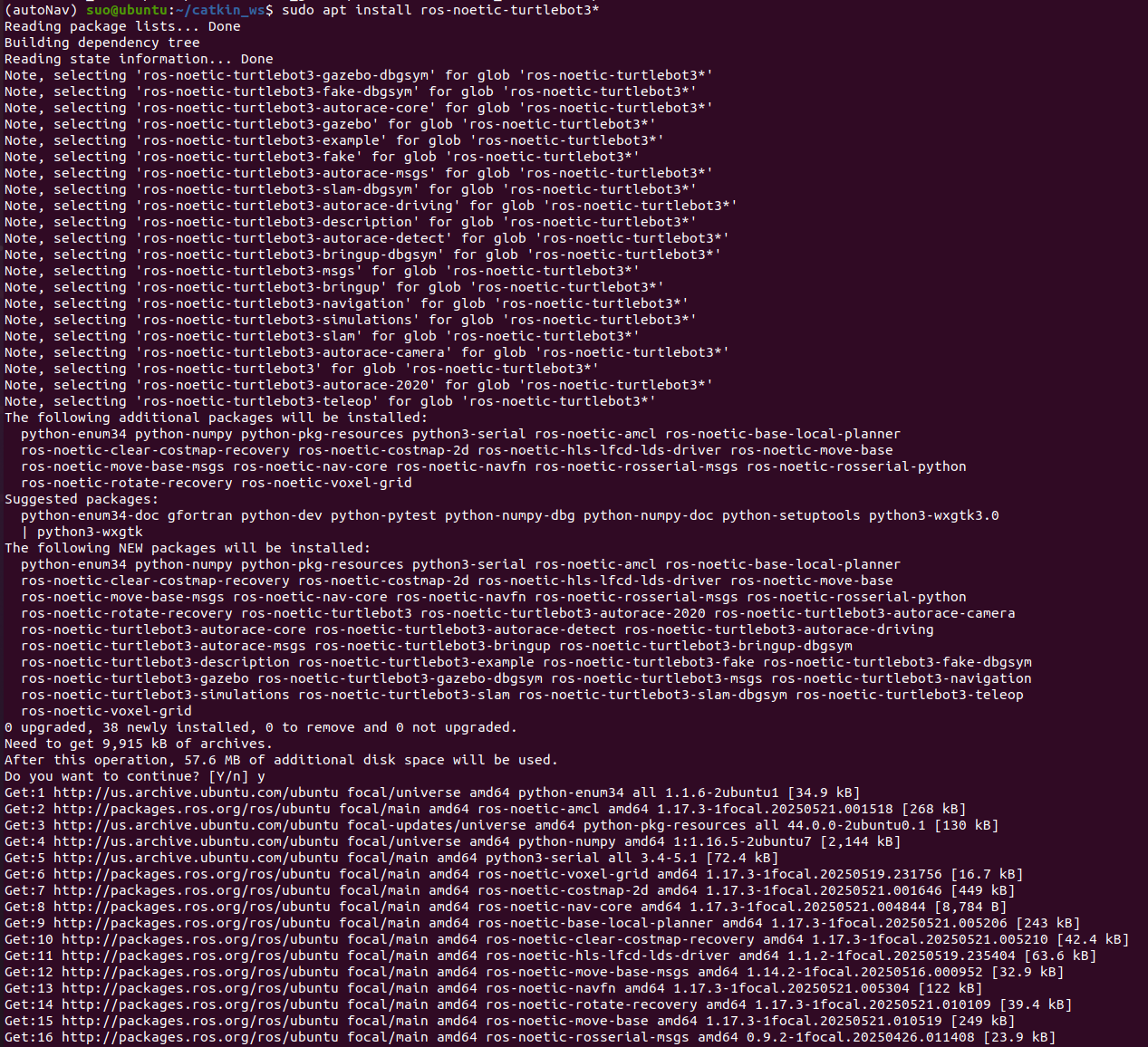

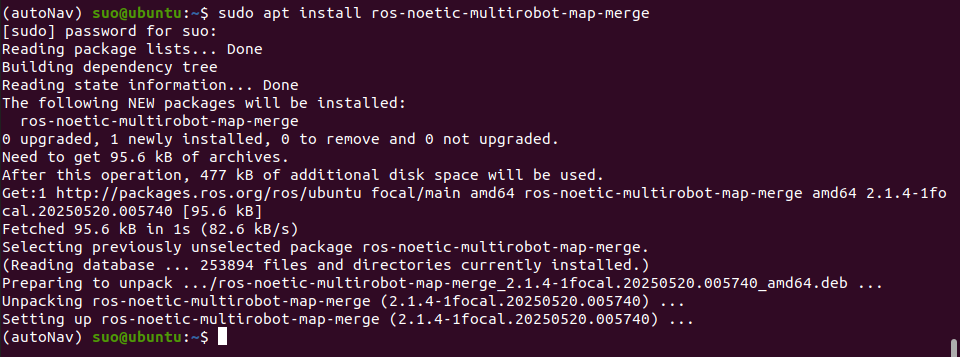

1. 配置软件包

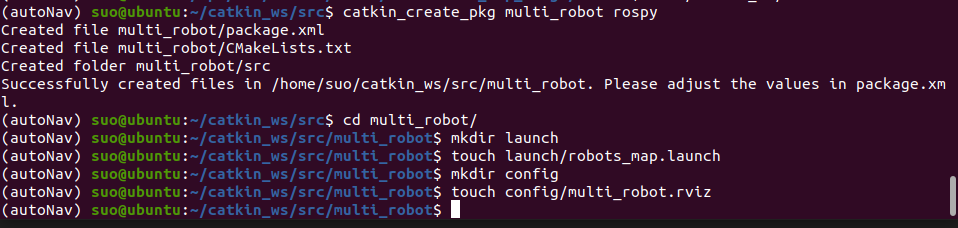

2. 准备启动文件
2.1 编辑 robots_map.launch
为不同的机器人设置不同的命名空间，在各自的命名空间内，为各机器人配置仿真环境的初始位置后启动各自的建图(Gmapping)节点，最后通过新安装的multirobot_map_merge进行数据融合，在rviz中查看实时效果。
map_merged (静态) -> robotX/map (由gmapping发布的map->odom变换) -> robotX/odom (静态) -> robotX/base_footprint -> … -> base_scan
静态static_transform_publisher：launch发布world到map_merged的变换
静态static_transform_publisher：launch发布map_merged到robotX/map的变换
动态slam_gmapping：自动发布robotX/map→robotX/odom的变换
动态Gazebo插件：自动发布odom→base_footprint的动态变换
静态robot_state_publisher：launch发布base_footprint到base_link，以及base_link到其他各传感器连杆的变换
<launch>
<arg name="model" default="$(env TURTLEBOT3_MODEL)" doc="model type [burger, waffle, waffle_pi]"/>
<arg name="first_tb3" default="tb3_0"/>
<arg name="second_tb3" default="tb3_1"/>
<arg name="third_tb3" default="tb3_2"/>
<arg name="first_tb3_x_pos" default="-7.0"/>
<arg name="first_tb3_y_pos" default="-1.0"/>
<arg name="first_tb3_z_pos" default=" 0.0"/>
<arg name="first_tb3_yaw" default=" 1.57"/>
<arg name="second_tb3_x_pos" default=" 7.0"/>
<arg name="second_tb3_y_pos" default="-1.0"/>
<arg name="second_tb3_z_pos" default=" 0.0"/>
<arg name="second_tb3_yaw" default=" 1.57"/>
<arg name="third_tb3_x_pos" default=" 0.5"/>
<arg name="third_tb3_y_pos" default=" 3.0"/>
<arg name="third_tb3_z_pos" default=" 0.0"/>
<arg name="third_tb3_yaw" default=" 0.0"/>
<include file="$(find gazebo_ros)/launch/empty_world.launch">
<arg name="world_name" value="$(find turtlebot3_gazebo)/worlds/turtlebot3_house.world"/>
<arg name="paused" value="false"/>
<arg name="use_sim_time" value="true"/>
<arg name="gui" value="true"/>
<arg name="headless" value="false"/>
<arg name="debug" value="false"/>
</include>
<group ns = "$(arg first_tb3)">
<arg name="robot_name" default="$(arg first_tb3)"/>
<arg name="tf_prefix" value="$(arg robot_name)"/>
<param name="robot_description" command="$(find xacro)/xacro $(find turtlebot3_description)/urdf/turtlebot3_$(arg model).urdf.xacro tf_prefix:=$(arg robot_name)" />
<rosparam>
map_merge/init_pose_x: -7.0
map_merge/init_pose_y: -1.0
map_merge/init_pose_z: 0.0
map_merge/init_pose_yaw: 1.57
</rosparam>
<node pkg="robot_state_publisher" type="robot_state_publisher" name="robot_state_publisher" output="screen">
<param name="publish_frequency" type="double" value="50.0" />
<param name="tf_prefix" value="$(arg first_tb3)" />
</node>
<node name="spawn_urdf" pkg="gazebo_ros" type="spawn_model" args="-urdf -model $(arg first_tb3) -x $(arg first_tb3_x_pos) -y $(arg first_tb3_y_pos) -z $(arg first_tb3_z_pos) -Y $(arg first_tb3_yaw) -param robot_description" />
<!-- TF 变换：从融合地图到机器人局部地图 -->
<node pkg="tf" type="static_transform_publisher" name="map_merged_to_robot1_map"
args="$0 0 0 0 0 0 map_merged $(arg tf_prefix)/map 100" />
<!-- 启动SLAM -->
<node pkg="gmapping" type="slam_gmapping" name="slam_gmapping">
<param name="base_frame" value="$(arg tf_prefix)/base_footprint"/>
<param name="odom_frame" value="$(arg tf_prefix)/odom"/>
<param name="map_frame" value="$(arg tf_prefix)/map"/>
<param name="use_sim_time" value="true"/>
<param name="delta" value="0.05"/>
<param name="pub_map_odom_transform" value="false"/>
<param name="tf_delay" value="0.05"/>
<param name="tf_broadcast" value="true"/>
<param name="transform_publish_period" value="0.05"/>
<remap from="scan" to="/$(arg tf_prefix)/scan"/>
</node>
</group>
<group ns = "$(arg second_tb3)">
<arg name="robot_name" default="$(arg second_tb3)"/>
<arg name="tf_prefix" value="$(arg robot_name)"/>
<param name="robot_description" command="$(find xacro)/xacro $(find turtlebot3_description)/urdf/turtlebot3_$(arg model).urdf.xacro tf_prefix:=$(arg robot_name)" />
<rosparam>
map_merge/init_pose_x: 7.0
map_merge/init_pose_y: -1.0
map_merge/init_pose_z: 0.0
map_merge/init_pose_yaw: 1.57
</rosparam>
<node pkg="robot_state_publisher" type="robot_state_publisher" name="robot_state_publisher" output="screen">
<param name="publish_frequency" type="double" value="50.0" />
<param name="tf_prefix" value="$(arg second_tb3)" />
</node>
<node name="spawn_urdf" pkg="gazebo_ros" type="spawn_model" args="-urdf -model $(arg second_tb3) -x $(arg second_tb3_x_pos) -y $(arg second_tb3_y_pos) -z $(arg second_tb3_z_pos) -Y $(arg second_tb3_yaw) -param robot_description" />
<!-- TF 变换：从融合地图到机器人局部地图 -->
<node pkg="tf" type="static_transform_publisher" name="map_merged_to_robot2_map"
args="$0 0 0 0 0 0 map_merged $(arg tf_prefix)/map 100" />
<!-- 启动SLAM -->
<node pkg="gmapping" type="slam_gmapping" name="slam_gmapping">
<param name="base_frame" value="$(arg tf_prefix)/base_footprint"/>
<param name="odom_frame" value="$(arg tf_prefix)/odom"/>
<param name="map_frame" value="$(arg tf_prefix)/map"/>
<param name="use_sim_time" value="true"/>
<param name="delta" value="0.05"/>
<param name="pub_map_odom_transform" value="false"/>
<param name="tf_delay" value="0.05"/>
<param name="tf_broadcast" value="true"/>
<param name="transform_publish_period" value="0.05"/>
<remap from="scan" to="/$(arg tf_prefix)/scan"/>
</node>
</group>
<group ns = "$(arg third_tb3)">
<arg name="robot_name" default="$(arg third_tb3)"/>
<arg name="tf_prefix" value="$(arg robot_name)"/>
<param name="robot_description" command="$(find xacro)/xacro $(find turtlebot3_description)/urdf/turtlebot3_$(arg model).urdf.xacro tf_prefix:=$(arg robot_name)" />
<rosparam>
map_merge/init_pose_x: 0.5
map_merge/init_pose_y: 3.0
map_merge/init_pose_z: 0.0
map_merge/init_pose_yaw: 0.0
</rosparam>
<node pkg="robot_state_publisher" type="robot_state_publisher" name="robot_state_publisher" output="screen">
<param name="publish_frequency" type="double" value="50.0" />
<param name="tf_prefix" value="$(arg third_tb3)" />
</node>
<node name="spawn_urdf" pkg="gazebo_ros" type="spawn_model" args="-urdf -model $(arg third_tb3) -x $(arg third_tb3_x_pos) -y $(arg third_tb3_y_pos) -z $(arg third_tb3_z_pos) -Y $(arg third_tb3_yaw) -param robot_description" />
<!-- TF 变换：从融合地图到机器人局部地图 -->
<node pkg="tf" type="static_transform_publisher" name="map_merged_to_robot3_map"
args="$0 0 0 0 0 0 map_merged $(arg tf_prefix)/map 100" />
<!-- 启动SLAM -->
<node pkg="gmapping" type="slam_gmapping" name="slam_gmapping">
<param name="base_frame" value="$(arg tf_prefix)/base_footprint"/>
<param name="odom_frame" value="$(arg tf_prefix)/odom"/>
<param name="map_frame" value="$(arg tf_prefix)/map"/>
<param name="use_sim_time" value="true"/>
<param name="delta" value="0.05"/>
<param name="pub_map_odom_transform" value="false"/>
<param name="tf_delay" value="0.05"/>
<param name="tf_broadcast" value="true"/>
<param name="transform_publish_period" value="0.05"/>
<remap from="scan" to="/$(arg tf_prefix)/scan"/>
</node>
</group>
<node pkg="tf" type="static_transform_publisher" name="world_to_map_merged" args="0 0 0 0 0 0 world map_merged 100" />
<!-- 启动地图融合 -->
<node pkg="multirobot_map_merge" type="map_merge" name="map_merge" output="screen">
<param name="known_init_poses" value="true"/>
<param name="world_frame" value="map_merged"/>
<param name="merging_rate" value="2.0"/>
<param name="discovery_rate" value="0.1"/>
<param name="estimation_confidence" value="0.9"/>
<param name="robot_names" value="$(arg first_tb3),$(arg second_tb3),$(arg third_tb3)"/>
<param name="robot_map_topics" value="/$(arg first_tb3)/map,/$(arg second_tb3)/map,/$(arg third_tb3)/map"/>
<param name="map_output_topic" value="/map_merged"/>
</node>
<!-- 启动RViz -->
<node pkg="rviz" type="rviz" name="rviz" required="true" args="-d $(find multi_robot)/config/multi_robot.rviz"/>
</launch>- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.
- 44.
- 45.
- 46.
- 47.
- 48.
- 49.
- 50.
- 51.
- 52.
- 53.
- 54.
- 55.
- 56.
- 57.
- 58.
- 59.
- 60.
- 61.
- 62.
- 63.
- 64.
- 65.
- 66.
- 67.
- 68.
- 69.
- 70.
- 71.
- 72.
- 73.
- 74.
- 75.
- 76.
- 77.
- 78.
- 79.
- 80.
- 81.
- 82.
- 83.
- 84.
- 85.
- 86.
- 87.
- 88.
- 89.
- 90.
- 91.
- 92.
- 93.
- 94.
- 95.
- 96.
- 97.
- 98.
- 99.
- 100.
- 101.
- 102.
- 103.
- 104.
- 105.
- 106.
- 107.
- 108.
- 109.
- 110.
- 111.
- 112.
- 113.
- 114.
- 115.
- 116.
- 117.
- 118.
- 119.
- 120.
- 121.
- 122.
- 123.
- 124.
- 125.
- 126.
- 127.
- 128.
- 129.
- 130.
- 131.
- 132.
- 133.
- 134.
- 135.
- 136.
- 137.
- 138.
- 139.
- 140.
- 141.
- 142.
- 143.
- 144.
- 145.
- 146.
- 147.
- 148.
- 149.
- 150.
- 151.
- 152.
- 153.
- 154.
- 155.
- 156.
- 157.
- 158.
- 159.
- 160.
2.2 配置Rviz节点(multi_robot.rviz)
Panels:
- Class: rviz/Displays
Help Height: 78
Name: Displays
Property Tree Widget:
Expanded:
- /Global Options1
- /Robot11
- /TF1/Tree1
- /Map11
- /Map11/Status1
Splitter Ratio: 0.5111111402511597
Tree Height: 1195
- Class: rviz/Selection
Name: Selection
- Class: rviz/Tool Properties
Expanded:
- /2D Pose Estimate1
- /2D Nav Goal1
- /Publish Point1
Name: Tool Properties
Splitter Ratio: 0.5886790156364441
- Class: rviz/Views
Expanded:
- /Current View1
Name: Views
Splitter Ratio: 0.5
- Class: rviz/Time
Name: Time
SyncMode: 0
SyncSource: LaserScan1
Preferences:
PromptSaveOnExit: true
Toolbars:
toolButtonStyle: 2
Visualization Manager:
Class: ""
Displays:
- Alpha: 0.5
Cell Size: 1
Class: rviz/Grid
Color: 160; 160; 164
Enabled: true
Line Style:
Line Width: 0.029999999329447746
Value: Lines
Name: Grid
Normal Cell Count: 0
Offset:
X: 0
Y: 0
Z: 0
Plane: XY
Plane Cell Count: 100
Reference Frame: <Fixed Frame>
Value: true
- Alpha: 1
Class: rviz/RobotModel
Collision Enabled: false
Enabled: true
Links:
All Links Enabled: true
Expand Joint Details: false
Expand Link Details: false
Expand Tree: false
Link Tree Style: Links in Alphabetic Order
base_footprint:
Alpha: 1
Show Axes: false
Show Trail: false
base_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
base_scan:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
camera_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
camera_rgb_frame:
Alpha: 1
Show Axes: false
Show Trail: false
camera_rgb_optical_frame:
Alpha: 1
Show Axes: false
Show Trail: false
caster_back_left_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
caster_back_right_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
imu_link:
Alpha: 1
Show Axes: false
Show Trail: false
wheel_left_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
wheel_right_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
Name: Robot1
Robot Description: tb3_0/robot_description
TF Prefix: tb3_0
Update Interval: 0
Value: true
Visual Enabled: true
- Alpha: 1
Class: rviz/RobotModel
Collision Enabled: false
Enabled: true
Links:
All Links Enabled: true
Expand Joint Details: false
Expand Link Details: false
Expand Tree: false
Link Tree Style: Links in Alphabetic Order
base_footprint:
Alpha: 1
Show Axes: false
Show Trail: false
base_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
base_scan:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
camera_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
camera_rgb_frame:
Alpha: 1
Show Axes: false
Show Trail: false
camera_rgb_optical_frame:
Alpha: 1
Show Axes: false
Show Trail: false
caster_back_left_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
caster_back_right_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
imu_link:
Alpha: 1
Show Axes: false
Show Trail: false
wheel_left_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
wheel_right_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
Name: Robot2
Robot Description: tb3_1/robot_description
TF Prefix: tb3_1
Update Interval: 0
Value: true
Visual Enabled: true
- Alpha: 1
Class: rviz/RobotModel
Collision Enabled: false
Enabled: true
Links:
All Links Enabled: true
Expand Joint Details: false
Expand Link Details: false
Expand Tree: false
Link Tree Style: Links in Alphabetic Order
base_footprint:
Alpha: 1
Show Axes: false
Show Trail: false
base_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
base_scan:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
camera_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
camera_rgb_frame:
Alpha: 1
Show Axes: false
Show Trail: false
camera_rgb_optical_frame:
Alpha: 1
Show Axes: false
Show Trail: false
caster_back_left_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
caster_back_right_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
imu_link:
Alpha: 1
Show Axes: false
Show Trail: false
wheel_left_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
wheel_right_link:
Alpha: 1
Show Axes: false
Show Trail: false
Value: true
Name: Robot3
Robot Description: tb3_2/robot_description
TF Prefix: tb3_2
Update Interval: 0
Value: true
Visual Enabled: true
- Class: rviz/TF
Enabled: true
Filter (blacklist): ""
Filter (whitelist): ""
Frame Timeout: 15
Frames:
All Enabled: false
map_merged:
Value: true
tb3_0/base_footprint:
Value: true
tb3_0/base_link:
Value: true
tb3_0/base_scan:
Value: true
tb3_0/camera_link:
Value: true
tb3_0/camera_rgb_frame:
Value: true
tb3_0/camera_rgb_optical_frame:
Value: true
tb3_0/caster_back_left_link:
Value: true
tb3_0/caster_back_right_link:
Value: true
tb3_0/imu_link:
Value: true
tb3_0/map:
Value: true
tb3_0/odom:
Value: true
tb3_0/wheel_left_link:
Value: true
tb3_0/wheel_right_link:
Value: true
tb3_1/base_footprint:
Value: true
tb3_1/base_link:
Value: true
tb3_1/base_scan:
Value: true
tb3_1/camera_link:
Value: true
tb3_1/camera_rgb_frame:
Value: true
tb3_1/camera_rgb_optical_frame:
Value: true
tb3_1/caster_back_left_link:
Value: true
tb3_1/caster_back_right_link:
Value: true
tb3_1/imu_link:
Value: true
tb3_1/map:
Value: true
tb3_1/odom:
Value: true
tb3_1/wheel_left_link:
Value: true
tb3_1/wheel_right_link:
Value: true
tb3_2/base_footprint:
Value: true
tb3_2/base_link:
Value: true
tb3_2/base_scan:
Value: true
tb3_2/camera_link:
Value: true
tb3_2/camera_rgb_frame:
Value: true
tb3_2/camera_rgb_optical_frame:
Value: true
tb3_2/caster_back_left_link:
Value: true
tb3_2/caster_back_right_link:
Value: true
tb3_2/imu_link:
Value: true
tb3_2/map:
Value: true
tb3_2/odom:
Value: true
tb3_2/wheel_left_link:
Value: true
tb3_2/wheel_right_link:
Value: true
world:
Value: true
Marker Alpha: 1
Marker Scale: 1
Name: TF
Show Arrows: true
Show Axes: true
Show Names: true
Tree:
world:
map_merged:
tb3_0/map:
tb3_0/odom:
tb3_0/base_footprint:
tb3_0/base_link:
tb3_0/base_scan:
{}
tb3_0/camera_link:
tb3_0/camera_rgb_frame:
tb3_0/camera_rgb_optical_frame:
{}
tb3_0/caster_back_left_link:
{}
tb3_0/caster_back_right_link:
{}
tb3_0/imu_link:
{}
tb3_0/wheel_left_link:
{}
tb3_0/wheel_right_link:
{}
tb3_1/map:
tb3_1/odom:
tb3_1/base_footprint:
tb3_1/base_link:
tb3_1/base_scan:
{}
tb3_1/camera_link:
tb3_1/camera_rgb_frame:
tb3_1/camera_rgb_optical_frame:
{}
tb3_1/caster_back_left_link:
{}
tb3_1/caster_back_right_link:
{}
tb3_1/imu_link:
{}
tb3_1/wheel_left_link:
{}
tb3_1/wheel_right_link:
{}
tb3_2/map:
tb3_2/odom:
tb3_2/base_footprint:
tb3_2/base_link:
tb3_2/base_scan:
{}
tb3_2/camera_link:
tb3_2/camera_rgb_frame:
tb3_2/camera_rgb_optical_frame:
{}
tb3_2/caster_back_left_link:
{}
tb3_2/caster_back_right_link:
{}
tb3_2/imu_link:
{}
tb3_2/wheel_left_link:
{}
tb3_2/wheel_right_link:
{}
Update Interval: 0
Value: true
- Alpha: 1
Autocompute Intensity Bounds: true
Autocompute Value Bounds:
Max Value: 10
Min Value: -10
Value: true
Axis: Z
Channel Name: intensity
Class: rviz/LaserScan
Color: 255; 255; 255
Color Transformer: Intensity
Decay Time: 0
Enabled: true
Invert Rainbow: false
Max Color: 255; 255; 255
Min Color: 0; 0; 0
Name: LaserScan1
Position Transformer: XYZ
Queue Size: 10
Selectable: true
Size (Pixels): 3
Size (m): 0.009999999776482582
Style: Flat Squares
Topic: /tb3_0/scan
Unreliable: false
Use Fixed Frame: true
Use rainbow: true
Value: true
- Alpha: 1
Autocompute Intensity Bounds: true
Autocompute Value Bounds:
Max Value: 10
Min Value: -10
Value: true
Axis: Z
Channel Name: intensity
Class: rviz/LaserScan
Color: 0; 255; 0
Color Transformer: FlatColor
Decay Time: 0
Enabled: true
Invert Rainbow: false
Max Color: 255; 255; 255
Min Color: 0; 0; 0
Name: LaserScan2
Position Transformer: XYZ
Queue Size: 10
Selectable: true
Size (Pixels): 3
Size (m): 0.030000001192092896
Style: Flat Squares
Topic: tb3_1/scan
Unreliable: false
Use Fixed Frame: true
Use rainbow: true
Value: true
- Alpha: 1
Autocompute Intensity Bounds: true
Autocompute Value Bounds:
Max Value: 10
Min Value: -10
Value: true
Axis: Z
Channel Name: intensity
Class: rviz/LaserScan
Color: 255; 255; 255
Color Transformer: Intensity
Decay Time: 0
Enabled: true
Invert Rainbow: false
Max Color: 255; 255; 255
Min Color: 0; 0; 0
Name: LaserScan3
Position Transformer: XYZ
Queue Size: 10
Selectable: true
Size (Pixels): 3
Size (m): 0.009999999776482582
Style: Flat Squares
Topic: /tb3_2/scan
Unreliable: false
Use Fixed Frame: true
Use rainbow: true
Value: true
- Class: rviz/Image
Enabled: false
Image Topic: /raspicam_node/image
Max Value: 1
Median window: 5
Min Value: 0
Name: Image
Normalize Range: true
Queue Size: 2
Transport Hint: compressed
Unreliable: false
Value: false
- Alpha: 0.699999988079071
Class: rviz/Map
Color Scheme: map
Draw Behind: false
Enabled: true
Name: Map1
Topic: /tb3_0/map
Unreliable: false
Use Timestamp: false
Value: true
- Alpha: 0.699999988079071
Class: rviz/Map
Color Scheme: map
Draw Behind: false
Enabled: true
Name: Map2
Topic: /tb3_1/map
Unreliable: false
Use Timestamp: false
Value: true
- Alpha: 0.699999988079071
Class: rviz/Map
Color Scheme: map
Draw Behind: false
Enabled: true
Name: Map3
Topic: /tb3_2/map
Unreliable: false
Use Timestamp: false
Value: true
- Alpha: 1
Class: rviz/Axes
Enabled: false
Length: 1
Name: World Axes
Radius: 0.10000000149011612
Reference Frame: map_merged
Show Trail: false
Value: false
Enabled: true
Global Options:
Background Color: 48; 48; 48
Default Light: true
Fixed Frame: map_merged
Frame Rate: 30
Name: root
Tools:
- Class: rviz/Interact
Hide Inactive Objects: true
- Class: rviz/MoveCamera
- Class: rviz/Select
- Class: rviz/FocusCamera
- Class: rviz/Measure
- Class: rviz/SetInitialPose
Theta std deviation: 0.2617993950843811
Topic: /initialpose
X std deviation: 0.5
Y std deviation: 0.5
- Class: rviz/SetGoal
Topic: /move_base_simple/goal
- Class: rviz/PublishPoint
Single click: true
Topic: /clicked_point
Value: true
Views:
Current:
Angle: -1.6607967615127563
Class: rviz/TopDownOrtho
Enable Stereo Rendering:
Stereo Eye Separation: 0.05999999865889549
Stereo Focal Distance: 1
Swap Stereo Eyes: false
Value: false
Invert Z Axis: false
Name: Current View
Near Clip Distance: 0.009999999776482582
Scale: 82.56507110595703
Target Frame: map
X: 0.07265345752239227
Y: 0.513627827167511
Saved: ~
Window Geometry:
Displays:
collapsed: false
Height: 1492
Hide Left Dock: false
Hide Right Dock: true
Image:
collapsed: false
QMainWindow State: 000000ff00000000fd0000000400000000000001bd00000536fc0200000009fb0000001200530065006c0065006300740069006f006e00000001e10000009b0000005c00fffffffb0000001e0054006f006f006c002000500072006f007000650072007400690065007302000001ed000001df00000185000000a3fb000000120056006900650077007300200054006f006f02000001df000002110000018500000122fb000000200054006f006f006c002000500072006f0070006500720074006900650073003203000002880000011d000002210000017afb000000100044006900730070006c006100790073010000003d00000536000000c900fffffffb0000002000730065006c0065006300740069006f006e00200062007500660066006500720200000138000000aa0000023a00000294fb00000014005700690064006500530074006500720065006f02000000e6000000d2000003ee0000030bfb0000000c004b0069006e0065006300740200000186000001060000030c00000261fb0000000a0049006d006100670065000000020f000001900000001600ffffff000000010000010f0000035cfc0200000003fb0000001e0054006f006f006c002000500072006f00700065007200740069006500730100000041000000780000000000000000fb0000000a0056006900650077007300000000430000035c000000a400fffffffb0000001200530065006c0065006300740069006f006e010000025a000000b200000000000000000000000200000490000000a9fc0100000001fb0000000a00560069006500770073030000004e00000080000002e10000019700000003000005790000003efc0100000002fb0000000800540069006d0065010000000000000579000003bc00fffffffb0000000800540069006d00650100000000000004500000000000000000000003b60000053600000004000000040000000800000008fc0000000100000002000000010000000a0054006f006f006c00730100000000ffffffff0000000000000000
Selection:
collapsed: false
Time:
collapsed: false
Tool Properties:
collapsed: false
Views:
collapsed: true
Width: 1401
X: 1473
Y: 27- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.
- 44.
- 45.
- 46.
- 47.
- 48.
- 49.
- 50.
- 51.
- 52.
- 53.
- 54.
- 55.
- 56.
- 57.
- 58.
- 59.
- 60.
- 61.
- 62.
- 63.
- 64.
- 65.
- 66.
- 67.
- 68.
- 69.
- 70.
- 71.
- 72.
- 73.
- 74.
- 75.
- 76.
- 77.
- 78.
- 79.
- 80.
- 81.
- 82.
- 83.
- 84.
- 85.
- 86.
- 87.
- 88.
- 89.
- 90.
- 91.
- 92.
- 93.
- 94.
- 95.
- 96.
- 97.
- 98.
- 99.
- 100.
- 101.
- 102.
- 103.
- 104.
- 105.
- 106.
- 107.
- 108.
- 109.
- 110.
- 111.
- 112.
- 113.
- 114.
- 115.
- 116.
- 117.
- 118.
- 119.
- 120.
- 121.
- 122.
- 123.
- 124.
- 125.
- 126.
- 127.
- 128.
- 129.
- 130.
- 131.
- 132.
- 133.
- 134.
- 135.
- 136.
- 137.
- 138.
- 139.
- 140.
- 141.
- 142.
- 143.
- 144.
- 145.
- 146.
- 147.
- 148.
- 149.
- 150.
- 151.
- 152.
- 153.
- 154.
- 155.
- 156.
- 157.
- 158.
- 159.
- 160.
- 161.
- 162.
- 163.
- 164.
- 165.
- 166.
- 167.
- 168.
- 169.
- 170.
- 171.
- 172.
- 173.
- 174.
- 175.
- 176.
- 177.
- 178.
- 179.
- 180.
- 181.
- 182.
- 183.
- 184.
- 185.
- 186.
- 187.
- 188.
- 189.
- 190.
- 191.
- 192.
- 193.
- 194.
- 195.
- 196.
- 197.
- 198.
- 199.
- 200.
- 201.
- 202.
- 203.
- 204.
- 205.
- 206.
- 207.
- 208.
- 209.
- 210.
- 211.
- 212.
- 213.
- 214.
- 215.
- 216.
- 217.
- 218.
- 219.
- 220.
- 221.
- 222.
- 223.
- 224.
- 225.
- 226.
- 227.
- 228.
- 229.
- 230.
- 231.
- 232.
- 233.
- 234.
- 235.
- 236.
- 237.
- 238.
- 239.
- 240.
- 241.
- 242.
- 243.
- 244.
- 245.
- 246.
- 247.
- 248.
- 249.
- 250.
- 251.
- 252.
- 253.
- 254.
- 255.
- 256.
- 257.
- 258.
- 259.
- 260.
- 261.
- 262.
- 263.
- 264.
- 265.
- 266.
- 267.
- 268.
- 269.
- 270.
- 271.
- 272.
- 273.
- 274.
- 275.
- 276.
- 277.
- 278.
- 279.
- 280.
- 281.
- 282.
- 283.
- 284.
- 285.
- 286.
- 287.
- 288.
- 289.
- 290.
- 291.
- 292.
- 293.
- 294.
- 295.
- 296.
- 297.
- 298.
- 299.
- 300.
- 301.
- 302.
- 303.
- 304.
- 305.
- 306.
- 307.
- 308.
- 309.
- 310.
- 311.
- 312.
- 313.
- 314.
- 315.
- 316.
- 317.
- 318.
- 319.
- 320.
- 321.
- 322.
- 323.
- 324.
- 325.
- 326.
- 327.
- 328.
- 329.
- 330.
- 331.
- 332.
- 333.
- 334.
- 335.
- 336.
- 337.
- 338.
- 339.
- 340.
- 341.
- 342.
- 343.
- 344.
- 345.
- 346.
- 347.
- 348.
- 349.
- 350.
- 351.
- 352.
- 353.
- 354.
- 355.
- 356.
- 357.
- 358.
- 359.
- 360.
- 361.
- 362.
- 363.
- 364.
- 365.
- 366.
- 367.
- 368.
- 369.
- 370.
- 371.
- 372.
- 373.
- 374.
- 375.
- 376.
- 377.
- 378.
- 379.
- 380.
- 381.
- 382.
- 383.
- 384.
- 385.
- 386.
- 387.
- 388.
- 389.
- 390.
- 391.
- 392.
- 393.
- 394.
- 395.
- 396.
- 397.
- 398.
- 399.
- 400.
- 401.
- 402.
- 403.
- 404.
- 405.
- 406.
- 407.
- 408.
- 409.
- 410.
- 411.
- 412.
- 413.
- 414.
- 415.
- 416.
- 417.
- 418.
- 419.
- 420.
- 421.
- 422.
- 423.
- 424.
- 425.
- 426.
- 427.
- 428.
- 429.
- 430.
- 431.
- 432.
- 433.
- 434.
- 435.
- 436.
- 437.
- 438.
- 439.
- 440.
- 441.
- 442.
- 443.
- 444.
- 445.
- 446.
- 447.
- 448.
- 449.
- 450.
- 451.
- 452.
- 453.
- 454.
- 455.
- 456.
- 457.
- 458.
- 459.
- 460.
- 461.
- 462.
- 463.
- 464.
- 465.
- 466.
- 467.
- 468.
- 469.
- 470.
- 471.
- 472.
- 473.
- 474.
- 475.
- 476.
- 477.
- 478.
- 479.
- 480.
- 481.
- 482.
- 483.
- 484.
- 485.
- 486.
- 487.
- 488.
- 489.
- 490.
- 491.
- 492.
- 493.
- 494.
- 495.
- 496.
- 497.
- 498.
- 499.
- 500.
- 501.
- 502.
- 503.
- 504.
- 505.
- 506.
- 507.
- 508.
- 509.
- 510.
- 511.
- 512.
- 513.
- 514.
- 515.
- 516.
- 517.
- 518.
- 519.
- 520.
- 521.
- 522.
- 523.
- 524.
- 525.
- 526.
- 527.
- 528.
- 529.
- 530.
- 531.
- 532.
- 533.
- 534.
- 535.
- 536.
- 537.
- 538.
- 539.
- 540.
- 541.
- 542.
- 543.
- 544.
- 545.
- 546.
- 547.
- 548.
- 549.
- 550.
- 551.
- 552.
- 553.
- 554.
- 555.
- 556.
- 557.
- 558.
- 559.
- 560.
- 561.
- 562.
- 563.
- 564.
- 565.
- 566.
- 567.
- 568.
- 569.
- 570.
- 571.
- 572.
- 573.
- 574.
- 575.
- 576.
- 577.
- 578.
- 579.
- 580.
- 581.
- 582.
- 583.
- 584.
- 585.
- 586.
- 587.
- 588.
- 589.
- 590.
- 591.
- 592.
- 593.
- 594.
- 595.
- 596.
- 597.
- 598.
- 599.
- 600.
- 601.
- 602.
- 603.
- 604.
- 605.
- 606.
- 607.
- 608.
- 609.
- 610.
- 611.
- 612.
- 613.
- 614.

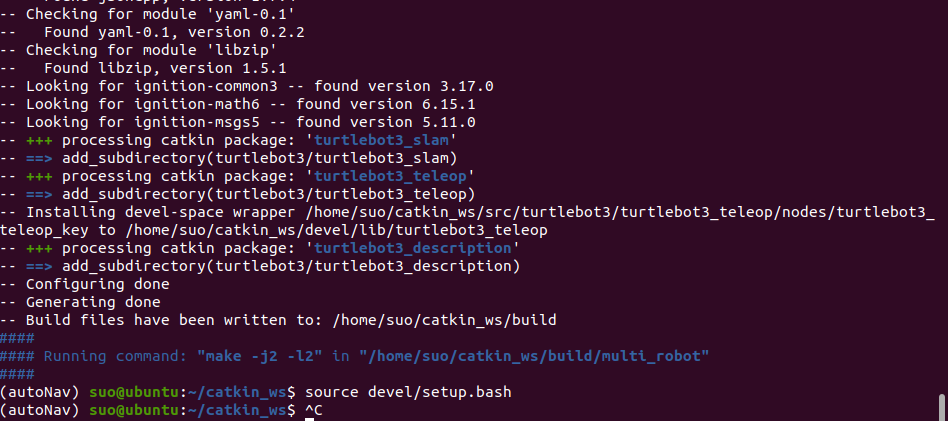

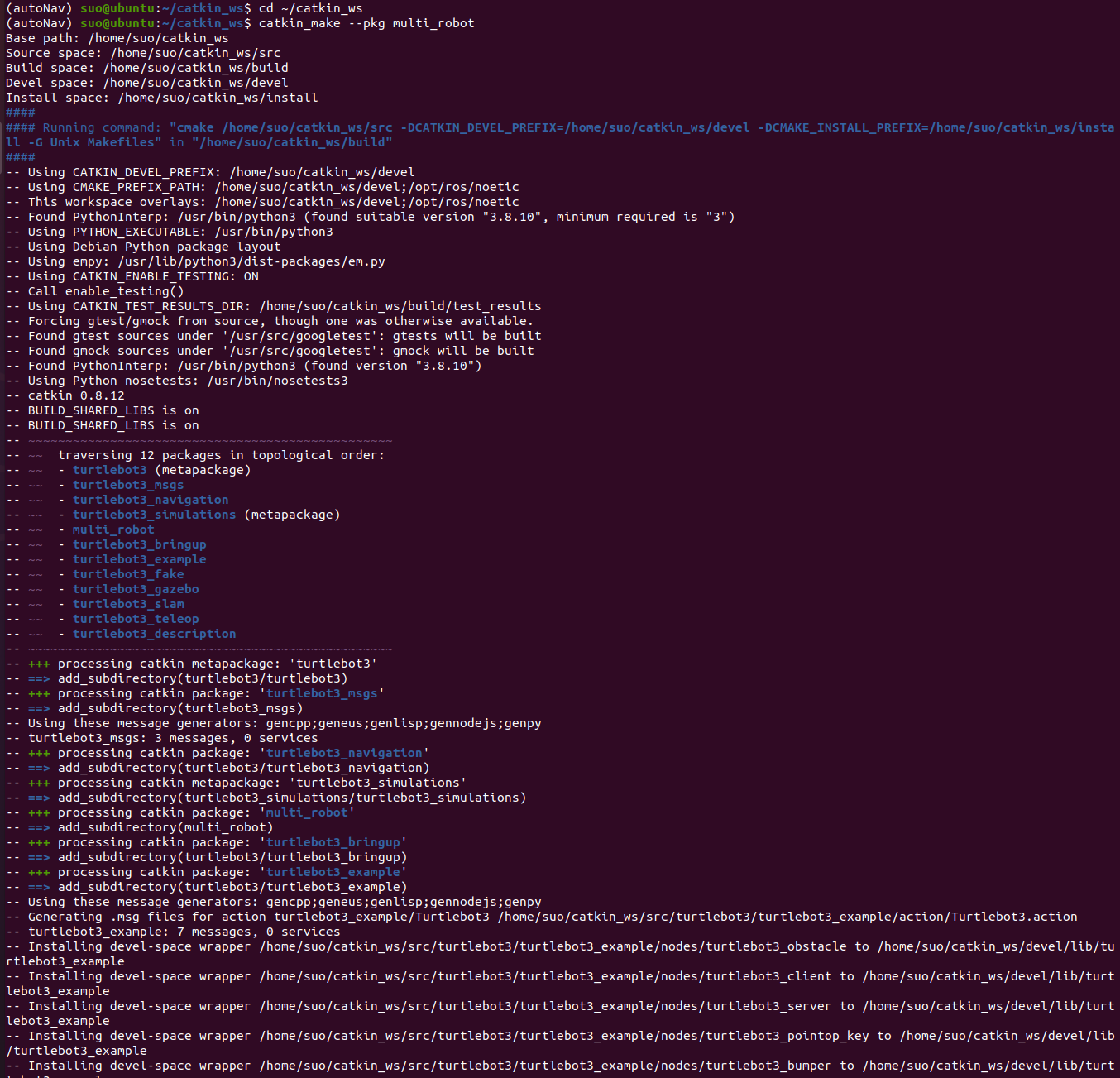

2.3 项目编译
3. 启动协同建图
# 终端1：启动主系统

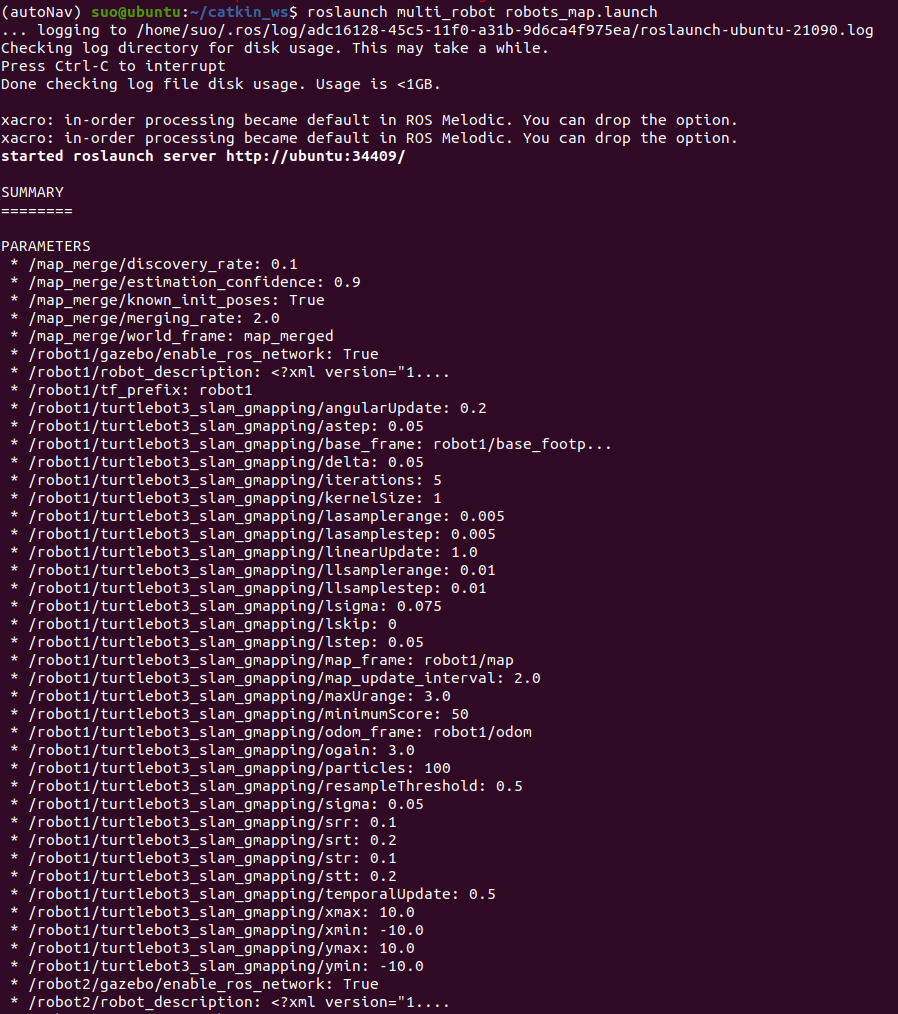

roslaunch multi_robot robots_map.launch

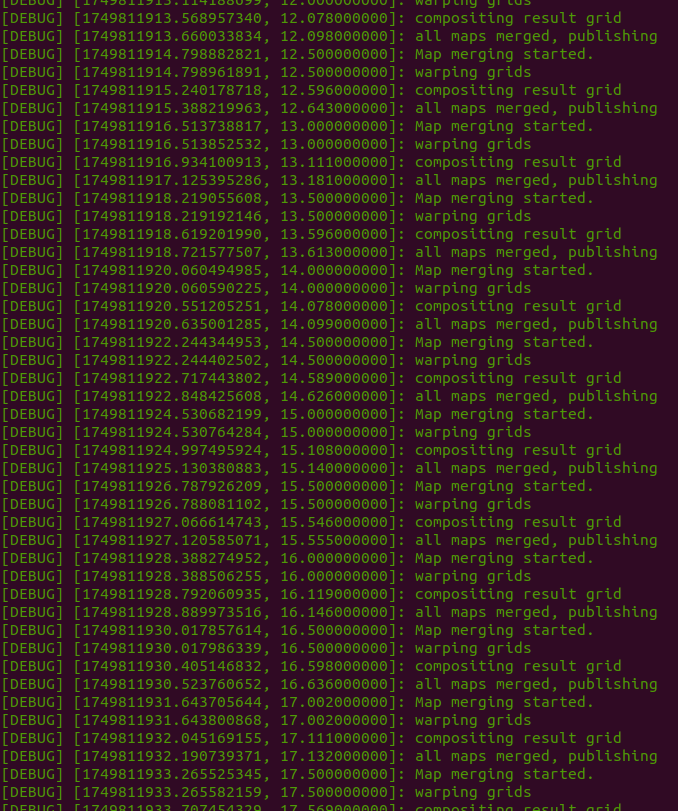

# 终端2：机器人1控制端

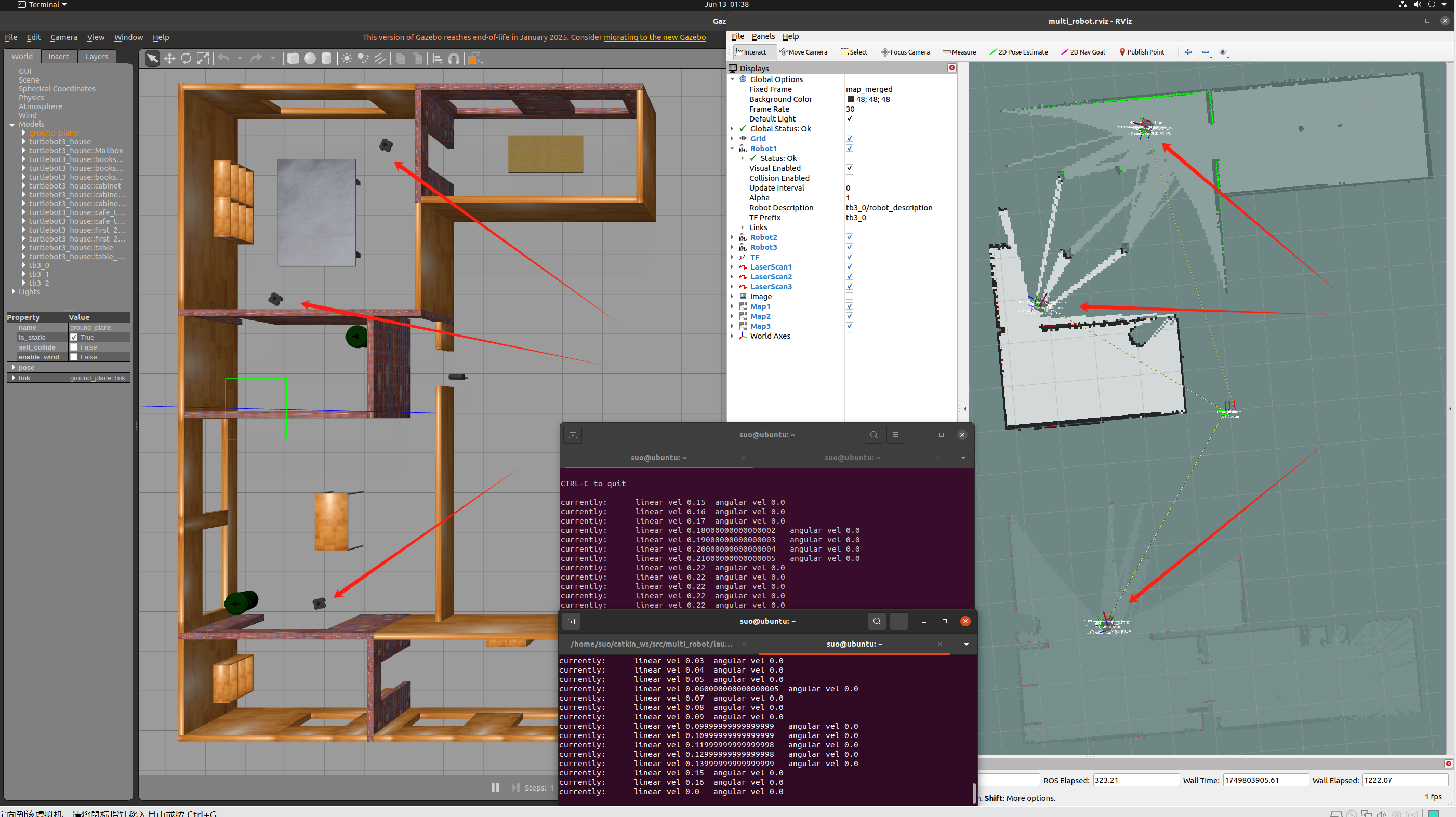

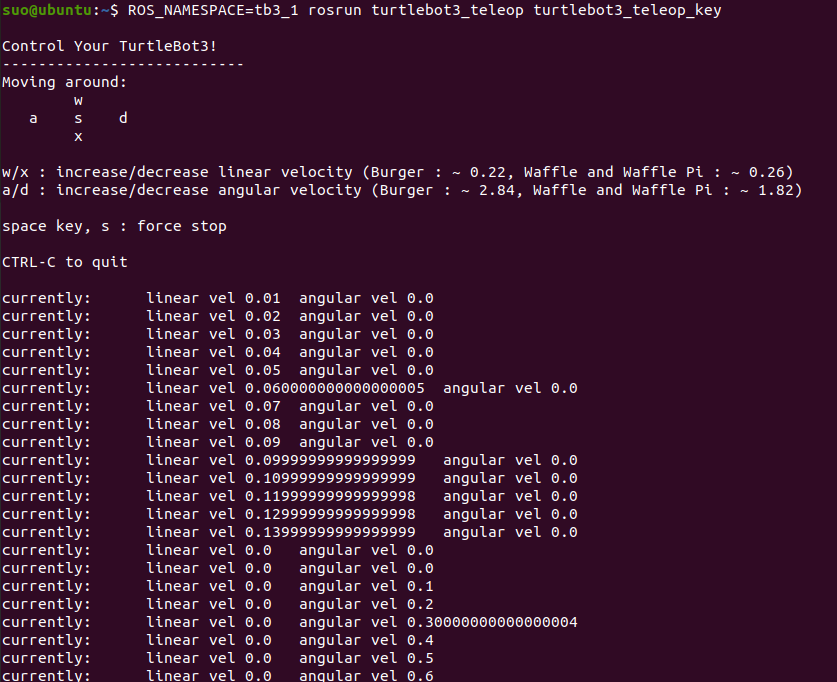

ROS_NAMESPACE=tb3_0 rosrun turtlebot3_teleop turtlebot3_teleop_key
# 终端3：机器人2控制端
ROS_NAMESPACE=tb3_1 rosrun turtlebot3_teleop turtlebot3_teleop_key
# 终端4：机器人3控制端
ROS_NAMESPACE=tb3_2 rosrun turtlebot3_teleop turtlebot3_teleop_key- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.

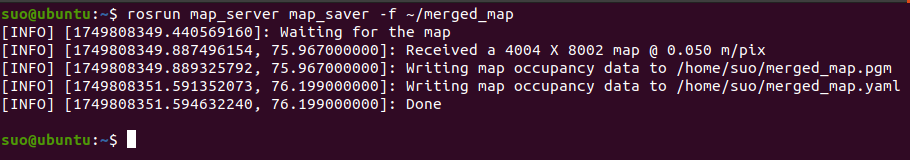

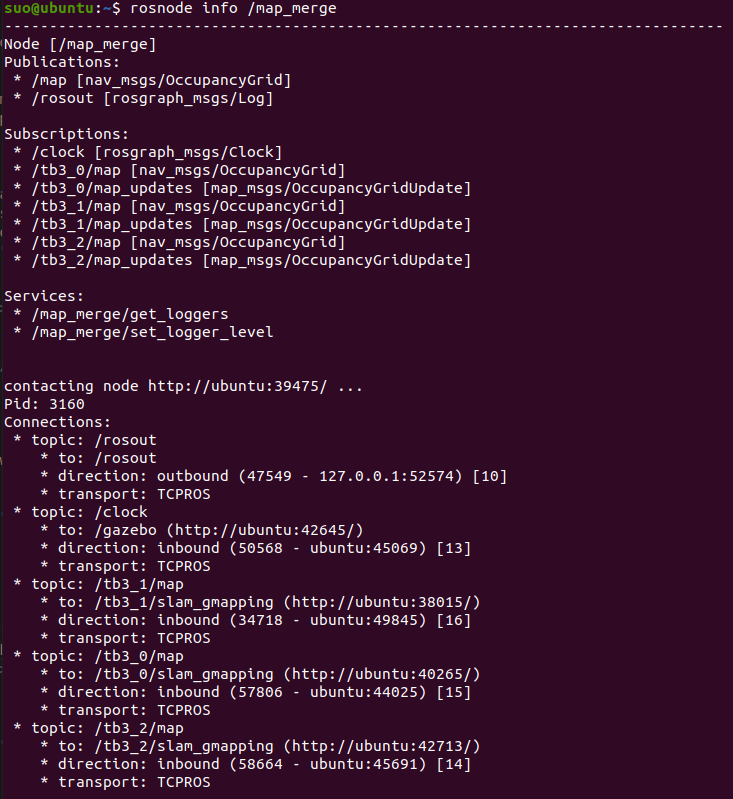

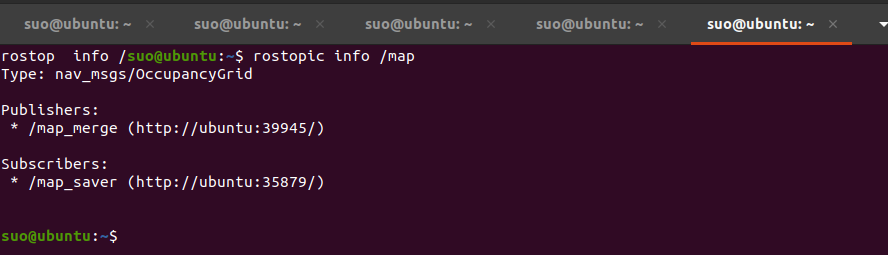

4. 保存融合地图
已为社区贡献6条内容
所有评论(0)
