首先设置EMIO方式引出ETHE1

之后我们看到ZYNQ模块生长出了GMII接口如下图：

主要是三部分：

1，左边的ENET1_EXT_INITN是外部中断的输入。

2，MIO主控部分，时钟是输出的，数据是双向的，所以有一个方向选择T。我们可以简单做一个三态门实现。

3，GMII接口部分[注1]。

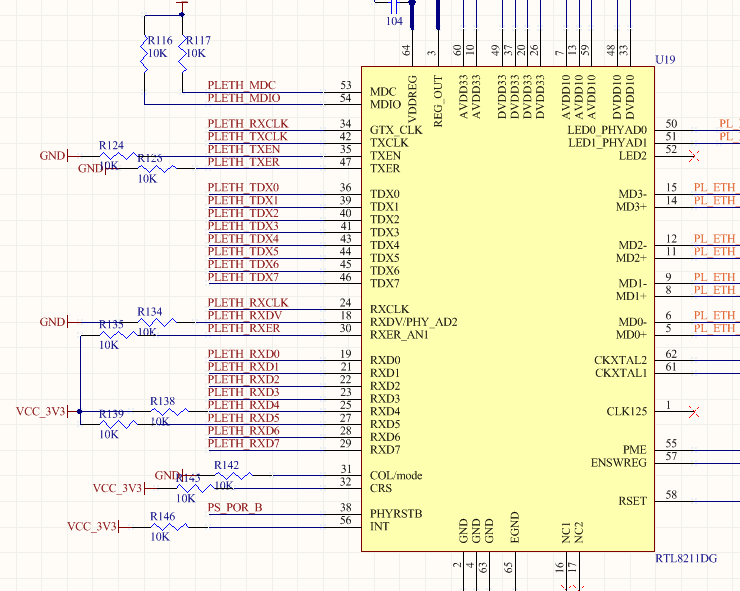

生成HDL文件之后接着我们从原理图上找到这些引脚的对应，做成XDC约束文件，主要部分如下：

#set_property  -dict {PACKAGE_PIN Y11   IOSTANDARD LVCMOS33} [get_ports pmod_ja1];


set_property  -dict {PACKAGE_PIN AD10    IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_RXD[0]}];
set_property  -dict {PACKAGE_PIN AC12    IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_RXD[1]}];
set_property  -dict {PACKAGE_PIN AD11    IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_RXD[2]}];
set_property  -dict {PACKAGE_PIN AD13    IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_RXD[3]}];
set_property  -dict {PACKAGE_PIN AB15    IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_RXD[4]}];
set_property  -dict {PACKAGE_PIN AB14    IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_RXD[5]}];
set_property  -dict {PACKAGE_PIN AE16    IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_RXD[6]}];
set_property  -dict {PACKAGE_PIN AE15    IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_RXD[7]}];

set_property  -dict {PACKAGE_PIN  AD14  IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_TXD[0]}];
set_property  -dict {PACKAGE_PIN  Y12   IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_TXD[1]}];
set_property  -dict {PACKAGE_PIN  Y11   IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_TXD[2]}];
set_property  -dict {PACKAGE_PIN  W13   IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_TXD[3]}];
set_property  -dict {PACKAGE_PIN  Y13   IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_TXD[4]}];
set_property  -dict {PACKAGE_PIN  W16   IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_TXD[5]}];
set_property  -dict {PACKAGE_PIN  W15   IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_TXD[6]}];
set_property  -dict {PACKAGE_PIN  Y17   IOSTANDARD LVCMOS33} [get_ports {ENET1_GMII_TXD[7]}];

set_property  -dict {PACKAGE_PIN   AC14  IOSTANDARD LVCMOS33} [get_ports ENET1_GMII_TX_CLK];
set_property  -dict {PACKAGE_PIN  AC13   IOSTANDARD LVCMOS33} [get_ports ENET1_GMII_RX_CLK];

set_property  -dict {PACKAGE_PIN  AE10   IOSTANDARD LVCMOS33} [get_ports ENET1_GMII_RX_DV];
set_property  -dict {PACKAGE_PIN  Y10   IOSTANDARD LVCMOS33} [get_ports ENET1_GMII_RX_ER];

set_property  -dict {PACKAGE_PIN   AA10  IOSTANDARD LVCMOS33} [get_ports ENET1_GMII_TX_EN];
set_property  -dict {PACKAGE_PIN  AA17   IOSTANDARD LVCMOS33} [get_ports ENET1_GMII_TX_ER];

set_property  -dict {PACKAGE_PIN   Y15  IOSTANDARD LVCMOS33} [get_ports ENET1_MDIO_MC];
set_property  -dict {PACKAGE_PIN   Y16  IOSTANDARD LVCMOS33} [get_ports ENET1_MDIO_MD];

注1 ： 关于GMII接口可以学习https://wenku.baidu.com/view/6d03c124bd64783e09122bab.html
