一、企业A内网配置思路

1、配置IP地址

2、配置vlan技术

（1）创建vlan

浏览器配置：[r1]vlan batch 10 20 30

[r2]vlan batch 40 50

r3]vlan batch 100

[r7]vlan 60

交换机配置：

[sw1]vlan b 10 20 30

[sw2]vlan b 40 50

[sw3]vlan batch 60 70

将接口加到相应vlan：

[sw1-GigabitEthernet0/0/2]port link-type access

[sw1-GigabitEthernet0/0/2]port default vlan 10

[sw1-GigabitEthernet0/0/3]port link-type access

[sw1-GigabitEthernet0/0/3]port default vlan 20

[sw1-GigabitEthernet0/0/4]port link-type access

[sw2-GigabitEthernet0/0/2]port link-type access

[sw2-GigabitEthernet0/0/2]PORT default VLAN 40

[sw2-GigabitEthernet0/0/3]port link-type access

[sw2-GigabitEthernet0/0/3]port default vlan 50

[sw3-GigabitEthernet0/0/3]port link-type access

[sw3-GigabitEthernet0/0/3]port default vlan 60

[sw3-GigabitEthernet0/0/4]port link-type access

[sw3-GigabitEthernet0/0/4]port default vlan 60

[sw3-GigabitEthernet0/0/2]port link-type access

[sw3-GigabitEthernet0/0/2]port default vlan 70

配置trunk链路，放行相应vlan：

[sw1-GigabitEthernet0/0/1]port link-type trunk

[sw1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20 30

[sw2-GigabitEthernet0/0/1]port link-type trunk

[sw2-GigabitEthernet0/0/1]port trunk allow-pass vlan 40 50

[sw3-GigabitEthernet0/0/1]port link-type trunk

[sw3-GigabitEthernet0/0/1]port trunk allow-pass vlan 60 70

配置单臂路由子接口

[sw1-GigabitEthernet0/0/4]port default vlan 30

[r1-GigabitEthernet0/0/1.10]dot1q termination vid 10

[r1-GigabitEthernet0/0/1.10]arp broadcast enable

[r1-GigabitEthernet0/0/1.20]dot1q termination vid 20

[r1-GigabitEthernet0/0/1.20]arp broadcast enable

[r1-GigabitEthernet0/0/1.30]dot1q termination vid 30

[r1-GigabitEthernet0/0/1.30]arp broadcast enable

[r2-GigabitEthernet0/0/1.40]dot1q termination vid 40

[r2-GigabitEthernet0/0/1.40]arp broadcast enable

[r2-GigabitEthernet0/0/1.50]dot1q termination vid 50

[r2-GigabitEthernet0/0/1.50]arp broadcast enable

[r7-GigabitEthernet0/0/2.70]dot1q termination vid 70

[r7-GigabitEthernet0/0/2.70]arp broadcast enable

[r7-GigabitEthernet0/0/2.60]dot1q termination vid 60

[r7-GigabitEthernet0/0/2.60]arp broadcast enable

3、配置DHCP技术

（1）启动DHCP服务

[r1]dhcp enable

[r2]dhcp enable

创建地址池

[r1-ip-pool-vlan10]network 172.16.64.0 mask 24

[r1-ip-pool-vlan10]gateway-list 172.16.64.1

[r1-ip-pool-vlan10]dns-list 8.8.8.8

[r1-ip-pool-vlan20]network 172.16.65.0 mask 24

[r1-ip-pool-vlan20]gateway-list 172.16.65.1

[r1-ip-pool-vlan20]dns-list 8.8.8.8

[r1-ip-pool-vlan30]network 172.16.66.0 mask 24

[r1-ip-pool-vlan30]gateway-list 172.16.66.1

[r1-ip-pool-vlan30]dns-list 8.8.8.8

[r2-ip-pool-vlan40]network 172.16.0.0 mask 24

[r2-ip-pool-vlan40]gateway-list 172.16.1.0 mask 24

[r2-ip-pool-vlan40]dns-list 8.8.8.8

[r2-ip-pool-vlan50]network 172.16.1.0 mask 24

[r2-ip-pool-vlan50]gateway-list 172.16.1.1

[r2-ip-pool-vlan50]dns-list 8.8.8.8

在网关接口下发DHCP服务，是的PC获得IP地址

[r1-GigabitEthernet0/0/1.10]dhcp select global

[r1-GigabitEthernet0/0/1.20]dhcp select global

[r1-GigabitEthernet0/0/1.30]dhcp select global

[r2-GigabitEthernet0/0/1.40]dhcp select global

[r2-GigabitEthernet0/0/1.50]dhcp select global

4、配置OSPF协议

（1）创建OSPF的协议进程，配置RID

进入相应的area，network网段（接口地址）

[r1-ospf-1-area-0.0.0.1]network 172.16.64.1 0.0.0.0

[r1-ospf-1-area-0.0.0.1]network 172.16.65.1 0.0.0.0

[r1-ospf-1-area-0.0.0.1]network 172.16.66.1 0.0.0.0

[r1-ospf-1-area-0.0.0.1]network 172.16.67.1 0.0.0.0

[r2-ospf-1-area-0.0.0.0]network 172.16.0.1 0.0.0.0

[r2-ospf-1-area-0.0.0.0]network 172.16.1.1 0.0.0.0

[r2-ospf-1-area-0.0.0.0]network 172.16.2.1 0.0.0.0

[r2-ospf-1-area-0.0.0.1]net 172.16.67.2 0.0.0.0

[r3-ospf-3-area-0.0.0.0]net 172.16.2.2 0.0.0.0

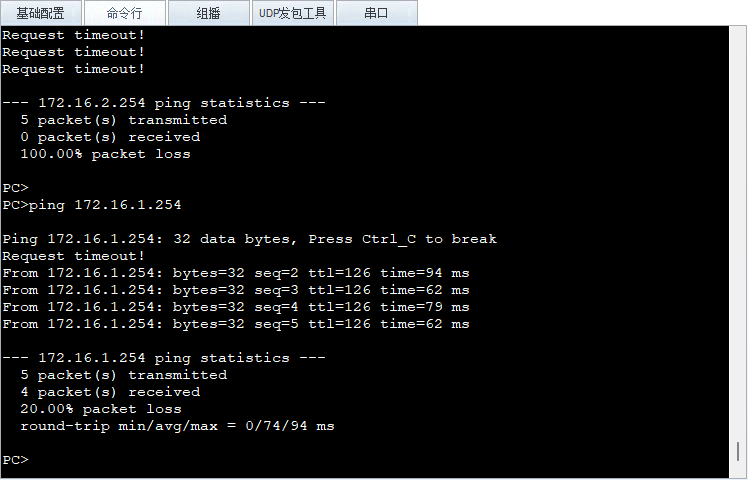

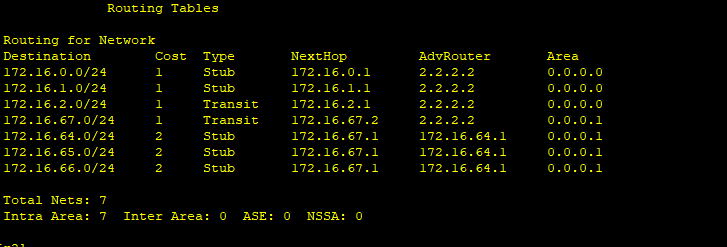

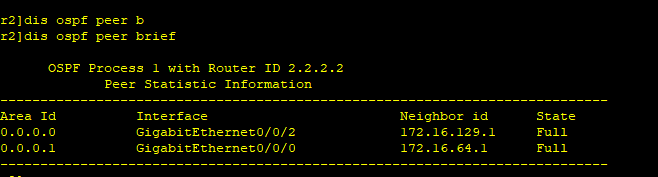

查看OSPF的邻居表、路由表。做全网通测试---ping测试

配置OSPF的区域汇总--ABR汇总，精简路由表的路由条目数量。

[r2-ospf-1-area-0.0.0.1]abr-summary172.16.64.0255.255.252.0

[r2-ospf-1-area-0.0.0.0]abr-summary 172.16.0.0 255.255.252.0

配置静态路由空接口防环

[r2]ip route-static 172.16.64.0 22 NULL 0

[r2]ip route-static 172.16.0.0 22 NULL

配置OPSF区域0的认证

[r2-GigabitEthernet0/0/2]ospf authentication-mode md5 1 cipher 123456

[r3-GigabitEthernet0/0/0]ospf authentication-mode md5 1 cipher 123456

配置easy ip 实现内网访问外网

[r2-acl-basic-2000]rule permit source 172.16.0.0 0.0.255.255

让OSPF协议下发缺省，给内网路由器，保证内网设备访问外网

[r3-ospf-3]default-route-advertise always

配置telnet服务器，配置NAT SERVER实现外网访问内网的服务

[t s-aaa]local-user huanwei privilege level 15

[t s-aaa]local-user huanwei password cipher 123456

[t s-aaa]local-user huanwei service-type telnet

二、企业B内网配置思路

1、配置IP地址

2、配置vlan技术

3、配置DHCP技术，使得PC获得IP地址

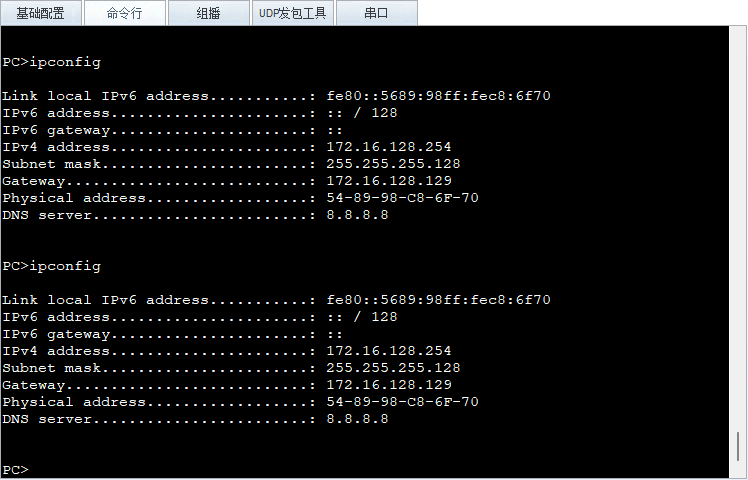

[r7]dhcp enable

[r7-ip-pool-vlan70]network 172.16.128.128 mask 25

[r7-ip-pool-vlan70]gateway-list 172.16.128.129

[r7-ip-pool-vlan70]dns-list 8.8.8.8

[r7-GigabitEthernet0/0/2.70]dhcp select global

配置静态路由协议，使得全网通（PING）

Destination/Mask Proto Pre Cost Flags NextHop Interface

172.16.128.0/24 Static 60 0 RD 172.16.129.2 GigabitEthernet

0/0/1

172.16.131.0/24 Static 60 0 RD 172.16.129.2 GigabitEthernet

0/0/1

Static 60 0 RD 172.16.130.2 Ethernet4/0/0

172.16.132.0/24 Static 60 0 RD 172.16.129.2 GigabitEthernet

0/0/1

Static 60 0 RD 172.16.130.2 Ethernet4/0/0

172.16.133.0/24 Static 60 0 RD 172.16.130.2 Ethernet4/0/0

Static 60 0 RD 172.16.129.2 GigabitEthernet

0/0/1

172.16.134.0/24 Static 60 0 RD 172.16.129.2 GigabitEthernet

0/0/1

Static 60 0 RD 172.16.130.2 Ethernet4/0/0

[r4]ip route-static 172.16.133.0 24 172.16.131.2

IP route-static 172.16.128.0 24 172.16.131.2

[r4]ip route-static 172.16.134.0 24 172.16.132.2

[r4]ip route-static 172.16.128.0 24 172.16.132.2

[r4]ip route-static 172.16.134.0 24 172.16.131.2

[r5]ip route-static 172.16.128.0 24 172.16.133.2

[r5]ip route-static 172.16.134.0 24 172.16.133.2

[r5]ip route-static 172.16.132.0 24 172.16.131.1

[r5]ip route-static 172.16.130.0 24 172.16.131.1

[r5]ip route-static 172.16.129.0 24 172.16.131.1

[r6]ip route-static 172.16.130.0 24 172.16.132.1

[r6]ip route-static 172.16.129.0 24 172.16.132.1

[r6]ip route-static 172.16.131.0 24 172.16.132.1

[r6]ip route-static 172.16.133.0 24 172.16.134.2

[r6]ip route-static 172.16.128.0 24 172.16.134.2

[r7]ip route-static 172.16.132.0 24 172.16.134.1

[r7]ip route-static 172.16.130.0 24 172.16.134.1

[r7]ip route-static 172.16.129.0 24 172.16.134.1

[r7]ip route-static 172.16.129.0 24 172.16.133.1

[r7]ip route-static 172.16.130.0 24 172.16.133.1

[r7]ip route-static 172.16.131.0 24 172.16.133.1

配置静态路由空接口防环

[r4]ip route-static 172.16.128.0 22 NULL 0

配置静态缺省保证内网设备访问

[r7]ip route-static 0.0.0.0 0 172.16.133.1

[r7]ip route-static 0.0.0.0 0 172.16.134.1

[r6]ip route-static 0.0.0.0 0 172.16.131.1

[r5]ip route-static 0.0.0.0 0 172.16.132.1

[r4]ip route-static 0.0.0.0 0 172.16.129.1

[r4]ip route-static 0.0.0.0 0 172.16.130.1

[r3]ip route-static 172.16.131.0 24 172.16.130.2 preference 100

三、公网通

1、配置IP地址

[r3-GigabitEthernet0/0/2]ip ad 100.0.0.1 24

[test-GigabitEthernet0/0/0]ip ad 100.0.0.2 24
