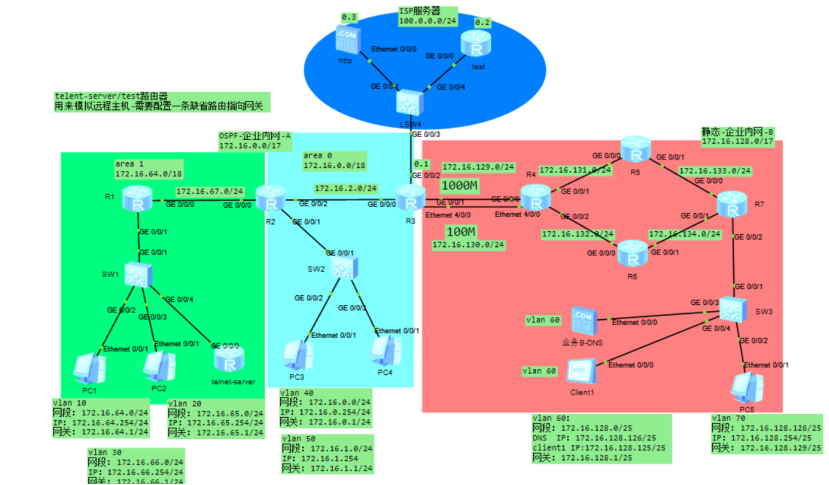

实验拓扑
实验需求
1.所有PC均需要通过DHCP获取IP地址-地址池名称和设备VLAN一致，例如PC1-ip pool vlan10,其中只有业务B网络用户需要访问互联网web服务-需要DNS信息。
2.交换机配置VLAN需要遵循最小VLAN透传原则

3.利用OSPF协议使内外用户互相访问-全网可达（设备Router-ID需要手工配置，和设备编号一致，例如R1-RID：1.1.1.1），

并采用精准宣告的方式进行宣告（例如：172.16.64.1/24接口，宣告：172.16.64.1 0.0.0.0）

4.内网全网可达，并且需要尽可能减小路由表条目数量（汇总采用精确汇总方式），能够利用缺省省去的配置可省略，防止环路，

并且保障安全（在OSPF区域0需要配置认证-采用MD5认证，密码为123456）

5.内网所有用户均可访问互联网（边界路由器配置NAT），ACL采用基础ACL，编号为2000，R3-0/0/2接口不允许宣告在内网中（包含静态）。

6.test设备需要远程登陆到内网telnet-server设备,登录账号为 huawei 密码 123456，登录权限为最高。

7.不允许VLAN 40和VLAN 50 用户访问内网B业务，acl编号为2001，不允许PC1访问PC5，ACL编号为3000。

8.R3-R4中间百兆链路作为备份链路，不允许正常情况下数据通过，需要降低优先级数值配置为100。

9.所有设备严格按照拓扑图标识进行配置，注意大小写。

10.图示中所有服务器和client设备均为体现需求，地址固定，不做更改，在配置时需求注意。clinet1用来模拟内网用户访问互联网（ISP-服务器），

test设备用来测试互联网用户远程登陆内网telent-server主机。

配置思路

本次配置的核心逻辑：

二层架构：严格遵循最小VLAN透传原则，只在Trunk链路上允许必要的VLAN。

三层路由：

R1,R2,R3:

Area 0配置MD5认证（密码为123456）

OSPF使用精确宣告（0.0.0.0反掩码）,R3-0/0/2接口不允许宣告在内网中（包含静态）

在R2和R3上做路由汇总以减少条目

设备手工配置DHCP(和设备编号一致)

NAT：

仅在R3上针对业务B网段做NAT。

策略路由：R3-R4百兆链路通过调整开销值（Cost降低优先级数值配置为100）作为备份，平时不走流量。

ACL：

R3上配置ACL 2001拦截特定VLAN 40，50访问内网B；

R1上配置ACL 3000拦截PC1访问PC5。

R3上配置ACL 2000允许所有内网用户访问互联网

服务：DHCP全局地址池配置，

ISP侧的Telnet服务，(内网telnet-server设备,登录账号为 huawei 密码 123456，登录权限为最高)

B网配置DNS信息。

四，配置步骤：

二层配置：

SW1

<Huawei>system-view

[Huawei]sysname SW1

[SW1]vlan batch 10 20 30

Info: This operation may take a few seconds. Please wait for a moment...done

[SW1]interface GigabitEthernet 0/0/1

[SW1-GigabitEthernet0/0/1]port link-type trunk

[SW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20 30

[SW1-GigabitEthernet0/0/1]q

[SW1]interface GigabitEthernet 0/0/2

[SW1-GigabitEthernet0/0/2]port link-type access

[SW1-GigabitEthernet0/0/2]port default vlan 10

[SW1-GigabitEthernet0/0/2]q

[SW1]interface GigabitEthernet 0/0/3

[SW1-GigabitEthernet0/0/3]port link-type access

[SW1-GigabitEthernet0/0/3]port default vlan 20

[SW1-GigabitEthernet0/0/3]q

[SW1]interface GigabitEthernet 0/0/4

[SW1-GigabitEthernet0/0/4]port link-type access

[SW1-GigabitEthernet0/0/4]port default vlan 30

[SW1-GigabitEthernet0/0/4]q

[SW1]q

<SW1>save

SW2

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname SW2

[SW2]vlan batch 40 50

Info: This operation may take a few seconds. Please wait for a moment...done.

[SW2]interface GigabitEthernet 0/0/1

[SW2-GigabitEthernet0/0/1]port link-type trunk

[SW2-GigabitEthernet0/0/1]port trunk allow-pass vlan 40 50

[SW2-GigabitEthernet0/0/1]q

[SW2]interface GigabitEthernet 0/0/2

[SW2-GigabitEthernet0/0/2]port link-type access

[SW2-GigabitEthernet0/0/2]port default vlan 40

[SW2-GigabitEthernet0/0/2]q

[SW2]interface GigabitEthernet 0/0/3

[SW2-GigabitEthernet0/0/3]port link-type access

[SW2-GigabitEthernet0/0/3]port default vlan 50

[SW2-GigabitEthernet0/0/3]q

[SW2]q

<SW2>save

SW3

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname SW3

[SW3]vlan batch 60 70

Info: This operation may take a few seconds. Please wait for a moment...done.

[SW3]interface GigabitEthernet 0/0/1

[SW3-GigabitEthernet0/0/1]port link-type trunk

[SW3-GigabitEthernet0/0/1]port trunk allow-pass vlan 60 70

[SW3-GigabitEthernet0/0/1]q

[SW3]interface GigabitEthernet 0/0/3

[SW3-GigabitEthernet0/0/3]port link-type access

[SW3-GigabitEthernet0/0/3]port default vlan 60

[SW3-GigabitEthernet0/0/3]q

[SW3]interface GigabitEthernet 0/0/4

[SW3-GigabitEthernet0/0/4]port link-type access

[SW3-GigabitEthernet0/0/4]port default vlan 60

[SW3-GigabitEthernet0/0/4]q

[SW3]interface GigabitEthernet 0/0/2

[SW3-GigabitEthernet0/0/2]port link-type access

[SW3-GigabitEthernet0/0/2]port default vlan 70

[SW3-GigabitEthernet0/0/2]q

[SW3]q

<SW3>save

sw4

<Huawei>system-view

[Huawei]sysname SW4

[SW4]vlan 100

[SW4-vlan100]q

[SW4]interface GigabitEthernet 0/0/3

[SW4-GigabitEthernet0/0/3]port link-type trunk

[SW4-GigabitEthernet0/0/3]port trunk allow-pass vlan 100

[SW4-GigabitEthernet0/0/3]q

[SW4]interface Vlanif 100

[SW4-Vlanif100]ip address 100.0.0.4 24

[SW4-Vlanif100]q

[SW4]interface GigabitEthernet 0/0/4

[SW4-GigabitEthernet0/0/4]port link-type access

[SW4-GigabitEthernet0/0/4]port default vlan 100

[SW4-GigabitEthernet0/0/4]q

[SW4]interface GigabitEthernet 0/0/1

[SW4-GigabitEthernet0/0/1]port link-type access

[SW4-GigabitEthernet0/0/1]port default vlan 100

[SW4-GigabitEthernet0/0/1]q

[SW4]q

<SW4>save

三层配置：

R1:

DHCP全局地址池配置,单臂路由，ospf，ACL3000，router-id 1.1.1.1

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname R1

[R1]router id 1.1.1.1

Info: Router ID has been modified, please reset the relative protocols manually

to update the Router ID.

[R1]dhcp enable

[R1]ip route-static 0.0.0.0 0 172.16.67.2

[R1]ip pool vlan10

Info: It's successful to create an IP address pool.

[R1-ip-pool-vlan10]gateway-list 172.16.64.1

[R1-ip-pool-vlan10]network 172.16.64.0 mask 24

[R1-ip-pool-vlan10]q

[R1]ip pool vlan20

Info: It's successful to create an IP address pool.

[R1-ip-pool-vlan20]gateway-list 172.16.65.1

[R1-ip-pool-vlan20]network 172.16.65.0 mask 24

[R1-ip-pool-vlan20]q

[R1]ip pool vlan30

Info: It's successful to create an IP address pool.

[R1-ip-pool-vlan30]gateway-list 172.16.66.1

[R1-ip-pool-vlan30]network 172.16.66.0 mask 24

[R1-ip-pool-vlan30]q

[R1]interface GigabitEthernet 0/0/1.10

[R1-GigabitEthernet0/0/1.10]ip address 172.16.64.1 24

[R1-GigabitEthernet0/0/1.10]dot1q termination vid 10

Apr 9 2026 16:16:50-08:00 R1 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

on the interface GigabitEthernet0/0/1.10 has entered the UP state.

[R1-GigabitEthernet0/0/1.10]arp broadcast enable

[R1-GigabitEthernet0/0/1.10]dhcp select global

[R1-GigabitEthernet0/0/1.10]q

[R1]interface GigabitEthernet 0/0/1.20

[R1-GigabitEthernet0/0/1.20]ip address 172.16.65.1 24

[R1-GigabitEthernet0/0/1.20]dot1q termination vid 20

Apr 9 2026 16:18:29-08:00 R1 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

on the interface GigabitEthernet0/0/1.20 has entered the UP state.

[R1-GigabitEthernet0/0/1.20]arp broadcast enable

[R1-GigabitEthernet0/0/1.20]dhcp select global

[R1-GigabitEthernet0/0/1.20]q

[R1]interface GigabitEthernet 0/0/1.30

[R1-GigabitEthernet0/0/1.30]ip address 172.168.66.1 24

[R1-GigabitEthernet0/0/1.30]dot1q termination vid 30

Apr 9 2026 16:19:31-08:00 R1 %%01IFNET/4/LINK_STATE(l)[2]:The line protocol IP

on the interface GigabitEthernet0/0/1.30 has entered the UP state.

[R1-GigabitEthernet0/0/1.30]arp broadcast enable

[R1-GigabitEthernet0/0/1.30]dhcp select global

[R1-GigabitEthernet0/0/1.30]q

[R1]interface GigabitEthernet 0/0/0

[R1-GigabitEthernet0/0/0]ip address 172.16.67.1 24

[R1-GigabitEthernet0/0/0]q

[R1]ospf 1 router-id 1.1.1.1

[R1-ospf-1]area 1

[R1-ospf-1-area-0.0.0.1]network 172.16.64.1 0.0.0.0

[R1-ospf-1-area-0.0.0.1]network 172.16.65.1 0.0.0.0

[R1-ospf-1-area-0.0.0.1]network 172.16.66.1 0.0.0.0

[R1-ospf-1-area-0.0.0.1]network 172.16.67.1 0.0.0.0

[R1-ospf-1-area-0.0.0.1]q

[R1-ospf-1]q

[R1]acl number 3000

[R1-acl-adv-3000]rule 5 deny ip source 172.16.64.254 0.0.0.0 destination 172.16.

66.254 0

[R1-acl-adv-3000]rule 10 permit ip

[R1-acl-adv-3000]q

[R1]interface GigabitEthernet 0/0/1.10

[R1-GigabitEthernet0/0/1.10]traffic-filter inbound acl 3000

[R1-GigabitEthernet0/0/1.10]q

[R1]ip route-static 0.0.0.0 0 172.16.67.2

[R1]q

<R1>save

DHCP全局地址池配置,单臂路由，ospf 1 Area 0配置MD5认证（密码为123456）

，ACL3000，router-id 2.2.2.2,做路由汇总以减少条目

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname R2

[R2]router id 2.2.2.2

Info: Router ID has been modified, please reset the relative protocols manually

to update the Router ID.

[R2]dhcp enable

Info: The operation may take a few seconds. Please wait for a moment.done.

[R2]ip route-static 0.0.0.0 0 172.16.2.2

[R2]ip pool vlan40

Info: It's successful to create an IP address pool.

[R2-ip-pool-vlan40]gateway-list 172.16.0.1

[R2-ip-pool-vlan40]network 172.16.0.0 mask 24

[R2-ip-pool-vlan40]q

[R2]ip pool vlan50

Info: It's successful to create an IP address pool.

[R2-ip-pool-vlan50]gateway-list 172.16.1.1

[R2-ip-pool-vlan50]network 172.16.1.0 mask 24

[R2-ip-pool-vlan50]q

[R2]interface GigabitEthernet 0/0/1.40

[R2-GigabitEthernet0/0/1.40]ip address 172.16.0.1 24

[R2-GigabitEthernet0/0/1.40]dot1q termination vid 40

Apr 9 2026 16:37:16-08:00 R2 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

on the interface GigabitEthernet0/0/1.40 has entered the UP state.

[R2-GigabitEthernet0/0/1.40]arp broadcast enable

[R2-GigabitEthernet0/0/1.40]dhcp select global

[R2-GigabitEthernet0/0/1.40]q

[R2]interface GigabitEthernet 0/0/1.50

[R2-GigabitEthernet0/0/1.50]ip address 172.16.1.1 24

[R2-GigabitEthernet0/0/1.50]dot1q termination vid 50

Apr 9 2026 16:38:18-08:00 R2 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

on the interface GigabitEthernet0/0/1.50 has entered the UP state.

[R2-GigabitEthernet0/0/1.50]arp broadcast enable

[R2-GigabitEthernet0/0/1.50]dhcp select global

[R2-GigabitEthernet0/0/1.50]q

[R2]interface GigabitEthernet 0/0/0

[R2-GigabitEthernet0/0/0]ip address 172.16.67.2 24

[R2-GigabitEthernet0/0/0]q

[R2]interface GigabitEthernet 0/0/2

[R2-GigabitEthernet0/0/2]ip address 172.16.2.1 24

[R2-GigabitEthernet0/0/2]q

[R2]ospf 1 router-id 2.2.2.2

[R2-ospf-1]area 0

[R2-ospf-1-area-0.0.0.0]authentication-mode MD5 1 cipher 123456

[R2-ospf-1-area-0.0.0.0]network 172.16.2.1 0.0.0.0

[R2-ospf-1-area-0.0.0.0]network 172.16.0.1 0.0.0.0

[R2-ospf-1-area-0.0.0.0]network 172.16.1.1 0.0.0.0

[R2-ospf-1-area-0.0.0.0]q

[R2-ospf-1]area 1

[R2-ospf-1-area-0.0.0.1]network 172.16.67.2 0.0.0.0

[R2-ospf-1-area-0.0.0.1]abr-summary 172.16.64.0 255.255.252.0

[R2-ospf-1-area-0.0.0.1]q

[R2-ospf-1]q

[R2]q

<R2>save

ospf 1 area 0 1,Area 0配置MD5认证（密码为123456）,R3-0/0/2接口不允许宣告在内网中（包含静态）,做路由汇总以减少条目,针对业务B网段做NAT,R3-R4百兆链路通过调整开销值（Cost降低优先级数值配置为100）作为备份，配置ACL 2001拦截VLAN 40，50访问内网B；配置ACL 2000允许所有内网用户访问互联网

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname R3

[R3]router id 3.3.3.3

Info: Router ID has been modified, please reset the relative protocols manually

to update the Router ID.

[R3]acl number 2000

[R3-acl-basic-2000]rule 5 permit source 172.16.0.0 0.0.255.255

[R3-acl-basic-2000]q

[R3]acl number 2001

[R3-acl-basic-2001]rule 5 deny source 172.16.0.0 0.0.0.255

[R3-acl-basic-2001]rule 10 deny source 172.16.1.0 0.0.0.255

[R3-acl-basic-2001]rule 15 permit

[R3-acl-basic-2001]q

[R3]interface GigabitEthernet 0/0/0

[R3-GigabitEthernet0/0/0]ip address 172.16.2.2 24

Apr 9 2026 17:19:11-08:00 R3 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

on the interface GigabitEthernet0/0/0 has entered the UP state.

[R3-GigabitEthernet0/0/0]traffic-filter inbound acl 2001

[R3-GigabitEthernet0/0/0]q

[R3]interface GigabitEthernet 0/0/1

[R3-GigabitEthernet0/0/1]ip address 172.16.129.1 24

Apr 9 2026 17:20:20-08:00 R3 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

on the interface GigabitEthernet0/0/1 has entered the UP state.

[R3-GigabitEthernet0/0/1]q

[R3]interface Ethernet 4/0/0

[R3-Ethernet4/0/0]ip address 172.16.130.1 24

[R3-Ethernet4/0/0]ospf cost 100

[R3-Ethernet4/0/0]q

[R3]interface GigabitEthernet 0/0/2

[R3-GigabitEthernet0/0/2]ip address 100.0.0.1 24

[R3-GigabitEthernet0/0/2]nat outbound 2000

[R3-GigabitEthernet0/0/2]q

[R3]ospf 1 router-id 3.3.3.3

[R3-ospf-1]default-route-advertise always

[R3-ospf-1]area 0

[R3-ospf-1-area-0.0.0.0]authentication-mode MD5 1 cipher 123456

[R3-ospf-1-area-0.0.0.0]network 172.16.2.2 0.0.0.0

[R3-ospf-1-area-0.0.0.0]q

[R3-ospf-1]area 2

[R3-ospf-1-area-0.0.0.2]network 172.16.129.1 0.0.0.0

[R3-ospf-1-area-0.0.0.2]network 172.16.130.1 0.0.0.0

[R3-ospf-1-area-0.0.0.2]q

[R3]ip route-static 0.0.0.0 0.0.0.0 100.0.0.4

[R3]q

<R3>save

R3-R4百兆链路通过调整开销值（Cost降低优先级数值配置为100）作为备份,OSPF 1 area 2

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname R4

[R4]interface GigabitEthernet 0/0/0

[R4-GigabitEthernet0/0/0]ip address 172.16.129.2 24

Apr 9 2026 19:20:58-08:00 R4 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

on the interface GigabitEthernet0/0/0 has entered the UP state.

[R4-GigabitEthernet0/0/0]q

[R4]interface Ethernet 4/0/0

[R4-Ethernet4/0/0]ip address 172.16.130.2 24

Apr 9 2026 19:22:01-08:00 R4 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

on the interface Ethernet4/0/0 has entered the UP state.

[R4-Ethernet4/0/0]ospf cost 100

[R4-Ethernet4/0/0]q

[R4]interface GigabitEthernet 0/0/1

[R4-GigabitEthernet0/0/1]ip address 172.16.131.1 24

[R4-GigabitEthernet0/0/1]q

[R4]interface GigabitEthernet 0/0/2

[R4-GigabitEthernet0/0/2]ip address 172.16.132.1 24

Error: The address already exists.

[R4-GigabitEthernet0/0/2]q

[R4]ip route-static 172.16.134.0 24 172.16.132.2

[R4]ip route-static 172.16.133.0 24 172.16.131.2

[R4]ip route-static 172.16.128.0 24 172.16.131.2

[R4]router id 4.4.4.4

Info: Router ID has been modified, please reset the relative protocols manually

to update the Router ID.

[R4]ospf 1 router-id 4.4.4.4

[R4-ospf-1]area 2

[R4-ospf-1-area-0.0.0.2]network 172.16.129.2 0.0.0.0

[R4-ospf-1-area-0.0.0.2]network 172.16.130.2 0.0.0.0

[R4-ospf-1-area-0.0.0.2]network 172.16.131.1 0.0.0.0

[R4-ospf-1-area-0.0.0.2]network 172.16.132.1 0.0.0.0

[R4-ospf-1-area-0.0.0.2]q

[R4-ospf-1]q

[R4]q

<R4>save

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname R5

[R5]interface GigabitEthernet 0/0/0

[R5-GigabitEthernet0/0/0]ip address 172.16.131.2 24

[R5-GigabitEthernet0/0/0]q

[R5]interface GigabitEthernet 0/0/1

[R5-GigabitEthernet0/0/1]ip address 172.16.133.1 24

[R5-GigabitEthernet0/0/1]q

[R5]ip route-static 172.16.134.0 24 172.16.133.2

[R5]ip route-static 172.16.128.0 24 172.16.133.2

[R5]ip route-static 0.0.0.0 0 172.16.131.1

[R5]q

<R5>save

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname R6

[R6]interface GigabitEthernet 0/0/0

[R6-GigabitEthernet0/0/0]ip address 172.16.132.2 24

[R6-GigabitEthernet0/0/0]q

[R6]interface GigabitEthernet 0/0/1

[R6-GigabitEthernet0/0/1]ip address 172.16.134.1 24

[R6-GigabitEthernet0/0/1]q

[R6]ip route-static 0.0.0.0 0 172.16.132.1

[R6]ip route-static 172.16.128.0 24 172.16.134.2

[R6]ip route-static 172.16.133.0 24 172.16.134.2

[R6]q

<R6>save

DHCP全局地址池，单臂路由，

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname R7

[R7]dhcp enable

[R7]ip route-static 0.0.0.0 0 172.16.133.1

[R7]ip route-static 0.0.0.0 0 172.16.134.1

[R7]interface GigabitEthernet 0/0/0

[R7-GigabitEthernet0/0/0]ip address 172.16.133.2 24

Error: The address already exists.

[R7-GigabitEthernet0/0/0]q

[R7]interface GigabitEthernet 0/0/1

[R7-GigabitEthernet0/0/1]ip address 172.16.134.2 24

Error: The address already exists.

[R7-GigabitEthernet0/0/1]q

[R7]ip pool vlan60

Info: It's successful to create an IP address pool.

[R7-ip-pool-vlan60]gateway-list 172.16.128.1

[R7-ip-pool-vlan60]network 172.16.128.0 mask 25

[R7-ip-pool-vlan60]dns-list 172.16.128.126

[R7-ip-pool-vlan60]q

[R7]ip pool vlan70

Info: It's successful to create an IP address pool.

[R7-ip-pool-vlan70]gateway-list 172.16.128.129

[R7-ip-pool-vlan70]network 172.16.128.128 mask 25

[R7-ip-pool-vlan70]dns-list 172.16.128.126

[R7-ip-pool-vlan70]q

[R7]interface GigabitEthernet 0/0/2.60

[R7-GigabitEthernet0/0/2.60]ip address 172.16.128.1 25

[R7-GigabitEthernet0/0/2.60]dot1q termination vid 60

[R7-GigabitEthernet0/0/2.60]arp broadcast enable

[R7-GigabitEthernet0/0/2.60]dhcp select global

[R7-GigabitEthernet0/0/2.60]q

[R7]interface GigabitEthernet 0/0/2.70

[R7-GigabitEthernet0/0/2.70]ip address 172.16.128.129 25

[R7-GigabitEthernet0/0/2.70]dot1q termination vid 70

[R7-GigabitEthernet0/0/2.70]arp broadcast enable

[R7-GigabitEthernet0/0/2.70]dhcp select global

[R7-GigabitEthernet0/0/2.70]q

[R7]ip route-static 172.16.132.0 24 172.16.134.1

[R7]ip route-static 172.16.131.0 24 172.16.133.1

[R7]q

<R7>save

Telent-server 配置

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname telnet-server

[telnet-server]interface GigabitEthernet 0/0/0

[telnet-server-GigabitEthernet0/0/0]ip address 172.16.66.254 24

[telnet-server]telnet server enable

Error: TELNET server has been enabled

[telnet-server]aaa

[telnet-server-aaa]local-user huawei password cipher 123456

Info: Add a new user.

[telnet-server-aaa]local-user huawei service-type telnet

[telnet-server-aaa]local-user huawei level 15

[telnet-server-aaa]q

[telnet-server]user-interface vty 0 4

[telnet-server-ui-vty0-4]authentication-mode aaa

[telnet-server-ui-vty0-4]protocol inbound telnet

[telnet-server-ui-vty0-4]q

[telnet-server]q

<telnet-server>save

Test 配置

<Huawei>system-view

[Huawei]sysname test

[test]interface GigabitEthernet 0/0/0

[test-GigabitEthernet0/0/0]ip address 100.0.0.2 24

[test-GigabitEthernet0/0/0]q

[test]telnet client enable

Error: Unrecognized command found at '^' position.

[test]q

<test>save

实验验证

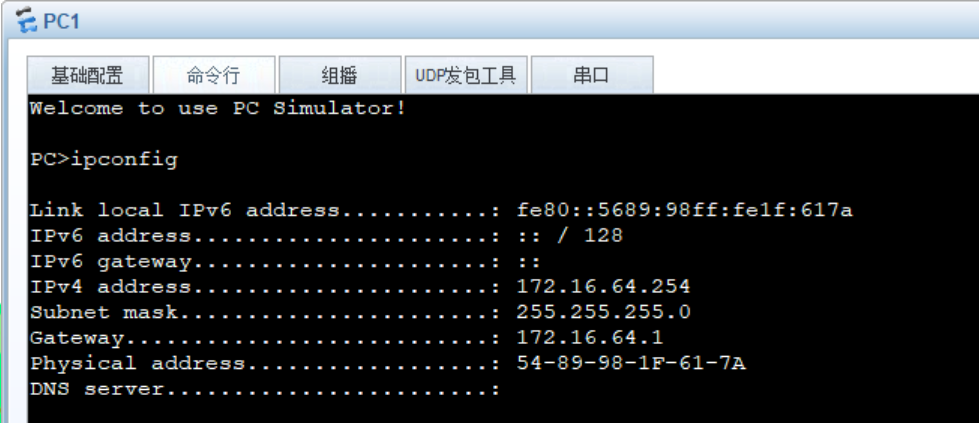

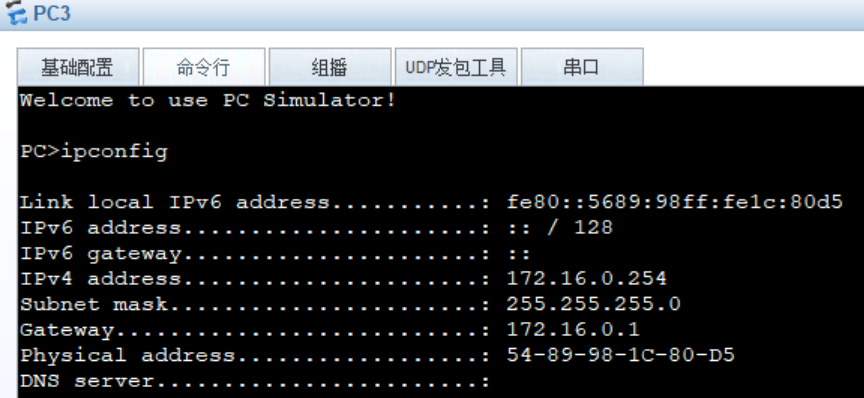

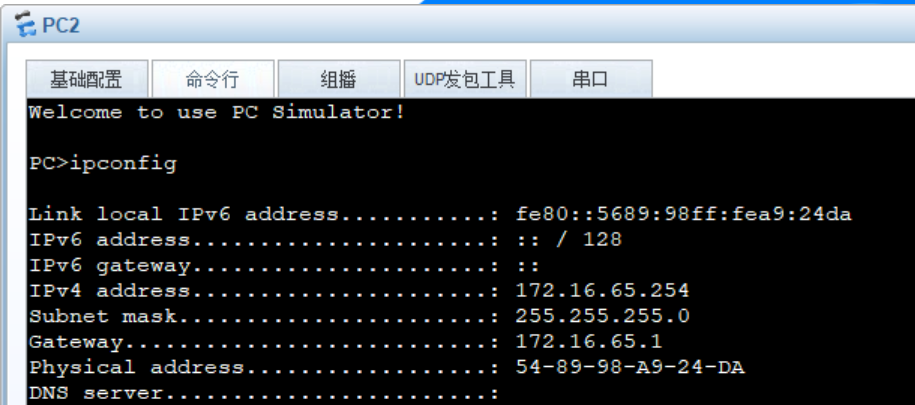

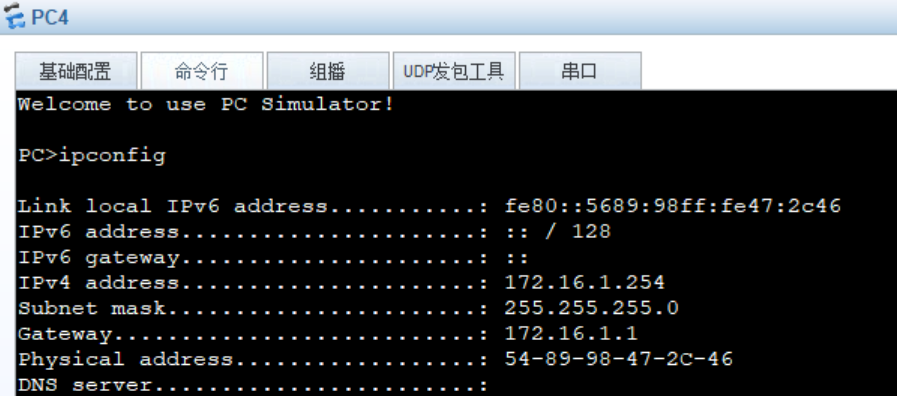

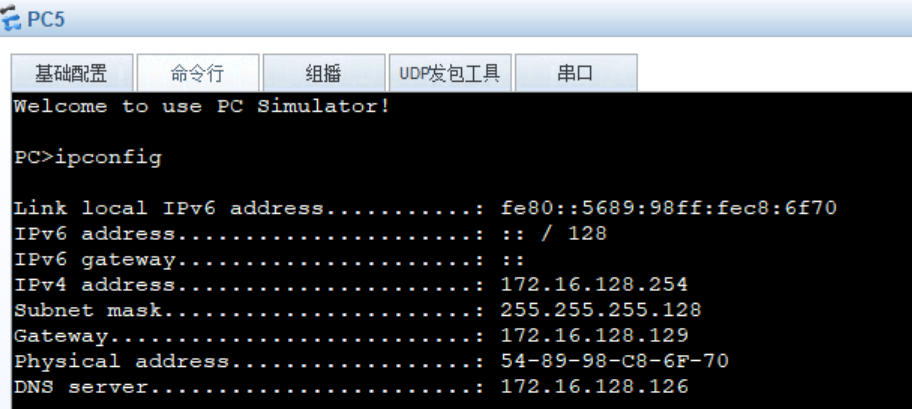

DHCP地址获取

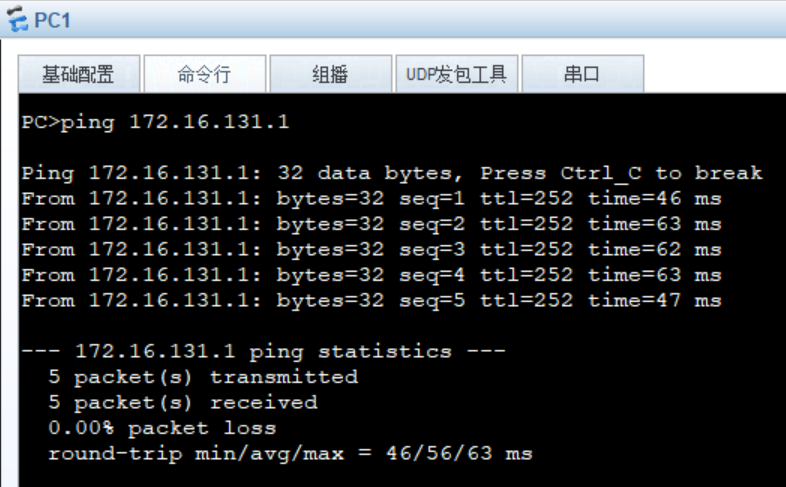

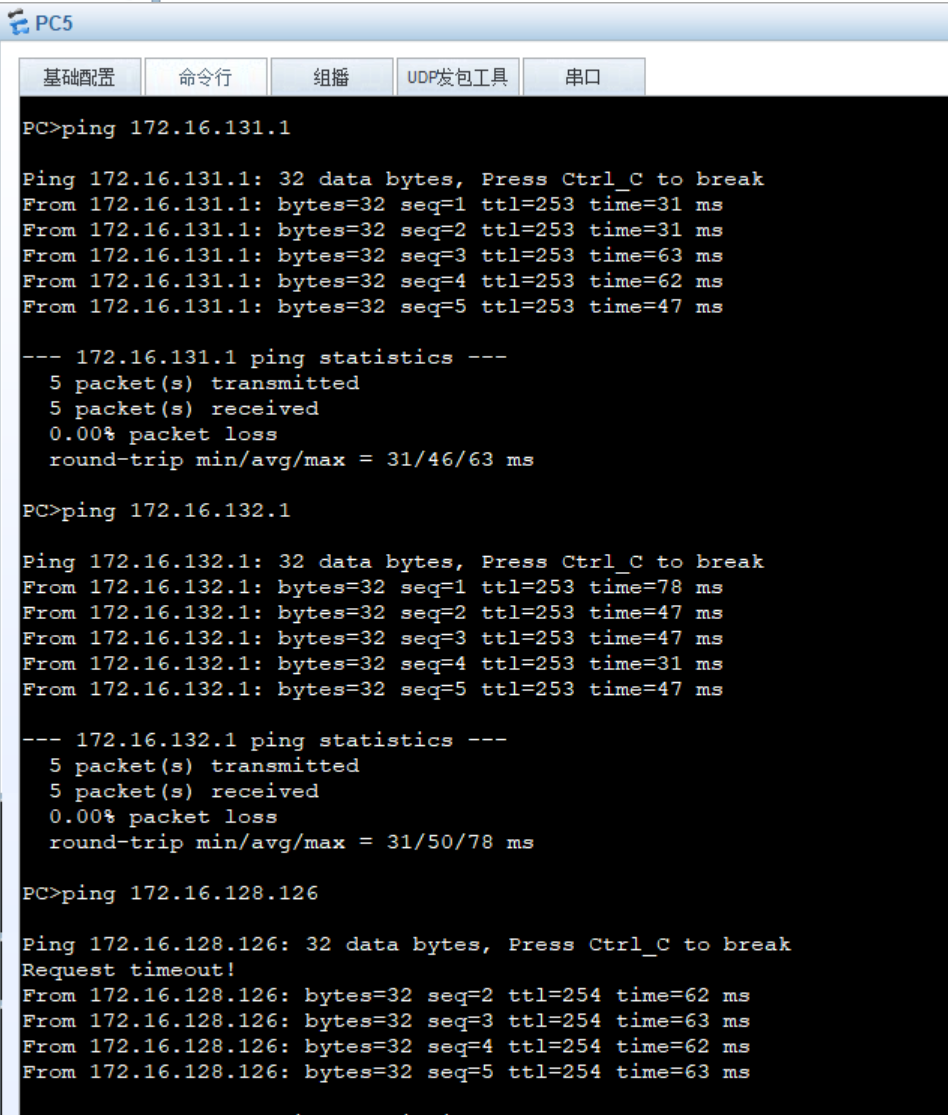

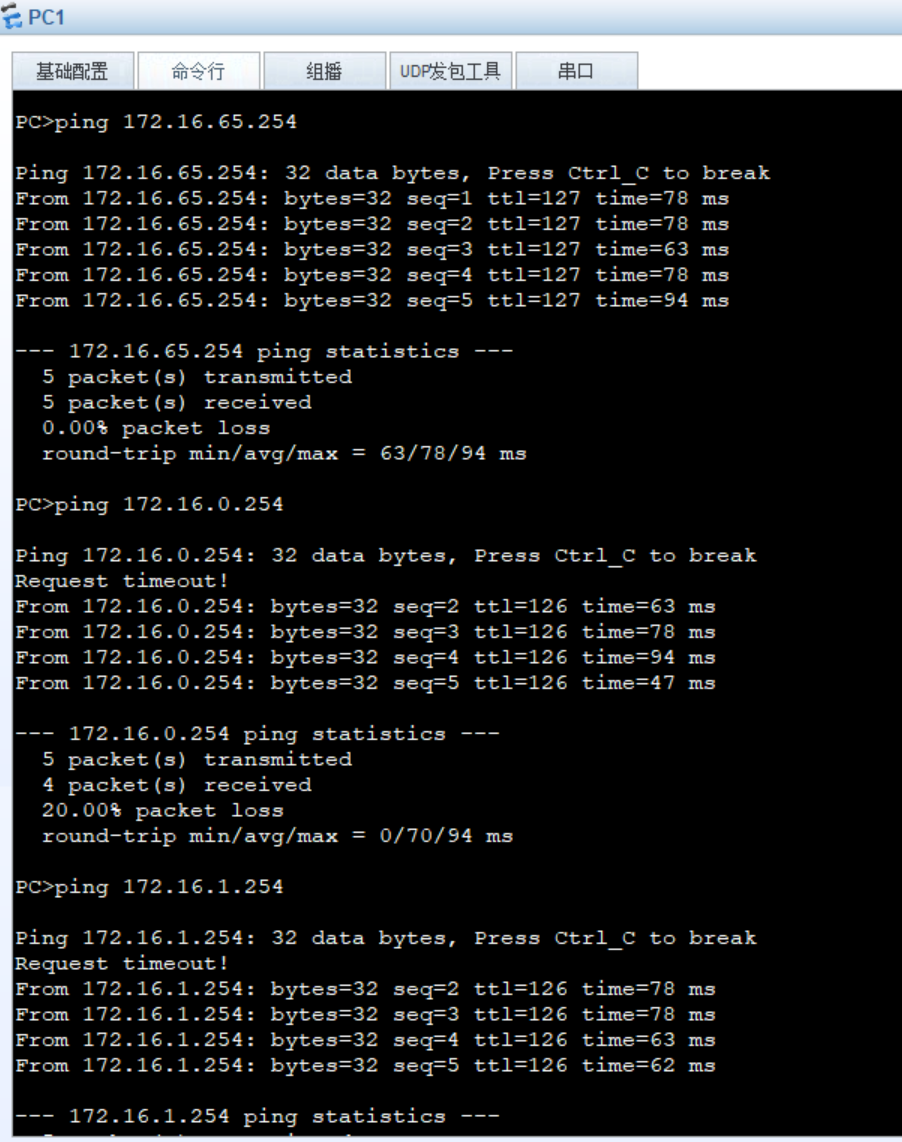

全网通测试

DAMO开发者矩阵

DAMO开发者矩阵，由阿里巴巴达摩院和中国互联网协会联合发起，致力于探讨最前沿的技术趋势与应用成果，搭建高质量的交流与分享平台，推动技术创新与产业应用链接，围绕“人工智能与新型计算”构建开放共享的开发者生态。

更多推荐

007、记忆（Memory）机制：让AI拥有对话上下文的能力

昨天深夜调试一个对话机器人，用户问“今天的天气怎么样？”，系统返回了天气信息；接着用户又问“那明天呢？”，结果机器人直接懵了：“您想问什么明天的情况？”——典型的失忆现场。这种问题在早期AI应用中太常见了：每次对话都是全新的开始，上下文完全丢失。今天我们就来彻底解决这个问题，聊聊LangChain的记忆机制。

DAMO开发者矩阵

walk_these_ways项目学习记录第十篇（通过行为多样性 (MoB) 实现地形泛化）--从仿真到部署

真实传感器先被 StateEstimator 整理成训练同构状态，再由 LCMAgent 按训练时相同的方式拼成 observation，HistoryWrapper 维护 obs_history，student policy 输出动作，DeploymentRunner 把动作发到实机，而 actuator net 则在训练侧负责把仿真中的执行器动力学尽量拉近真实机器人。观测同构命令同构控制链同构
