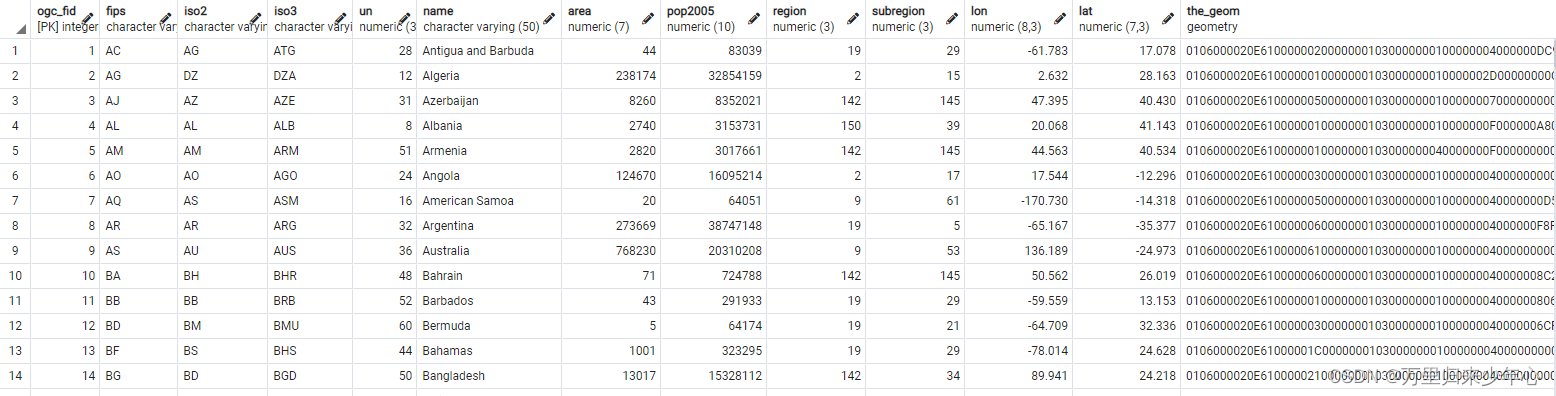

数据库中有表countries。在pgAdmin中查看如下:

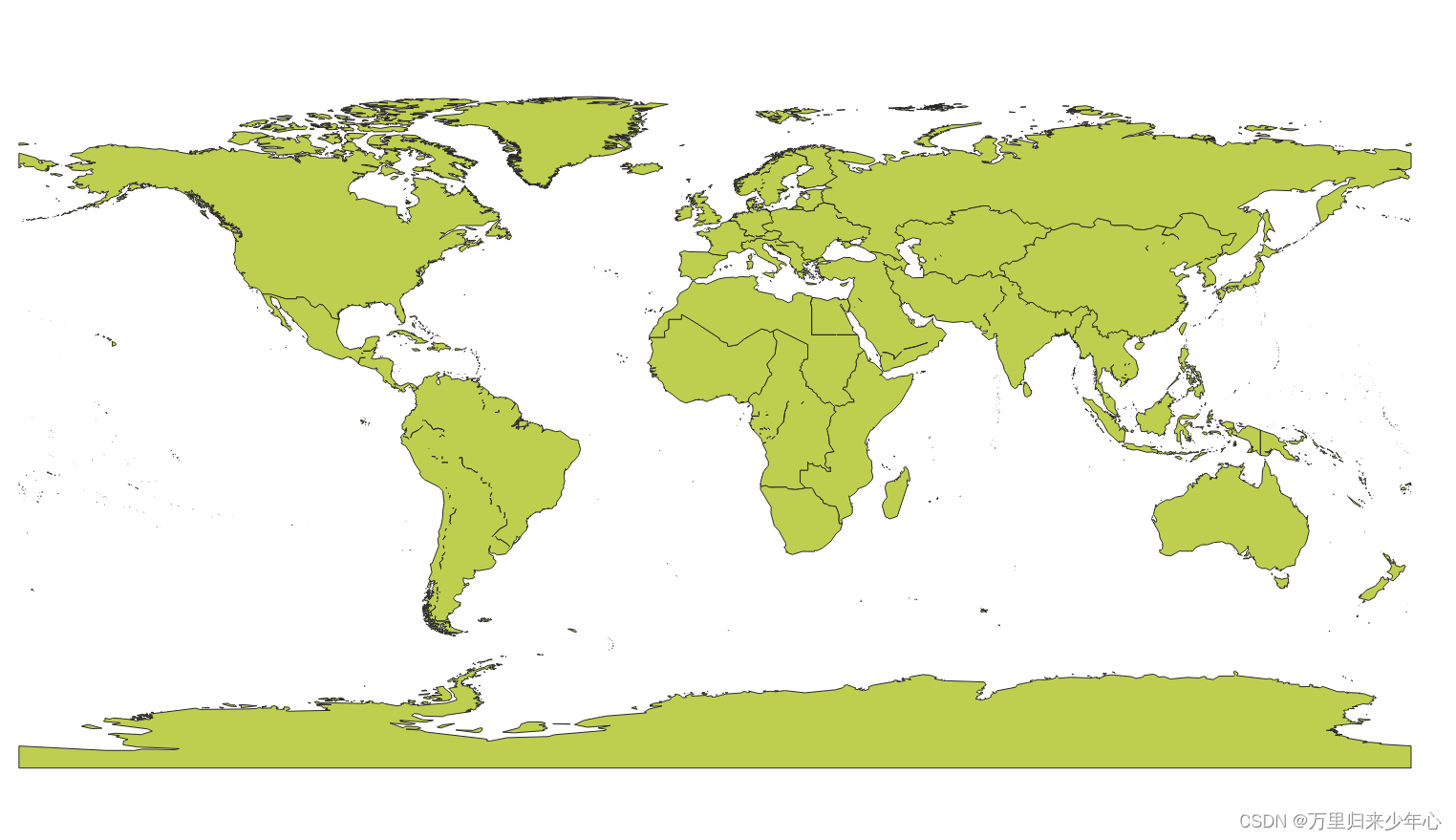

在QGIS中查看如下:

1.将国家按照区域划分,并合并几何。

SELECT
MIN(subregion) AS subregion,
SUM(pop2005) AS pop2005From,
ST_union(the_geom) AS the_geom
FROM public.countries
GROUP BY subregion;

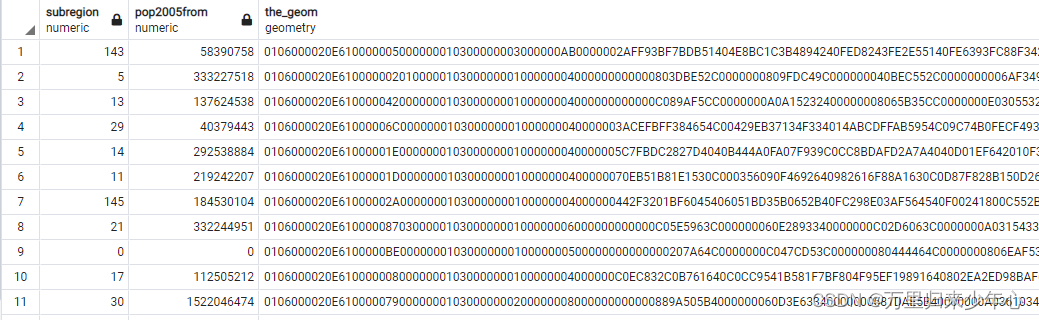

在pgAdmin中查看如下:

 2.将查询结果输出到shapefile

pgsql2shp -f subregions.shp -h localhost -u postgres -P postgres postgis_32_sample "SELECT MIN(subregion) AS subregion,SUM(pop2005) AS pop2005 From,ST_union(the_geom) AS the_geom FROM public.countries GROUP BY subregion; "

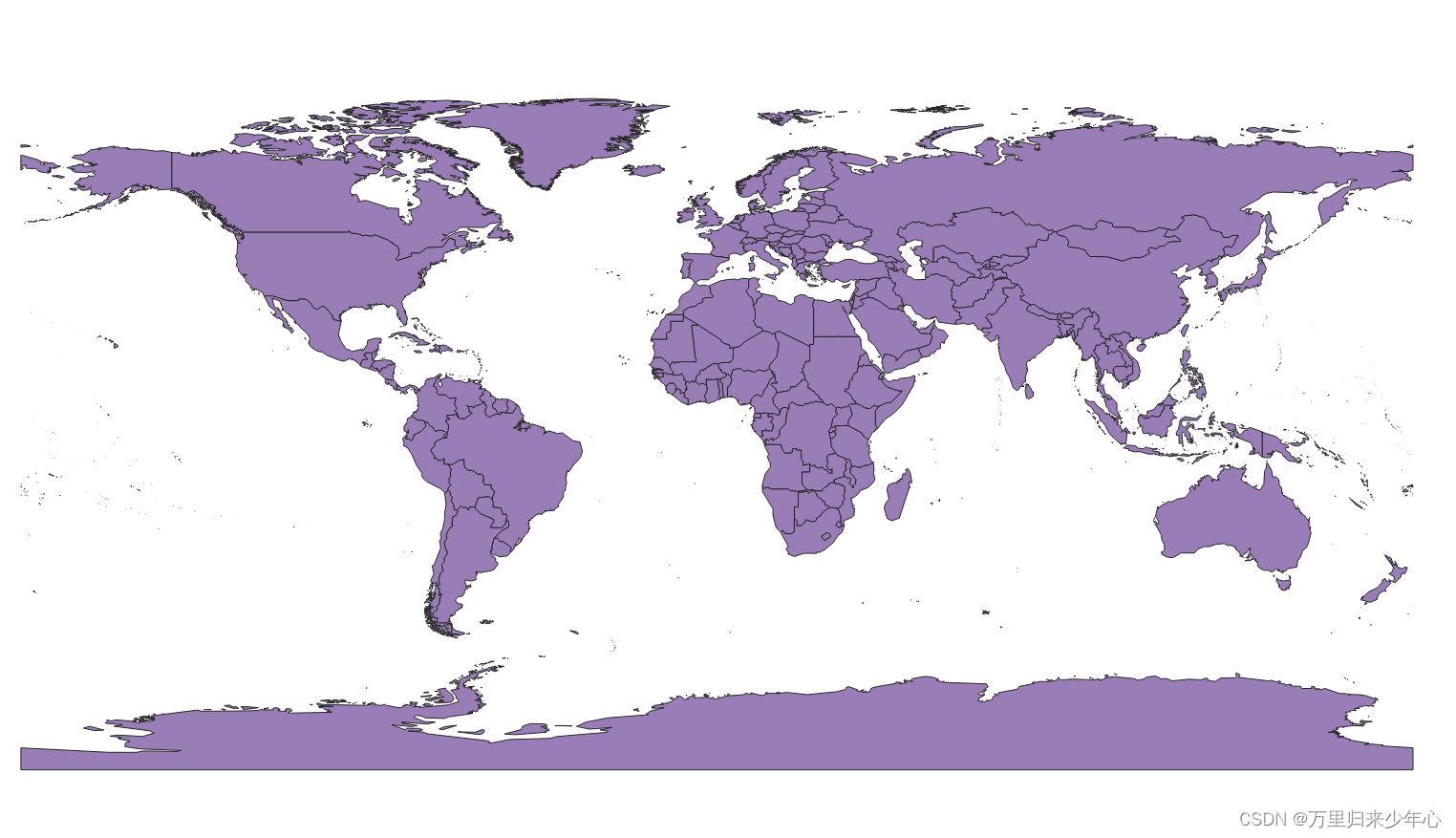

在QGIS中查看shapefile如下:
