【Echarts】玫瑰饼图数据交互
Echarts玫瑰饼图数据交互
·
在学习echarts玫瑰饼图的过程中，了解到三种数据交互的方法，如果对您也有帮助，不胜欣喜。

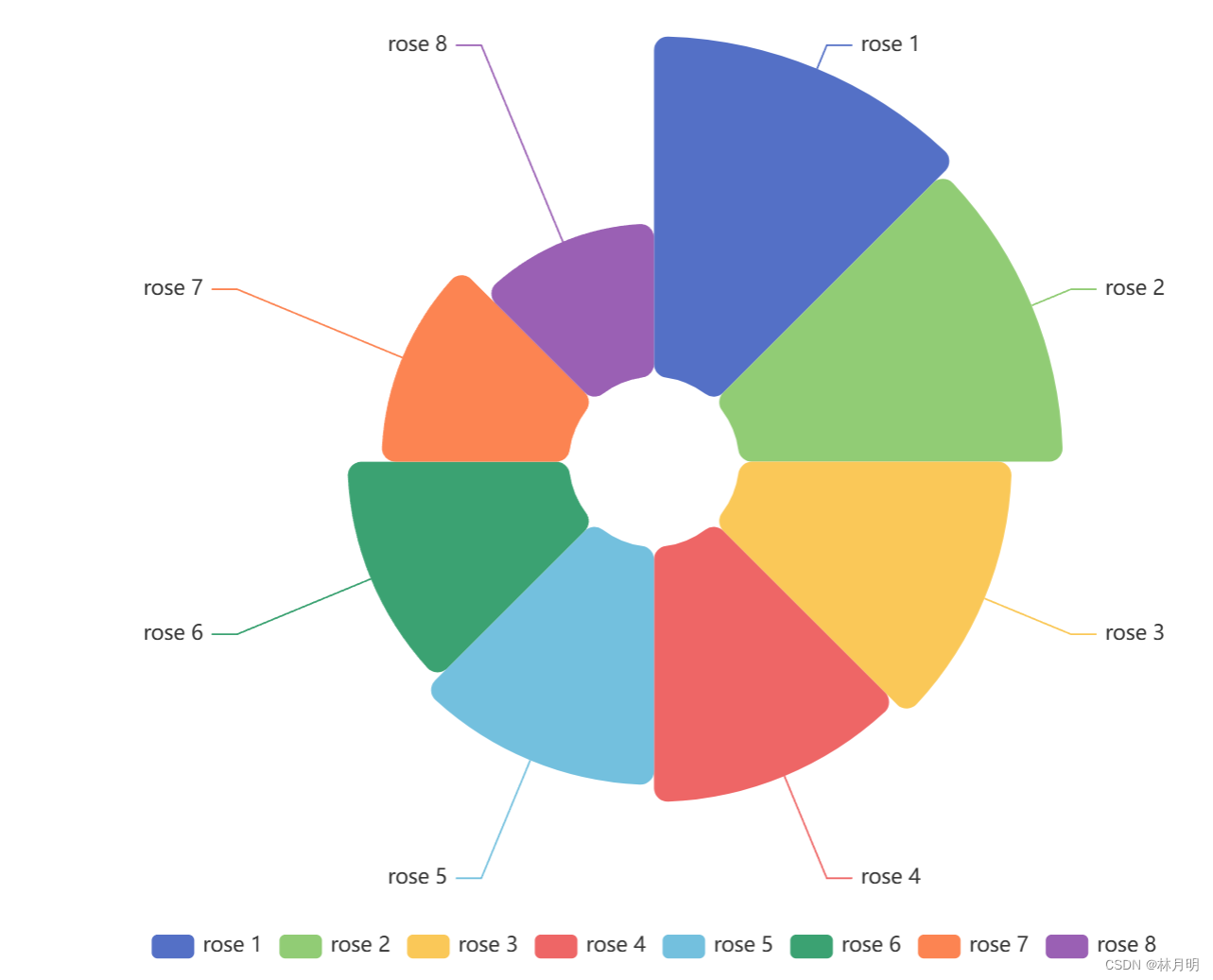

一、官网教程
https://echarts.apache.org/examples/zh/editor.html?c=pie-roseType-simple
（该教程数据在代码中）
import * as echarts from 'echarts';
var chartDom = document.getElementById('main');
var myChart = echarts.init(chartDom);
var option;
option = {
legend: {
top: 'bottom'
},
toolbox: {
show: true,
feature: {
mark: { show: true },
dataView: { show: true, readOnly: false },
restore: { show: true },
saveAsImage: { show: true }
}
},
series: [
{
name: 'Nightingale Chart',
type: 'pie',
radius: [50, 250],
center: ['50%', '50%'],
roseType: 'area',
itemStyle: {
borderRadius: 8
},
data: [
{ value: 40, name: 'rose 1' },
{ value: 38, name: 'rose 2' },
{ value: 32, name: 'rose 3' },
{ value: 30, name: 'rose 4' },
{ value: 28, name: 'rose 5' },
{ value: 26, name: 'rose 6' },
{ value: 22, name: 'rose 7' },
{ value: 18, name: 'rose 8' }
]
}
]
};
option && myChart.setOption(option);

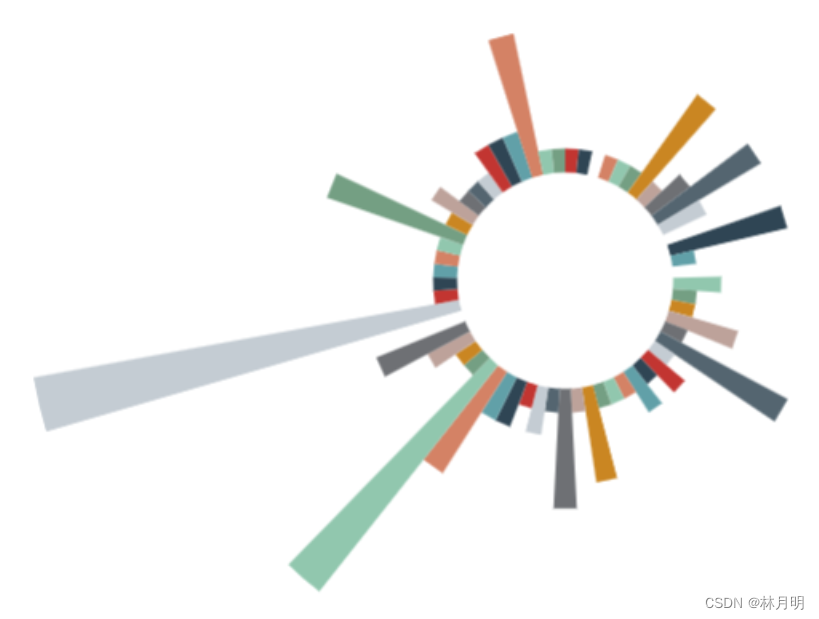

二、网友分享教程
1、http://https://www.dandelioncloud.cn/article/details/1580424652969463810
2、https://blog.csdn.net/weixin_44763569/article/details/118681932
（该教程通过push将外部数值放入数组中使用）
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title></title>
<!-- 引入 echarts.js -->
<script src="http://code.jquery.com/jquery-1.8.0.min.js"></script>
<script src="https://cdn.bootcss.com/echarts/4.2.1-rc1/echarts.min.js" type="text/javascript"></script>
</head>
<body>
<!-- 为ECharts准备一个具备大小（宽高）的Dom -->
<div id="main" style="width: 600px;height:600px;"></div>
<script type="text/javascript">
var names = []; //类别数组（用于存放饼图的类别）
var brower = [];
$.ajax({
url: "test.json",
data: {},
type: 'GET',
success: function(data) {
//请求成功时执行该函数内容，result即为服务器返回的json对象
$.each(data, function(index, item) {
names.push(item.value); //挨个取出类别并填入类别数组
brower.push({
name: item.jobName,
value: item.jobNum
});
});
hrFun(brower);
},
});
// 基于准备好的dom，初始化echarts实例
var myChart = echarts.init(document.getElementById('main'));
function hrFun(param) {
myChart.setOption({
legend: {
top: 'bottom'
},
toolbox: {
show: true,
feature: {
mark: {
show: true
},
dataView: {
show: true,
readOnly: false
},
restore: {
show: true
},
saveAsImage: {
show: true
}
}
},
legend: {
orient: 'vertical',
x: 'right',
y: 'bottom',
textStyle: { //图例文字的样式
color: '#0b2b5e',
fontSize: 12
},
data: ['在线', '离线']
},
series: [{
name: '面积模式',
type: 'pie',
radius: [50, 250],
center: ['50%', '50%'],
roseType: 'area',
label: {
normal: {
show: false,
},
},
labelLine: {
normal: {
show: false
}
},
itemStyle: {
borderRadius: 8
},
data: brower,
}]
});
}
</script>
</body>
</html>
[{
"jobNum": 1,
"jobName": "设备经理"
}, {
"jobNum": 1,
"jobName": "电气操作"
}, {
"jobNum": 0,
"jobName": "ERP管理"
}, {
"jobNum": 1,
"jobName": "安全经理"
}, {
"jobNum": 1,
"jobName": "生产经理"
}, {
"jobNum": 1,
"jobName": "FKM车间主任"
}, {
"jobNum": 5,
"jobName": "操作工"
}, {
"jobNum": 1,
"jobName": "卸料员"
}, {
"jobNum": 2,
"jobName": "经理"
}, {
"jobNum": 5,
"jobName": "成品检测"
}, {
"jobNum": 2,
"jobName": "电气管理"
}, {
"jobNum": 0,
"jobName": "仓库"
}, {
"jobNum": 5,
"jobName": "主任"
}, {
"jobNum": 1,
"jobName": "设备副总"
}, {
"jobNum": 0,
"jobName": "默认身份"
}, {
"jobNum": 2,
"jobName": "设备管理"
}, {
"jobNum": 1,
"jobName": "统计"
}, {
"jobNum": 1,
"jobName": "组长"
}, {
"jobNum": 3,
"jobName": "仪表"
}, {
"jobNum": 1,
"jobName": "公用"
}, {
"jobNum": 6,
"jobName": "叉车"
}, {
"jobNum": 1,
"jobName": "行政管理"
}, {
"jobNum": 2,
"jobName": "普工"
}, {
"jobNum": 1,
"jobName": "班长"
}, {
"jobNum": 2,
"jobName": "人力资源"
}, {
"jobNum": 1,
"jobName": "销售"
}, {
"jobNum": 1,
"jobName": "聚合技术员"
}, {
"jobNum": 1,
"jobName": "工艺"
}, {
"jobNum": 4,
"jobName": "分析"
}, {
"jobNum": 1,
"jobName": "会计"
}, {
"jobNum": 5,
"jobName": "保洁"
}, {
"jobNum": 1,
"jobName": "技术副总"
}, {
"jobNum": 2,
"jobName": "安全管理员"
}, {
"jobNum": 1,
"jobName": "机修管理"
}, {
"jobNum": 2,
"jobName": "采购"
}, {
"jobNum": 2,
"jobName": "销售后台"
}, {
"jobNum": 5,
"jobName": "值班长"
}, {
"jobNum": 12,
"jobName": "后处理"
}, {
"jobNum": 1,
"jobName": "分析车间主任"
}, {
"jobNum": 1,
"jobName": "FEP车间主任"
}, {
"jobNum": 2,
"jobName": "工艺管理"
}, {
"jobNum": 4,
"jobName": "电工"
}, {
"jobNum": 0,
"jobName": "计量"
}, {
"jobNum": 18,
"jobName": "聚合"
}, {
"jobNum": 1,
"jobName": "仓库管理"
}, {
"jobNum": 1,
"jobName": "后勤管理"
}, {
"jobNum": 1,
"jobName": "总经理"
}, {
"jobNum": 1,
"jobName": "公用工程主任"
}, {
"jobNum": 1,
"jobName": "安全总监"
}, {
"jobNum": 6,
"jobName": "中控分析"
}, {
"jobNum": 1,
"jobName": "成品检测组长"
}, {
"jobNum": 2,
"jobName": "副主任"
}, {
"jobNum": 1,
"jobName": "单体技术员"
}, {
"jobNum": 1,
"jobName": "出纳"
}, {
"jobNum": 1,
"jobName": "技术员"
}, {
"jobNum": 2,
"jobName": "环保管理员"
}, {
"jobNum": 2,
"jobName": "机修"
}, {
"jobNum": 2,
"jobName": "生产副总"
}, {
"jobNum": 6,
"jobName": "外操"
}, {
"jobNum": 1,
"jobName": "总经理助理"
}, {
"jobNum": 1,
"jobName": "计量、ERP管理"
}]

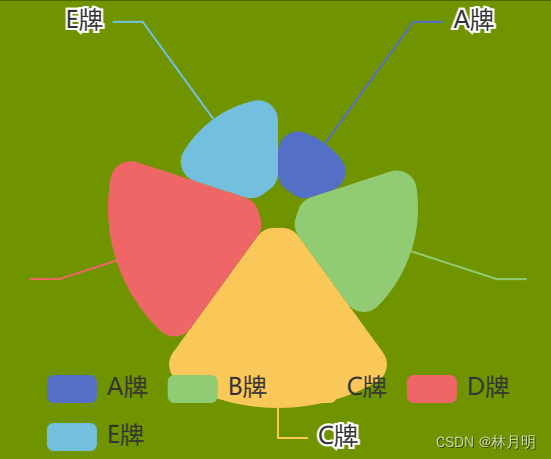

三、课程视频教程
https://www.bilibili.com/video/BV14u411D7qK?p=50&vd_source=841fee104972680a6cac4dbdbf144b50
（通过设置echarts、axios接收数据）
主要涉及以下5个文件：
1、three.json，后台数据文件之一，注意value和name顺序！
{
"chartData":[
{"value":1000,"name":"A牌"},
{"value":2000,"name":"B牌"},
{"value":3000,"name":"C牌"},
{"value":2500,"name":"D牌"},
{"value":1500,"name":"E牌"}
]
}2、three.js，后台配置文件之一
let express=require("express")
let router=express.Router()
let threeData=require("../mock/three.json")
router.get("/data",(req,res)=>{
res.send({msg:"我是three的路由地址",chartData:threeData})
})
module.exports=router;3、index.js，后台路由配置文件之一
let express=require("express")
let app=express();
//设置跨域
app.use(function(req,res,next){
res.header('Access-Control-Allow-Origin','*');
res.header('Access-Control-Allow-Headers','Content-Type,Content-Length, Authorization, Accept,X-Requested-with , yourHeaderFeild');
res.header('Access-Control-Allow-Methods','PUT,POST,GET, DELETE,OPTIONS');
next();
})
//引用路由文件
let chartOne=require("./router/one")
let chartTwo=require("./router/two")
let chartThree=require("./router/three")
let chartFour=require("./router/four")
//使用中间件来配置路由
app.use("/one",chartOne)
app.use("/two",chartTwo)
app.use("/three",chartThree)
app.use("/four",chartFour)
app.listen(8888)
4、homePage.vue，前端文件，引用组件
//以下只摘选script代码，其他略
<script>
//引用组件
import ItemPage from "@/components/itemPage.vue"
import ItemOne from "@/components/itemOne.vue"
import ItemTwo from "@/components/itemTwo.vue"
import ItemThree from "@/components/itemThree.vue"
import ItemFour from "@/components/itemFour.vue"
import MapPage from "@/components/mapPage.vue"
//引用inject
import {inject} from "vue"
export default{
components:{
ItemPage,ItemOne,ItemTwo,ItemThree,ItemFour,MapPage
},
setup(){
//测试使用echarts
let $echarts=inject("echarts")
//测试使用axios
let $http=inject("axios")
console.log($echarts)
console.log($http)
}
}
</script>5、itemThree.vue，前端组件文件，获取后端数据
<template>
<div>
<h2>图表3</h2>
<div class="chart" id="threeChart">
分析图
</div>
</div>
</template>
<script>
import{inject,onMounted,reactive} from "vue"
export default {
setup(){
//1、设置echarts设置axios 创建接受请求的变量
let $echarts=inject("echarts")
let $http=inject("axios")
//2、获取数据
async function getState(){
data=await $http({url:"/three/data"});
}
let data=reactive({})
//生成动态图表
//1、在dom加载完毕后动态展示图表
onMounted(()=>{
//2、发送请求
getState().then(()=>{
console.log("饼状图",data.data)
//初始化echarts
let myChart=$echarts.init(document.getElementById("threeChart"))
myChart.setOption({
legend:{
//设置图例
top:"bottom"//放到最下面
},
series:[
{
type:"pie",//饼图
radius:[10,100],//内半径，外半径
center:["50%","45%"],//饼图中心坐标（横，纵）
roseType:"area",//设置成玫瑰图
itemStyle:{
borderRadius:10//内外圆角半径
},
data:data.data.chartData.chartData
}
]
})
})
return{
getState,data
}
})
}
}
</script>
<style>
h2{
/*48像素*/
height: 0.6rem;
color: #fff;
line-height: 0.6rem;
text-align: center;
font-size: 0.25rem;
}
.chart{
/*高度*/
height: 4.5rem;
background-color:rgba(191, 255, 0, 0.3);
}
</style>
