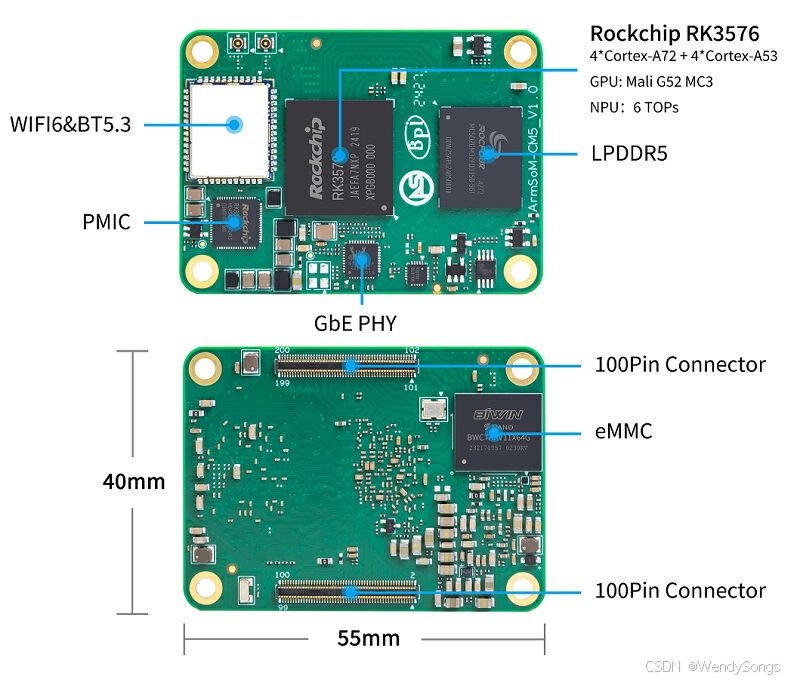

Banana Pi BPI-CM5 Pro is a computing module powered by the Rockchip RK3576 second-generation 8nm high-performance AIOT platform. It integrates a quad-core Cortex-A72 @ 2.2GHz and a quad-core Cortex-A53 @ 1.8GHz, along with a dedicated NEON co-processor, a 6 TOPS NPU, and supports up to 16GB of large memory. It supports 4K video encoding and decoding, features a rich set of interfaces, and supports various operating systems.

Key Specifications

• SOC: Rockchip RK3576

• CPU: Integrates quad-core Cortex-A72 @ 2.2GHz, quad-core Cortex-A53 @ 1.8GHz, and a dedicated NEON co-processor.

• GPU: ARM Mali G52 MC3 GPU.

• NPU: Up to 6 TOPS (INT8) computing power, supporting INT4/INT8/INT16 mixed precision computation.

• VPU/Video Codec:

  • Decoding: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K@30fps or 4K@120fps, and high-quality JPEG decoding up to 4K@60fps.

  • Encoding: Supports H.264 and H.265，JPEG up to 4K@60fps.

• RAM: 8/16GB 32bit LPDDR5, default is 8GB, with RK3576 supporting up to 16GB.

• Flash: 32/64/128GB eMMC, default is 64GB eMMC.

• Operating Voltage: Wide input voltage range from 4.5V to 23V (voltage tolerance ±5%).

• Operating Temperature: 0℃ ~ 80℃

• Weight: 12g

• Dimensions:

  • CM5: 55 x 40 mm

  • CM5-IO: 100 x 80 x 29 mm (3.94 x 3.15 x 1.14 inches)

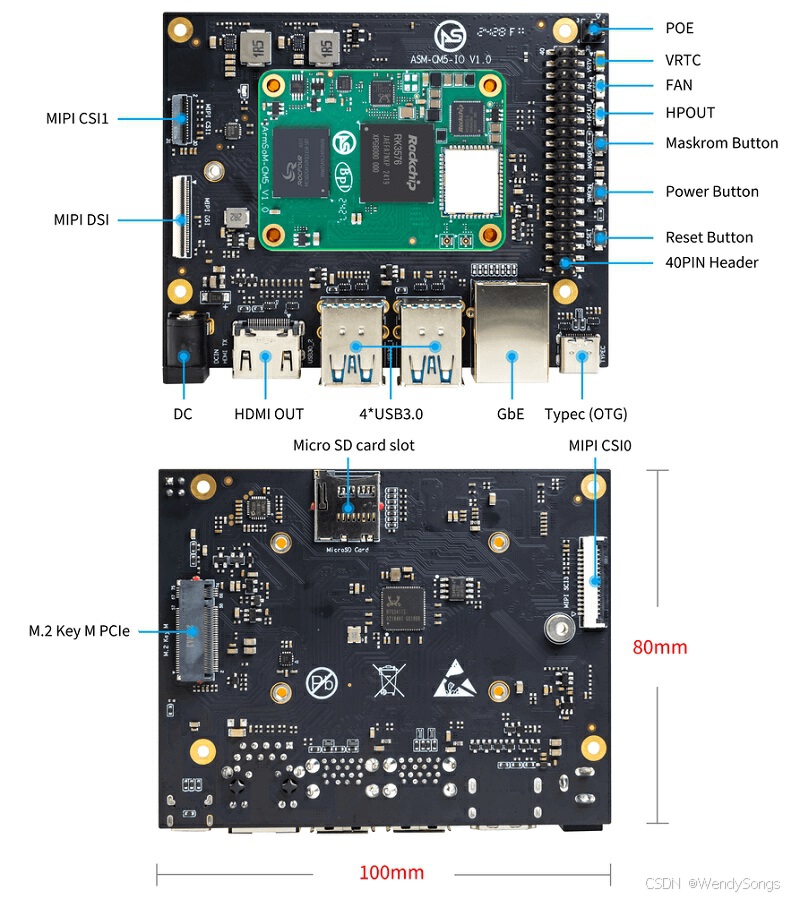

BPI-CM5 Pro IO board

The BPI-CM5 Pro-io board is an expansion board specifically designed for the CM5 Pro computing module, aimed at assisting in system and embedded board development.

• 1x HDMI output, 1x DP output

• 4x USB 3.0 Type-A

• Gigabit Ethernet RJ45 with PoE support

• Firmware flashing and device mode via USB Type-C

• GPIO: 40-pin header • Power connector: DC Barrel jack for 12V power input

• Expansion: M.2 (M-key, supports PCIe), microSD

• MIPI DSI: 1x 4-lane MIPI DSI, supports up to 4K@60fps (x4)

• MIPI CSI0: 1x 4-lane MIPI CSI, each lane up to 2.5Gbps

• MIPI CSI1: 1x 2-lane MIPI CSI, each lane up to 2.5Gbps

• Others: HPOUT, FAN, VRTC

• Dimensions: 100 x 80 x 29 mm (3.94 x 3.15 x 1.14 inches)

• Weight: 200g
