合肥工业大学编译原理实验LL(1)完整Scala实现代码（Java完成GUI封装）与测试数据
Table of Contents测试数据：无GUI的代码：LL1 object类（Scala）：含GUI的代码：LL1_try_GUI object类（Scala）：FileUtil class类（Java）：包pojo中的Analyse c...
·
Table of Contents
完成了形式上的消除左递归，但是还存在bug，不能直接用于求解实际问题，但过实验指导书的样例是没问题的。先上几组测试数据。
测试数据：
test.data（指导书上的样例）：
E->TG
G->+TG|-TG
G->ε
T->FS
S->*FS|/FS
S->ε
F->(E)
F->i
test2.data：
E->E+T|T
T->T-T|F
T->T+T|x
F->(E)|i
test3.data：
E->TG
G->+TG|-TG
G->ε
S->*FS|/FS
S->ε
F->(E)
F->i
T->α
α->Sα|ε
test4.data：
E->EG|HR
G->+TG|-TG
G->ε
T->FS
E->ES|HR
S->*FS|/FS
S->ε
F->(E)
F->i
test5.data（书上的例子）：
E->E+T|T
T->T*F|F
F->(E)|i
下面直接上代码，如果后面有时间而且心情好的话再修修补补下。老师要求有个界面，我因为对Scala的GUI编程不熟悉，没有弄；虽说Scala的GUI编程与Java的一脉相承，但差别还是有的，如果直接把Java的代码放在Scala里面跑铁定是一堆error和warnning。（垃圾CSDN居然没有Scala的编程语言选项！！！）
无GUI的代码：
LL1 object类（Scala）：
import scala.collection.mutable
import scala.collection.mutable.{ArrayBuffer, Map}
import scala.util.matching.Regex
object LL1_try_GUI {
private final var allCharacters = new String()
private final var relations = new ArrayBuffer[ (String, String, String) ]()
private final var VN = new String()
private final var VT = new String()
private final var LL1_G = new ArrayBuffer[ (String, String) ]()
//private val allCandidateLetters = "αΑβΒγΓδΔεΕζΖηΗθΘιΙκΚλΛμΜνΝξΞοΟπΠρΡσΣτΤυΥφΦχΧψΨωΩ" + "aAbBcCdDeEfFgGhHiIjJkKlLmMnNoOpPqQrRsStTuUvVwWxXyYzZ"
private val allCandidateLetters = "ΑΒΓΔΕΖΗΘΙΚΛΜΝΞΟΠΡΣΤΥΦΧΨΩABCDEFGHIJKLMNOPQRSTUVWXYZ"
private final var usedCharacters = ""
// private val LL1_G = ArrayBuffer( ("E", "TG"), ("G", "+TG|-TG"), ("G", "ε"), ("T", "FS"), ("S", "*FS|/FS"),
// ("S", "ε"), ("F", "(E)"), ("F", "i") )//, ("Y", "*FS|/FS"), ("Y", "+TG|-TG"), ("Y", "x"), ("Y", "M"), ("M", "i"), ("M", "ε") )
// test data 1:
// ( ("E", "TG"), ("G", "+TG|-TG"), ("G", "ε"), ("T", "FS"), ("S", "*FS|/FS"),
// ("S", "ε"), ("F", "(E)"), ("F", "i"), ("Y", "S"), ("Y", "Gx"), ("Y", "x"), ("Y", "M"), ("M", "i"), ("M", "ε") )
// test data 2:
// ( ("D", "*FD"), ("D", "ε"), ("T", "FD"), ("E", "TC"), ("F", "(E)"), ("F", "i"), ("C", "+TC"), ("C", "ε") )
// test data 3:
// ( ("E", "E+T|T"), ("T", "T*F|T"), ("F", "(E)|i") )
// stand test data:
// ( ("E", "TG"), ("G", "+TG|-TG"), ("G", "ε"), ("T", "FS"), ("S", "*FS|/FS"), ("S", "ε"), ("F", "(E)"), ("F", "i") )
def main(args: Array[String]): Unit = {
//test countLines
//println( "cnt = " + countLines( readFromTxtByLine("/home/hadoop001/Desktop/test.data") ) )
//test parseFile
val result = parseFile("/home/hadoop001/Desktop/test.data")
println( "the original language rules:" )
for( rs <- result ) {
println( rs._1 + "->" + rs._2 )
}
initiate("/home/hadoop001/Desktop/test.data")
println( "after eliminating the all the left recursion in the language rules:" )
displayRelations()
println( "VT = " + VT )
println( "VN = " + VN )
println( "allCharacters = " + allCharacters )
println("*************")
val testMatrix1 = initiateMatrix()
for( i <- 0 to (testMatrix1.length - 1) ) {
for( j <- 0 to (testMatrix1(0).length - 1) ) {
print(testMatrix1(i)(j) + " ")
}
println()
}
println("*************")
// test FIRST
val tx = FIRST(LL1_G)
println( "FIRST: " )
for( t <- tx ) {
if( allCharacters.contains( t._1 ) ) {
println(t)
}
}
// test FOLLOW
val ex = FOLLOW(LL1_G)
println( "FOLLOW: " )
for( t <- ex ) {
if( VN.contains( t._1 ) ) {
println(t)
}
}
println("*************")
val testMatrix2 = createMatrix()
for( i <- 0 to (testMatrix2.length - 1) ) {
for( j <- 0 to (testMatrix2(0).length - 1) ) {
print(testMatrix2(i)(j) + " ")
}
println()
}
println("*************")
for( i <- 0 to (testMatrix1.length - 1) ) {
for( j <- 0 to (testMatrix1(0).length - 1) ) {
if( i == 0 && j == 0 ) {
testMatrix1(i)(j) = " "
}
}
}
println()
for( i <- 0 to (testMatrix1.length - 1) ) {
for( j <- 0 to (testMatrix1(0).length - 1) ) {
if( testMatrix1(i)(j) == null && i != 0 && j != 0 ) {
print(" ")
}
else {
print(testMatrix1(i)(j) + " ")
}
}
println()
}
analyse("i+i*i#")
}
/*
* Function name: initiate
* Function description: 初始化全局变量
* Input parameters: the absolute path of the language-rule source file
* Return value: 无
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def initiate( filePath: String ): Unit = {
LL1_G = parseFile(filePath)
allCharacters = getWholeCharacters(LL1_G)
usedCharacters = allCharacters
relations = getRelation(LL1_G)
VN = getVN(allCharacters)
VT = getVT(allCharacters)
eliminateLeftRecursion // eliminate all the left recursion at first
}
/*
* Function name: displayRelations
* Function description: display all he language rules
* Input parameters: 无
* Return value: 无
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def displayRelations(): Unit = {
for( ex <- relations ) {
if( ex._3 != "א" ) {
println( ex._1 + "->" + ex._2 + "|" + ex._3 )
}
else {
println( ex._1 + "->" + ex._2 )
}
}
}
/*
* Function name: parseFile
* Function description: 解析文本文件，保存在数组中
* Input parameters: 文本绝对路径
* Return value: -ArrayBuffer[ ( String, String ) ]（String类型的元组ArrayBuffer数组）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 18 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 18 2019 +0800
*/
def parseFile( filePath: String ): ArrayBuffer[ ( String, String ) ] = {
val result = new ArrayBuffer[ ( String, String ) ]( countLines( readFromTxtByLine(filePath) ) )
val sourceFile = readFromTxtByLine(filePath) //filePath
for( line <- sourceFile ) {
val tmp = line.split( "->", 2 )
result += ( ( tmp.head, tmp.last ) )
}
result
}
/*
* Function name: countLines
* Function description: 计算文本行数，用于创建接收数组时开辟相应空间
* Input parameters: -Array[String]（文本文件数据构成的数组）
* Return value: -Int（文本行数）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 18 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def countLines( sourceFile: Array[String] ): Int = {
var cnt = 0
for( line <- sourceFile ) {
cnt += 1
}
cnt
}
/*
* Function name: readFromTxtByLine
* Function description: 读取文本文件
* Input parameters: -String（文本文件绝对路径）
* Return value: -Array[String]（文本文件构成的数组，每行数据占一个数组元素）
* Exception: -未处理
* Author: 来自高山
* Created date: Fri Oct 18 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 18 2019 +0800
*/
def readFromTxtByLine(filePath: String): Array[String] = {
import scala.io.Source
val source = Source.fromFile(filePath, "UTF-8")
//val lineIterator = source.getLines()
//lineIterator.foreach()
val lines = source.getLines().toArray
source.close()
//println(lines.size)
lines
}
/*
* Function name: getWholeCharacters
* Function description: 获取文法的除“|”之外的所有字符
* Input parameters: -ArrayBuffer[ (String, String) ]（由文法左右两部分字符构成一个元组的数组，筛掉“|”）
* Return value: -String（文法的除“|”之外的所有字符）
* Exception: 未处理（有出错提示）
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def getWholeCharacters( string: ArrayBuffer[ (String, String) ] ): String = {
var wholeCharacters = ""
for( expression <- string ) {
wholeCharacters += expression._1 + expression._2
}
val pattern = new Regex("\\|")
val result = pattern replaceAllIn( wholeCharacters, "" )
if( result.isEmpty )
"function getWholeCharacters failed"
else
result.distinct
}
/*
* Function name: getVN
* Function description: 获取文法的所有非终结符（non-terminal character），默认大写字母为非终结符，使用正则表达式匹配
* Input parameters: -String（函数getWholeCharacters传来的文法的所有字符）
* Return value: -String（文法的所有非终结符）
* Exception: 未处理（有出错提示）
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def getVN( string: String ): String = {
//match big letter:
//^[A-Z]+$
val pattern = new Regex("[A-Z]")//("^[A-Z]+$")
if( (pattern findAllIn string) != null )
(pattern findAllIn string).mkString("")
else
"function getVN failed"
}
/*
* Function name: getVT
* Function description: 获取文法的所有非终结符（terminal character），默认大写字母外的字符为终结符，使用正则表达式匹配
* Input parameters: -String（函数getWholeCharacters传来的文法的所有字符）
* Return value: -String（文法的所有终结符）
* Exception: 未处理（有出错提示）
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def getVT( string: String ): String = {
val pattern1 = new Regex("[A-Z]")
val pattern2 = new Regex("\\|")
val firstFilter = pattern1 replaceAllIn( string, "" )
val result = pattern2 replaceAllIn( firstFilter, "" )
if( result.isEmpty == false )
result
else
return "function getVT failed"
}
/*
* Function name: getRelation
* Function description: 获取文法每一行对应的推导关系，若文法只推出了1项（即没有符号“|”），则返回元组的第三个用希伯来字母“א”示空
* Input parameters: -ArrayBuffer[ (String, String)（已经分割好的文法左右部分构成的数组）
* Return value: -ArrayBuffer[ (String, String, String) ]（元组第一个元素为推导式左边符号，第二为右边第二个符号串，第三为右边（若有）第三个符号串）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def getRelation( string: ArrayBuffer[ (String, String) ] ): ArrayBuffer[ (String, String, String) ] = {
val relation = new ArrayBuffer[ (String, String, String) ]()
for( expression <- string ) {
if( expression._2.contains("|") == false ) {
relation += ( ( expression._1, expression._2, "א" ) )
}
else {
val tmp = expression._2.split("\\|", 2 )
relation += ( ( expression._1, tmp.head, tmp.last ) )
}
}
relation
}
/*
* Function name: findFirst
* Function description: 获取指定字符的右边两个（可能是一个）导出字符串的首个非 ε 组成的字符串
* Input parameters: -String（指定字符）
* Return value: -String（指定字符的右边两个（可能是一个）导出字符串的首个非 ε 组成的字符串）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def findFirst( ch: String ): String = {
val localRelations = relations
var result = ""
for( ex <- localRelations ) {
if( ch == ex._1 ) {
if( ex._3 != "א" ) {
if( VT.contains( ex._2(0) ) && ex._2(0) != 'ε' ) {
result += ex._2(0).toString
}
if( VT.contains( ex._3(0) ) && ex._3(0) != 'ε' ) {
result += ex._3(0).toString
}
}
else {
if( VT.contains( ex._2(0) ) && ex._2(0) != 'ε' ) {
result += ex._2(0).toString
}
}
}
}
result
}
/*
* Function name: judgeOnlyOneVoidSuccession
* Function description: 判断指定字符是否可推出唯一的字符ε
* Input parameters: -String（指定字符串）
* Return value: -Boolean（存在则true，否则false）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def judgeOnlyOneVoidSuccession( ch: String ): Boolean = {
val localRelations = relations
var result = 1
for( ex <- localRelations ) {
if( ch == ex._1 ) {
if( ex._3 != "א" ) {
if( ( ex._2.length == 1 && ex._2(0) == 'ε' ) || (ex._3.length == 1 && ex._3(0) == 'ε') ) {
result = 1
}
else {
result = 0
}
}
else {
if( ( ex._2.length == 1 && ex._2(0) == 'ε' ) ) {
result = 1
}
else {
result = 0
}
}
}
}
if( result == 1 ) true else false
}
/*
* Function name: judgeCaseXY
* Function description: 判断构造FIRST集时可能的第3种情况的（1），即若X->Y...是一个产生式且Y∈VN（省略若干描述）
* Input parameters: -Char（指定字符，即可能满足条件的产生式的左边字符）
* Return value: -Boolean（满足则true，否则false）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 12 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 12 2019 +0800
*/
def judgeCaseXY( ch: Char ): Boolean = {
val localVN = VN
val localRelations = relations
var result = 0
if( localVN.contains(ch) == true ) {
for( ex <- localRelations ) {
if( ex._1(0) == ch ) {
if( localVN.contains( ex._2(0) ) || localVN.contains( ex._3(0) ) ) {
result += 1
}
}
}
}
if( result > 0 )
true
else
false
}
/*
* Function name: findCase_Y_In_XY
* Function description: 获取构造FIRST集时可能的第3种情况的（1），即若X->Y...是一个产生式且Y∈VN（省略若干描述）时的Y
* Input parameters: -Char（指定字符，即可能满足条件的产生式的左边字符）
* Return value: -String（Y构成的String字符串，无则为空）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 12 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 12 2019 +0800
*/
def findCase_Y_In_XY( ch: Char ): String = {
val localVN = VN
val localRelations = relations
var result = ""
if( localVN.contains(ch) == true ) {
for( ex <- localRelations ) {
if( ex._1(0) == ch ) {
if( ex._3 != "א" ) {
if( localVN.contains( ex._2(0) ) == true ) {
result += ex._2(0).toString
}
if( localVN.contains( ex._3(0) ) == true ) {
result += ex._3(0).toString
}
}
else {
if( localVN.contains( ex._2(0) ) == true ) {
result += ex._2(0).toString
}
}
}
}
}
result
}
/*
* Function name: findCase_Y_In_nY
* Function description: 获取构造FIRST集时可能的第3种情况的（2）时的FIRST(Yi)中所有的非ε-元素（省略描述若干字）
* Input parameters: -Char（指定字符，即可能满足条件的产生式的左边字符）
* Return value: -String（FIRST(Yi)中所有的非ε-元素构成的String字符串，无则为空）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 12 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 12 2019 +0800
*/
def findCase_Y_In_nY( ch: Char ): String = {
val localVN = VN
val localRelations = relations
var result = ""
for( ex <- localRelations ) {
if (ex._1 == ch.toString) {
var tmp = ""
if (ex._3 != 'א') {
var cnt = 0
for (tx <- ex._2) {
// add the element belongs to tmp
if (localVN.contains(tx)) {
tmp += tx.toString
cnt += 1
}
// otherwise, reset tmp as empty string
else {
tmp = ""
}
}
if (cnt == ex._2.length) {
result += tmp
}
// reset
cnt = 0
tmp = ""
for (tx <- ex._3) {
// add the element belongs to tmp
if (localVN.contains(tx)) {
tmp += tx.toString
cnt += 1
}
// otherwise, reset result as empty string
else {
tmp = ""
}
}
if (cnt == ex._3.length) {
result += tmp
}
}
else {
tmp = ""
var cnt = 0
for (tx <- ex._2) {
// add the element belongs to tmp
if (localVN.contains(tx)) {
tmp += tx.toString
cnt += 1
}
// otherwise, reset tmp as empty string
else {
tmp = ""
}
}
if (cnt == ex._2.length) {
result += tmp
}
}
}
}
result = result.distinct
result
}
/*
* Function name: FIRST
* Function description: 按照教材P78左下角的算法描述实现求解指定文法FIRST集；因用的是循环迭代求解，因此代码较长
* Input parameters: -ArrayBuffer[ (String, String) ]（产生式左右两部分分别构成元组的第1个和第2个元素）
* Return value: -Map[ String, String ]（Map的key是非终结符，value是其FIRST元素）
* Exception: 未处理
* Author: 来自高山
* Created date: Mon Oct 14 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def FIRST( string: ArrayBuffer[ (String, String) ] ): Map[ String, String ] = {
val FIRST_Group = Map[ String, String ]()
val wholeCharacters = allCharacters
val localVT = VT
val localVN = VN
for( character <- wholeCharacters ) {
// case 1
if( localVT.contains(character) ) {
//if there exist the original key that equals the current one
if( FIRST_Group.contains(character.toString) == true ) {
val tmp = character.toString + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
//otherwise
else {
FIRST_Group(character.toString) = character.toString
}
}
// case 2
if( localVN.contains(character.toString) == true ) {
// case 2.1
val value = findFirst(character.toString)
if ( value.length != 0 ) {
if ( FIRST_Group.contains(character.toString) == true ) {
for( ch <- value ) {
val tmp = ch + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
}
else {
FIRST_Group(character.toString) = value.toString
}
}
// case 2.2
if( judgeOnlyOneVoidSuccession(character.toString) == true ) {
if ( FIRST_Group.contains(character.toString) == true ) {
val tmp = "ε" + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
else {
FIRST_Group(character.toString) = "ε"
}
}
}
for( character <- wholeCharacters ) {
// case 3
// case 3.1
if( judgeCaseXY(character) == true ) {
val tmpReply = findCase_Y_In_XY(character)
for( eachTmpReply <- tmpReply ) {
if( FIRST_Group.contains(eachTmpReply.toString) == true ) {
for (ex <- FIRST_Group(eachTmpReply.toString)) {
if (ex != 'ε') {
if (FIRST_Group.contains(character.toString) == true) {
val tmp = ex.toString + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
else {
FIRST_Group(character.toString) = ex.toString
}
}
}
}
}
}
// case 3.2
if( findCase_Y_In_nY(character).length > 0 ) {
var flag = true
val tmpReply = findCase_Y_In_nY(character)
for( ex <- tmpReply ) {
if( localVN.contains(ex.toString) && FIRST_Group.contains(ex.toString) == true ) {
if( FIRST_Group(ex.toString).contains("ε") == false ) {
flag = false
}
}
else {
flag = false
}
if( flag == true ) {
if (FIRST_Group.contains(character.toString) == true) {
val tmp = FIRST_Group(ex.toString).replace( "ε", "" ) + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
else {
FIRST_Group(character.toString) = FIRST_Group(ex.toString).replace( "ε", "" )
}
}
}
}
// case 3.3
if( findCase_Y_In_nY(character).length > 0 ) {
var flag = true
val tmpReply = findCase_Y_In_nY(character)
for( ex <- tmpReply ) {
if( localVN.contains(ex.toString) && FIRST_Group.contains(ex.toString) == true ) {
if( FIRST_Group(ex.toString).contains("ε") == false ) {
flag = false
}
}
else {
flag = false
}
if( flag == true ) {
if (FIRST_Group.contains(character.toString) == true) {
val tmp = "ε" + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
else {
FIRST_Group(character.toString) = "ε"
}
}
}
}
}
}
FIRST_Group
}
/*
* Function name: FOLLOW
* Function description: 根据dfsFOLLOW函数，获取各个非终结符的FOLLOW集元素
* Input parameters: -ArrayBuffer[ (String, String) ]（产生式左右两部分分别构成元组的第1个和第2个元素）
* Return value: -Map[ String, String ]（Map的key是非终结符，value是其FOLLOW集元素）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def FOLLOW( string: ArrayBuffer[ (String, String) ] ): Map[ String, String ] = {
val localVN = VN
val FOLLOW_Group = Map[ String, String ]()
for( ch <- localVN ) {
FOLLOW_Group(ch.toString) = dfsFOLLOW(ch.toString)
}
FOLLOW_Group
}
/*
* Function name: dfsFOLLOW
* Function description: 使用深度优先搜索（DFS）寻找各个非终结符的FOLLOW集元素
* Input parameters: -String（指定的非终结符）
* Return value: -String（指定终结符的FOLLOW集元素）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def dfsFOLLOW( ch: String ): String = {
val FOLLOWPositions = Map[ String, String ]()
val FOLLOW_Group = Map[ String, String ]()
val localLL1_G = LL1_G
val FIRST_Group = FIRST(localLL1_G)
val localVN = VN
for( ch <- localVN ) {
FOLLOWPositions(ch.toString) = findGivenValueFOLLOWPosition(ch.toString)
FOLLOW_Group(ch.toString) = "#"
}
var result = ""
if( FOLLOWPositions(ch).length == 4 ) {
if( FOLLOWPositions(ch)(1).toString == "T" ) {
result += FIRST_Group( FOLLOWPositions(ch)(0).toString )
FOLLOW_Group(ch) += result.distinct
}
else if( FOLLOWPositions(ch)(3).toString == "T" ) {
result += FIRST_Group( FOLLOWPositions(ch)(2).toString )
FOLLOW_Group(ch) += result.distinct
}
if( FOLLOWPositions(ch)(1).toString == "W" ) {
result += dfsFOLLOW( FOLLOWPositions(ch)(0).toString )
FOLLOW_Group(ch) = result.distinct
}
else if( FOLLOWPositions(ch)(3).toString == "W" ) {
result += dfsFOLLOW( FOLLOWPositions(ch)(2).toString )
FOLLOW_Group(ch) = result.distinct
}
}
if( FOLLOWPositions(ch).length == 2 ) {
if( FOLLOWPositions(ch)(1).toString == "T" ) {
result += FIRST_Group( FOLLOWPositions(ch)(0).toString )
FOLLOW_Group(ch) = result.distinct
}
else if( FOLLOWPositions(ch)(1).toString == "W" ) {
result += dfsFOLLOW( FOLLOWPositions(ch)(0).toString )
FOLLOW_Group(ch) = result.distinct
}
}
FOLLOW_Group(ch).replace("ε", "")
}
/*
* Function name: findGivenValueFOLLOWPosition
* Function description: 按照教材P79右上角的算法描述，求解构成每个非终结符的FOLLOW集的“依赖”（因为实现了这个函数，节省了我原先用循环叠加求解FOLLOW集的700+代码）
* Input parameters: -String（指定终结符）
* Return value: -String（指定终结符的FOLLOW集元素，无则为空）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def findGivenValueFOLLOWPosition( ch: String ): String = {
var result = ""
val cnt = new ArrayBuffer[String]()
val localRelations = relations
for( ex <- localRelations ) {
if( ex._3 != "א" ) {
if( ex._2.contains(ch) ) {
// מ
if( ex._2.length == 3 ) {
// B A α B β
if( ex._2(1).toString == ch && judgeCase2( ex._1, ex._2(0).toString, ch, ex._2(2).toString ) ) {
val value = ex._2(2).toString + "T"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
// B A α B β
if( ex._2(1).toString == ch && judgeCase3( ex._1, ex._2(0).toString, ch, ex._2(2).toString ) ) {
val value = ex._1.toString + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
if( ex._2.length == 2 ) {
// B A α B
if( ex._2(1).toString == ch && judgeCase3( ex._1, ex._2(0).toString, ch, "" ) ) {
val value = ex._1 + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
}
if( ex._3.contains(ch) ) {
if( ex._3.length == 3 ) {
// B A α B β
if( ex._3(1).toString == ch && judgeCase2( ex._1, ex._3(0).toString, ch, ex._3(2).toString ) ) {
val value = ex._3(2).toString + "T"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
if( ex._3(1).toString == ch && judgeCase3( ex._1, ex._3(0).toString, ch, ex._3(2).toString ) ) {
val value = ex._1 + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
if( ex._3.length == 2 ) {
// B A α B
if( ex._3(1).toString == ch && judgeCase3( ex._1, ex._3(0).toString, ch, "" ) ) {
val value = ex._1 + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
}
}
else {
if( ex._2.contains(ch) ) {
if( ex._2.length == 3 ) {
// B A α B β
if( ex._2(1).toString == ch && judgeCase2( ex._1, ex._2(0).toString, ch, ex._2(2).toString ) ) {
val value = ex._2(2).toString + "T"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
if( ex._2(1).toString == ch && judgeCase3( ex._1, ex._2(0).toString, ch, ex._2(2).toString ) ) {
val value = ex._1 + "T"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
if( ex._2.length == 2 ) {
// B A α B
if( ex._2(1).toString == ch && judgeCase3( ex._1, ex._2(0).toString, ch, "" ) ) {
val value = ex._1 + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
}
}
}
result
}
/*
* Function name: judgeCase2
* Function description: 按照教材P79右下角的算法描述，判断是否填充满足条件（2）的矩阵元素
* Input parameters: -String, String, String, String[分别代表条件（2）的四个字符]
* Return value: -Boolean（满足条件（2）则返回true，否则返回false）
* Exception: 未处理
* Author: 来自高山
* Created date: Tue Oct 15 2019 +0800
* Editor: 来自高山
* Edited Date: Tue Oct 15 2019 +0800
*/
def judgeCase2( A: String, α: String, B: String, β: String ): Boolean = {
val localVN = VN
val wholeCharacters = allCharacters
val localLL1_G = LL1_G
val localFIRST = FIRST(localLL1_G)
if( localVN.contains(A) == true && wholeCharacters.contains(α) == true && localVN.contains(B) == true &&
wholeCharacters.contains(β) && localFIRST.contains(β) == true ) {
true
}
else {
false
}
}
/*
* Function name: judgeCase3
* Function description: 按照教材P79右下角的算法描述，判断是否填充满足条件（3）的矩阵元素
* Input parameters: -String, String, String, String[分别代表条件（3）的四个字符]
* Return value: -Boolean（满足条件（3）则返回true，否则返回false）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def judgeCase3( A: String, α: String, B: String, β: String ): Boolean = {
val localVN = VN
val wholeCharacters = allCharacters
val localLL1_G = LL1_G
val localFIRST = FIRST(localLL1_G)
if( ( localVN.contains(A) == true && wholeCharacters.contains(α) == true && localVN.contains(B) == true ) ||
( localVN.contains(A) == true && wholeCharacters.contains(α) == true && localVN.contains(B) == true && localFIRST(β).contains("ε") == true ) ) {
true
}
else {
false
}
}
/*
* Function name: initiateMatrix
* Function description: 初始化分析表（为了在控制台打印方便，表长为非终结符个数加一，表宽为终结符个数加一）
* Input parameters: 无
* Return value: -Array[ Array[ String] ]（分析表矩阵元素构成的二维数组，除了第0行和第0列，其它列与行的元素均为null）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def initiateMatrix(): Array[ Array[ String] ] = {
val localVN = VN
val localVT = VT
val result = Array.ofDim[String](localVN.length + 1, localVT.length + 1)
for( i <- 1 to localVN.length ) {
result(i)(0) = localVN(i - 1).toString
}
for( j <- 1 to localVT.length ) {
if( localVT(j - 1).toString == "ε" ) {
result(0)(j) = "#"
}
else {
result(0)(j) = localVT(j - 1).toString
}
}
result
}
/*
* Function name: createMatrix
* Function description: 按照教材P79右下角的算法描述，构造分析表
* Input parameters: 无
* Return value: -Array[ Array[String] ]（分析表矩阵元素构成的二维数组）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def createMatrix(): Array[ Array[String] ] = {
val result = initiateMatrix()
val localVT = VT
val localRelations = relations
val localLL1_G = LL1_G
val localFIRST = FIRST(localLL1_G)
val localFOLLOW = FOLLOW(localLL1_G)
for( ex <- localRelations ) {
if( ex._3 != "א" ) {
for( a <- localVT ) {
val ex2Length = ex._2.length
var range = ""
var α = ""
var flag = false
for( x <- 0 to (ex2Length - 1) ) {
if( localFIRST( ex._2(x).toString ).contains("ε") == false && flag == false ) {
α = ex._2(x).toString
range = localFIRST( α )
flag = true
}
}
if( range.contains(a) == true && flag == true ) {
result(getRow(ex._1))(getColumn(a.toString)) = ex._1 + "->" + ex._2
}
if( flag == false ) {
range = "ε"
result( getRow(ex._1) )( getColumn("ε") ) = ex._1 + "->" + "ε"
}
// case 3
if( range.contains("ε") == true && flag == false ) {
for( b <- localFOLLOW(α) ) {
result( getRow(ex._1.toString) )( getColumn(b.toString) ) = ex._1 + "->" + ex._2 // t --> tx
}
}
val ex3Length = ex._3.length
range = ""
flag = false
for( x <- 0 to (ex3Length - 1) ) {
if( localFIRST( ex._3(x).toString ).contains("ε") == false && flag == false ) {
α = ex._3(x).toString
range = localFIRST( α )
flag = true
}
}
if( range.contains(a) == true && flag == true ) {
result( getRow(ex._1) )( getColumn(a.toString) ) = ex._1 + "->" + ex._3
}
if( flag == false ) {
range = "ε"
result(getRow(ex._1))(getColumn("ε")) = ex._1 + "->" + "ε"
}
// case 3
if( range.contains("ε") == true && flag == false ) {
for( b <- localFOLLOW(ex._1) ) {
result( getRow(ex._1.toString) )( getColumn(b.toString) ) = ex._1 + "->" + ex._3 // t --> tx
}
}
}
}
else {
for( a <- localVT ) {
val ex2Length = ex._2.length
var range = ""
var α = ""
var flag = false
for( x <- 0 to (ex2Length - 1) ) {
if( localFIRST( ex._2(x).toString ).contains("ε") == false && flag == false ) {
α = ex._2(x).toString
range = localFIRST(α)
flag = true
}
}
if( range.contains(a) == true && flag == true ) {
result( getRow(ex._1) )( getColumn(a.toString) ) = ex._1 + "->" + ex._2
}
if( flag == false ) {
range = "ε"
result( getRow(ex._1) )( getColumn("ε") ) = ex._1 + "->" + "ε"
}
// case 3
if( range.contains("ε") == true && flag == false ) {
for( b <- localFOLLOW(ex._1) ) {
result( getRow(ex._1.toString) )( getColumn(b.toString) ) = ex._1 + "->" + ex._2
}
}
}
}
}
result
}
/*
* Function name: getRow
* Function description: 获取指定字符在分析表中的行数
* Input parameters: -String（指定字符）
* Return value: -Int（指定字符所在的行数）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def getRow( ch: String ): Int = {
val matrix = initiateMatrix()
var result = -1
if( ch == "α" ) {
println( "1 --- getRow, ch == " + ch )
}
for( i <- 0 to (matrix.length - 1) ) {
if( matrix(i)(0) == ch ) {
result = i
}
}
result
}
/*
* Function name: getColumn
* Function description: 获取指定字符在分析表中的列数
* Input parameters: -String（指定字符）
* Return value: -Int（指定字符所在的列数）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def getColumn( ch: String ): Int = {
val matrix = initiateMatrix()
var result = -1
for( i <- 0 to (matrix.length - 1) ) {
for( j <- 0 to (matrix(i).length - 1) ) {
if( matrix(0)(j) == ch ) {
result = j
}
if( matrix(0)(j) == "#" && ch == "ε" ) {
result = j
}
}
}
result
}
/*
* Function name: analyse
* Function description: 对指定的字符串进行LL(1)分析
* Input parameters: -String（输入的指定字符串）
* Return value: -Boolean（分析成功则返回true，否则false）
* Exception: 未处理（有出错提示）
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def analyse( expression: String ): Boolean = {
val stack = new mutable.Stack[String]()
var localExpression = expression
val table = createMatrix()
val localVT = VT
val localVN = VN
val localRelations = relations
stack.push("#")
stack.push( localRelations(0)._1 )
var cnt = 0
println( cnt + " " + " stack = " + stack + ", expression = " + localExpression + " initiate" )
while( stack.isEmpty == false ) {
val stackTop = stack.top
stack.pop()
// 栈顶符号属于 非终结符
if( localVN.contains(stackTop) == true ) {
// 栈顶符号与表达式左端首字符 存在 关系
if( table( getRow(stackTop) )( getColumn( localExpression(0).toString ) ) != null ) {
val lastHalf = table( getRow(stackTop) )( getColumn( localExpression(0).toString ) ).split( "->", 2 ).last
val length = lastHalf.length
for( i <- 0 to (length - 1) ) {
if( lastHalf != "ε" ) {
stack.push(lastHalf(length - 1 - i).toString)
}
}
cnt += 1
println( cnt + " " + " stack = " + stack + ", expression = " + localExpression +
", analyse expression = " + table( getRow(stackTop) )( getColumn( localExpression(0).toString ) ) + ", POP, PUSH(" + lastHalf.reverse + ")")
}
// 栈顶符号与表达式左端首字符 不存在 关系
else {
// 栈顶符号 等于 表达式左端首字符
if( stackTop == "#" && localExpression(0).toString == "#" ) {
println("11111")
return true
}
// 栈顶符号 不等于 表达式左端首字符
else {
println("1 - error")
//stack.push( localExpression(0).toString )
println( cnt + " " + " stack = " + stack + ", expression = " + localExpression )
return false
}
}
}
// 栈顶符号属于 终结符
if( localVT.contains(stackTop) == true ) {
// 栈顶符号 等于 表达式左端首字符
if( stackTop == localExpression(0).toString ) {
if( stackTop == localExpression(0).toString ) {
//stack.pop()
localExpression = localExpression.drop(1)
cnt += 1
println( cnt + " " + " stack = " + stack + ", expression = " + localExpression + ", GETNEXT(" + stackTop + ")" )
}
// 栈顶符号 不等于 表达式左端首字符
else {
println("2 - error")
return false
}
}
}
}
true
}
/*
* Function name: judgeLeftRecursion
* Function description: 判断是否存在形式上的左递归
* Input parameters: -(String, String, String)（产生式的左端与右端的两个（或为1个）元素）
* Return value: -Int（0表示无，1表示右端第1个元素存在形式上的左递归，2表示右端第2个元素）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def judgeLeftRecursion( expression: (String, String, String) ): Int = {
var ans = 0 // ans = 0 means the current expression is not involved left-recursion
if( expression._2.length >= 2 && expression._1 == expression._2(0).toString && expression._2.drop(1) != "ε" ) {
ans += 1 // ans = 1 means the left recursion involves the expression._2
}
if( expression._3.length >= 2 && expression._1 == expression._3(0).toString && expression._3.drop(1) != "ε" ) {
ans += 2 // ans = 2 means the left recursion involves the expression._3
}
ans // ans = 3 means the given expression is false since both exp(2) and exp(3) involved
}
/*
* Function name: eliminateLeftRecursion
* Function description: 消除形式上的左递归
* Input parameters: 无
* Return value: -ArrayBuffer[ (String, String, String) ]（消除左递归后的新文法）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def eliminateLeftRecursion(): ArrayBuffer[ (String, String, String) ] = {
var localRelations = relations
var invalidRelations = new ArrayBuffer[ (String, String, String) ]()
val localCandidateLetters = allCandidateLetters
val VN1 = "ΑΒΓΔΕΖΗΘΙΚΛΜΝΞΟΠΡΣΤΥΦΧΨΩABCDEFGHIJKLMNOPQRSTUVWXYZ"
val VT1 = "αβγδεζηθικλμνξοπρστυφχψωabcdefghijklmnopqrstuvwxyz"
for( ex <- localRelations ) {
if( ex._3 != "א" ) {
if( judgeLeftRecursion( ex._1, ex._2, ex._3 ) == 1 ) {
// P = ex._1, α = ex._2 - ex._1, β = ex._3, P' = newValue
invalidRelations += ( ( ex._1, ex._2, ex._3 ) )
val newValue = subString( usedCharacters, localCandidateLetters )(0)
usedCharacters += newValue
if( VN1.contains(newValue) && !VN.contains(newValue) ) {
VN += newValue.toString
allCharacters += newValue.toString
}
if( VT1.contains(newValue) && !VT.contains(newValue) ) {
VT += newValue.toString
allCharacters += newValue.toString
}
val α = ex._2.drop(1)
val exp1 = ( ex._1, ex._3 + newValue.toString, "א" )
val exp2 = ( newValue.toString, α.toString + newValue.toString, "ε" )
// println( "1 -- exp1._1 = " + exp1._1 + ", exp1._2 = " + exp1._2 + ", exp1._3 = " + exp1._3 )
// println( "1 -- exp2._1 = " + exp2._1 + ", exp2._2 = " + exp2._2 + ", exp2._3 = " + exp2._3 )
localRelations += exp1
localRelations += exp2
}
else if( judgeLeftRecursion( ex._1, ex._2, ex._3 ) == 2 ) {
// P = ex._1, α = ex._3 - ex._1, β = ex._3, P' = newValue
invalidRelations += ( ( ex._1, ex._2, ex._3 ) )
val newValue = subString( usedCharacters, localCandidateLetters )(0)
if( VN1.contains(newValue) && !VN.contains(newValue) ) {
VN += newValue.toString
allCharacters += newValue.toString
}
if( VT1.contains(newValue) && !VT.contains(newValue) ) {
VT += newValue.toString
allCharacters += newValue.toString
}
usedCharacters += newValue
val α = ex._3.drop(1)
val exp1 = ( ex._1, ex._3 + newValue.toString, "א" )
val exp2 = ( newValue.toString, α.toString + newValue.toString, "ε" )
// println( "2 -- exp1._1 = " + exp1._1 + ", exp1._2 = " + exp1._2 + ", exp1._3 = " + exp1._3 )
// println( "2 -- exp2._1 = " + exp2._1 + ", exp2._2 = " + exp2._2 + ", exp2._3 = " + exp2._3 )
localRelations += exp1
localRelations += exp2
}
else if( judgeLeftRecursion( ex._1, ex._2, ex._3 ) == 3 ){
println( "error in the function eliminateLeftRecursion" )
}
}
else {
if( judgeLeftRecursion( ex._1, ex._2, ex._3 ) == 1 ) {
// P = ex._1, α = ex._2 - ex._1, β = ex._3, P' = newValue
invalidRelations += ( ( ex._1, ex._2, ex._3 ) )
val newValue = subString( usedCharacters, localCandidateLetters )(0)
if( VN1.contains(newValue) && !VN.contains(newValue) ) {
VN += newValue.toString
allCharacters += newValue.toString
}
if( VT1.contains(newValue) && !VT.contains(newValue) ) {
VT += newValue.toString
allCharacters += newValue.toString
}
usedCharacters += newValue
val α = ex._2.drop(1)
val exp1 = ( ex._1, newValue.toString, "א" )
val exp2 = ( newValue.toString, α.toString + newValue.toString, "ε" )
// println( "3 -- exp1._1 = " + exp1._1 + ", exp1._2 = " + exp1._2 + ", exp1._3 = " + exp1._3 )
// println( "3 -- exp2._1 = " + exp2._1 + ", exp2._2 = " + exp2._2 + ", exp2._3 = " + exp2._3 )
localRelations += exp1
localRelations += exp2
}
}
}
for( ex <- invalidRelations ) {
localRelations = localRelations.-(ex)
}
relations = localRelations
localRelations
}
/*
* Function name: subString
* Function description: 获取两输入字符串的差集（要求两者均非空）
* Input parameters: 无
* Return value: -String（两输入字符串的差集）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def subString( usedCharacters: String, localCandidateLetters: String ): String = {
require( usedCharacters.length != 0 && localCandidateLetters.length != 0 )
var ans = ""
var A = usedCharacters
var B = localCandidateLetters
if( A.length < B.length ) {
val tmp = A
A = B
B = tmp
}
for( i <- 0 to (A.length - 1) ) {
var j = 0
while( j < B.length && B(j) != A(i) ) {
j += 1
}
if( j == B.length ) {
ans += A(i)
}
}
ans
}
}
含GUI的代码：
LL1_try_GUI object类（Scala）：
import java.awt.{BorderLayout, Color}
import java.awt.event.{ActionEvent, ActionListener}
import java.io.FileInputStream
import javax.swing.table.{AbstractTableModel, DefaultTableCellRenderer, DefaultTableColumnModel, DefaultTableModel, TableColumn, TableModel}
import javax.swing.{JButton, JFileChooser, JFrame, JPanel, JScrollPane, JTable, JTextField, JTextPane}
import pojo.Analyse
import scala.collection.mutable
import scala.collection.mutable.{ArrayBuffer, Map}
import scala.util.matching.Regex
object LL1_try_GUI {
private final var allCharacters = new String()
private final var relations = new ArrayBuffer[ (String, String, String) ]()
private final var VN = new String()
private final var VT = new String()
private val allCandidateLetters = "ΑΒΓΔΕΖΗΘΙΚΛΜΝΞΟΠΡΣΤΥΦΧΨΩABCDEFGHIJKLMNOPQRSTUVWXYZ"
private final var usedCharacters = ""
private var LL1_G = new ArrayBuffer[ (String, String) ]()//ArrayBuffer( ("E", "TG"), ("G", "+TG|-TG"), ("G", "ε"), ("T", "FS"), ("S", "*FS|/FS"),
//("S", "ε"), ("F", "(E)"), ("F", "i") )//, ("Y", "*FS|/FS"), ("Y", "+TG|-TG"), ("Y", "x"), ("Y", "M"), ("M", "i"), ("M", "ε") )
// test data 1:
// ( ("E", "TG"), ("G", "+TG|-TG"), ("G", "ε"), ("T", "FS"), ("S", "*FS|/FS"),
// ("S", "ε"), ("F", "(E)"), ("F", "i"), ("Y", "S"), ("Y", "Gx"), ("Y", "x"), ("Y", "M"), ("M", "i"), ("M", "ε") )
// test data 2:
// ( ("D", "*FD"), ("D", "ε"), ("T", "FD"), ("E", "TC"), ("F", "(E)"), ("F", "i"), ("C", "+TC"), ("C", "ε") )
// test data 3:
// ( ("E", "E+T|T"), ("T", "T*F|T"), ("F", "(E)|i") )
// stand test data:
// ( ("E", "TG"), ("G", "+TG|-TG"), ("G", "ε"), ("T", "FS"), ("S", "*FS|/FS"), ("S", "ε"), ("F", "(E)"), ("F", "i") )
val staticAnalyseList : ArrayBuffer[Analyse] = new ArrayBuffer[Analyse]();
var staticTestMatrix : Array[ Array[String] ] = new Array[Array[String]](0)
var staticStringBuilder : StringBuilder = new StringBuilder();
var staticStringBuilder2 : StringBuilder = new StringBuilder();
def main(args: Array[String]): Unit = {
GUI1
}
/*
* Function name: displayStack
* Function description: 输出栈的所有元素
* Input parameters: -mutable.Stack[String]（待处理的String类型的栈）
* Return value: -String（栈所有元素组成的字符串）
* Exception: 未处理
* Author: 来自高山
* Created date: Mon Oct 21 2019 +0800
* Editor: 来自高山
* Edited Date: Mon Oct 21 2019 +0800
*/
def displayStack( stack: mutable.Stack[String] ): String = {
var result = ""
for( ex <- stack ) {
result += ex
}
result
}
/*
* Function name: utility
* Function description: 辅助输出函数
* Input parameters: 无
* Return value: 无
* Exception: 未处理
* Author: 来自高山
* Created date: Sun Oct 20 2019 +0800
* Editor: 来自高山
* Edited Date: Sun Oct 20 2019 +0800
*/
def utility(): Unit = {
staticStringBuilder.append("VT = " + VT +"\r\n");
staticStringBuilder.append("VN = " + VN +"\r\n");
staticStringBuilder.append( "allCharacters = " + allCharacters +"\r\n");
val tx = FIRST(LL1_G)
staticStringBuilder.append( "FIRST集: " +"\r\n");
for( t <- tx ) {
if( allCharacters.contains( t._1 ) ) {
staticStringBuilder.append( "FIRST("+ t._1 + ") = {" + t._2.mkString(",") + "}\r\n");
}
}
val ex = FOLLOW(LL1_G)
staticStringBuilder.append("FOLLOW集: "+"\r\n");
for( t <- ex ) {
if( VN.contains( t._1 ) ) {
staticStringBuilder.append( "FOLLOW("+ t._1 + ") = {" + t._2.mkString(",") + "}\r\n");
}
}
val testMatrix1 = createMatrix()
staticTestMatrix = testMatrix1;
for( ex <- LL1_G ) {
staticStringBuilder2.append( ex._1 + "->" + ex._2 + "\r\n")
}
}
/*
* Function name: GUI1
* Function description: 实现图形化界面展示，开始界面
* Input parameters: 无
* Return value: 无
* Exception: 未处理
* Author: 来自高山
* Created date: Sun Oct 20 2019 +080
* Editor: 来自高山
* Edited Date: Sun Oct 20 2019 +0800
*/
def GUI1(): Unit = {
val jFrame = new JFrame("LL(1)文法分析");
val jPanel = new JPanel();
jFrame.setBounds( 0, 10,1000,90);
val appendFileJButton2 = new JButton("开始分析");
appendFileJButton2.setBounds( 100, 400,200,30);
appendFileJButton2.addActionListener(new ActionListener {
override def actionPerformed(e: ActionEvent): Unit = {
GUI2
jFrame.dispose()
}
})
//添加文件按钮
val appendFileJButton = new JButton("添加文件");
appendFileJButton.setBounds( 300, 400,200,30);
appendFileJButton.addActionListener(new ActionListener {
override def actionPerformed(e: ActionEvent): Unit = {

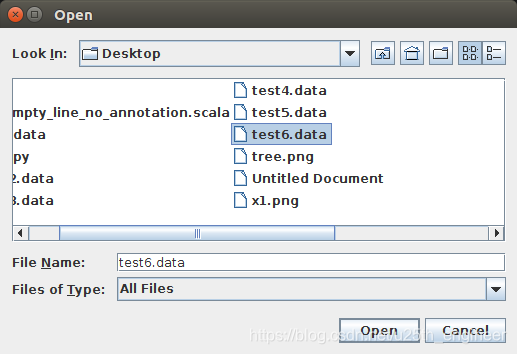

val fileChooser = new JFileChooser();
fileChooser.showOpenDialog(jFrame);
val filePath = fileChooser.getSelectedFile.getAbsolutePath
initiate(filePath)
utility
}
})
val appendFileJButton3 = new JButton("退出程序")
appendFileJButton3.setBounds(500, 400, 200, 30)
appendFileJButton3.addActionListener(new ActionListener {
override def actionPerformed(e: ActionEvent): Unit = {
jFrame.dispose()
}
})
jPanel.add(appendFileJButton)
jPanel.add(appendFileJButton2)
jPanel.add(appendFileJButton3)
jPanel.setBackground(Color.gray)
jFrame.add(jPanel)
import java.awt.FlowLayout
jPanel.setLayout(new FlowLayout(FlowLayout.LEADING, 200, 20))
jFrame.setResizable(false);
jFrame.setVisible(true);
}
/*
* Function name: GUI2
* Function description: 实现图形化界面展示，分析界面
* Input parameters: 无
* Return value: 无
* Exception: 未处理
* Author: 菊花侠
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sun Oct 20 2019 +0800
*/

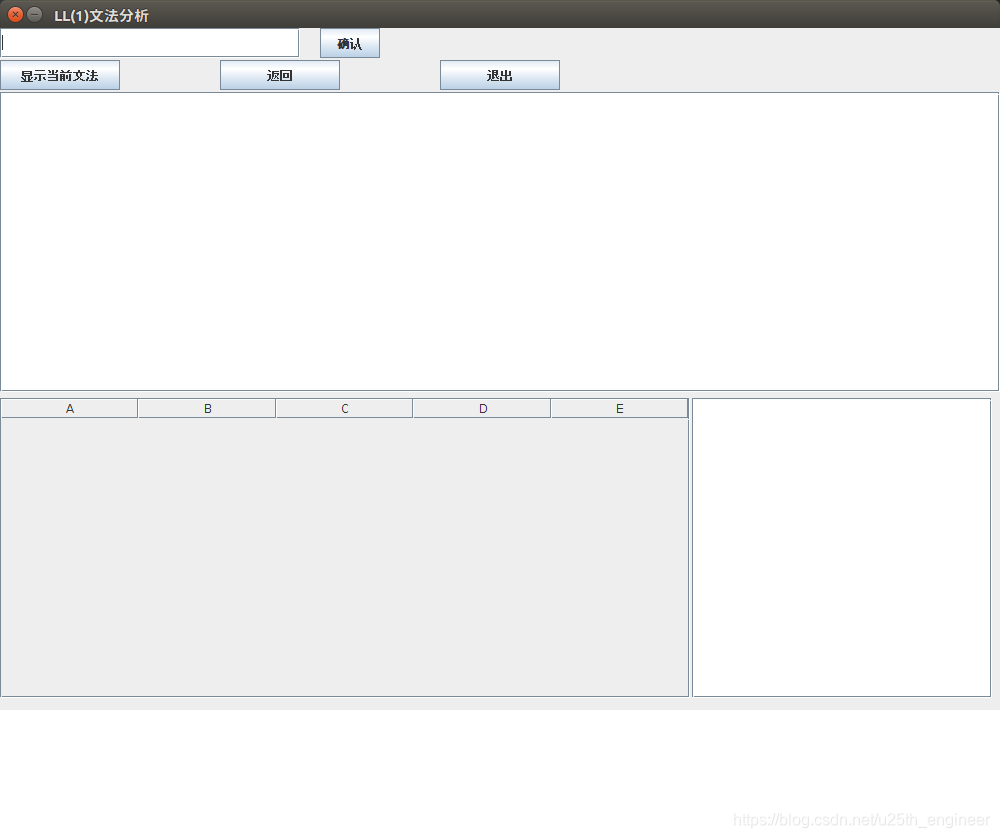

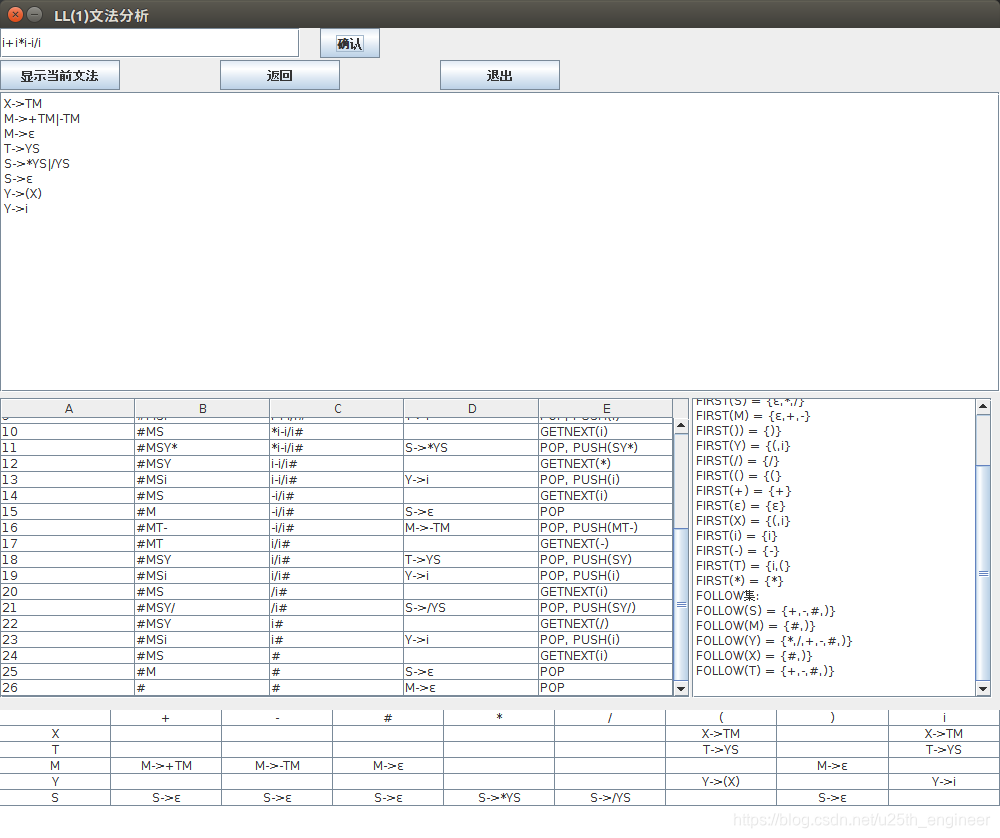

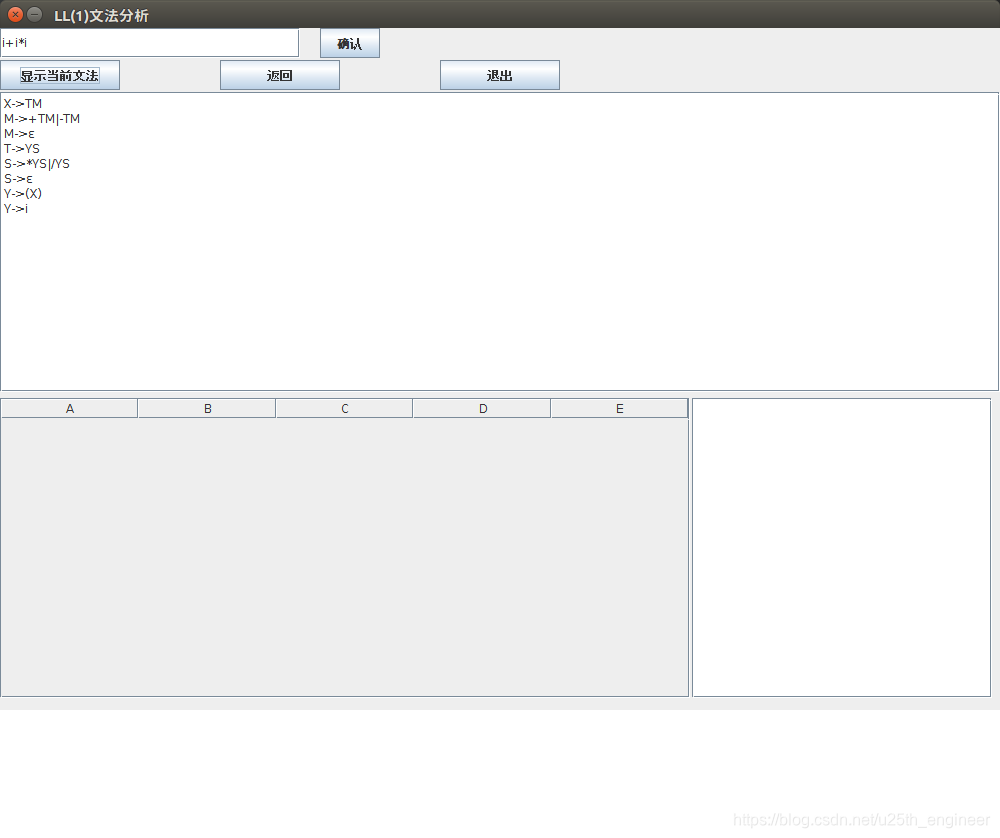

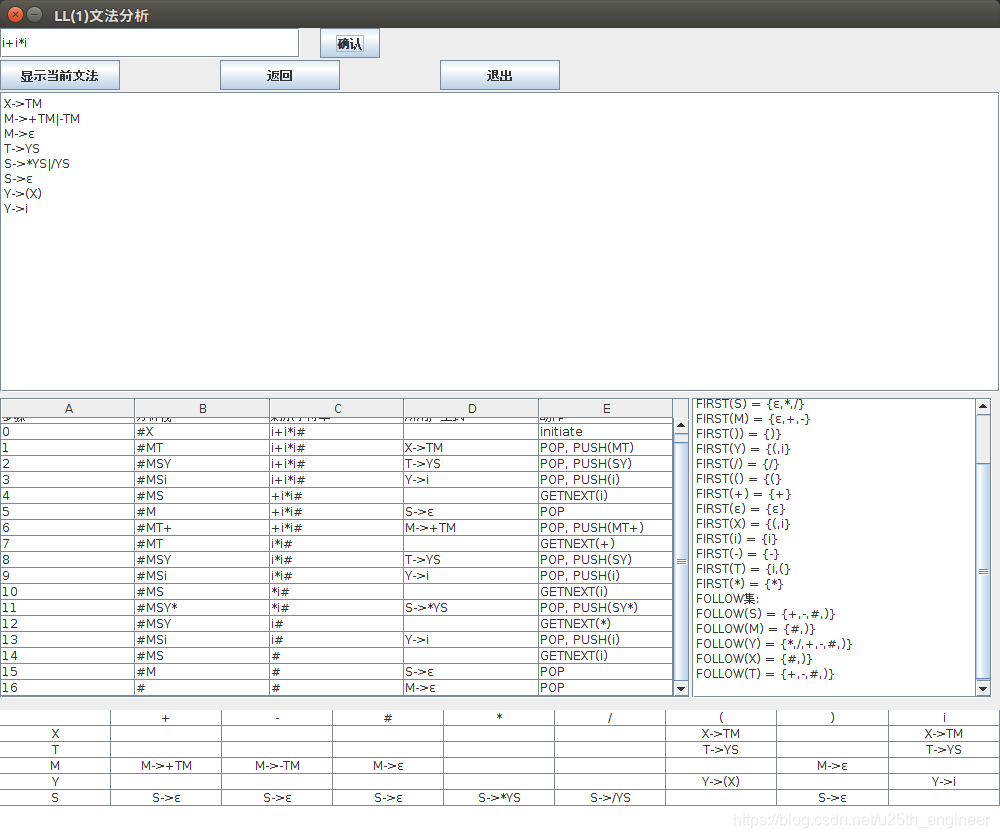

def GUI2(): Unit = {
val jFrame = new JFrame("LL(1)文法分析");
jFrame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE)
jFrame.setResizable(false)
jFrame.setBounds(0,0,1000,810);
jFrame.setLayout(null)
//输入行
val inputJPanel = new JPanel();
inputJPanel.setBounds(0,0,1000,30);
inputJPanel.setLayout(null);
val inputJTextField = new JTextField();
inputJTextField.setBounds(0,0,300,30);
// inputJTextField.setText("i+i*i*i#");
// inputJTextField.setPreferredSize(new Dimension(300,30));
val inputJButton = new JButton("确认");
inputJButton.setBounds(320,0,60,30);
// inputJButton.setPreferredSize(new Dimension(30,30));
inputJPanel.add(inputJTextField)
inputJPanel.add(inputJButton)
jFrame.add(inputJPanel);
val displayFileJTextPane = new JTextPane();
displayFileJTextPane.setEditable(false);
val displayFileJScrollPane = new JScrollPane();
displayFileJScrollPane.setBounds(0,64,1000,300);
displayFileJScrollPane.setViewportView(displayFileJTextPane);
jFrame.add(displayFileJScrollPane)
//添加文件按钮
// val appendFileJButton = new JButton("添加文件");
val appendFileJButton = new JButton("显示当前文法")
appendFileJButton.setBounds(0, 32,120,30)
appendFileJButton.addActionListener(new ActionListener {
override def actionPerformed(e: ActionEvent): Unit = {
displayFileJTextPane.setText(staticStringBuilder2.toString());
}
})
val appendFileJButton2 = new JButton("返回")
appendFileJButton2.setBounds(220, 32, 120, 30)
appendFileJButton2.addActionListener(new ActionListener {
override def actionPerformed(e: ActionEvent): Unit = {
GUI1
jFrame.dispose()
}
})
val appendFileJButton3 = new JButton("退出")
appendFileJButton3.setBounds(440, 32, 120, 30)
appendFileJButton3.addActionListener(new ActionListener {
override def actionPerformed(e: ActionEvent): Unit = {
jFrame.dispose()
}
})
jFrame.add(appendFileJButton)
jFrame.add(appendFileJButton2)
jFrame.add(appendFileJButton3)
val dataMode1 = new AbstractTableModel() {
override def getColumnCount = 5
override
def getRowCount = staticAnalyseList.length
override
def getValueAt(row: Int, col: Int): String = {
val a = staticAnalyseList(row);
if(col == 0){
return a.getStep();
}
if(col == 1){
return a.getAnalysisStack;
}
if(col == 2){
return a.getRemainingString;
}
if(col == 3){
return a.getProductionType;
}
if(col == 4){
return a.getAction;
}
return new String();
}
}
val table1JScrollPane = new JScrollPane();
val table1JTable = new JTable(dataMode1);
table1JScrollPane.setBounds(0,370,690,300)
// table1JTable.setBounds(0,170,500,300);
table1JScrollPane.setViewportView(table1JTable);
val table1JTextPaneScrollPan = new JScrollPane();
table1JTextPaneScrollPan.setBounds(692,370,300,300);
val table1JTextPane = new JTextPane();
table1JTextPane.setEditable(false);
table1JTextPaneScrollPan.setViewportView(table1JTextPane);
jFrame.add(table1JTextPaneScrollPan);
jFrame.add(table1JScrollPane);
val table2JScrollPane = new JScrollPane();
table2JScrollPane.setBounds(0,682,300,300)
// table2JScrollPane.setBounds(0,482);
val table2JTable = new JTable();
table2JTable.setBounds(0,682,1000,300);
val r = new DefaultTableCellRenderer();
r.setHorizontalAlignment(0)
table2JTable.setDefaultRenderer(classOf[Any],r);
table2JScrollPane.add(table2JTable)
jFrame.add(table2JTable);
jFrame.setVisible(true);
inputJButton.addActionListener(new ActionListener {
override def actionPerformed(e: ActionEvent): Unit = {
staticAnalyseList.clear();
// staticTestMatrix : Array[ Array[String] ] = new Array[Array[String]](0)
staticTestMatrix = createMatrix();
analyse( inputJTextField.getText() + "#" );
val dataMode1 = new AbstractTableModel() {
override def getColumnCount = 5
override
def getRowCount = staticAnalyseList.length
override
def getValueAt(row: Int, col: Int): String = {
val a = staticAnalyseList(row);
if(col == 0){
return a.getStep();
}
if(col == 1){
return a.getAnalysisStack;
}
if(col == 2){
return a.getRemainingString;
}
if(col == 3){
return a.getProductionType;
}
if(col == 4){
return a.getAction;
}
return new String();
}
}
table1JTable.setModel(dataMode1);
val dataMode2 = new AbstractTableModel() {
override def getColumnCount = 9
override
def getRowCount = staticTestMatrix.length
override
def getValueAt(row: Int, col: Int) = staticTestMatrix(row)(col)
}
table2JTable.setModel(dataMode2);
table1JTextPane.setText(staticStringBuilder.toString())
}
})
}
/*
* Function name: initiate
* Function description: 初始化全局变量
* Input parameters: the absolute path of the language-rule source file
* Return value: 无
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def initiate( filePath: String ): Unit = {
LL1_G = parseFile(filePath)
allCharacters = getWholeCharacters(LL1_G)
usedCharacters = allCharacters
relations = getRelation(LL1_G)
VN = getVN(allCharacters)
VT = getVT(allCharacters)
eliminateLeftRecursion // eliminate all the left recursion at first
}
/*
* Function name: displayRelations
* Function description: display all he language rules
* Input parameters: 无
* Return value: 无
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def displayRelations(): Unit = {
for( ex <- relations ) {
if( ex._3 != "א" ) {
println( ex._1 + "->" + ex._2 + "|" + ex._3 )
}
else {
println( ex._1 + "->" + ex._2 )
}
}
}
/*
* Function name: parseFile
* Function description: 解析文本文件，保存在数组中
* Input parameters: 文本绝对路径
* Return value: -ArrayBuffer[ ( String, String ) ]（String类型的元组ArrayBuffer数组）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 18 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 18 2019 +0800
*/
def parseFile( filePath: String ): ArrayBuffer[ ( String, String ) ] = {
val result = new ArrayBuffer[ ( String, String ) ]( countLines( readFromTxtByLine(filePath) ) )
val sourceFile = readFromTxtByLine(filePath) //filePath
for( line <- sourceFile ) {
val tmp = line.split( "->", 2 )
result += ( ( tmp.head, tmp.last ) )
}
result
}
/*
* Function name: countLines
* Function description: 计算文本行数，用于创建接收数组时开辟相应空间
* Input parameters: -Array[String]（文本文件数据构成的数组）
* Return value: -Int（文本行数）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 18 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def countLines( sourceFile: Array[String] ): Int = {
var cnt = 0
for( line <- sourceFile ) {
cnt += 1
}
cnt
}
/*
* Function name: readFromTxtByLine
* Function description: 读取文本文件
* Input parameters: -String（文本文件绝对路径）
* Return value: -Array[String]（文本文件构成的数组，每行数据占一个数组元素）
* Exception: -未处理
* Author: 来自高山
* Created date: Fri Oct 18 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 18 2019 +0800
*/
def readFromTxtByLine(filePath: String): Array[String] = {
import scala.io.Source
val source = Source.fromFile(filePath, "UTF-8")
//val lineIterator = source.getLines()
//lineIterator.foreach()
val lines = source.getLines().toArray
source.close()
//println(lines.size)
lines
}
/*
* Function name: getWholeCharacters
* Function description: 获取文法的除“|”之外的所有字符
* Input parameters: -ArrayBuffer[ (String, String) ]（由文法左右两部分字符构成一个元组的数组，筛掉“|”）
* Return value: -String（文法的除“|”之外的所有字符）
* Exception: 未处理（有出错提示）
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def getWholeCharacters( string: ArrayBuffer[ (String, String) ] ): String = {
var wholeCharacters = ""
for( expression <- string ) {
wholeCharacters += expression._1 + expression._2
}
val pattern = new Regex("\\|")
val result = pattern replaceAllIn( wholeCharacters, "" )
if( result.isEmpty )
"function getWholeCharacters failed"
else
result.distinct
}
/*
* Function name: getVN
* Function description: 获取文法的所有非终结符（non-terminal character），默认大写字母为非终结符，使用正则表达式匹配
* Input parameters: -String（函数getWholeCharacters传来的文法的所有字符）
* Return value: -String（文法的所有非终结符）
* Exception: 未处理（有出错提示）
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def getVN( string: String ): String = {
//match big letter:
//^[A-Z]+$
val pattern = new Regex("[A-Z]")//("^[A-Z]+$")
if( (pattern findAllIn string) != null )
(pattern findAllIn string).mkString("")
else
"function getVN failed"
}
/*
* Function name: getVT
* Function description: 获取文法的所有非终结符（terminal character），默认大写字母外的字符为终结符，使用正则表达式匹配
* Input parameters: -String（函数getWholeCharacters传来的文法的所有字符）
* Return value: -String（文法的所有终结符）
* Exception: 未处理（有出错提示）
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def getVT( string: String ): String = {
val pattern1 = new Regex("[A-Z]")
val pattern2 = new Regex("\\|")
val firstFilter = pattern1 replaceAllIn( string, "" )
val result = pattern2 replaceAllIn( firstFilter, "" )
if( result.isEmpty == false )
result
else
return "function getVT failed"
}
/*
* Function name: getRelation
* Function description: 获取文法每一行对应的推导关系，若文法只推出了1项（即没有符号“|”），则返回元组的第三个用希伯来字母“א”示空
* Input parameters: -ArrayBuffer[ (String, String)（已经分割好的文法左右部分构成的数组）
* Return value: -ArrayBuffer[ (String, String, String) ]（元组第一个元素为推导式左边符号，第二为右边第二个符号串，第三为右边（若有）第三个符号串）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def getRelation( string: ArrayBuffer[ (String, String) ] ): ArrayBuffer[ (String, String, String) ] = {
val relation = new ArrayBuffer[ (String, String, String) ]()
for( expression <- string ) {
if( expression._2.contains("|") == false ) {
relation += ( ( expression._1, expression._2, "א" ) )
}
else {
val tmp = expression._2.split("\\|", 2 )
relation += ( ( expression._1, tmp.head, tmp.last ) )
}
}
relation
}
/*
* Function name: findFirst
* Function description: 获取指定字符的右边两个（可能是一个）导出字符串的首个非 ε 组成的字符串
* Input parameters: -String（指定字符）
* Return value: -String（指定字符的右边两个（可能是一个）导出字符串的首个非 ε 组成的字符串）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def findFirst( ch: String ): String = {
val localRelations = relations
var result = ""
for( ex <- localRelations ) {
if( ch == ex._1 ) {
if( ex._3 != "א" ) {
if( VT.contains( ex._2(0) ) && ex._2(0) != 'ε' ) {
result += ex._2(0).toString
}
if( VT.contains( ex._3(0) ) && ex._3(0) != 'ε' ) {
result += ex._3(0).toString
}
}
else {
if( VT.contains( ex._2(0) ) && ex._2(0) != 'ε' ) {
result += ex._2(0).toString
}
}
}
}
result
}
/*
* Function name: judgeOnlyOneVoidSuccession
* Function description: 判断指定字符是否可推出唯一的字符ε
* Input parameters: -String（指定字符串）
* Return value: -Boolean（存在则true，否则false）
* Exception: 未处理
* Author: 来自高山
* Created date: Fri Oct 11 2019 +0800
* Editor: 来自高山
* Edited Date: Fri Oct 11 2019 +0800
*/
def judgeOnlyOneVoidSuccession( ch: String ): Boolean = {
val localRelations = relations
var result = 1
for( ex <- localRelations ) {
if( ch == ex._1 ) {
if( ex._3 != "א" ) {
if( ( ex._2.length == 1 && ex._2(0) == 'ε' ) || (ex._3.length == 1 && ex._3(0) == 'ε') ) {
result = 1
}
else {
result = 0
}
}
else {
if( ( ex._2.length == 1 && ex._2(0) == 'ε' ) ) {
result = 1
}
else {
result = 0
}
}
}
}
if( result == 1 ) true else false
}
/*
* Function name: judgeCaseXY
* Function description: 判断构造FIRST集时可能的第3种情况的（1），即若X->Y...是一个产生式且Y∈VN（省略若干描述）
* Input parameters: -Char（指定字符，即可能满足条件的产生式的左边字符）
* Return value: -Boolean（满足则true，否则false）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 12 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 12 2019 +0800
*/
def judgeCaseXY( ch: Char ): Boolean = {
val localVN = VN
val localRelations = relations
var result = 0
if( localVN.contains(ch) == true ) {
for( ex <- localRelations ) {
if( ex._1(0) == ch ) {
if( localVN.contains( ex._2(0) ) || localVN.contains( ex._3(0) ) ) {
result += 1
}
}
}
}
if( result > 0 )
true
else
false
}
/*
* Function name: findCase_Y_In_XY
* Function description: 获取构造FIRST集时可能的第3种情况的（1），即若X->Y...是一个产生式且Y∈VN（省略若干描述）时的Y
* Input parameters: -Char（指定字符，即可能满足条件的产生式的左边字符）
* Return value: -String（Y构成的String字符串，无则为空）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 12 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 12 2019 +0800
*/
def findCase_Y_In_XY( ch: Char ): String = {
val localVN = VN
val localRelations = relations
var result = ""
if( localVN.contains(ch) == true ) {
for( ex <- localRelations ) {
if( ex._1(0) == ch ) {
if( ex._3 != "א" ) {
if( localVN.contains( ex._2(0) ) == true ) {
result += ex._2(0).toString
}
if( localVN.contains( ex._3(0) ) == true ) {
result += ex._3(0).toString
}
}
else {
if( localVN.contains( ex._2(0) ) == true ) {
result += ex._2(0).toString
}
}
}
}
}
result
}
/*
* Function name: findCase_Y_In_nY
* Function description: 获取构造FIRST集时可能的第3种情况的（2）时的FIRST(Yi)中所有的非ε-元素（省略描述若干字）
* Input parameters: -Char（指定字符，即可能满足条件的产生式的左边字符）
* Return value: -String（FIRST(Yi)中所有的非ε-元素构成的String字符串，无则为空）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 12 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 12 2019 +0800
*/
def findCase_Y_In_nY( ch: Char ): String = {
val localVN = VN
val localRelations = relations
var result = ""
for( ex <- localRelations ) {
if (ex._1 == ch.toString) {
var tmp = ""
if (ex._3 != 'א') {
var cnt = 0
for (tx <- ex._2) {
// add the element belongs to tmp
if (localVN.contains(tx)) {
tmp += tx.toString
cnt += 1
}
// otherwise, reset tmp as empty string
else {
tmp = ""
}
}
if (cnt == ex._2.length) {
result += tmp
}
// reset
cnt = 0
tmp = ""
for (tx <- ex._3) {
// add the element belongs to tmp
if (localVN.contains(tx)) {
tmp += tx.toString
cnt += 1
}
// otherwise, reset result as empty string
else {
tmp = ""
}
}
if (cnt == ex._3.length) {
result += tmp
}
}
else {
tmp = ""
var cnt = 0
for (tx <- ex._2) {
// add the element belongs to tmp
if (localVN.contains(tx)) {
tmp += tx.toString
cnt += 1
}
// otherwise, reset tmp as empty string
else {
tmp = ""
}
}
if (cnt == ex._2.length) {
result += tmp
}
}
}
}
result = result.distinct
result
}
/*
* Function name: FIRST
* Function description: 按照教材P78左下角的算法描述实现求解指定文法FIRST集；因用的是循环迭代求解，因此代码较长
* Input parameters: -ArrayBuffer[ (String, String) ]（产生式左右两部分分别构成元组的第1个和第2个元素）
* Return value: -Map[ String, String ]（Map的key是非终结符，value是其FIRST元素）
* Exception: 未处理
* Author: 来自高山
* Created date: Mon Oct 14 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def FIRST( string: ArrayBuffer[ (String, String) ] ): Map[ String, String ] = {
val FIRST_Group = Map[ String, String ]()
val wholeCharacters = allCharacters
val localVT = VT
val localVN = VN
for( character <- wholeCharacters ) {
// case 1
if( localVT.contains(character) ) {
//if there exist the original key that equals the current one
if( FIRST_Group.contains(character.toString) == true ) {
val tmp = character.toString + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
//otherwise
else {
FIRST_Group(character.toString) = character.toString
}
}
// case 2
if( localVN.contains(character.toString) == true ) {
// case 2.1
val value = findFirst(character.toString)
if ( value.length != 0 ) {
if ( FIRST_Group.contains(character.toString) == true ) {
for( ch <- value ) {
val tmp = ch + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
}
else {
FIRST_Group(character.toString) = value.toString
}
}
// case 2.2
if( judgeOnlyOneVoidSuccession(character.toString) == true ) {
if ( FIRST_Group.contains(character.toString) == true ) {
val tmp = "ε" + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
else {
FIRST_Group(character.toString) = "ε"
}
}
}
for( character <- wholeCharacters ) {
// case 3
// case 3.1
if( judgeCaseXY(character) == true ) {
val tmpReply = findCase_Y_In_XY(character)
for( eachTmpReply <- tmpReply ) {
if( FIRST_Group.contains(eachTmpReply.toString) == true ) {
for (ex <- FIRST_Group(eachTmpReply.toString)) {
if (ex != 'ε') {
if (FIRST_Group.contains(character.toString) == true) {
val tmp = ex.toString + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
else {
FIRST_Group(character.toString) = ex.toString
}
}
}
}
}
}
// case 3.2
if( findCase_Y_In_nY(character).length > 0 ) {
var flag = true
val tmpReply = findCase_Y_In_nY(character)
for( ex <- tmpReply ) {
if( localVN.contains(ex.toString) && FIRST_Group.contains(ex.toString) == true ) {
if( FIRST_Group(ex.toString).contains("ε") == false ) {
flag = false
}
}
else {
flag = false
}
if( flag == true ) {
if (FIRST_Group.contains(character.toString) == true) {
val tmp = FIRST_Group(ex.toString).replace( "ε", "" ) + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
else {
FIRST_Group(character.toString) = FIRST_Group(ex.toString).replace( "ε", "" )
}
}
}
}
// case 3.3
if( findCase_Y_In_nY(character).length > 0 ) {
var flag = true
val tmpReply = findCase_Y_In_nY(character)
for( ex <- tmpReply ) {
if( localVN.contains(ex.toString) && FIRST_Group.contains(ex.toString) == true ) {
if( FIRST_Group(ex.toString).contains("ε") == false ) {
flag = false
}
}
else {
flag = false
}
if( flag == true ) {
if (FIRST_Group.contains(character.toString) == true) {
val tmp = "ε" + FIRST_Group(character.toString)
FIRST_Group(character.toString) = tmp.distinct
}
else {
FIRST_Group(character.toString) = "ε"
}
}
}
}
}
}
FIRST_Group
}
/*
* Function name: FOLLOW
* Function description: 根据dfsFOLLOW函数，获取各个非终结符的FOLLOW集元素
* Input parameters: -ArrayBuffer[ (String, String) ]（产生式左右两部分分别构成元组的第1个和第2个元素）
* Return value: -Map[ String, String ]（Map的key是非终结符，value是其FOLLOW集元素）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def FOLLOW( string: ArrayBuffer[ (String, String) ] ): Map[ String, String ] = {
val localVN = VN
val FOLLOW_Group = Map[ String, String ]()
for( ch <- localVN ) {
FOLLOW_Group(ch.toString) = dfsFOLLOW(ch.toString)
}
FOLLOW_Group
}
/*
* Function name: dfsFOLLOW
* Function description: 使用深度优先搜索（DFS）寻找各个非终结符的FOLLOW集元素
* Input parameters: -String（指定的非终结符）
* Return value: -String（指定终结符的FOLLOW集元素）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def dfsFOLLOW( ch: String ): String = {
val FOLLOWPositions = Map[ String, String ]()
val FOLLOW_Group = Map[ String, String ]()
val localLL1_G = LL1_G
val FIRST_Group = FIRST(localLL1_G)
val localVN = VN
for( ch <- localVN ) {
FOLLOWPositions(ch.toString) = findGivenValueFOLLOWPosition(ch.toString)
FOLLOW_Group(ch.toString) = "#"
}
var result = ""
if( FOLLOWPositions(ch).length == 4 ) {
if( FOLLOWPositions(ch)(1).toString == "T" ) {
result += FIRST_Group( FOLLOWPositions(ch)(0).toString )
FOLLOW_Group(ch) += result.distinct
}
else if( FOLLOWPositions(ch)(3).toString == "T" ) {
result += FIRST_Group( FOLLOWPositions(ch)(2).toString )
FOLLOW_Group(ch) += result.distinct
}
if( FOLLOWPositions(ch)(1).toString == "W" ) {
result += dfsFOLLOW( FOLLOWPositions(ch)(0).toString )
FOLLOW_Group(ch) = result.distinct
}
else if( FOLLOWPositions(ch)(3).toString == "W" ) {
result += dfsFOLLOW( FOLLOWPositions(ch)(2).toString )
FOLLOW_Group(ch) = result.distinct
}
}
if( FOLLOWPositions(ch).length == 2 ) {
if( FOLLOWPositions(ch)(1).toString == "T" ) {
result += FIRST_Group( FOLLOWPositions(ch)(0).toString )
FOLLOW_Group(ch) = result.distinct
}
else if( FOLLOWPositions(ch)(1).toString == "W" ) {
result += dfsFOLLOW( FOLLOWPositions(ch)(0).toString )
FOLLOW_Group(ch) = result.distinct
}
}
FOLLOW_Group(ch).replace("ε", "")
}
/*
* Function name: findGivenValueFOLLOWPosition
* Function description: 按照教材P79右上角的算法描述，求解构成每个非终结符的FOLLOW集的“依赖”（因为实现了这个函数，节省了我原先用循环叠加求解FOLLOW集的700+代码）
* Input parameters: -String（指定终结符）
* Return value: -String（指定终结符的FOLLOW集元素，无则为空）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def findGivenValueFOLLOWPosition( ch: String ): String = {
var result = ""
val cnt = new ArrayBuffer[String]()
val localRelations = relations
for( ex <- localRelations ) {
if( ex._3 != "א" ) {
if( ex._2.contains(ch) ) {
// מ
if( ex._2.length == 3 ) {
// B A α B β
if( ex._2(1).toString == ch && judgeCase2( ex._1, ex._2(0).toString, ch, ex._2(2).toString ) ) {
val value = ex._2(2).toString + "T"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
// B A α B β
if( ex._2(1).toString == ch && judgeCase3( ex._1, ex._2(0).toString, ch, ex._2(2).toString ) ) {
val value = ex._1.toString + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
if( ex._2.length == 2 ) {
// B A α B
if( ex._2(1).toString == ch && judgeCase3( ex._1, ex._2(0).toString, ch, "" ) ) {
val value = ex._1 + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
}
if( ex._3.contains(ch) ) {
if( ex._3.length == 3 ) {
// B A α B β
if( ex._3(1).toString == ch && judgeCase2( ex._1, ex._3(0).toString, ch, ex._3(2).toString ) ) {
val value = ex._3(2).toString + "T"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
if( ex._3(1).toString == ch && judgeCase3( ex._1, ex._3(0).toString, ch, ex._3(2).toString ) ) {
val value = ex._1 + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
if( ex._3.length == 2 ) {
// B A α B
if( ex._3(1).toString == ch && judgeCase3( ex._1, ex._3(0).toString, ch, "" ) ) {
val value = ex._1 + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
}
}
else {
if( ex._2.contains(ch) ) {
if( ex._2.length == 3 ) {
// B A α B β
if( ex._2(1).toString == ch && judgeCase2( ex._1, ex._2(0).toString, ch, ex._2(2).toString ) ) {
val value = ex._2(2).toString + "T"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
if( ex._2(1).toString == ch && judgeCase3( ex._1, ex._2(0).toString, ch, ex._2(2).toString ) ) {
val value = ex._1 + "T"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
if( ex._2.length == 2 ) {
// B A α B
if( ex._2(1).toString == ch && judgeCase3( ex._1, ex._2(0).toString, ch, "" ) ) {
val value = ex._1 + "W"
if( cnt.contains(value) == false ) {
cnt += value
result += value
}
}
}
}
}
}
result
}
/*
* Function name: judgeCase2
* Function description: 按照教材P79右下角的算法描述，判断是否填充满足条件（2）的矩阵元素
* Input parameters: -String, String, String, String[分别代表条件（2）的四个字符]
* Return value: -Boolean（满足条件（2）则返回true，否则返回false）
* Exception: 未处理
* Author: 来自高山
* Created date: Tue Oct 15 2019 +0800
* Editor: 来自高山
* Edited Date: Tue Oct 15 2019 +0800
*/
def judgeCase2( A: String, α: String, B: String, β: String ): Boolean = {
val localVN = VN
val wholeCharacters = allCharacters
val localLL1_G = LL1_G
val localFIRST = FIRST(localLL1_G)
if( localVN.contains(A) == true && wholeCharacters.contains(α) == true && localVN.contains(B) == true &&
wholeCharacters.contains(β) && localFIRST.contains(β) == true ) {
true
}
else {
false
}
}
/*
* Function name: judgeCase3
* Function description: 按照教材P79右下角的算法描述，判断是否填充满足条件（3）的矩阵元素
* Input parameters: -String, String, String, String[分别代表条件（3）的四个字符]
* Return value: -Boolean（满足条件（3）则返回true，否则返回false）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def judgeCase3( A: String, α: String, B: String, β: String ): Boolean = {
val localVN = VN
val wholeCharacters = allCharacters
val localLL1_G = LL1_G
val localFIRST = FIRST(localLL1_G)
if( ( localVN.contains(A) == true && wholeCharacters.contains(α) == true && localVN.contains(B) == true ) ||
( localVN.contains(A) == true && wholeCharacters.contains(α) == true && localVN.contains(B) == true && localFIRST(β).contains("ε") == true ) ) {
true
}
else {
false
}
}
/*
* Function name: initiateMatrix
* Function description: 初始化分析表（为了在控制台打印方便，表长为非终结符个数加一，表宽为终结符个数加一）
* Input parameters: 无
* Return value: -Array[ Array[ String] ]（分析表矩阵元素构成的二维数组，除了第0行和第0列，其它列与行的元素均为null）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def initiateMatrix(): Array[ Array[ String] ] = {
val localVN = VN
val localVT = VT
val result = Array.ofDim[String](localVN.length + 1, localVT.length + 1)
for( i <- 1 to localVN.length ) {
result(i)(0) = localVN(i - 1).toString
}
for( j <- 1 to localVT.length ) {
if( localVT(j - 1).toString == "ε" ) {
result(0)(j) = "#"
}
else {
result(0)(j) = localVT(j - 1).toString
}
}
result
}
/*
* Function name: createMatrix
* Function description: 按照教材P79右下角的算法描述，构造分析表
* Input parameters: 无
* Return value: -Array[ Array[String] ]（分析表矩阵元素构成的二维数组）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def createMatrix(): Array[ Array[String] ] = {
val result = initiateMatrix()
val localVT = VT
val localRelations = relations
val localLL1_G = LL1_G
val localFIRST = FIRST(localLL1_G)
val localFOLLOW = FOLLOW(localLL1_G)
for( ex <- localRelations ) {
if( ex._3 != "א" ) {
for( a <- localVT ) {
val ex2Length = ex._2.length
var range = ""
var α = ""
var flag = false
for( x <- 0 to (ex2Length - 1) ) {
if( localFIRST( ex._2(x).toString ).contains("ε") == false && flag == false ) {
α = ex._2(x).toString
range = localFIRST( α )
flag = true
}
}
if( range.contains(a) == true && flag == true ) {
result(getRow(ex._1))(getColumn(a.toString)) = ex._1 + "->" + ex._2
}
if( flag == false ) {
range = "ε"
result( getRow(ex._1) )( getColumn("ε") ) = ex._1 + "->" + "ε"
}
// case 3
if( range.contains("ε") == true && flag == false ) {
for( b <- localFOLLOW(α) ) {
result( getRow(ex._1.toString) )( getColumn(b.toString) ) = ex._1 + "->" + ex._2 // t --> tx
}
}
val ex3Length = ex._3.length
range = ""
flag = false
for( x <- 0 to (ex3Length - 1) ) {
if( localFIRST( ex._3(x).toString ).contains("ε") == false && flag == false ) {
α = ex._3(x).toString
range = localFIRST( α )
flag = true
}
}
if( range.contains(a) == true && flag == true ) {
result( getRow(ex._1) )( getColumn(a.toString) ) = ex._1 + "->" + ex._3
}
if( flag == false ) {
range = "ε"
result(getRow(ex._1))(getColumn("ε")) = ex._1 + "->" + "ε"
}
// case 3
if( range.contains("ε") == true && flag == false ) {
for( b <- localFOLLOW(ex._1) ) {
result( getRow(ex._1.toString) )( getColumn(b.toString) ) = ex._1 + "->" + ex._3 // t --> tx
}
}
}
}
else {
for( a <- localVT ) {
val ex2Length = ex._2.length
var range = ""
var α = ""
var flag = false
for( x <- 0 to (ex2Length - 1) ) {
if( localFIRST( ex._2(x).toString ).contains("ε") == false && flag == false ) {
α = ex._2(x).toString
range = localFIRST(α)
flag = true
}
}
if( range.contains(a) == true && flag == true ) {
result( getRow(ex._1) )( getColumn(a.toString) ) = ex._1 + "->" + ex._2
}
if( flag == false ) {
range = "ε"
result( getRow(ex._1) )( getColumn("ε") ) = ex._1 + "->" + "ε"
}
// case 3
if( range.contains("ε") == true && flag == false ) {
for( b <- localFOLLOW(ex._1) ) {
result( getRow(ex._1.toString) )( getColumn(b.toString) ) = ex._1 + "->" + ex._2
}
}
}
}
}
result
}
/*
* Function name: getRow
* Function description: 获取指定字符在分析表中的行数
* Input parameters: -String（指定字符）
* Return value: -Int（指定字符所在的行数）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def getRow( ch: String ): Int = {
val matrix = initiateMatrix()
var result = -1
if( ch == "α" ) {
println( "1 --- getRow, ch == " + ch )
}
for( i <- 0 to (matrix.length - 1) ) {
if( matrix(i)(0) == ch ) {
result = i
}
}
result
}
/*
* Function name: getColumn
* Function description: 获取指定字符在分析表中的列数
* Input parameters: -String（指定字符）
* Return value: -Int（指定字符所在的列数）
* Exception: 未处理
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def getColumn( ch: String ): Int = {
val matrix = initiateMatrix()
var result = -1
for( i <- 0 to (matrix.length - 1) ) {
for( j <- 0 to (matrix(i).length - 1) ) {
if( matrix(0)(j) == ch ) {
result = j
}
if( matrix(0)(j) == "#" && ch == "ε" ) {
result = j
}
}
}
result
}
/*
* Function name: analyse
* Function description: 对指定的字符串进行LL(1)分析
* Input parameters: -String（输入的指定字符串）
* Return value: -Boolean（分析成功则返回true，否则false）
* Exception: 未处理（有出错提示）
* Author: 来自高山
* Created date: Wed Oct 16 2019 +0800
* Editor: 来自高山
* Edited Date: Wed Oct 16 2019 +0800
*/
def analyse( expression: String ): Boolean = {
val stack = new mutable.Stack[String]()
var localExpression = expression
val table = createMatrix()
val localVT = VT
val localVN = VN
val localRelations = relations
stack.push("#")
stack.push( localRelations(0)._1 )
var cnt = 0
staticAnalyseList.append(new Analyse("步骤","分析栈","剩余字符串","所用产生式","动作"));
staticAnalyseList.append(new Analyse(cnt.toString, displayStack(stack).reverse.toString,localExpression.toString,"","initiate"));
while( stack.isEmpty == false ) {
val stackTop = stack.top
stack.pop()
// 栈顶符号属于 非终结符
if( localVN.contains(stackTop) == true ) {
// 栈顶符号与表达式左端首字符 存在 关系
if( table( getRow(stackTop) )( getColumn( localExpression(0).toString ) ) != null ) {
val lastHalf = table( getRow(stackTop) )( getColumn( localExpression(0).toString ) ).split( "->", 2 ).last
val length = lastHalf.length
for( i <- 0 to (length - 1) ) {
if( lastHalf != "ε" ) {
stack.push(lastHalf(length - 1 - i).toString)
}
}
cnt += 1
if( lastHalf != "ε" ) {
staticAnalyseList.append(new Analyse(cnt.toString, displayStack(stack).reverse.toString, localExpression.toString, table(getRow(stackTop))(getColumn(localExpression(0).toString)), "POP, PUSH(" + lastHalf.reverse + ")"));
}
else {
staticAnalyseList.append(new Analyse(cnt.toString, displayStack(stack).reverse.toString, localExpression.toString, table(getRow(stackTop))(getColumn(localExpression(0).toString)), "POP"));
}
}
// 栈顶符号与表达式左端首字符 不存在 关系
else {
// 栈顶符号 等于 表达式左端首字符
if( stackTop == "#" && localExpression(0).toString == "#" ) {
println("11111")
return true
}
// 栈顶符号 不等于 表达式左端首字符
else {
println("1 - error")
staticAnalyseList.append(new Analyse(cnt.toString, displayStack(stack).reverse.toString,localExpression.toString,"",""));
return false
}
}
}
// 栈顶符号属于 终结符
if( localVT.contains(stackTop) == true ) {
// 栈顶符号 等于 表达式左端首字符
if( stackTop == localExpression(0).toString ) {
if( stackTop == localExpression(0).toString ) {
//stack.pop()
localExpression = localExpression.drop(1)
cnt += 1
staticAnalyseList.append(new Analyse(cnt.toString, displayStack(stack).reverse.toString,localExpression.toString,"","GETNEXT(" + stackTop + ")"));
}
// 栈顶符号 不等于 表达式左端首字符
else {
println("2 - error")
return false
}
}
}
}
true
}
/*
* Function name: judgeLeftRecursion
* Function description: 判断是否存在形式上的左递归
* Input parameters: -(String, String, String)（产生式的左端与右端的两个（或为1个）元素）
* Return value: -Int（0表示无，1表示右端第1个元素存在形式上的左递归，2表示右端第2个元素）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def judgeLeftRecursion( expression: (String, String, String) ): Int = {
var ans = 0 // ans = 0 means the current expression is not involved left-recursion
if( expression._2.length >= 2 && expression._1 == expression._2(0).toString && expression._2.drop(1) != "ε" ) {
ans += 1 // ans = 1 means the left recursion involves the expression._2
}
if( expression._3.length >= 2 && expression._1 == expression._3(0).toString && expression._3.drop(1) != "ε" ) {
ans += 2 // ans = 2 means the left recursion involves the expression._3
}
ans // ans = 3 means the given expression is false since both exp(2) and exp(3) involved
}
/*
* Function name: eliminateLeftRecursion
* Function description: 消除形式上的左递归
* Input parameters: 无
* Return value: -ArrayBuffer[ (String, String, String) ]（消除左递归后的新文法）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def eliminateLeftRecursion(): ArrayBuffer[ (String, String, String) ] = {
var localRelations = relations
var invalidRelations = new ArrayBuffer[ (String, String, String) ]()
val localCandidateLetters = allCandidateLetters
val VN1 = "ΑΒΓΔΕΖΗΘΙΚΛΜΝΞΟΠΡΣΤΥΦΧΨΩABCDEFGHIJKLMNOPQRSTUVWXYZ"
val VT1 = "αβγδεζηθικλμνξοπρστυφχψωabcdefghijklmnopqrstuvwxyz"
for( ex <- localRelations ) {
if( ex._3 != "א" ) {
if( judgeLeftRecursion( ex._1, ex._2, ex._3 ) == 1 ) {
// P = ex._1, α = ex._2 - ex._1, β = ex._3, P' = newValue
invalidRelations += ( ( ex._1, ex._2, ex._3 ) )
val newValue = subString( usedCharacters, localCandidateLetters )(0)
usedCharacters += newValue
if( VN1.contains(newValue) && !VN.contains(newValue) ) {
VN += newValue.toString
allCharacters += newValue.toString
}
if( VT1.contains(newValue) && !VT.contains(newValue) ) {
VT += newValue.toString
allCharacters += newValue.toString
}
val α = ex._2.drop(1)
val exp1 = ( ex._1, ex._3 + newValue.toString, "א" )
val exp2 = ( newValue.toString, α.toString + newValue.toString, "ε" )
// println( "1 -- exp1._1 = " + exp1._1 + ", exp1._2 = " + exp1._2 + ", exp1._3 = " + exp1._3 )
// println( "1 -- exp2._1 = " + exp2._1 + ", exp2._2 = " + exp2._2 + ", exp2._3 = " + exp2._3 )
localRelations += exp1
localRelations += exp2
}
else if( judgeLeftRecursion( ex._1, ex._2, ex._3 ) == 2 ) {
// P = ex._1, α = ex._3 - ex._1, β = ex._3, P' = newValue
invalidRelations += ( ( ex._1, ex._2, ex._3 ) )
val newValue = subString( usedCharacters, localCandidateLetters )(0)
if( VN1.contains(newValue) && !VN.contains(newValue) ) {
VN += newValue.toString
allCharacters += newValue.toString
}
if( VT1.contains(newValue) && !VT.contains(newValue) ) {
VT += newValue.toString
allCharacters += newValue.toString
}
usedCharacters += newValue
val α = ex._3.drop(1)
val exp1 = ( ex._1, ex._3 + newValue.toString, "א" )
val exp2 = ( newValue.toString, α.toString + newValue.toString, "ε" )
// println( "2 -- exp1._1 = " + exp1._1 + ", exp1._2 = " + exp1._2 + ", exp1._3 = " + exp1._3 )
// println( "2 -- exp2._1 = " + exp2._1 + ", exp2._2 = " + exp2._2 + ", exp2._3 = " + exp2._3 )
localRelations += exp1
localRelations += exp2
}
else if( judgeLeftRecursion( ex._1, ex._2, ex._3 ) == 3 ){
println( "error in the function eliminateLeftRecursion" )
}
}
else {
if( judgeLeftRecursion( ex._1, ex._2, ex._3 ) == 1 ) {
// P = ex._1, α = ex._2 - ex._1, β = ex._3, P' = newValue
invalidRelations += ( ( ex._1, ex._2, ex._3 ) )
val newValue = subString( usedCharacters, localCandidateLetters )(0)
if( VN1.contains(newValue) && !VN.contains(newValue) ) {
VN += newValue.toString
allCharacters += newValue.toString
}
if( VT1.contains(newValue) && !VT.contains(newValue) ) {
VT += newValue.toString
allCharacters += newValue.toString
}
usedCharacters += newValue
val α = ex._2.drop(1)
val exp1 = ( ex._1, newValue.toString, "א" )
val exp2 = ( newValue.toString, α.toString + newValue.toString, "ε" )
// println( "3 -- exp1._1 = " + exp1._1 + ", exp1._2 = " + exp1._2 + ", exp1._3 = " + exp1._3 )
// println( "3 -- exp2._1 = " + exp2._1 + ", exp2._2 = " + exp2._2 + ", exp2._3 = " + exp2._3 )
localRelations += exp1
localRelations += exp2
}
}
}
for( ex <- invalidRelations ) {
localRelations = localRelations.-(ex)
}
relations = localRelations
localRelations
}
/*
* Function name: subString
* Function description: 获取两输入字符串的差集（要求两者均非空）
* Input parameters: 无
* Return value: -String（两输入字符串的差集）
* Exception: 未处理
* Author: 来自高山
* Created date: Sat Oct 19 2019 +0800
* Editor: 来自高山
* Edited Date: Sat Oct 19 2019 +0800
*/
def subString( usedCharacters: String, localCandidateLetters: String ): String = {
require( usedCharacters.length != 0 && localCandidateLetters.length != 0 )
var ans = ""
var A = usedCharacters
var B = localCandidateLetters
if( A.length < B.length ) {
val tmp = A
A = B
B = tmp
}
for( i <- 0 to (A.length - 1) ) {
var j = 0
while( j < B.length && B(j) != A(i) ) {
j += 1
}
if( j == B.length ) {
ans += A(i)
}
}
ans
}
}
FileUtil class类（Java）：
import java.io.*;
import java.util.Vector;
/**
* 文件工具类
*/
public class FileUtil {
public static void main(String[] args) throws FileNotFoundException {
String s = readFile( new FileInputStream("/home/hadoop001/Desktop/test.data") );
System.out.println(s);
}
/**
* 读取文件内容
*
* @param is
* @return
*/
public static String readFile(InputStream is) {
BufferedReader br = null;
StringBuffer sb = new StringBuffer();
try {
br = new BufferedReader(new InputStreamReader(is, "UTF-8"));
String readLine = null;
while ((readLine = br.readLine()) != null) {
sb.append(readLine+"\r\n");
}
} catch (Exception e) {
e.printStackTrace();
} finally {
try {
br.close();
is.close();
} catch (IOException e) {
e.printStackTrace();
}
}
return sb.toString();
}
}
包pojo中的Analyse class类（Java）：
package pojo;
public class Analyse {
private String step;
private String analysisStack;
private String remainingString;
private String productionType;
private String action;
public Analyse(){
}
public Analyse(String step, String analysisStack, String remainingString, String productionType, String action) {
this.step = step;
this.analysisStack = analysisStack;
this.remainingString = remainingString;
this.productionType = productionType;
this.action = action;
}
public String getStep() {
return step;
}
public void setStep(String step) {
this.step = step;
}
public String getAnalysisStack() {
return analysisStack;
}
public void setAnalysisStack(String analysisStack) {
this.analysisStack = analysisStack;
}
public String getRemainingString() {
return remainingString;
}
public void setRemainingString(String remainingString) {
this.remainingString = remainingString;
}
public String getProductionType() {
return productionType;
}
public void setProductionType(String productionType) {
this.productionType = productionType;
}
public String getAction() {
return action;
}
public void setAction(String action) {
this.action = action;
}
}
程序截图：
github地址：
DAMO开发者矩阵，由阿里巴巴达摩院和中国互联网协会联合发起，致力于探讨最前沿的技术趋势与应用成果，搭建高质量的交流与分享平台，推动技术创新与产业应用链接，围绕“人工智能与新型计算”构建开放共享的开发者生态。
更多推荐
4
0- 0
已为社区贡献1条内容
所有评论(0)
